This product has reached end of life and has been replaced by CFAH1602LNFGJT

Product

Home » Products » Graphic LCD Displays » Interface » 8-bit Parallel

            This product has reached end of life. We suggest the CFAH1602L-NFG-JT as a possible replacement.

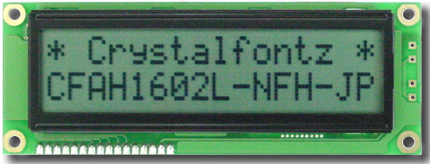

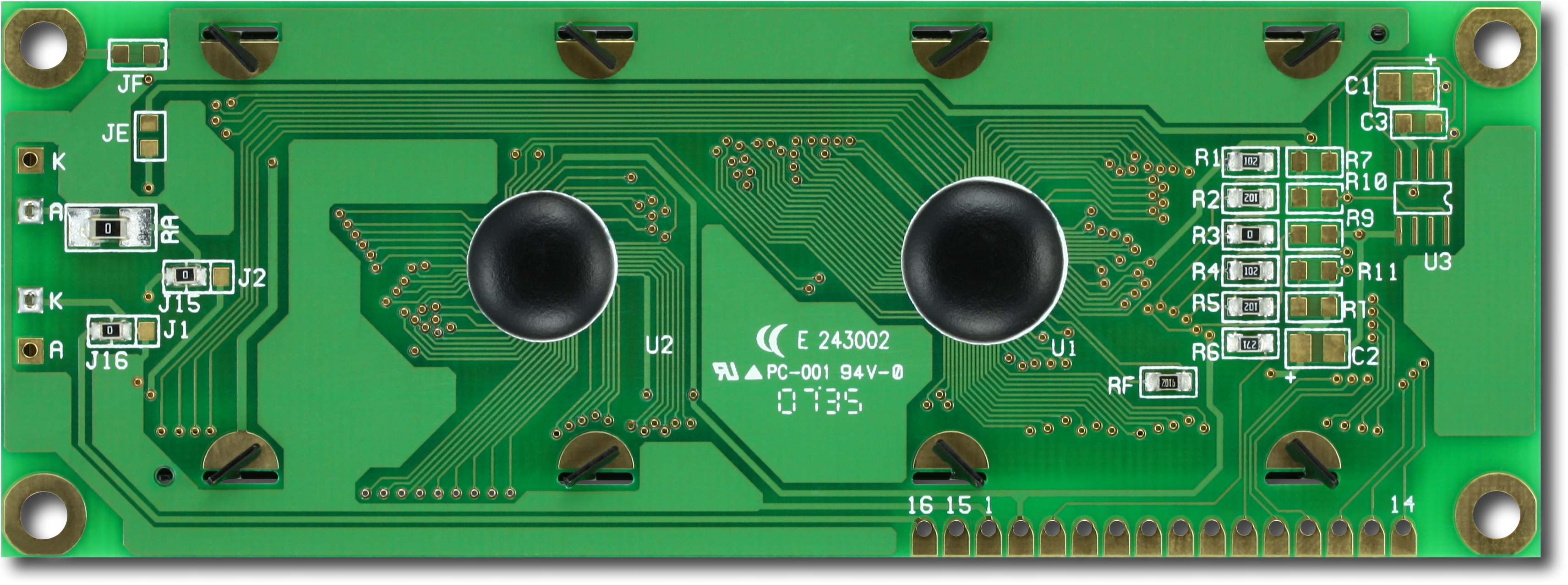

16x2 LCD (EOL)Part Number: CFAH1602L-NFH-JTParallel Character LCD 16x2, RoHS Compliant, No Backlight, FSTN Positive, Transflective -20°C to +70°C 6:00
Available in several variations of backlight and polarizer  (minimum order may be required)
Large Characters
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2

    Module Overall        width
        height
        depth

        millimeters
        122
        44
        9.3

        inches
        4.80
        1.73
        0.37

    PCB Outline        width
        height
        depth

        millimeters
        122
        44
        13.6

        inches
        4.80
        1.73
        0.54

    Viewing Area        Width
        Height

        millimeters
        99
        24

        inches
        3.90
        0.95

    Active Area        Width
        Height

        millimeters
        94.84
        20

        inches
        3.73
        0.79

    Character Size        Width
        Height

        millimeters
        4.84
        8.06

        inches
        0.191
        0.317

    Character Pitch        Width
        Height

        millimeters
        6
        10.34

        inches
        0.236
        0.407

    Dot Size        Width
        Height

        millimeters
        0.92
        1.1

        inches
        0.036
        0.043

    Dot Pitch        Width
        Height

        millimeters
        0.98
        1.16

        inches
        0.039
        0.046

        Weight
            49g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Type
            None
Mode
            Positive
Foreground Color
            Dark
Background Color
            Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1602LNFGJT Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAH1602L 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1602L 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	122	44	9.3
inches	4.80	1.73	0.37

PCB Outline	width	height	depth
millimeters	122	44	13.6
inches	4.80	1.73	0.54

Viewing Area	Width	Height
millimeters	99	24
inches	3.90	0.95

Active Area	Width	Height
millimeters	94.84	20
inches	3.73	0.79

Character Size	Width	Height
millimeters	4.84	8.06
inches	0.191	0.317

Character Pitch	Width	Height
millimeters	6	10.34
inches	0.236	0.407

Dot Size	Width	Height
millimeters	0.92	1.1
inches	0.036	0.043

Dot Pitch	Width	Height
millimeters	0.98	1.16
inches	0.039	0.046

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Product Update #10666: CFAH1602L-NFH-JT being replaced by CFAH1602L-NFG-JT

Products Affected:	CFAH1602L-NFH-JT, CFAH1602L-NFG-JT
Date Issued:	July 21, 2015
Summary:	CFAH1602L-NFH-JT being replaced by CFAH1602L-NFG-JT
Description:	The CFAH1602L-NFH-JT no longer available, and is being replaced by the CFAH1602L-NFG-JT to correctly identify the part as reflective.
Reason:	Due to a typing error, we have been selling the “CFAH1602L-NFG-JT” as a “CFAH1602L-NFH-JT”. This mistake has now been corrected. Changing the “H” to “G” indicates that this display module has a reflective polarizer, not a transflective polarizer. This display has always had a reflective polarizer. We apologize for any inconvenience this may cause.
Impact:	There is NO CHANGE to the part other than the part number.
Recommendation:	Order the CFAH1602L-NFG-JT as an exact replacement to the CFAH1602L-NFH-JT.
Availability:	CFAH1602L-NFH-JT is now shipping as CFAH1602L-NFG-JT.
Price Change:	There is no price change associated with the part number change.

Product Update #10578: CFAH1602L modules changing to black bezel

Products Affected:	CFAH1602L-TGH-JT, CFAH1602L-YYH-JT, CFAH1602L-NFH-JT
Date Issued:	December 18, 2013
Summary:	CFAH1602L modules changing to black bezel
Description:	The CFAH1602L family of character LCD modules has been manufactured with a silver bezel. Newly manufactured modules will now have a black painted bezel. This is a cosmetic change only.
Reason:	Reduced manufacturing costs.
Impact:	If bezel is exposed in design, the black will be visible. Exposed bezel is not a recommended design.
Recommendation:	Order a sample CFAH1602L with a new bezel to see if it effects manufacturability.
Availability:	Modules with new Black Bezel will start shipping with orders as soon as existing stock of silver bezel is exhausted. Change is effect 2013-12-17
Price Change:	There is no price change.

16x2 LCD (EOL)

Part Number: CFAH1602L-NFH-JT

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Product Update #10666: CFAH1602L-NFH-JT being replaced by CFAH1602L-NFG-JT

Product Update #10578: CFAH1602L modules changing to black bezel
