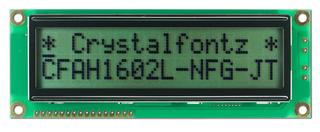

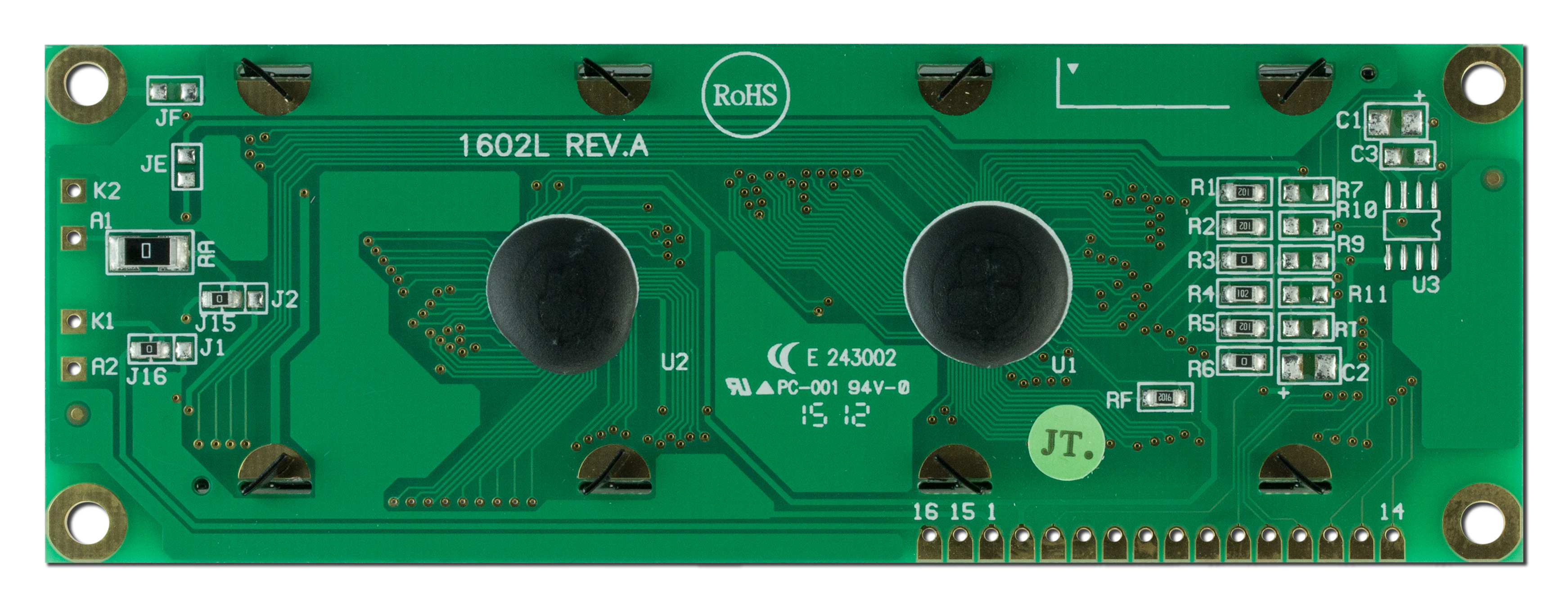

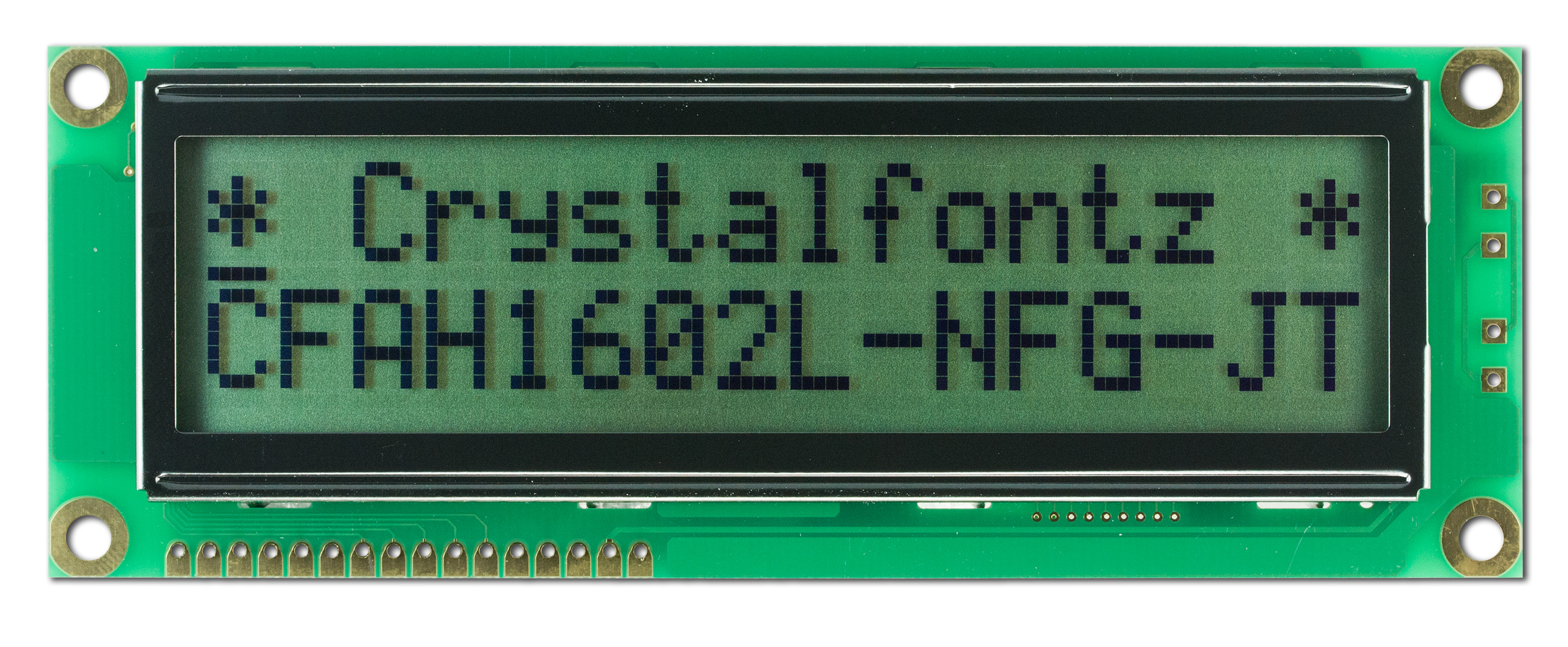

[EOL] Monochrome 16x2 Character LCD Sunlight ReadablePart Number: CFAH1602L-NFG-JT16x2 Parallel Character LCD
FSTN Positive Glass
Operating Temp range: -20°C to +70°C
No Backlight
Reflective /Sunlight Readable
6 o'clock viewing direction
Large Characters
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2

    Module Overall        width
        height
        depth

        millimeters
        122
        44
        9.3

        inches
        4.80
        1.73
        0.37

    PCB Outline        width
        height
        depth

        millimeters
        122
        44
        9.3

        inches
        4.80
        1.73
        0.37

        Diagonal Dimension
            3.79"

    Viewing Area        Width
        Height

        millimeters
        99
        24

        inches
        3.90
        0.95

    Active Area        Width
        Height

        millimeters
        94.2
        20

        inches
        3.71
        0.79

    Character Size        Width
        Height

        millimeters
        4.8
        8.06

        inches
        0.189
        0.317

    Character Pitch        Width
        Height

        millimeters
        5.96
        9.66

        inches
        0.235
        0.380

    Dot Size        Width
        Height

        millimeters
        0.92
        1.1

        inches
        0.036
        0.043

    Dot Pitch        Width
        Height

        millimeters
        0.97
        1.16

        inches
        0.038
        0.046

        Weight
            49g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Reflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Type
            None
Mode
            Positive
Foreground Color
            Dark
Background Color
            Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1602LNFGJT Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAH1602L 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1602L 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	122	44	9.3
inches	4.80	1.73	0.37

PCB Outline	width	height	depth
millimeters	122	44	9.3
inches	4.80	1.73	0.37

Viewing Area	Width	Height
millimeters	99	24
inches	3.90	0.95

Active Area	Width	Height
millimeters	94.2	20
inches	3.71	0.79

Character Size	Width	Height
millimeters	4.8	8.06
inches	0.189	0.317

Character Pitch	Width	Height
millimeters	5.96	9.66
inches	0.235	0.380

Dot Size	Width	Height
millimeters	0.92	1.1
inches	0.036	0.043

Dot Pitch	Width	Height
millimeters	0.97	1.16
inches	0.038	0.046

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Product Update #11039: End-of-Life Notification

Product Affected:	CFAH1602L-NFG-JT
Date Issued:	February 6, 2019
Summary:	End-of-Life Notification
Description:	The CFAH1602L-NFG-JT is being set to End-of-Life.
Reason:	The yearly sales are too low to satisfy the Minimum Order Quantity requirements from our partner factory.
Impact:	Future orders should consider using one of the other modules in the CFAHG1602L series.
Recommendation:	Customers should consider using other modules in the CFAH1602L series such as CFAH1602L-GGH-JT, CFAH1602L-TGH-JT, or CFAH1602L-YYH-JT. All of these modules will function in place of the CFAH1602L-NFG-JT if the backlight is not powered.
Availability:	This module will not be available once current stock is depleted.

Product Update #10666: CFAH1602L-NFH-JT being replaced by CFAH1602L-NFG-JT

Products Affected:	CFAH1602L-NFH-JT, CFAH1602L-NFG-JT
Date Issued:	July 21, 2015
Summary:	CFAH1602L-NFH-JT being replaced by CFAH1602L-NFG-JT
Description:	The CFAH1602L-NFH-JT no longer available, and is being replaced by the CFAH1602L-NFG-JT to correctly identify the part as reflective.
Reason:	Due to a typing error, we have been selling the “CFAH1602L-NFG-JT” as a “CFAH1602L-NFH-JT”. This mistake has now been corrected. Changing the “H” to “G” indicates that this display module has a reflective polarizer, not a transflective polarizer. This display has always had a reflective polarizer. We apologize for any inconvenience this may cause.
Impact:	There is NO CHANGE to the part other than the part number.
Recommendation:	Order the CFAH1602L-NFG-JT as an exact replacement to the CFAH1602L-NFH-JT.
Availability:	CFAH1602L-NFH-JT is now shipping as CFAH1602L-NFG-JT.
Price Change:	There is no price change associated with the part number change.

Product Update #10665: (New Product) CFAH1602LNFGJT

New Product:	CFAH1602L-NFG-JT
Date Issued:	July 21, 2015
Summary:	(New Product) CFAH1602LNFGJT
Description:	Standard Character Modules: 16 x 2 parallel character LCD,Dark characters on light gray background,Sunlight readable
