Green Sunlight Readable 16x2 Character LCD from Crystalfontz

Product

Home » Products » TFT LCD Displays » Resolution » 240x400

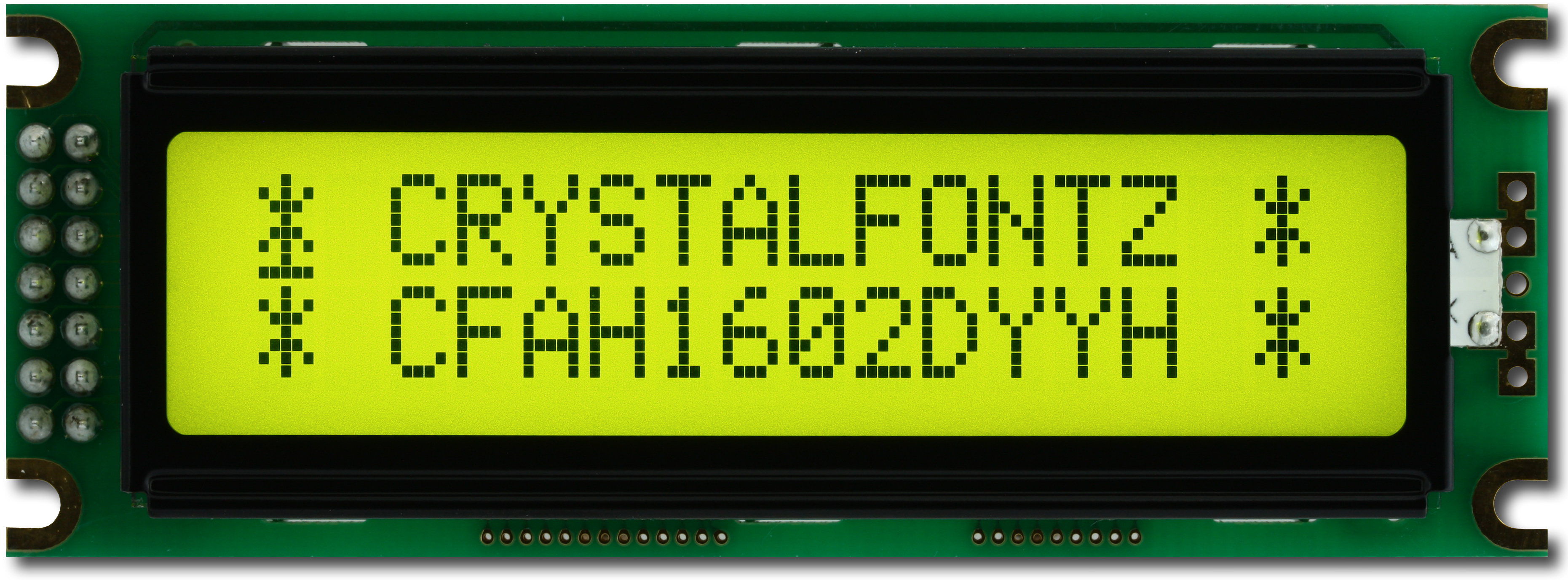

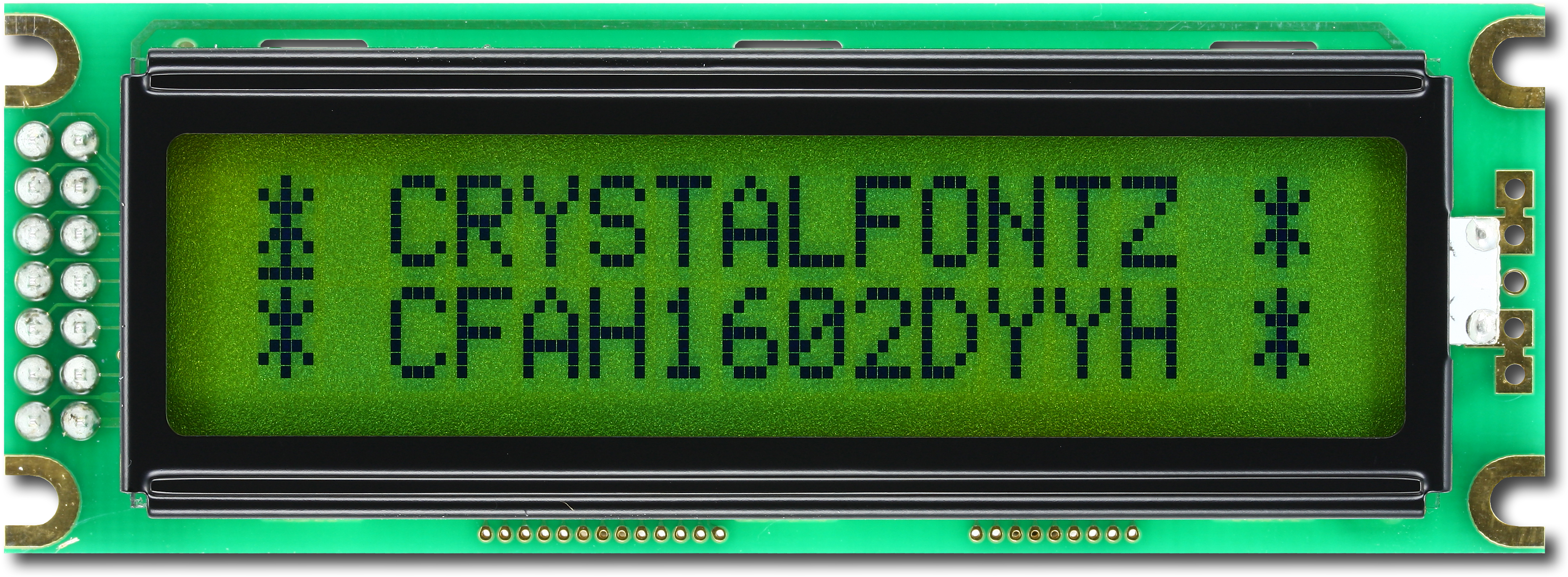

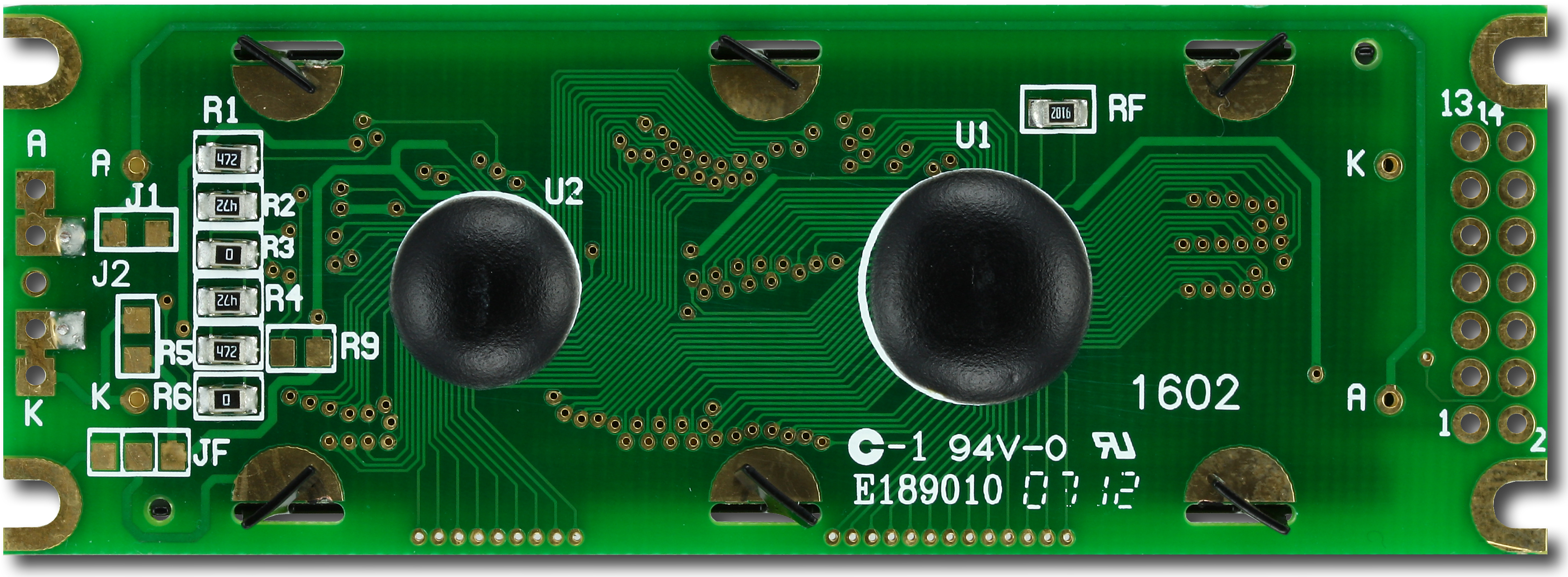

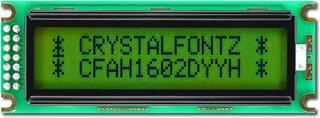

Green Sunlight Readable 16x2 Character LCDPart Number: CFAH1602D-YYH-ETBlack on yellow-green, sunlight readable 16x2 character LCD with an LED backlight.
Characters / Columns: 16x2
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Transflective
Controller: Sitronix ST7066U (HD44780 compatible)
Operating Temp: -20°C to +70°C
Interfaces: 4 & 8 bit parallel
Compliance: REACH & RoHS Compliant
Product VariationsColorsYellow-Green on Dark
Yellow-Green LED backlightDark on Yellow-Green
Yellow-Green LED backlightWhite on Blue
White LED backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2


    Module Overall        width
        height
        depth


        millimeters
        85
        30
        13.2


        inches
        3.35
        1.18
        0.52



    PCB Outline        width
        height
        depth


        millimeters
        85
        30
        13.2


        inches
        3.35
        1.18
        0.52



        Diagonal Dimension
            2.26"


    Viewing Area        Width
        Height


        millimeters
        66
        16


        inches
        2.60
        0.63



    Active Area        Width
        Height


        millimeters
        56.2
        11.5


        inches
        2.21
        0.45



    Character Size        Width
        Height


        millimeters
        2.95
        5.55


        inches
        0.116
        0.219



    Character Pitch        Width
        Height


        millimeters
        3.55
        5.95


        inches
        0.140
        0.234



    Dot Size        Width
        Height


        millimeters
        0.55
        0.65


        inches
        0.022
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.7


        inches
        0.024
        0.028



        Weight
            33g
Pin Count
            14

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1602DYYHET Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAH1602DYYHET v2.0.pdf
(Datasheet V 2.0, Hardware A)
picture_as_pdfCFAH1602DYYHET.pdf

 download Files and Downloads
folder_zip CAD Export - CFAH1602D 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1602D 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

















Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $9.45

            5
            $8.71

            10
            $7.68

            20 *
            $7.43

            50 *
            $7.16

            100 *
            $7.06

            200 *
            $7.02

            300 *
            $6.66

            500 *
            $6.61

            1000 *
            $6.11

17 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
