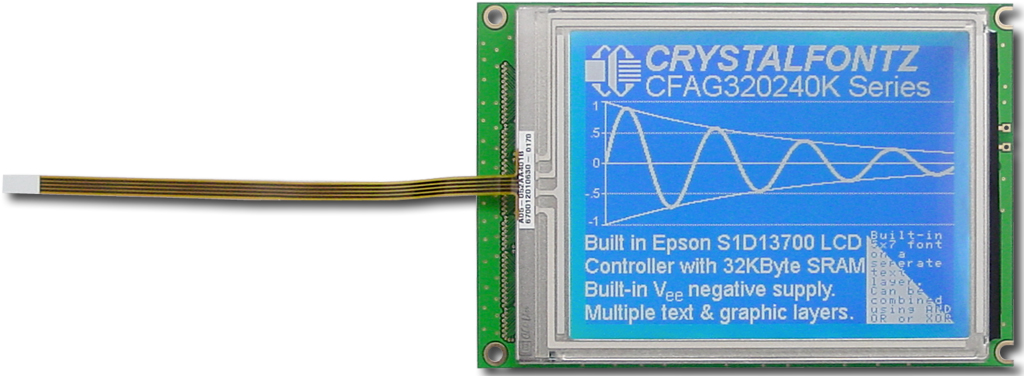

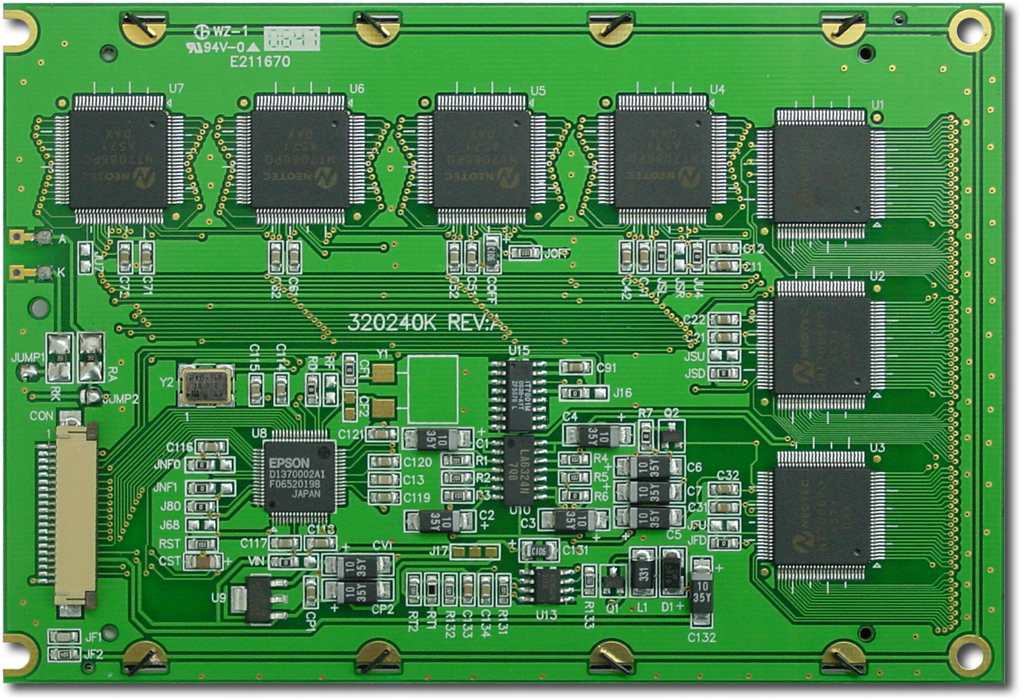

240x320 Resistive Touch Screen LCDPart Number: CFAG320240K-TMI-TZ-TSWhite on blue 320x240 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 320x240 pixels
Touchscreen: 4-wire resistive touch screen
Optics: 6:00 viewing direction
Backlight: White Edge LED
Glass: STN Negative, Transmissive
Controller: Epson S1D13700
Operating Temp: -20°C to +70°C
CGRAM: 40x30 text mode using built-in 5x7 Character Generator ROM
Compliance: REACH & RoHS Compliant
Product VariationsColorsWhite on Blue
White LED BacklightWhite on Dark
White LED Backlight
TouchscreenResistiveNoneNone

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            320 x 240


    Module Overall        width
        height
        depth


        millimeters
        142
        96
        14.44


        inches
        5.59
        3.78
        0.57



    PCB Outline        width
        height
        depth


        millimeters
        142
        96
        14.44


        inches
        5.59
        3.78
        0.57



        Diagonal Dimension
            4.72"


    Viewing Area        Width
        Height


        millimeters
        104
        79.3


        inches
        4.09
        3.12



    Active Area        Width
        Height


        millimeters
        95.97
        71.97


        inches
        3.78
        2.83



    Dot Size        Width
        Height


        millimeters
        0.27
        0.27


        inches
        0.011
        0.011



    Dot Pitch        Width
        Height


        millimeters
        0.3
        0.3


        inches
        0.012
        0.012



        Optional Connectors
            CS050Z24GA0


        Weight
            210.8g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            22.2V


        Supply Current Minimum
            45mA
Supply Current Maximum
            65mA
Supply Current Typical
            55mA
Module Connector Pitch
            1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            4.9V
Forward Voltage Maximum
            5.1V
Forward Voltage Typical
            5V


        Forward Current Minimum
            40mA
Forward Current Maximum
            160mA
Forward Current Typical
            128mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Epson S1D13700
Hardware Functional Specification


Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG320240KTMITZTS Datasheet

 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH









Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $140.31

            10 *
            $136.22

            20 *
            $128.20

            50 *
            $121.38

            100 *
            $112.64

            200 *
            $102.50

            500 *
            $89.30

            1000 *
            $85.32

3 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						24 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $0.97 ea.






						LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.





Colors	White on Blue White LED Backlight White on Dark White LED Backlight

Module Overall	width	height	depth
millimeters	142	96	14.44
inches	5.59	3.78	0.57

PCB Outline	width	height	depth
millimeters	142	96	14.44
inches	5.59	3.78	0.57

Viewing Area	Width	Height
millimeters	104	79.3
inches	4.09	3.12

Active Area	Width	Height
millimeters	95.97	71.97
inches	3.78	2.83

Dot Size	Width	Height
millimeters	0.27	0.27
inches	0.011	0.011

Dot Pitch	Width	Height
millimeters	0.3	0.3
inches	0.012	0.012

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$140.31
10 *	$136.22
20 *	$128.20
50 *	$121.38
100 *	$112.64
200 *	$102.50
500 *	$89.30
1000 *	$85.32

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10533: (New Product) CFAG320240K-TMI-TZTS

New Product:	CFAG320240K-TMI-TZ-TS
Date Issued:	September 11, 2013
Summary:	(New Product) CFAG320240K-TMI-TZTS
Description:	Standard Graphic Modules: 320x240 Graphic LCD, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00
