                This product has reached end of life

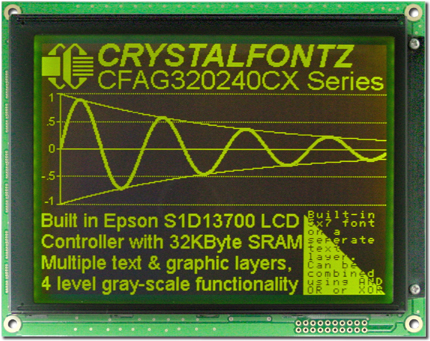

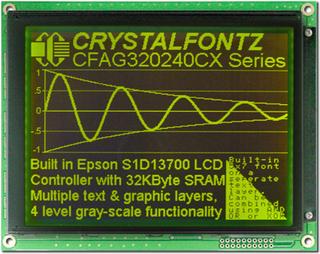

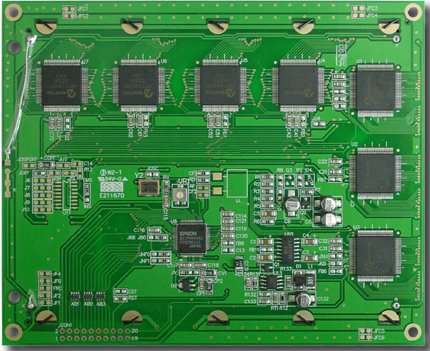

EOL 320x240 Dark Graphic LCDPart Number: CFAG320240CX-YMI-TYellow-green 320x240 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 320x240 pixels
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Negative, Transmissive
Controller: Epson S1D13700
Operating Temp: -20°C to +70°C
Compliance: REACH & RoHS Compliant
An Arduino library can be found here: CFAG320240CX Arduino Library.

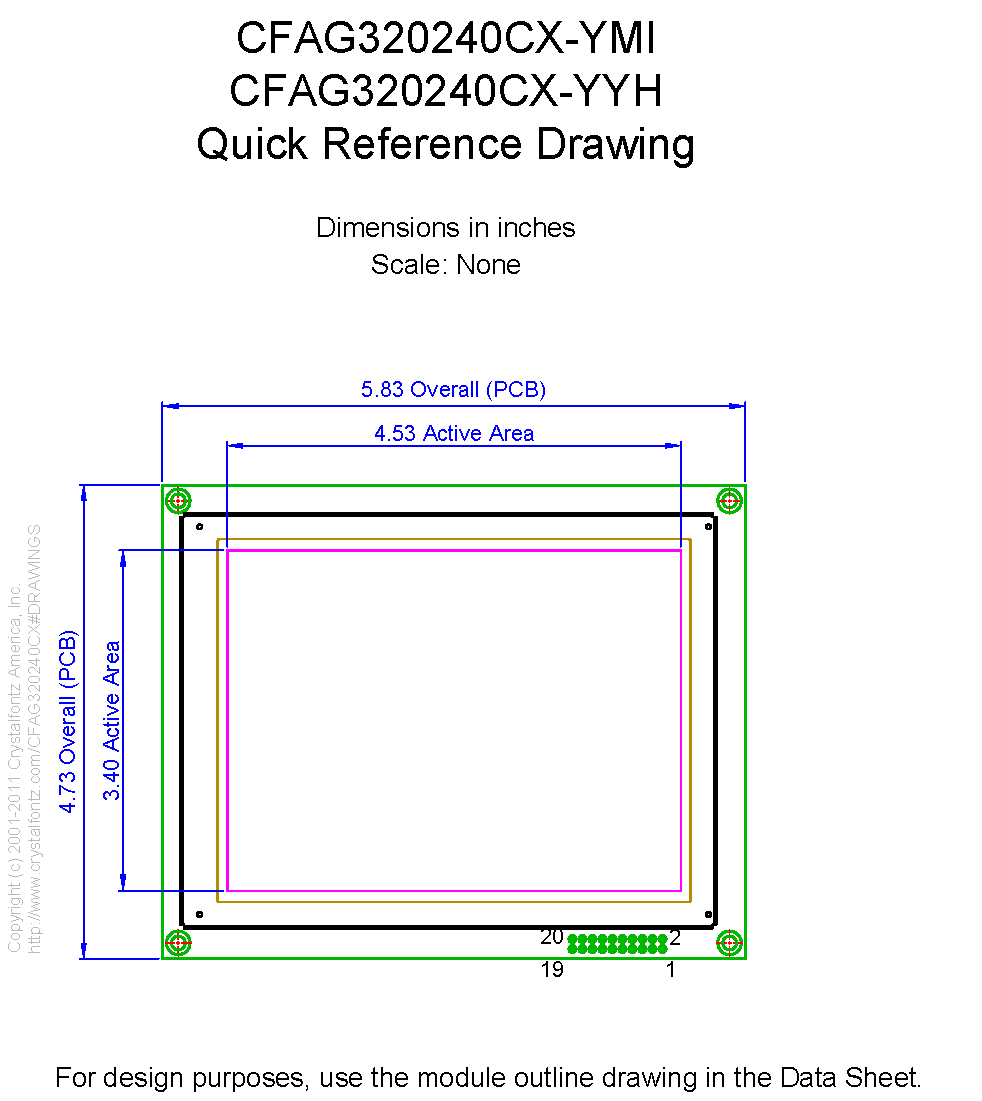

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            320 x 240


    Module Overall        width
        height
        depth


        millimeters
        148.02
        120.24
        15.6


        inches
        5.83
        4.73
        0.61



    PCB Outline        width
        height
        depth


        millimeters
        148.02
        120.24
        15.6


        inches
        5.83
        4.73
        0.61



        Diagonal Dimension
            5.67"


    Viewing Area        Width
        Height


        millimeters
        120.14
        92.14


        inches
        4.73
        3.63



    Active Area        Width
        Height


        millimeters
        115.18
        86.38


        inches
        4.54
        3.40



    Dot Size        Width
        Height


        millimeters
        0.34
        0.34


        inches
        0.013
        0.013



    Dot Pitch        Width
        Height


        millimeters
        0.36
        0.36


        inches
        0.014
        0.014



        Weight
            235g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Negative
Foreground Color
            Yellow
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            23.6V


        Supply Current Minimum
            65mA
Supply Current Maximum
            85mA
Supply Current Typical
            75mA
Module Connector Pitch
            0.1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Maximum
            4.5V
Forward Voltage Typical
            4.2V
Forward Current Minimum
            162mA


        Forward Current Maximum
            216mA
Forward Current Typical
            180mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Epson S1D13700
Hardware Functional Specification


Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG320240CXYMIT Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAG320240CX-YMI-T v1.0.pdf

 download Files and Downloads
folder_zip Software Source - 6800 ATMega2561
Demo Code
folder_zip Software Source - Arduino Demo Code
folder_zip CAD Export - CFAG320240CX-YMI-YYH 2D CAD
picture_as_pdf 1 to 1 Template - CFAG320240CX-YMI-YYH 1 TO 1.PDF
















Module Overall	width	height	depth
millimeters	148.02	120.24	15.6
inches	5.83	4.73	0.61

PCB Outline	width	height	depth
millimeters	148.02	120.24	15.6
inches	5.83	4.73	0.61

Viewing Area	Width	Height
millimeters	120.14	92.14
inches	4.73	3.63

Active Area	Width	Height
millimeters	115.18	86.38
inches	4.54	3.40

Dot Size	Width	Height
millimeters	0.34	0.34
inches	0.013	0.013

Dot Pitch	Width	Height
millimeters	0.36	0.36
inches	0.014	0.014

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11041: End-of-Life Notification for CFAG320240CX-YMI-T

Product Affected:	CFAG320240CX-YMI-T
Date Issued:	March 29, 2019
Summary:	End-of-Life Notification for CFAG320240CX-YMI-T
Description:	The part listed is being set to End of Life
Reason:	Critical components for this display are no longer available.
Impact:	This part cannot be ordered. There are other displays in this series that can be substituted.
Recommendation:	Customers using this part should consider another display in this product series.
Availability:	None
