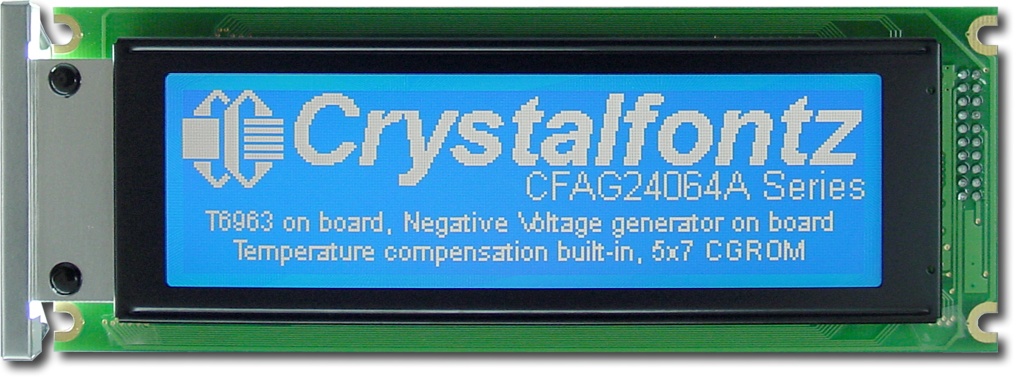

[EOL] 240x64 Parallel Graphic LCDPart Number: CFAG24064A-FMI-TZ240x64 Graphic LCD, RoHS Compliant, White CCFL Backlight, Negative Blue STN LCD, Transflective -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator, Temperature Compensation.

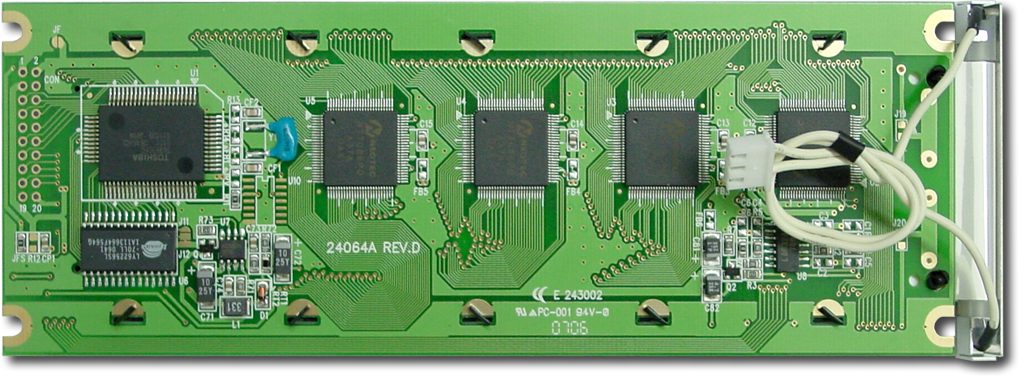

240x64 graphic LCD module
Built-in Toshiba T6963C or compatible controller
240x64 graphic mode --or-- 40 x 8 text mode using built-in 5x7 Character Generator ROM
Available in several variations of backlight and polarizer  (minimum order may be required)

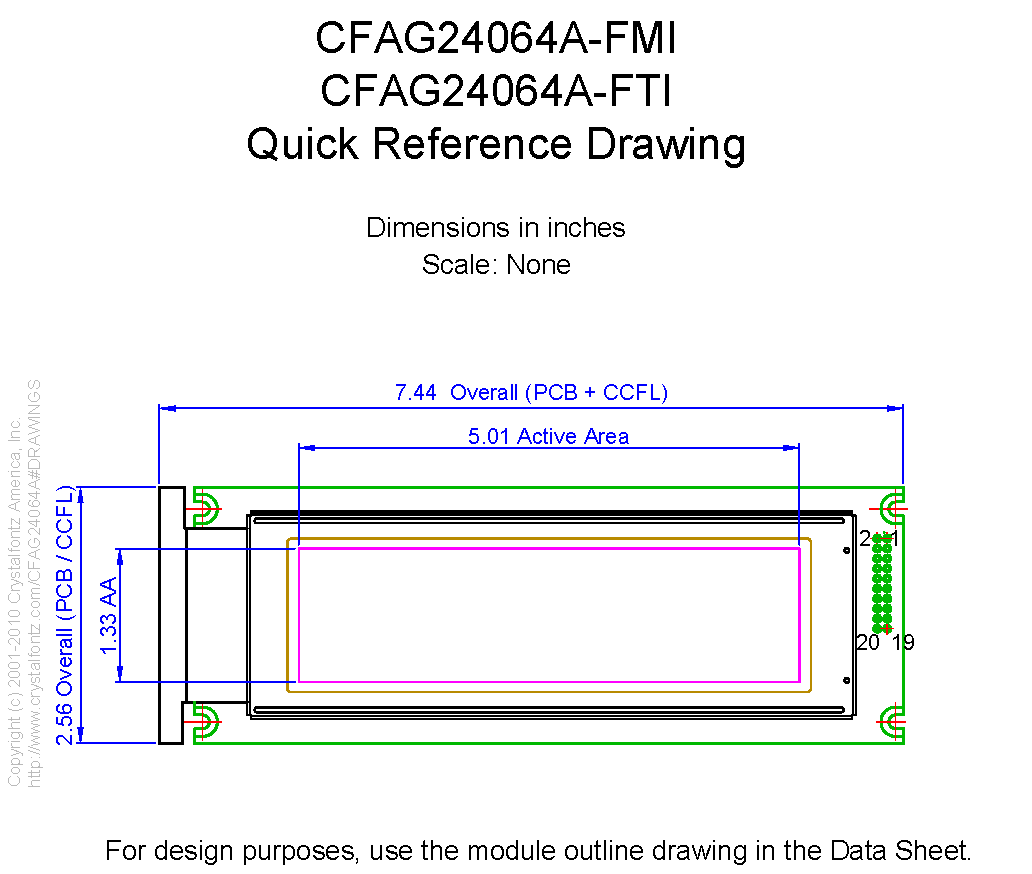

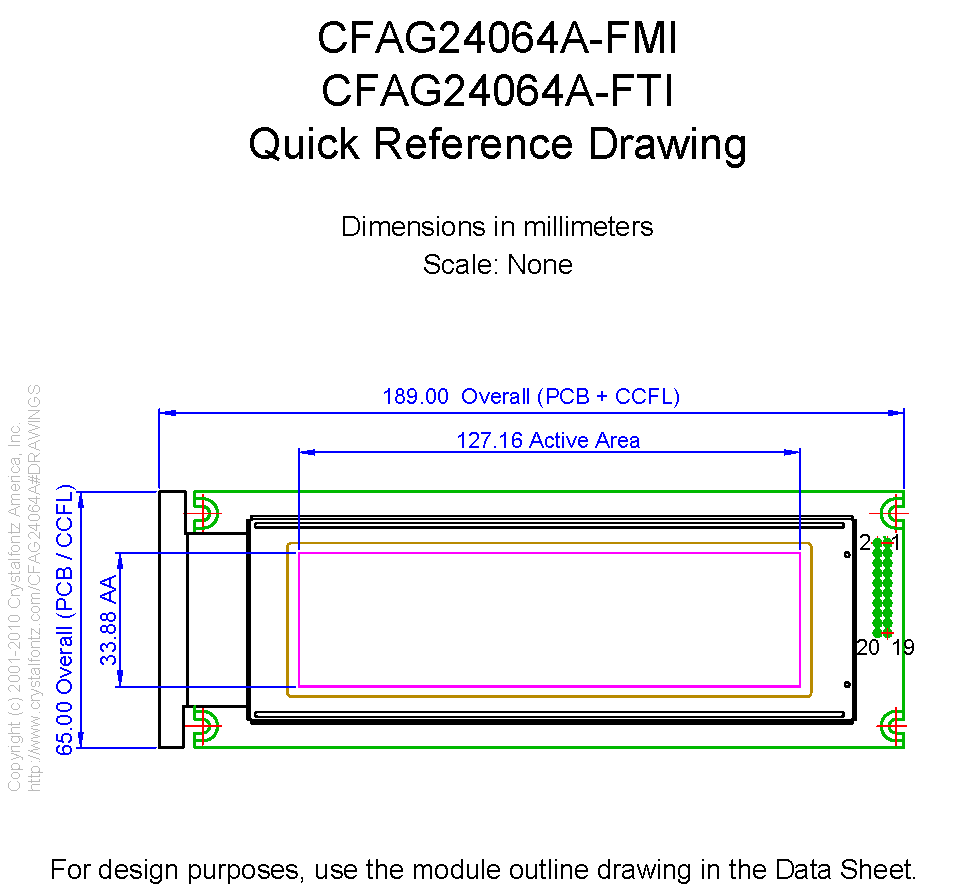

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 64

    Module Overall        width
        height
        depth

        millimeters
        189
        65
        13.8

        inches
        7.44
        2.56
        0.54

    PCB Outline        width
        height
        depth

        millimeters
        180
        65
        13.8

        inches
        7.09
        2.56
        0.54

    Viewing Area        Width
        Height

        millimeters
        133
        39

        inches
        5.24
        1.54

    Active Area        Width
        Height

        millimeters
        127.16
        33.88

        inches
        5.01
        1.33

    Dot Size        Width
        Height

        millimeters
        0.49
        0.49

        inches
        0.019
        0.019

    Dot Pitch        Width
        Height

        millimeters
        0.53
        0.53

        inches
        0.021
        0.021

        Weight
            162g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            CCFL
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG24064AFMITZ Preliminary Data Sheet.pdf

 download Files and Downloads
folder_zip Software Source - Example code - ATMEGA2561
folder_zip CAD Export - CFAG24064A-FMI-FTI 2D CAD.ZIP
picture_as_pdf 1 to 1 Template - CFAG24064A-FMI-FTI 1 TO 1 LF
picture_as_pdf 1 to 1 Template - CFAG24064A-FMI-FTI 1 TO 1 RT
