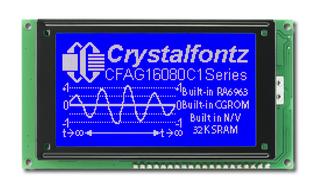

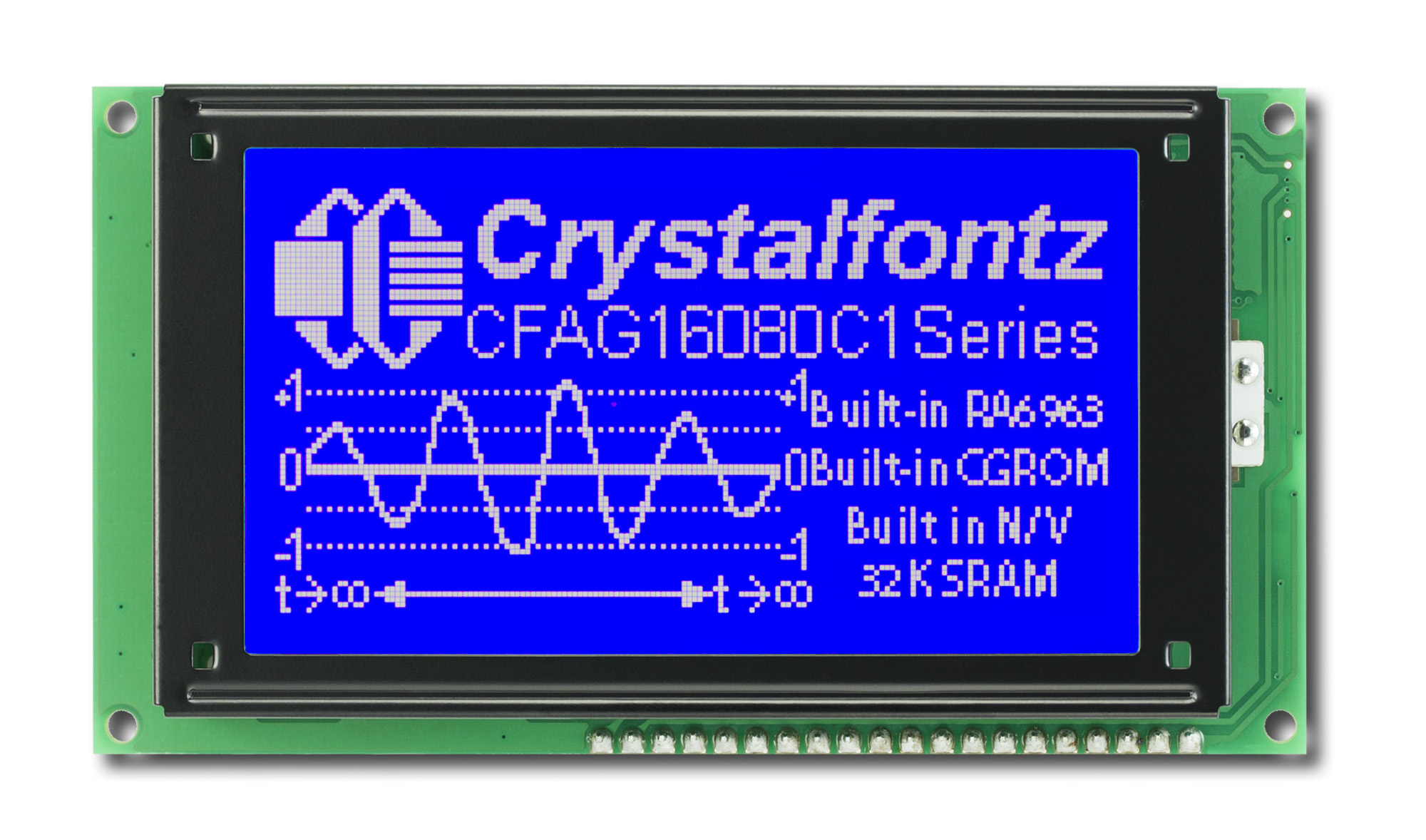

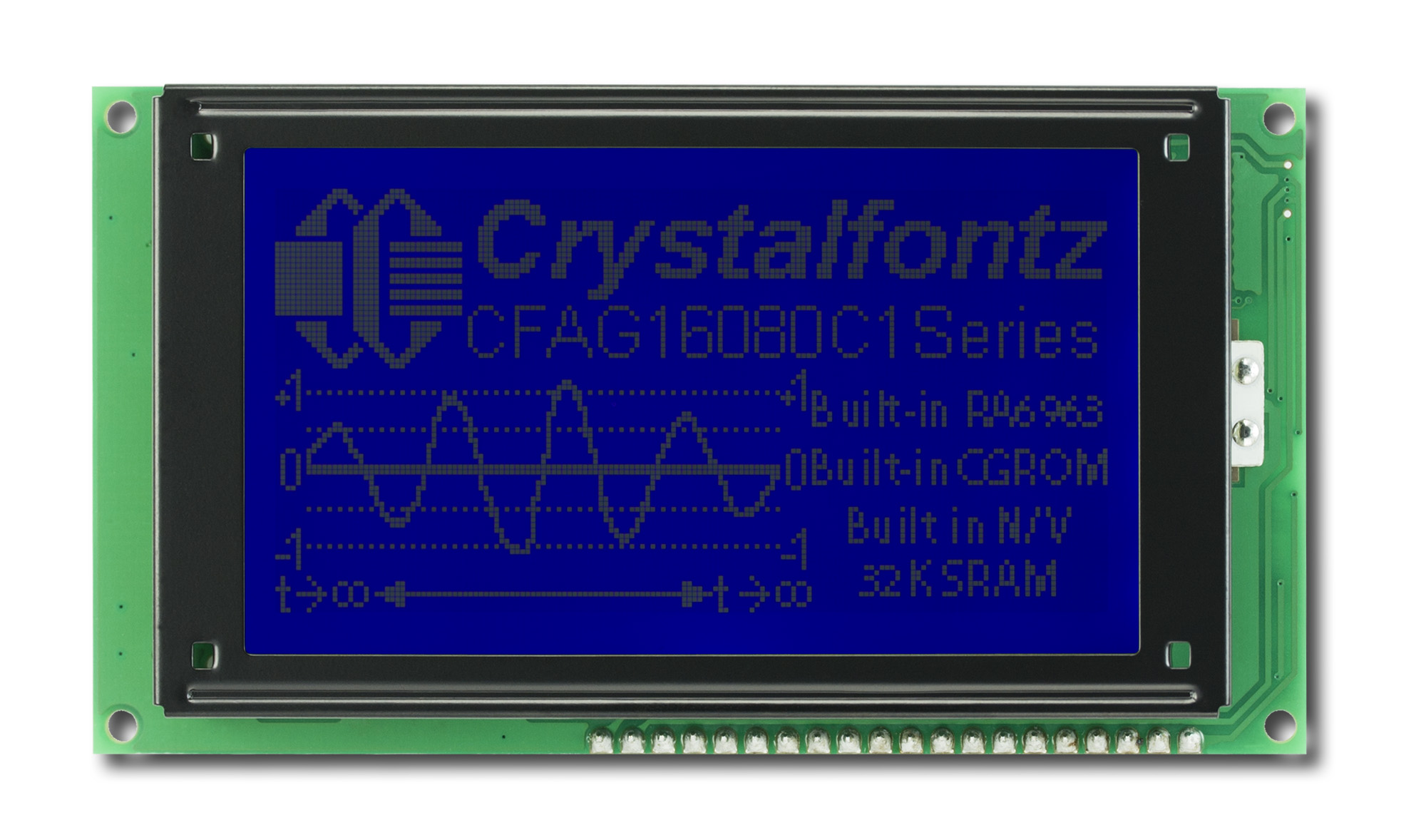

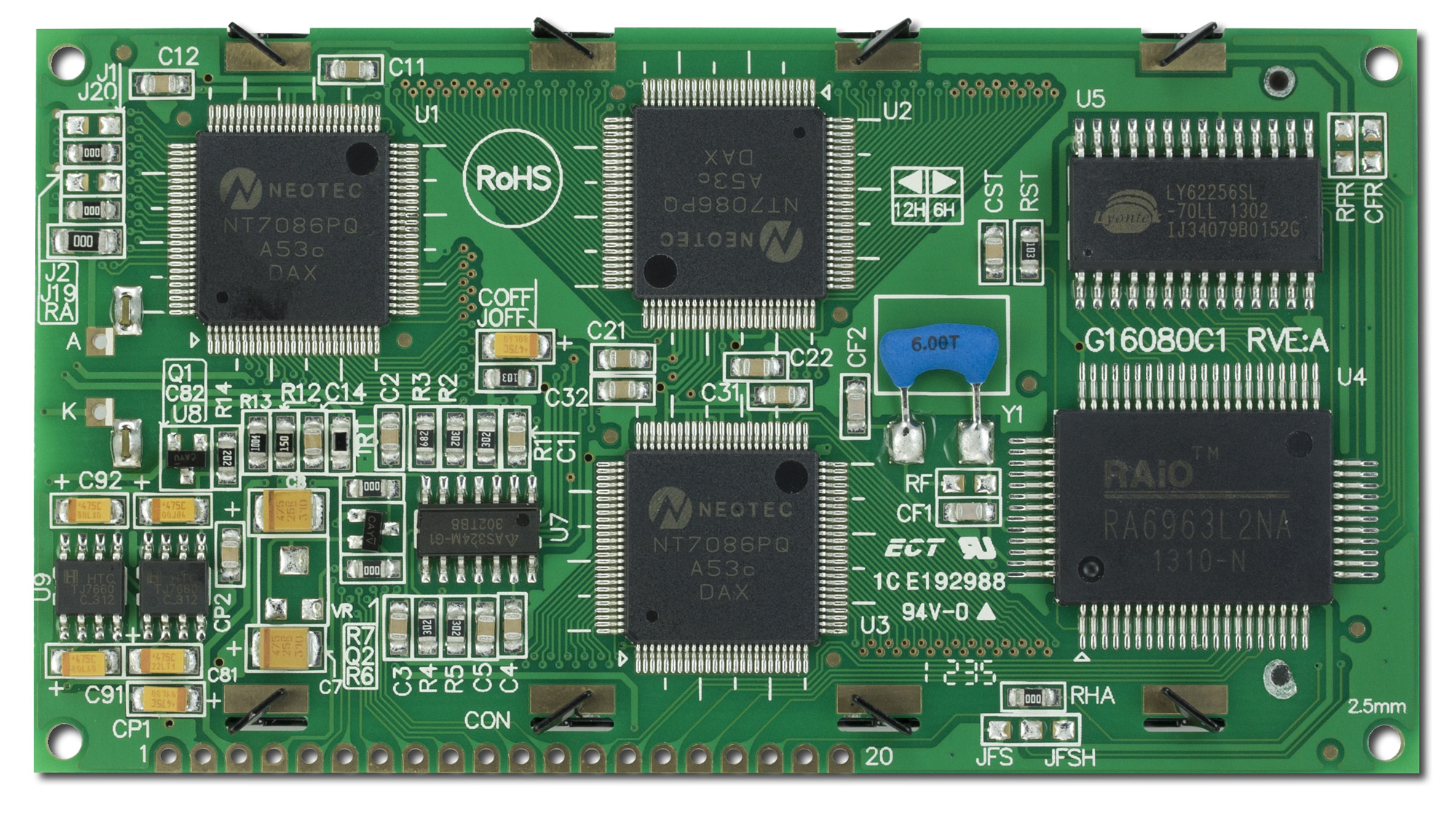

Blue 160x80 Parallel Graphic LCDPart Number: CFAG16080C1-TMI-TZ160x80 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 160x80 pixels
Optics: 6:00 viewing direction
Backlight: White LED
Glass: STN Negative, Transmissive
Controller: RAiO RA6963 (T6963C Compatible)
Operating Temp:  -20°C to +70°C
Compliance: REACH & RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED BacklightDark on Light Gray
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            160 x 80


    Module Overall        width
        height
        depth


        millimeters
        100
        54
        14.6


        inches
        3.94
        2.13
        0.58



    PCB Outline        width
        height
        depth


        millimeters
        100
        54
        14.6


        inches
        3.94
        2.13
        0.58



        Diagonal Dimension
            2.96"


    Viewing Area        Width
        Height


        millimeters
        72
        40


        inches
        2.84
        1.58



    Active Area        Width
        Height


        millimeters
        67.17
        33.57


        inches
        2.64
        1.32



    Dot Size        Width
        Height


        millimeters
        0.39
        0.39


        inches
        0.015
        0.015



    Dot Pitch        Width
        Height


        millimeters
        0.42
        0.42


        inches
        0.017
        0.017



        Weight
            81.9g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            5.5V
Supply Current Minimum
            13.8mA


        Supply Current Maximum
            16mA
Supply Current Typical
            14.2mA
Module Connector Pitch
            2.54mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            20mA
Forward Current Maximum
            80mA
Forward Current Typical
            64mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG16080C1TMITZ Datasheet

 download Files and Downloads
folder_zip Software Source - ATMega2561 8-bit Demo code
folder_zip Hardware Design - 3D Model
link RA6963 Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH












Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $51.93

            5
            $47.83

            10 *
            $42.23

            20 *
            $40.80

            50 *
            $39.38

            100 *
            $38.80

            200 *
            $38.51

            300 *
            $36.55

            500 *
            $36.27

            1000 *
            $33.50

10 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.





Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight Dark on Light Gray White LED Backlight

Module Overall	width	height	depth
millimeters	100	54	14.6
inches	3.94	2.13	0.58

PCB Outline	width	height	depth
millimeters	100	54	14.6
inches	3.94	2.13	0.58

Viewing Area	Width	Height
millimeters	72	40
inches	2.84	1.58

Active Area	Width	Height
millimeters	67.17	33.57
inches	2.64	1.32

Dot Size	Width	Height
millimeters	0.39	0.39
inches	0.015	0.015

Dot Pitch	Width	Height
millimeters	0.42	0.42
inches	0.017	0.017

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$51.93
5	$47.83
10 *	$42.23
20 *	$40.80
50 *	$39.38
100 *	$38.80
200 *	$38.51
300 *	$36.55
500 *	$36.27
1000 *	$33.50

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10601: (New Product) CFAG16080C1-TMI-TZ

New Product:	CFAG16080C1-TMI-TZ
Date Issued:	July 1, 2014
Summary:	(New Product) CFAG16080C1-TMI-TZ
Description:	Standard Graphic Modules: 160x80 Graphic LCD, RoHS, White LED Backlight, FSTN Positive, Transflective -20°C to +70°C 6:00
