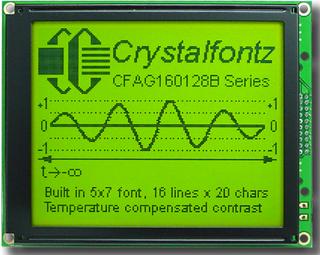

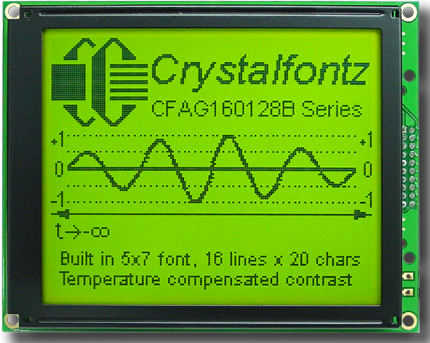

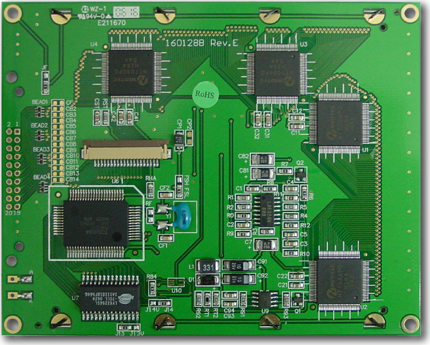

Sunlight Readable 160x128 Graphic LCDPart Number: CFAG160128B-YYH-TZSunlight readable 160x128 graphic LCD with temperature compensation and negative voltage generator
Resolution: 160x128 pixels
Optics: 6:00 viewing direction

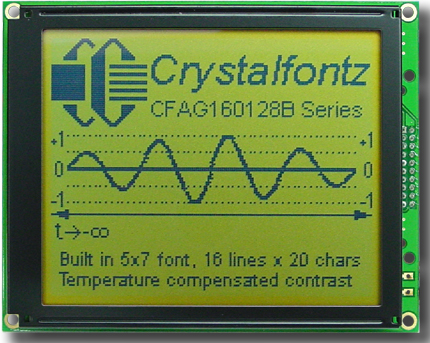

Backlight: Yellow-green LED
Glass: STN Positive, Transflective
Controller: RAiO Technology RA6963 (Toshiba T6963C Compatible)
Character Generator: 128-word CG(Character Generator)
ROM for ASCII, Japanese or numeric display in text mode
Operating Temp:  -20°C to +70°C
Compliance: REACH & RoHS Compliant
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            160 x 128

    Module Overall        width
        height
        depth

        millimeters
        129
        102
        16.5

        inches
        5.08
        4.02
        0.65

    PCB Outline        width
        height
        depth

        millimeters
        129
        102
        16.5

        inches
        5.08
        4.02
        0.65

        Diagonal Dimension
            4.84"

    Viewing Area        Width
        Height

        millimeters
        101
        82

        inches
        3.98
        3.23

    Active Area        Width
        Height

        millimeters
        95.96
        76.76

        inches
        3.78
        3.02

    Dot Size        Width
        Height

        millimeters
        0.56
        0.56

        inches
        0.022
        0.022

    Dot Pitch        Width
        Height

        millimeters
        0.6
        0.6

        inches
        0.024
        0.024

        Weight
            188g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG160128BYYHTZ Datasheet

 download Files and Downloads
folder_zip Software Source - Example code - ATMEGA2561 8 bit parallel interface
folder_zip CAD Export - CFAG160128B 2D CAD

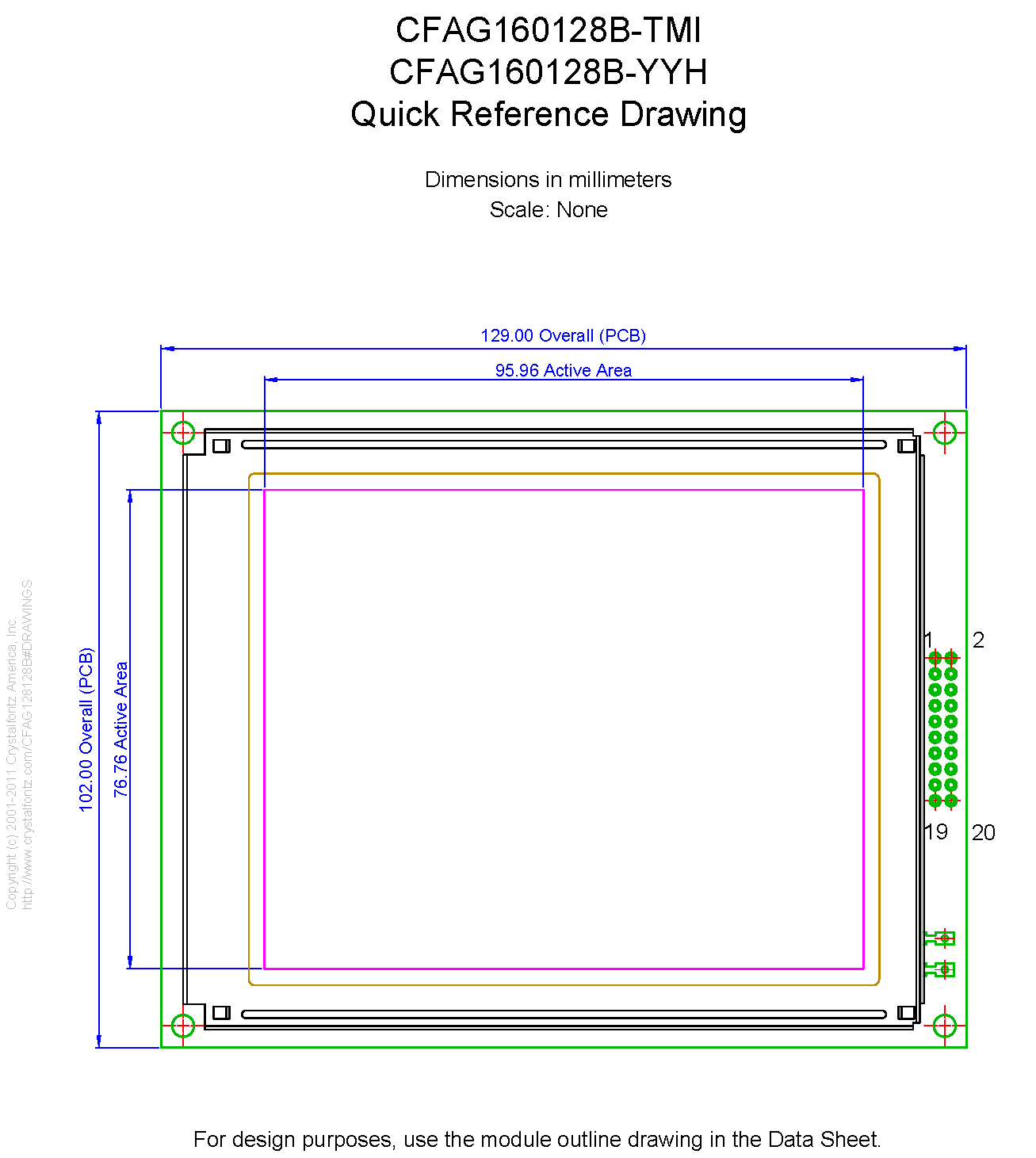

picture_as_pdf 1 to 1 Template - CFAG160128B-TMI-YYH 1 TO 1 .PDF
link RA6963 Demo Code Repository on Github

Other components worth considering

						LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.

Module Overall	width	height	depth
millimeters	129	102	16.5
inches	5.08	4.02	0.65

PCB Outline	width	height	depth
millimeters	129	102	16.5
inches	5.08	4.02	0.65

Viewing Area	Width	Height
millimeters	101	82
inches	3.98	3.23

Active Area	Width	Height
millimeters	95.96	76.76
inches	3.78	3.02

Dot Size	Width	Height
millimeters	0.56	0.56
inches	0.022	0.022

Dot Pitch	Width	Height
millimeters	0.6	0.6
inches	0.024	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11096: End-Of-Life Notification

Products Affected:	CFAG160128B-YYH-TZ, CFAG160128B-TMI-TZ, CFAG128128A-TMI-TZ, CFAG128128A-YYH-TZ, CFAG12864D-YYH-TZ, CFAG12864G-TMI-TY, CFAG12864G-YYH-TY, CFAG128128I-TFH-VZ, CFAG128128I-TMI-VZ, CFAG128128I-YYH-VZ
Date Issued:	July 30, 2021
Summary:	End-Of-Life Notification
Description:	The current display controller is going EOL and being replaced by RA6963-N1. The replacement parts will be posted on the product web page of the original part.
Reason:	The controller RA6963-N has gone EOL.
