160x128 Sunlight Readable Graphic LCD DisplayPart Number: CFAG160128B1-YYH-TZ

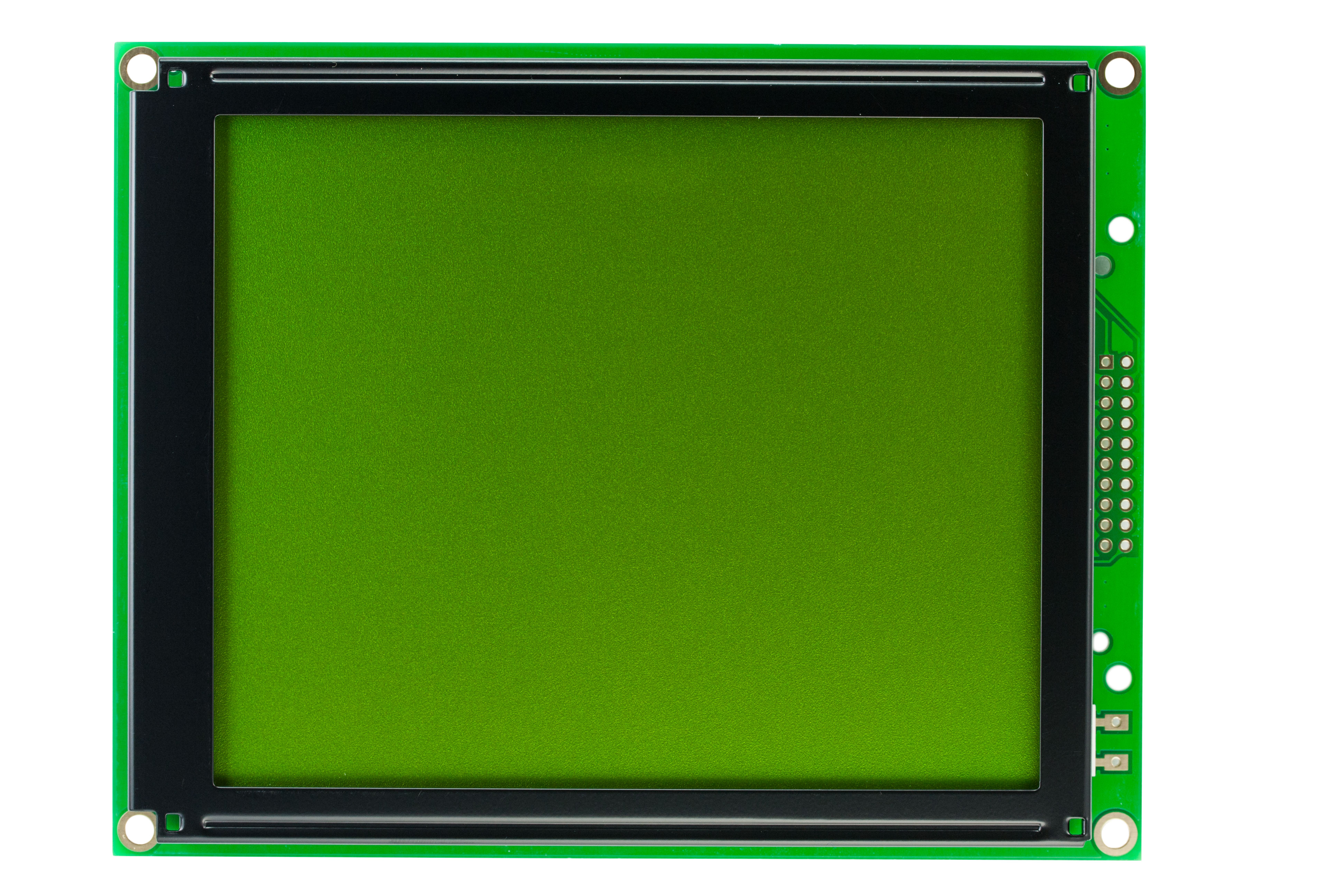

         This 160x128 graphic LCD is sunlight readable and includes both in-built temperature compensation and a negative voltage generator for optimizing contrast.

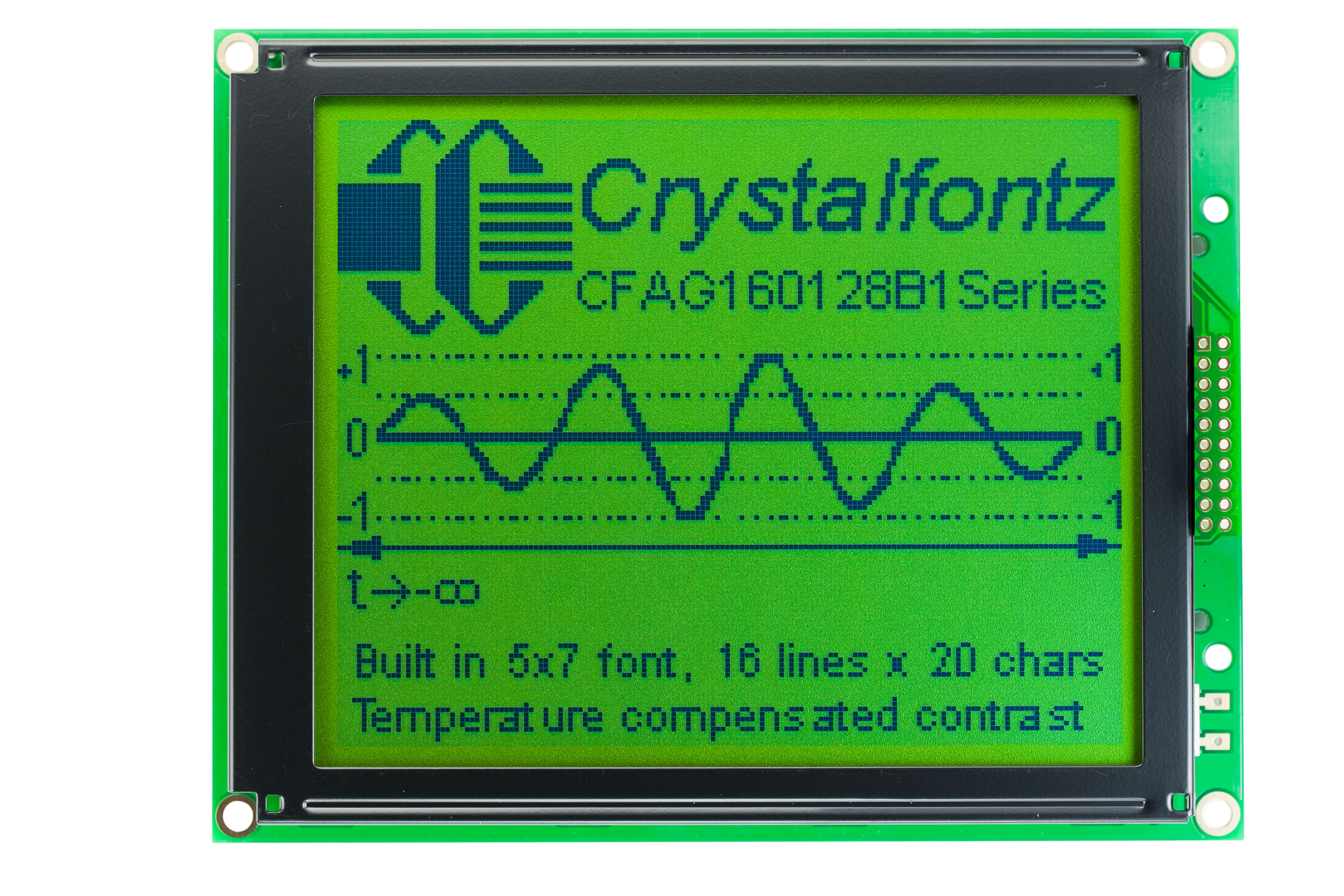

Having trouble deciding between a character display and a graphic display? This display is the best of both worlds - the built-in CGROM (character generator ROM) includes ASCII characters and Japanese characters. The font is 5x7 which allows 16 lines each with 20 characters.

Part Number
CFA - Crystalfontz America
G - Graphic LCD
160128 - 160x128 pixel resolution
B1 - Family and revision (replaces CFAG160128B-YYH-TZ)
Y - Yellow-Green LED backlight
Y - STN Positive, Yellow Green
H - Transflective, 6:00 viewing angle
T - Built-in negative voltage and temperature compensation

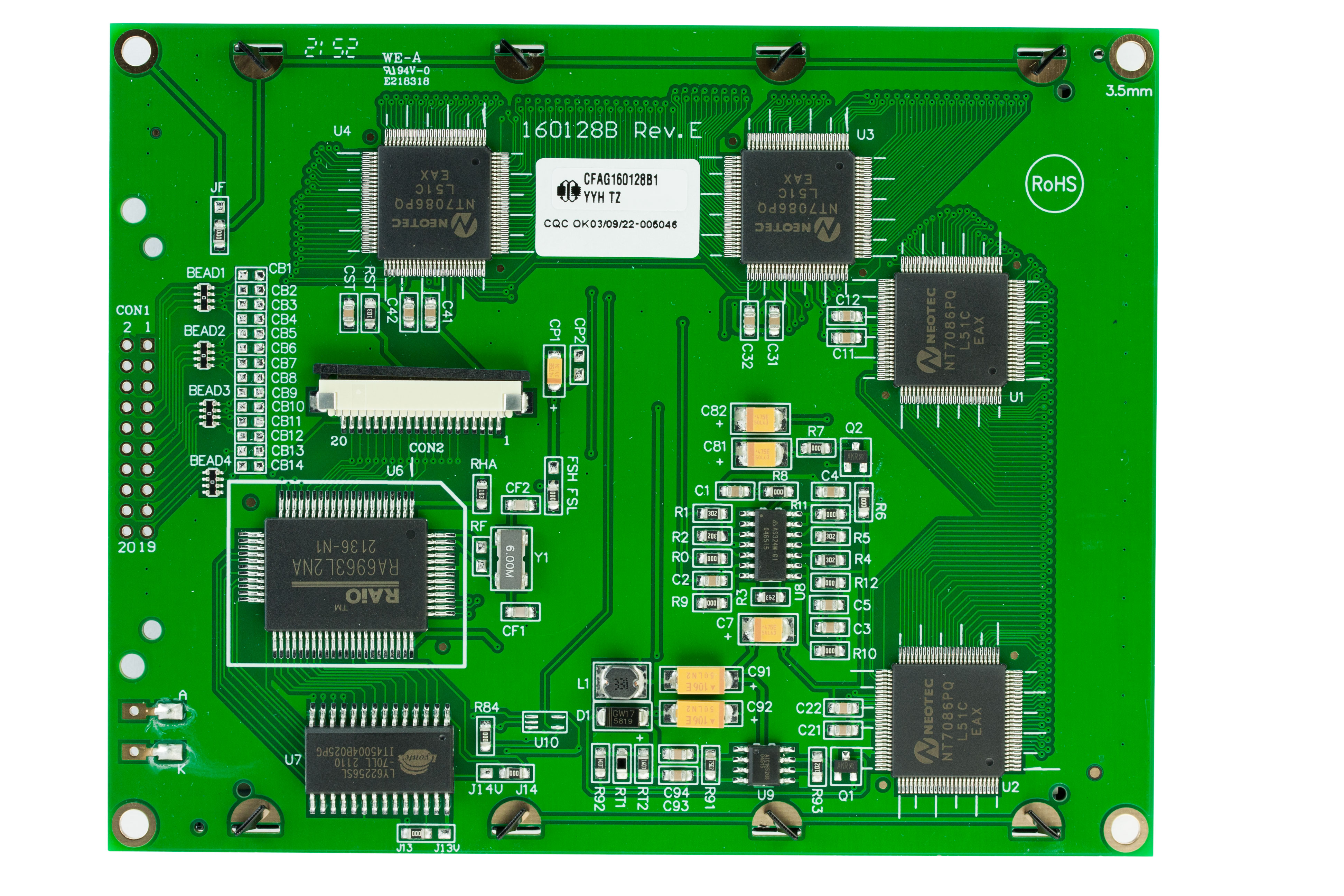

Z - RA6963 Controller
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            160 x 128

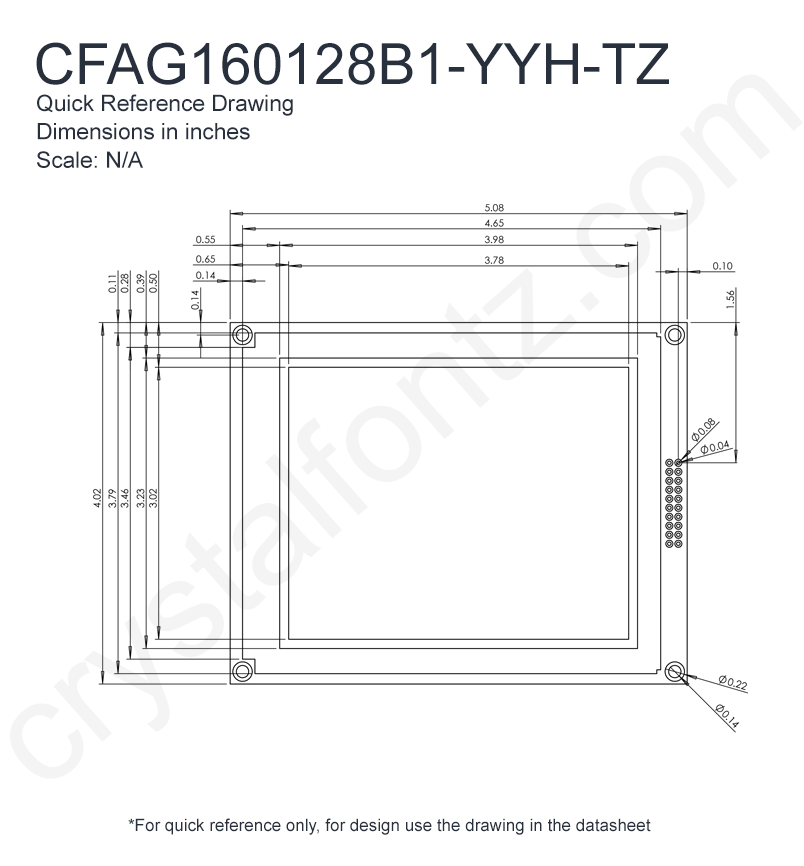

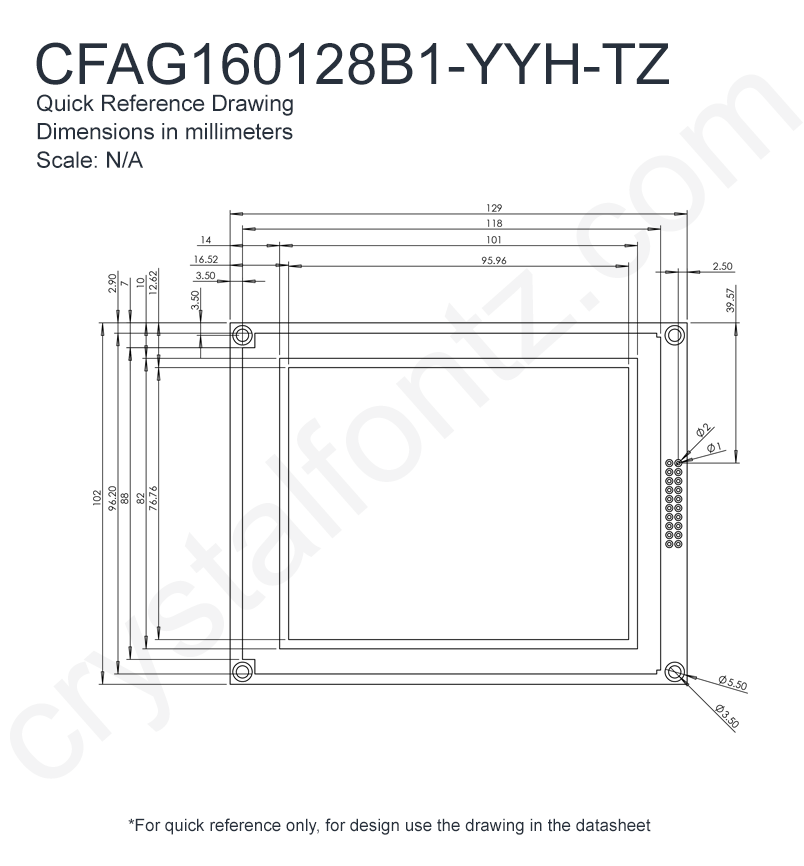

    Module Overall        width
        height
        depth

        millimeters
        129
        102
        16.5

        inches
        5.08
        4.02
        0.65

    PCB Outline        width
        height
        depth

        millimeters
        129
        102
        16.5

        inches
        5.08
        4.02
        0.65

        Diagonal Dimension
            4.84"

    Viewing Area        Width
        Height

        millimeters
        101
        82

        inches
        3.98
        3.23

    Active Area        Width
        Height

        millimeters
        95.96
        76.76

        inches
        3.78
        3.02

    Dot Size        Width
        Height

        millimeters
        0.56
        0.56

        inches
        0.022
        0.022

    Dot Pitch        Width
        Height

        millimeters
        0.6
        0.6

        inches
        0.024
        0.024

        Weight
            173g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            2.54mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG160128B1-YYH-TZ Datasheet

 download Files and Downloads
folder_zip Hardware Design - 3D Model
link RA6963 Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $89.32

            5
            $82.06

            10
            $72.62

            20
            $70.16

            50 *
            $67.71

            100 *
            $66.73

            200 *
            $66.24

            300 *
            $62.93

            500 *
            $62.46

            1000 *
            $57.82

29 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						LCD Starter Kit with Potentiometer
Add a development kit? $12.59 ea.

						72 Pin Header
Need header pins? $0.66 ea.

Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight

Module Overall	width	height	depth
millimeters	129	102	16.5
inches	5.08	4.02	0.65

PCB Outline	width	height	depth
millimeters	129	102	16.5
inches	5.08	4.02	0.65

Viewing Area	Width	Height
millimeters	101	82
inches	3.98	3.23

Active Area	Width	Height
millimeters	95.96	76.76
inches	3.78	3.02

Dot Size	Width	Height
millimeters	0.56	0.56
inches	0.022	0.022

Dot Pitch	Width	Height
millimeters	0.6	0.6
inches	0.024	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$89.32
5	$82.06
10	$72.62
20	$70.16
50 *	$67.71
100 *	$66.73
200 *	$66.24
300 *	$62.93
500 *	$62.46
1000 *	$57.82

Pin Table
Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11222: 160x128 Sunlight Readable Graphic LCD Display is now available

New Product:	CFAG160128B1-YYH-TZ
Date Issued:	August 15, 2023
Summary:	160x128 Sunlight Readable Graphic LCD Display is now available
Description:	CFAG160128B1-YYH-TZ has been released on our website (https://www.crystalfontz.com/product/cfag160128b1yyhtz-160x128-sunlight-readable-graphic-lcd-display) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAG160128B1-YYH-TZ

160x128 Sunlight Readable Graphic LCD Display

Part Number: CFAG160128B1-YYH-TZ

Product Variations

Colors

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11222: 160x128 Sunlight Readable Graphic LCD Display is now available

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Yellow-Green
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Color	Yellow-Green
Backlight Type	LED
Mode	Positive
Foreground Color	Dark
Background Color	Yellow-Green

Controller Documents	Raio Technology RA6963 RA6963 Dot Matrix LCD Controller Specification
Interface	8-bit Parallel
