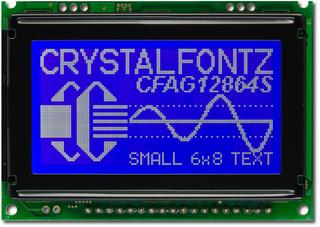

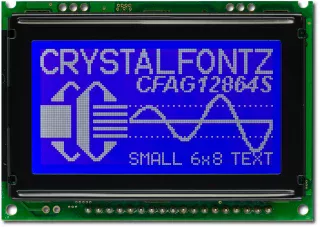

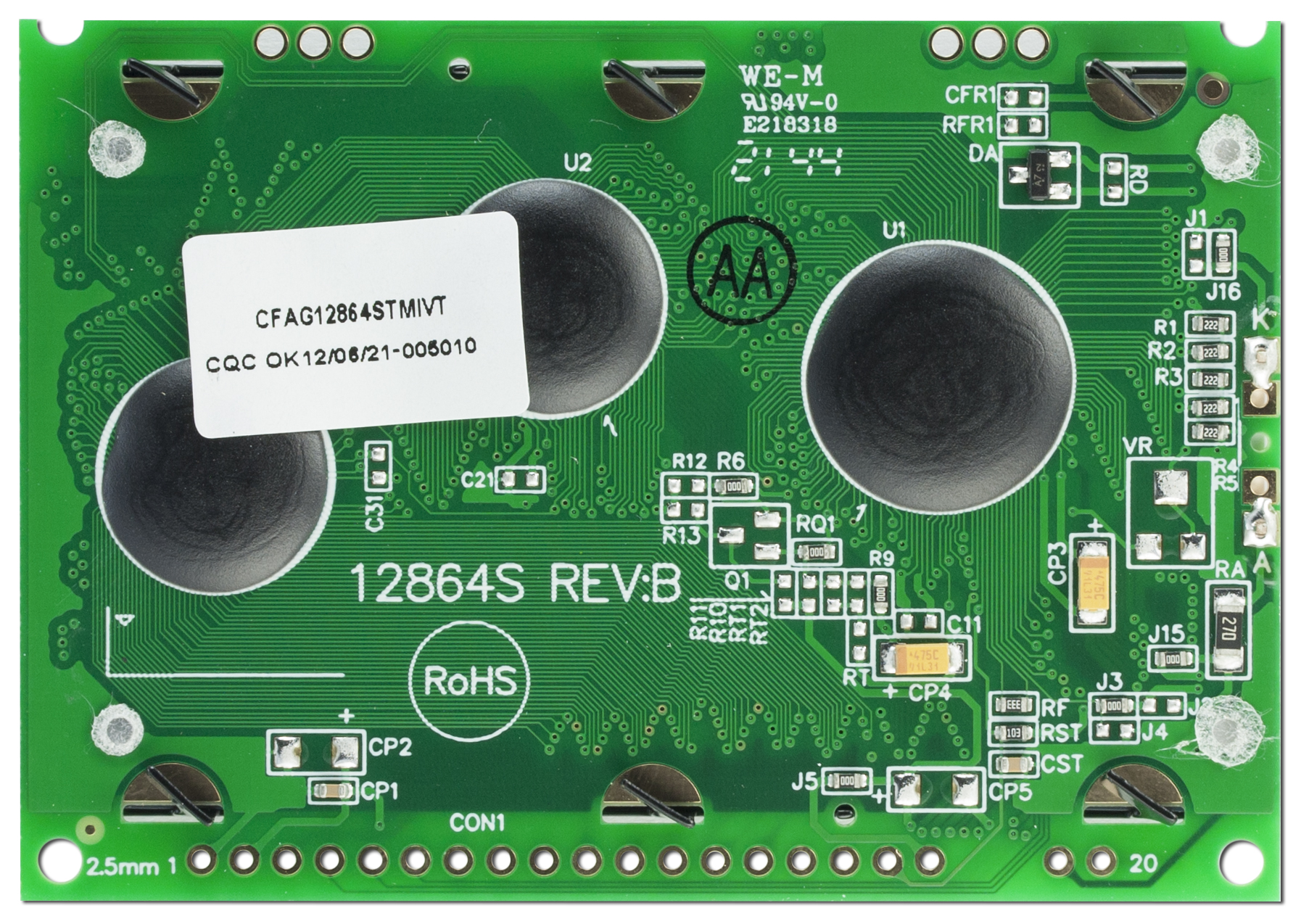

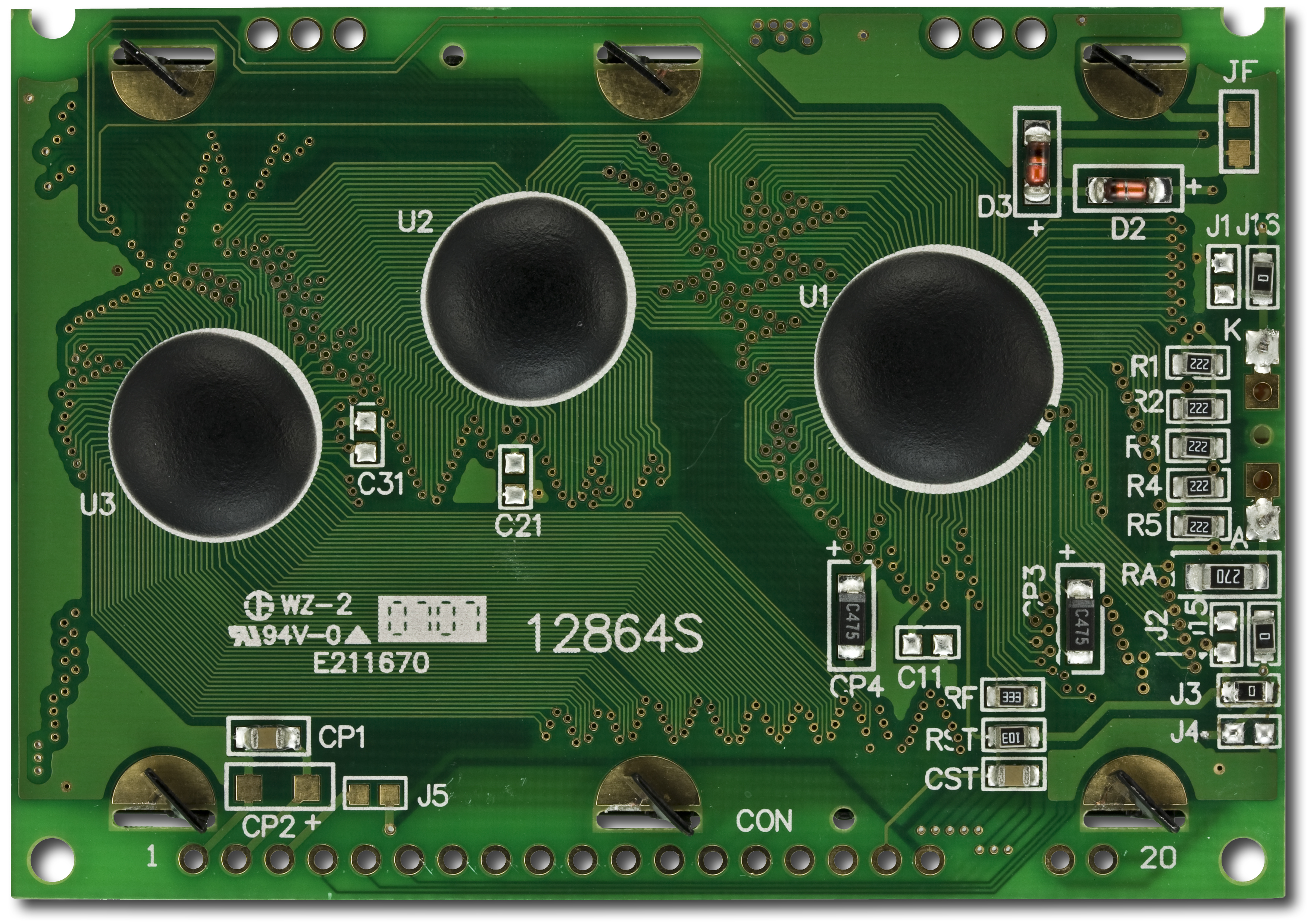

Blue 128x64 2.4 inch Graphic LCDPart Number: CFAG12864S-TMI-VTWhite on Blue 128x64 serial graphic LCD with positive voltage generator and font/character support. This graphic LCD supports parallel communication.
Resolution: 128x64 pixels
Optics: 6:00 viewing direction
Backlight: White Edge LED
Glass: STN Negative, Transmissive
Controller: Sitronix ST7920 (Hitachi HD44780 Compatible)
Operating Temp:  -20°C to +70°C
Compliance: RoHS Compliant

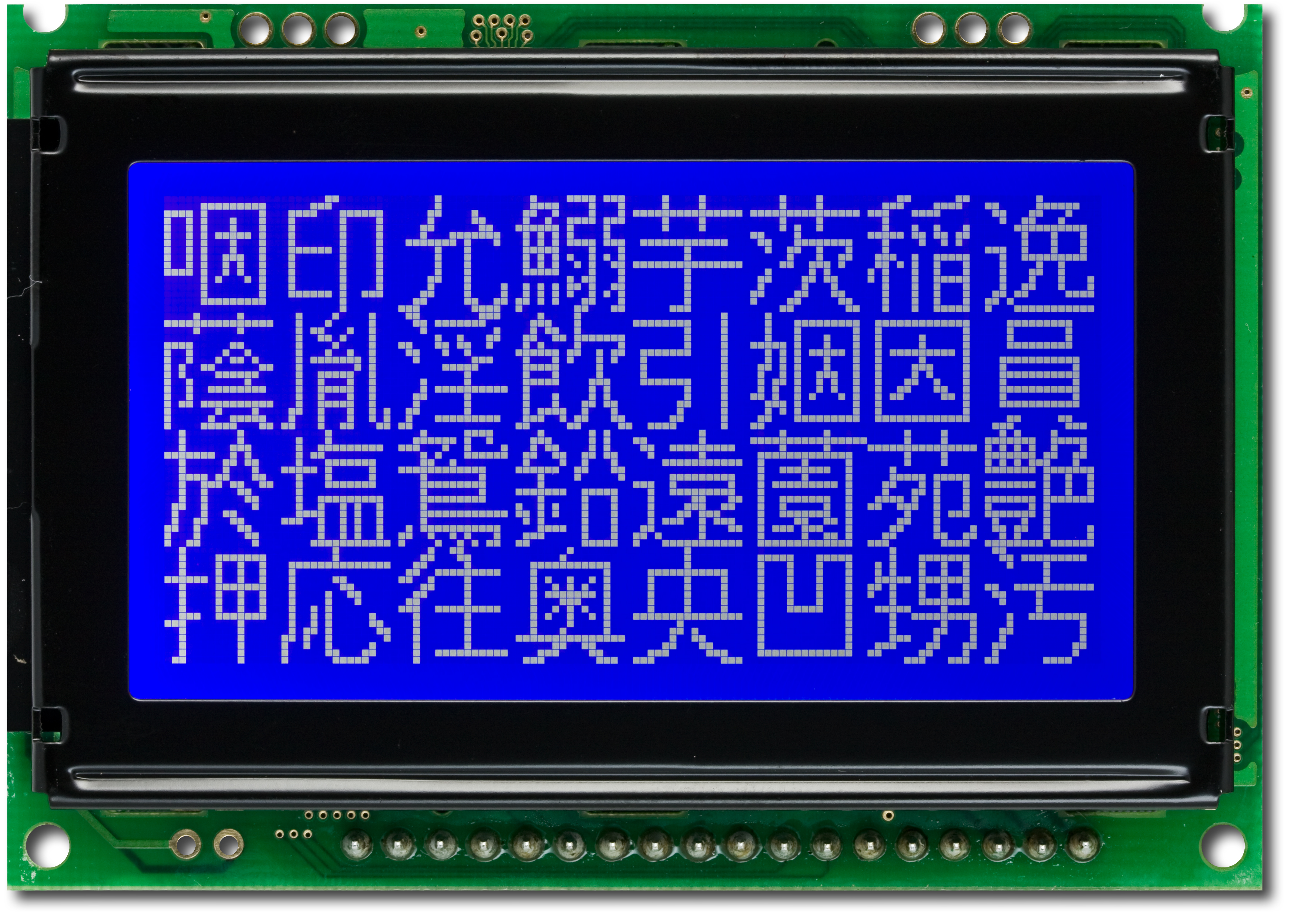

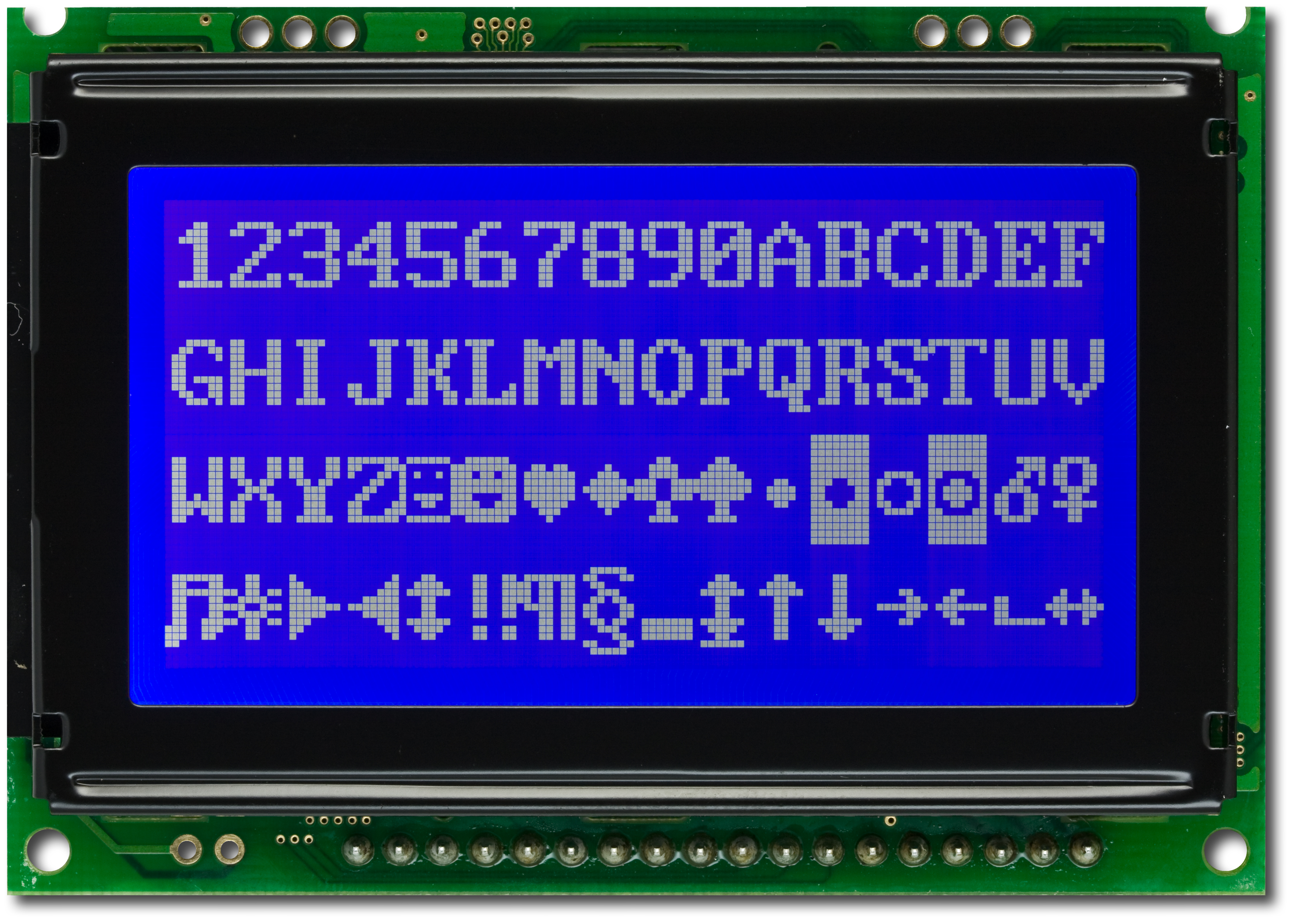

Character Generator: Chinese and English
Product VariationsColorsWhite on Blue
White LED BacklightDark on Yellow-Green
Yellow-Green LED Backlight

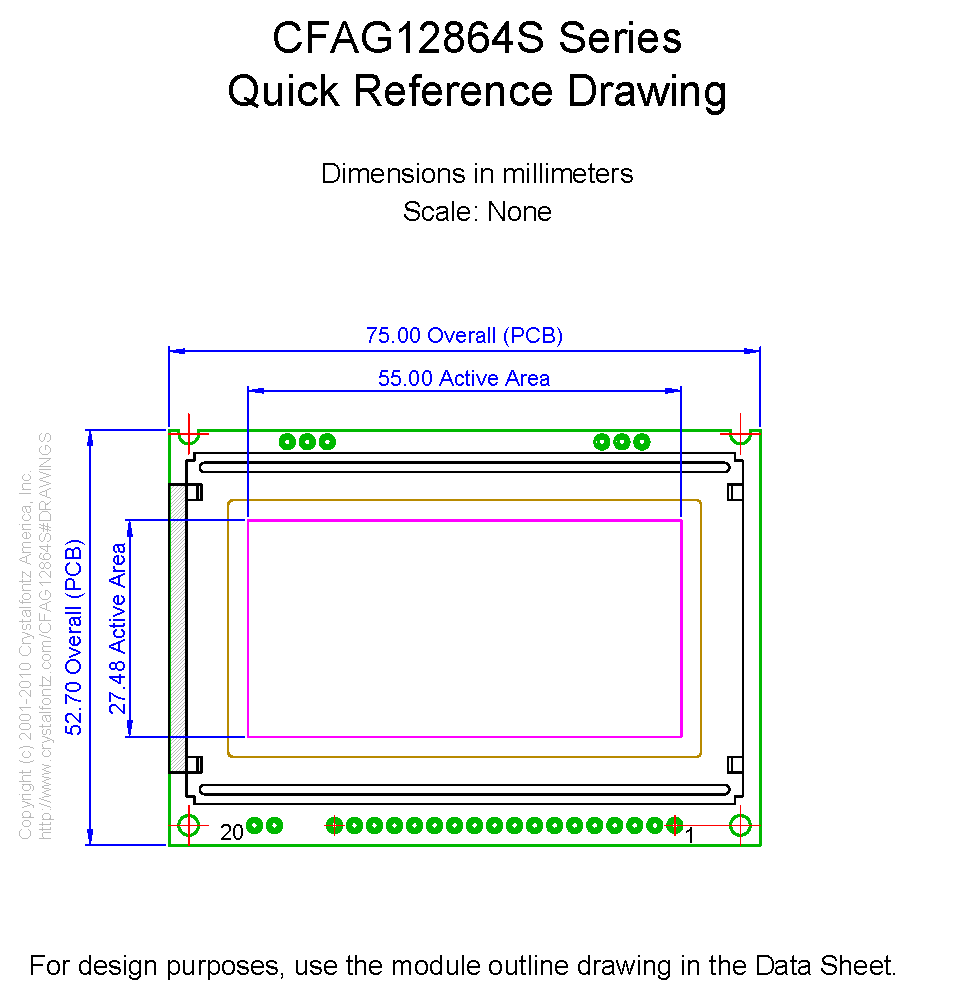

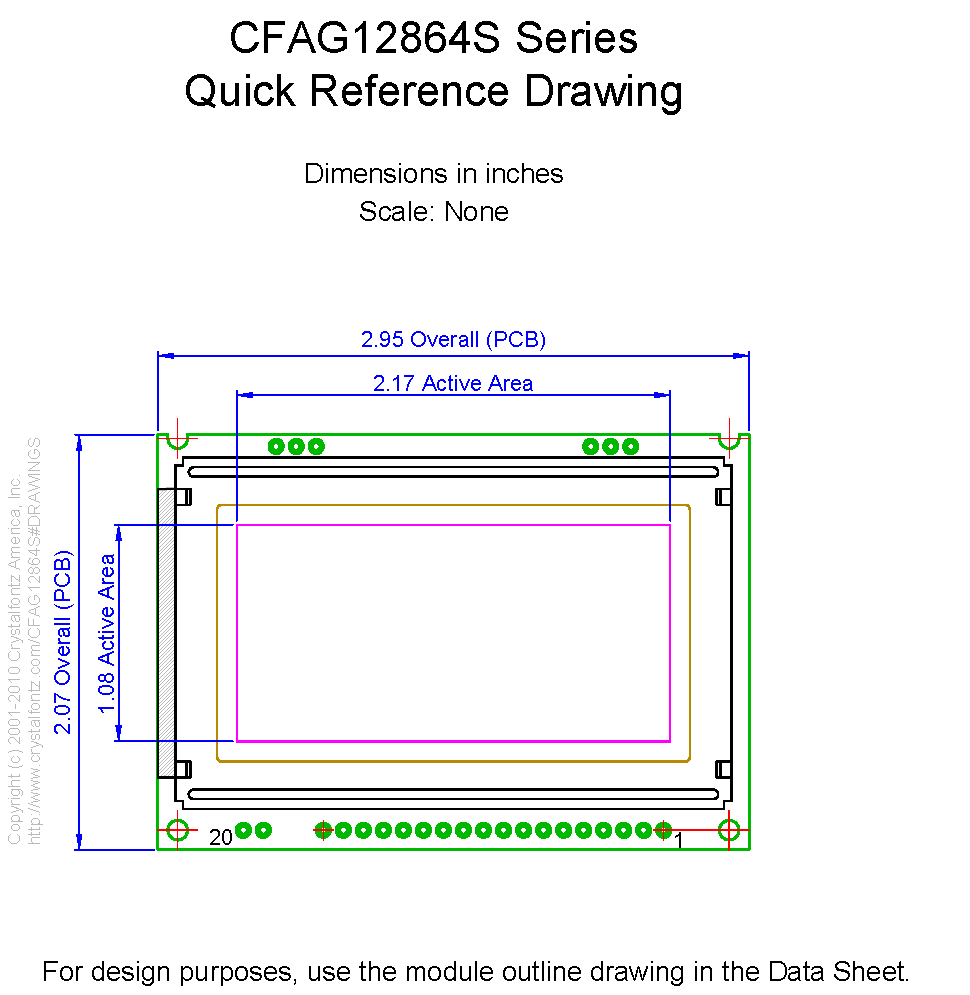

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64


    Module Overall        width
        height
        depth


        millimeters
        75
        52.7
        8.9


        inches
        2.95
        2.08
        0.35



    PCB Outline        width
        height
        depth


        millimeters
        75
        52.7
        8.9


        inches
        2.95
        2.08
        0.35



        Diagonal Dimension
            2.42"


    Viewing Area        Width
        Height


        millimeters
        58.8
        31.4


        inches
        2.32
        1.24



    Active Area        Width
        Height


        millimeters
        55
        27.48


        inches
        2.17
        1.08



    Dot Size        Width
        Height


        millimeters
        0.39
        0.39


        inches
        0.015
        0.015



    Dot Pitch        Width
        Height


        millimeters
        0.43
        0.43


        inches
        0.017
        0.017



        Weight
            36g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            4.45V


        Supply Current Minimum
            1.7mA
Supply Current Maximum
            2.3mA
Supply Current Typical
            2mA
Module Connector Pitch
            0.1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            4.9V
Forward Voltage Maximum
            5.1V
Forward Voltage Typical
            5V


        Forward Current Minimum
            15mA
Forward Current Maximum
            60mA
Forward Current Typical
            48mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7920
ST7920

Chinese Fonts built in LCD controller/driver
Interface
            4-bit Parallel, 8-bit Parallel, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAG12864STMIVT Datasheet

download Files and Downloads
folder_zip Software Source - ATMega2561 4-bit and SPI Demo Code
folder_zip Software Source - ATMEGA2561 8-bit Demo Code
folder_zip Hardware Design - 3D Model
folder_zip CAD Export - CFAG12864S-TMI-YTI-YYH
picture_as_pdf 1 to 1 Template - CFAG12864S-TMI-YTI-YYH
picture_as_pdf Other Document - UniCode to ST7920-0C CGROM Mapping
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

















Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $32.80

            10
            $28.95

            20
            $27.97

            50
            $26.99

            100 *
            $26.60

            200 *
            $26.40

            300 *
            $25.06

            500 *
            $24.87

            1000 *
            $23.54

72 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.





Colors	White on Blue White LED Backlight Dark on Yellow-Green Yellow-Green LED Backlight

Module Overall	width	height	depth
millimeters	75	52.7	8.9
inches	2.95	2.08	0.35

PCB Outline	width	height	depth
millimeters	75	52.7	8.9
inches	2.95	2.08	0.35

Viewing Area	Width	Height
millimeters	58.8	31.4
inches	2.32	1.24

Active Area	Width	Height
millimeters	55	27.48
inches	2.17	1.08

Dot Size	Width	Height
millimeters	0.39	0.39
inches	0.015	0.015

Dot Pitch	Width	Height
millimeters	0.43	0.43
inches	0.017	0.017

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$32.80
10	$28.95
20	$27.97
50	$26.99
100 *	$26.60
200 *	$26.40
300 *	$25.06
500 *	$24.87
1000 *	$23.54

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10301: New Product in Standard Graphic Modules: CFAG12864S-TMI-VT

New Product:	CFAG12864S-TMI-VT
Date Issued:	December 16, 2010
Summary:	New Product in Standard Graphic Modules: CFAG12864S-TMI-VT
Description:	128x64 Graphic LCD, White Edge LED Backlight, STN Negative, Blue, Transmissive, Positive Voltage Generator
