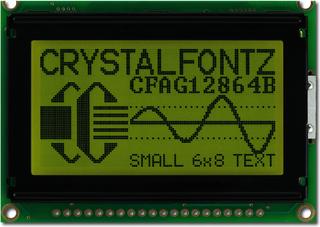

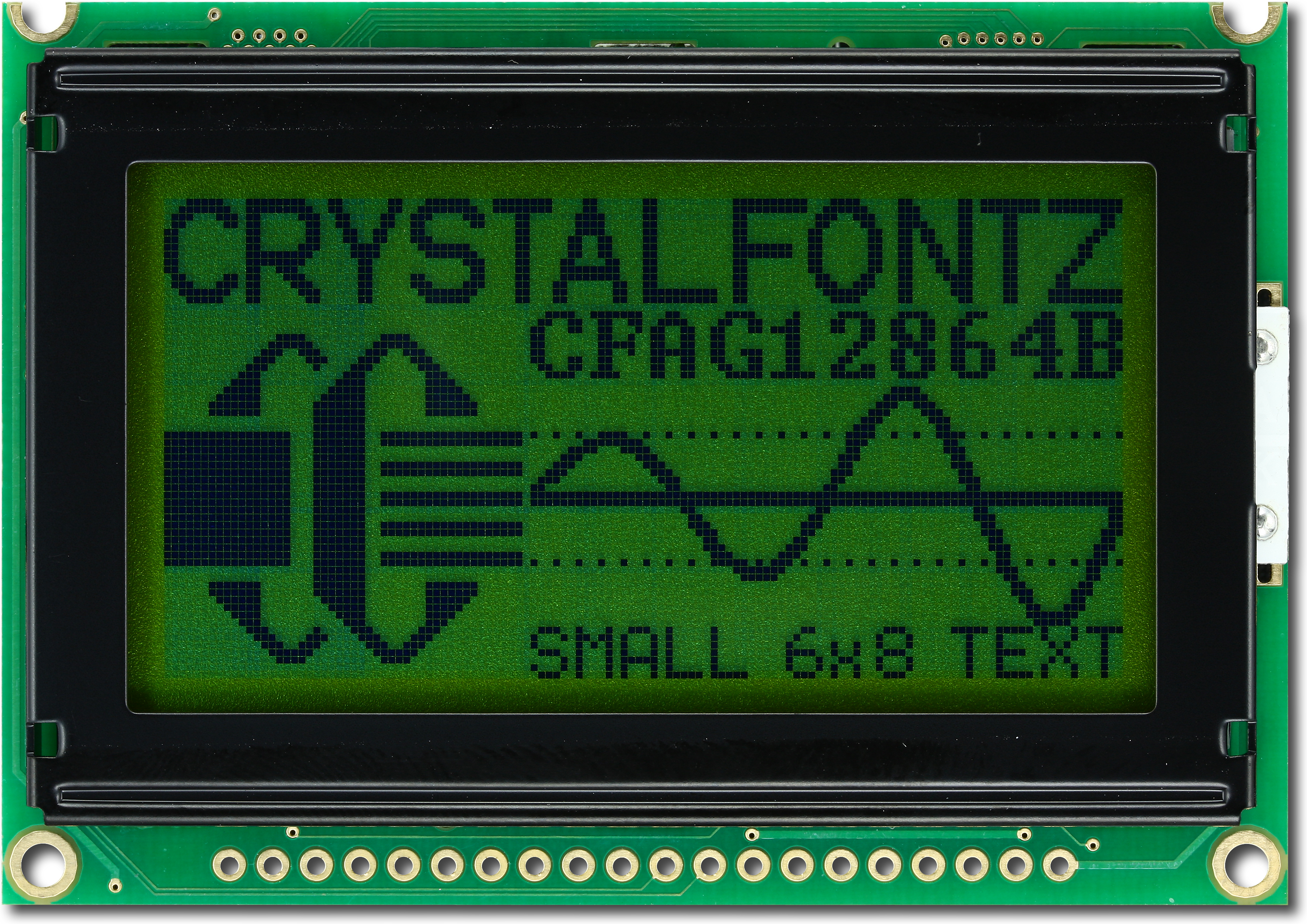

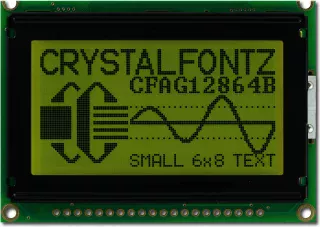

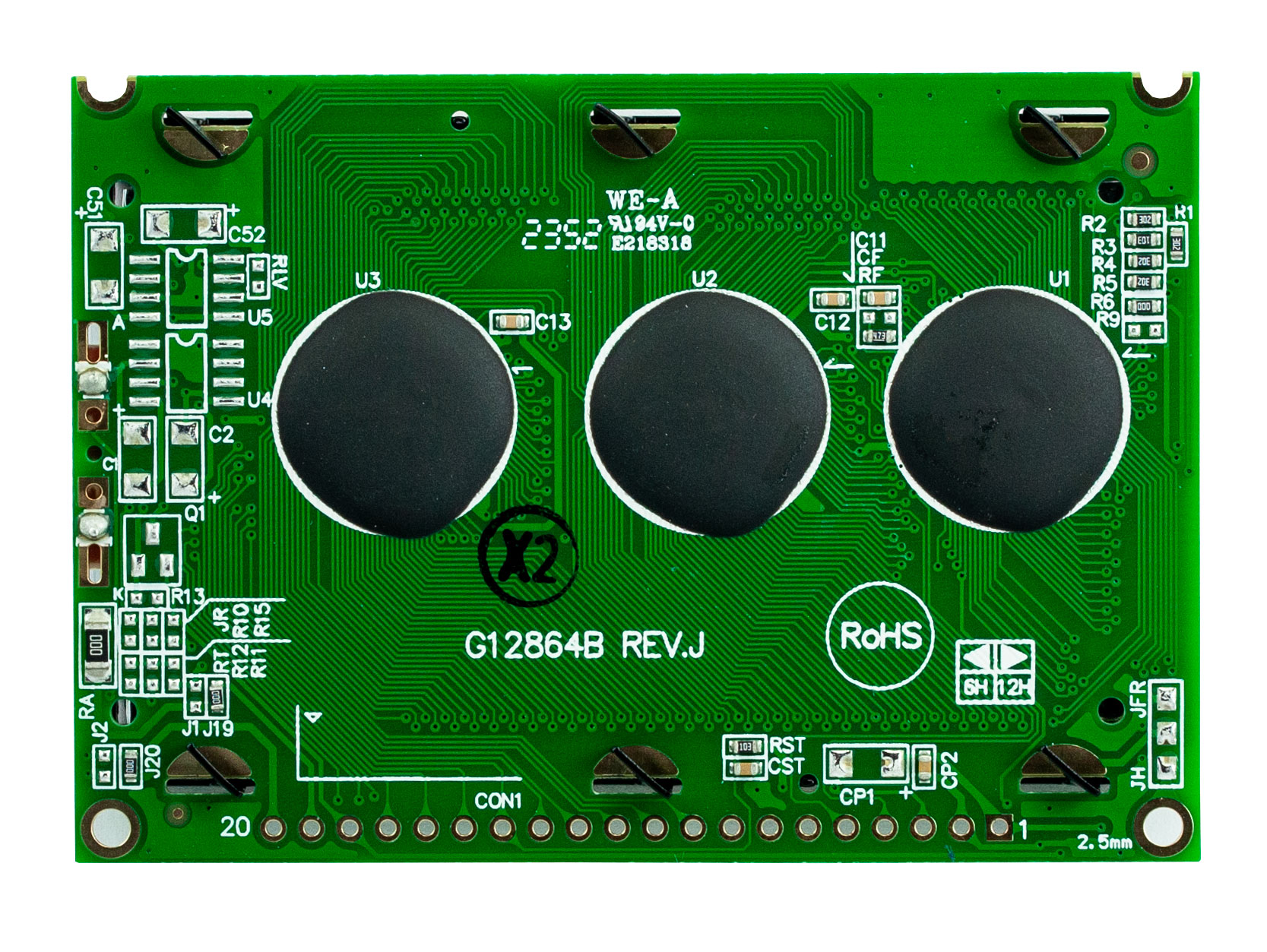

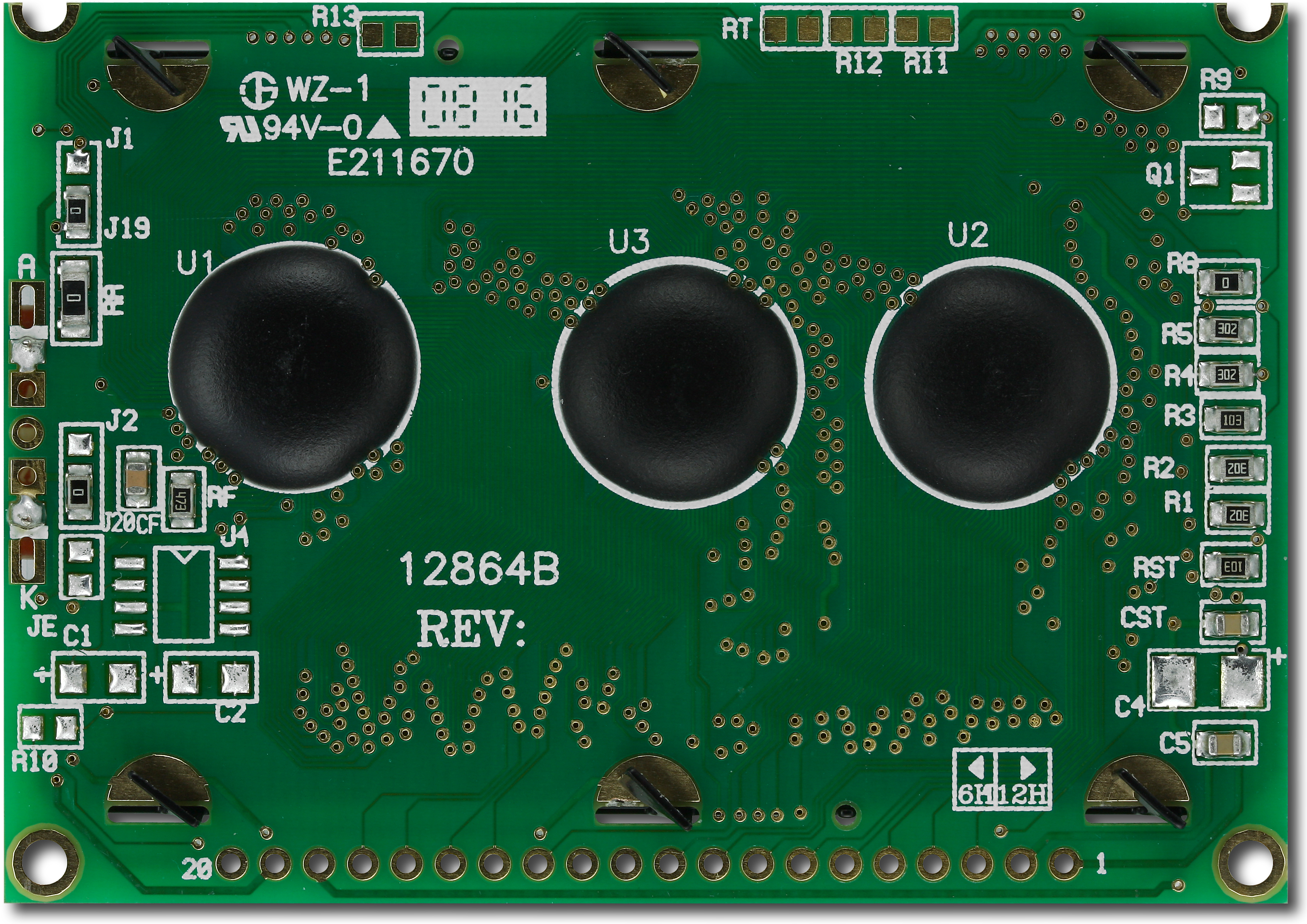

128x64 Transflective Graphical LCDPart Number: CFAG12864B-YYH-NDark letters on yellow/green background 128x64 graphic LCD
Glass:  STN Positive, Transflective
Readability: Sunlight readable
Backlight: White Edge LED
Compliance: RoHS Compliant
Resolution:128x64 pixels
Controller: Neotec NT7108
Operating Temp:  -20°C to +70°C
Optics:  6:00 viewing direction
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightDark on White
White LED BacklightWhite on Blue
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64


    Module Overall        width
        height
        depth


        millimeters
        75
        52.7
        8.9


        inches
        2.95
        2.08
        0.35



    PCB Outline        width
        height
        depth


        millimeters
        75
        52.7
        8.9


        inches
        2.95
        2.08
        0.35



        Diagonal Dimension
            2.42"


    Viewing Area        Width
        Height


        millimeters
        58.8
        31.4


        inches
        2.32
        1.24



    Active Area        Width
        Height


        millimeters
        55.01
        27.49


        inches
        2.17
        1.08



    Dot Size        Width
        Height


        millimeters
        0.39
        0.39


        inches
        0.015
        0.015



    Dot Pitch        Width
        Height


        millimeters
        0.43
        0.43


        inches
        0.017
        0.017



        Weight
            35g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Neotec NT7108
NT7108

LCD Driver
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12864BYYHN Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAG12864B 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12864B 1 TO 1.PDF
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $17.50

            5
            $14.65

            10
            $14.23

            20 *
            $13.81

            50 *
            $13.31

            100 *
            $13.14

            200 *
            $13.06

            300 *
            $12.34

            500 *
            $12.26

            1000 *
            $11.61

19 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
