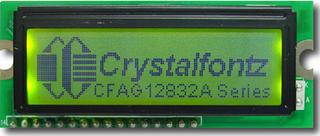

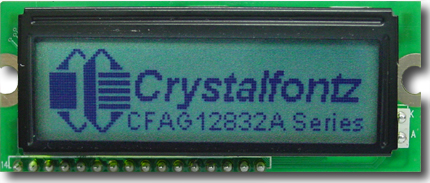

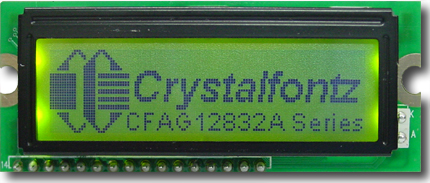

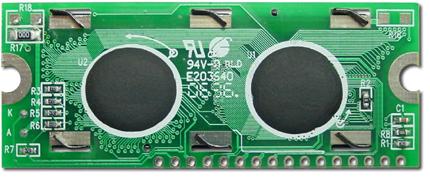

[EOL] 128x32  Parallel Graphic LCDPart Number: CFAG12832A-YGH-NGraphic LCD, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Gray, Transflective -20°C to +70°C 6:00
128x32 graphic LCD module
Built-in  Sitronix  ST7920 or compatible controller
8-bit parallel interface
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 32

    Module Overall        width
        height
        depth

        millimeters
        66
        26
        8.5

        inches
        2.60
        1.02
        0.34

    PCB Outline        width
        height
        depth

        millimeters
        66
        26
        8.5

        inches
        2.60
        1.02
        0.34

    Viewing Area        Width
        Height

        millimeters
        51
        14.8

        inches
        2.01
        0.58

    Active Area        Width
        Height

        millimeters
        47.32
        12.12

        inches
        1.86
        0.48

    Dot Size        Width
        Height

        millimeters
        0.33
        0.34

        inches
        0.013
        0.013

    Dot Pitch        Width
        Height

        millimeters
        0.37
        0.38

        inches
        0.015
        0.015

        Weight
            15g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7920
ST7920

Chinese Fonts built in LCD controller/driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12832AYGHN Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAG12832A 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12832A

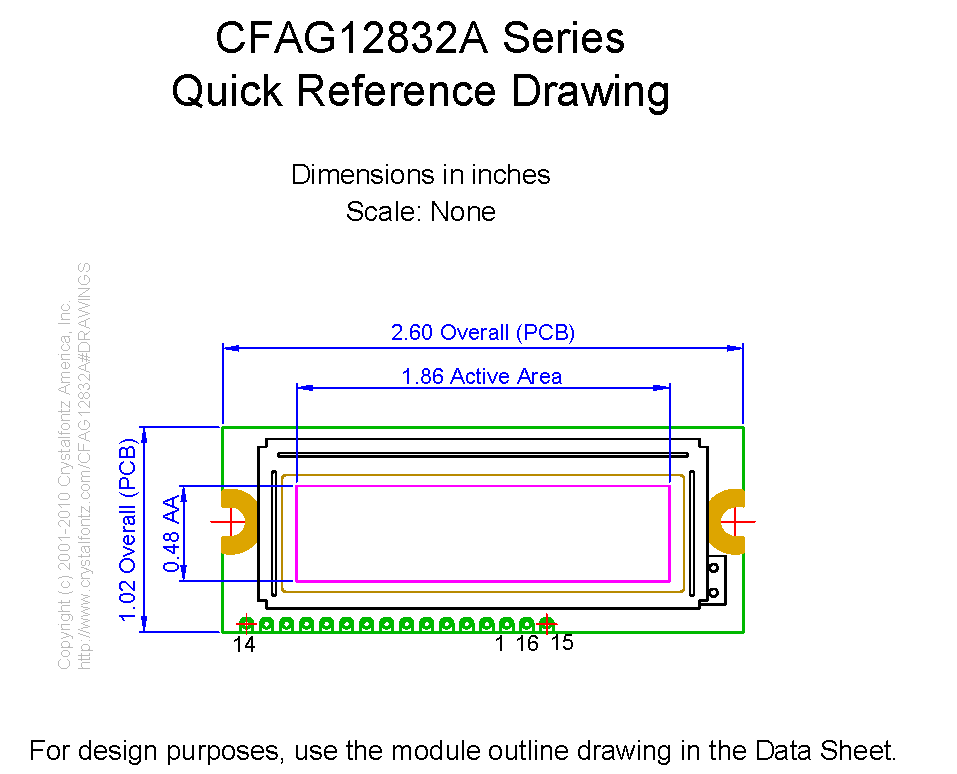

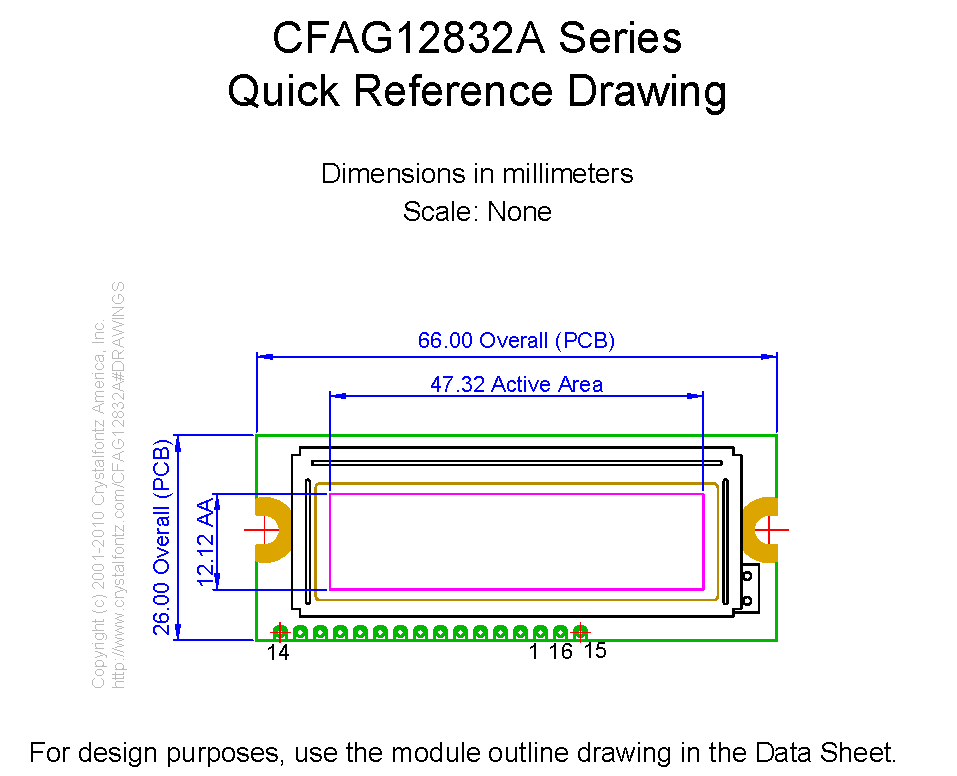

Module Overall	width	height	depth
millimeters	66	26	8.5
inches	2.60	1.02	0.34

PCB Outline	width	height	depth
millimeters	66	26	8.5
inches	2.60	1.02	0.34

Viewing Area	Width	Height
millimeters	51	14.8
inches	2.01	0.58

Active Area	Width	Height
millimeters	47.32	12.12
inches	1.86	0.48

Dot Size	Width	Height
millimeters	0.33	0.34
inches	0.013	0.013

Dot Pitch	Width	Height
millimeters	0.37	0.38
inches	0.015	0.015

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10914: End-of-Life Notice

Product Affected:	CFAG12832A-YGH-N
Date Issued:	December 21, 2017
Summary:	End-of-Life Notice
Description:	The minimum order quantity for this part has been increased.
Impact:	When current stock is depleted, the part will no longer be available.
Recommendation:	No replacement will be offered.
Availability:	Current stock only.
Price Change:	The price has been lowered to $3.99 for quick liquidation. Limited to stock on-hand.
