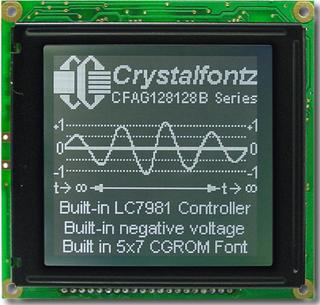

EOL 128x128 Graphic LCD
Part Number: CFAG128128B-TTI-VZ
(EOL)128x128 Graphic LCD, RoHS Compliant, White Edge LED Backlight, FSTN Negative, Transmissive -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator
- Built-in Neotec NT7086 segment driver and Sanyo LC7981 or compatible controller
- 128x128 graphic mode --or-- 21 x 16 text mode using built-in 5x7 Character Generator ROM.
- Available in several variations of backlight and polarizer (minimum order may be required)
- square_foot Physical Characteristics
Physical Characteristics
Column Dots x Row Dots 128 x 128 Module Overall width height depth millimeters 72.5 69.9 10 inches 2.85 2.75 0.39 PCB Outline width height depth millimeters 72.5 69.9 10 inches 2.85 2.75 0.39 Viewing Area Width Height millimeters 50 49 inches 1.97 1.93 Active Area Width Height millimeters 44.77 44.77 inches 1.76 1.76 Dot Size Width Height millimeters 0.32 0.32 inches 0.013 0.013 Dot Pitch Width Height millimeters 0.35 0.35 inches 0.014 0.014 Weight 60g - visibility Optical Characteristics
Optical Characteristics
Glass Type/Glass Color FSTN/Black Polarizer Transmissive View Direction 6 o'clock Backlight Color White Backlight Type LED Mode Negative Foreground Color White Background Color Dark - electric_bolt Electrical Specification
Electrical Specifications
Module Connector Pitch 2mm - nature Environmental
Environmental
Operating Temperatures min max Celsius -20° 70° Fahrenheit -4° 158° Storage Temperatures min max Celsius -30° 80° Fahrenheit -22° 176° Humidity min max Non-condensing 0% 90% - cable Electronics
Electronics
Controller Documents Sanyo LC7981
LC7981 Controller for LT Dot Matrix Graphic DisplayInterface 8-bit Parallel -
picture_as_pdf Datasheets
-
download Files and Downloads
Part Change Notices
Subscribe to Part Change Notices by email
or RSS
- text_snippet
Product Update #10459: (New Product) CFAG128128B-TTI-VZ
- text_snippet
Product Update #10458: SANYO Semiconductor has announced a product discontinuance of the LC7981 LCD Controller. Please see the attachment below for the official release from SANYO Semiconductor.
Products Affected: CFAG128128B-TFH-VZ, CFAG128128B-TMI-VZ, CFAG128128B-YYH-VZ, CFAG160160B-YYH-VU, CFAG160160B-TFH-VZ, CFAG160160B-TMI-VZ, CFAG16080A-TMI-TZ, CFAG16080A-YYH-TZ, CFAG240128D-FMI-T, CFAG240128D-TMI-TZ, CFAG240128D-YYH-TZ, CFAG128128B-TTI-VZ, CFAG192128A-TMI-TZ Date Issued: March 29, 2013 Summary: SANYO Semiconductor has announced a product discontinuance of the LC7981 LCD Controller. Please see the attachment below for the official release from SANYO Semiconductor.
Description: SANYO Semiconductor has announced product discontinuance of the LC7981 LCD Controller. At this time SANYO has no plans to provide a replacement for the LC7981 which is used in several products as an LCD controller. Our partner factory is making a lifetime buy of the LC7981. Reason: SANYO Semiconductor has announced the end of life of the LC7981 LCD Controller. Impact: Below are the product families that are affected by this end of life notice.
CFAG128128B
CFAG160160B
CFAG16080A
CFAG240128D
CFAG192128A
Recommendation: We are requesting that you provide us with a forecast of what your company would need to make it through the end of 2014. This would be considered a life time buy and would require 100% payment up front. We would need to have all final Purchase Orders submitted to us by no later than April 15th 2013 so we can make proper allocation and purchasing arrangements. Availability: At this time we have no suitable replacements for the following product families:
CFAG192128A
CFAG160160B
The following product families have parts available with the same active area, however; these parts would require changes in your product:
EOL Product / Potential Replacement
CFAG128128B / CFAG128128C
CFAG16080A / CFAG16080C1 (additional data forthcoming)
CFAG240128D / CFAG240128B/E/T3
Updated: 2013-04-15Response: We are requesting that you provide us with a forecast of what your company would need to make it through the end of 2014. This would be considered a life time buy and would require 100% payment up front. We would need to have all final Purchase Orders submitted to us by no later than April 15th 2013 so we can make proper allocation and purchasing arrangements. Attachment: ProductDiscontinuanceSTNDriver130116.pdf (11KB)
