Transflective 122x32 Graphic LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Graphic

                In order to keep this display in production over the long term, we are revising it to the CFAG12232D1YYHVJ. Any backorders placed now will be fulfilled with the new part when it becomes available. Please contact support with any questions.
Transflective 122x32 Graphic LCDPart Number: CFAG12232D-YYH-VA122x32 Graphic LCD, RoHS Compliant, Yellow/Green Edge LED Backlight, STN Positive, Yellow/Green, Reflective -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator
Built-in Avant SBN1661G or compatible controller (SED1520 compatible)
8-bit parallel interface
Ultra thin ( < 6mm )
This graphic LCD display is compatible with this 16x2 Parallel Character LCD, they have the same pinout and dimensions.
Product Variations

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            122 x 32

    Module Overall        width
        height
        depth

        millimeters
        59
        29.3
        5.5

        inches
        2.32
        1.15
        0.22

    PCB Outline        width
        height
        depth

        millimeters
        59
        29.3
        5.5

        inches
        2.32
        1.15
        0.22

        Diagonal Dimension
            1.86"

    Viewing Area        Width
        Height

        millimeters
        52
        15

        inches
        2.05
        0.59

    Active Area        Width
        Height

        millimeters
        45.72
        11.97

        inches
        1.80
        0.47

    Dot Size        Width
        Height

        millimeters
        0.35
        0.35

        inches
        0.014
        0.014

    Dot Pitch        Width
        Height

        millimeters
        0.38
        0.38

        inches
        0.015
        0.015

        Weight
            9g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.05mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Avant SBN1661G
SBN1661G_M18,

SBN1661G_M02,

SBN0080G_S18,

SBN0080G_S02

Dot-matrix STN LCD Driver

with 32-row x 80-column

Display Data Memory
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12232DYYHVA Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAG12232D 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12232D 1 TO 1.PDF

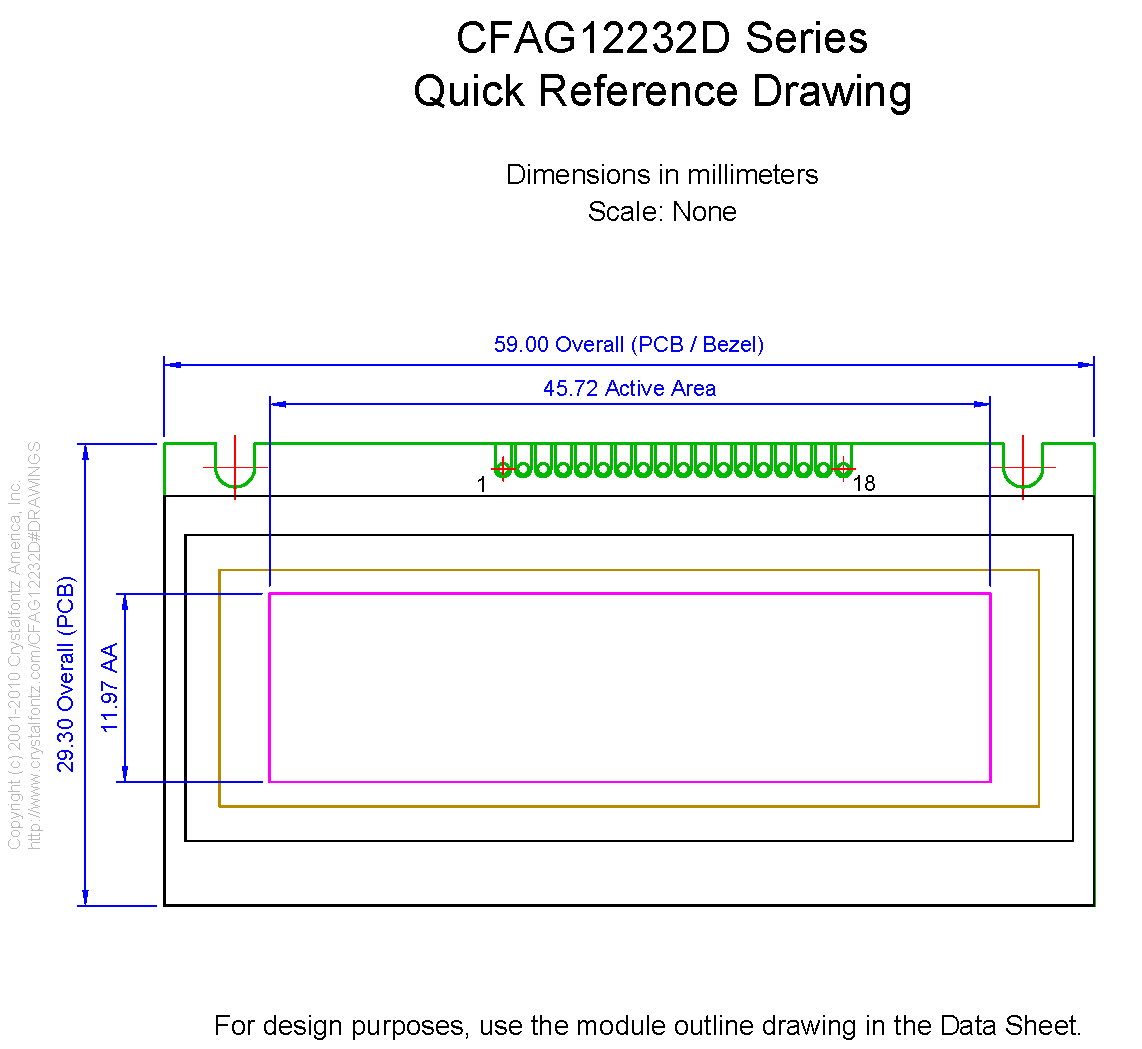

Module Overall	width	height	depth
millimeters	59	29.3	5.5
inches	2.32	1.15	0.22

PCB Outline	width	height	depth
millimeters	59	29.3	5.5
inches	2.32	1.15	0.22

Viewing Area	Width	Height
millimeters	52	15
inches	2.05	0.59

Active Area	Width	Height
millimeters	45.72	11.97
inches	1.80	0.47

Dot Size	Width	Height
millimeters	0.35	0.35
inches	0.014	0.014

Dot Pitch	Width	Height
millimeters	0.38	0.38
inches	0.015	0.015

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11157: Avant SBN1661G End-Of-Life Notification

Products Affected:	CFAG12232J-TFH-TA, CFAG12232J-TMI-TA, CFAG12232J-YYH-TA, CFAG12232K-YYH-TA, CFAG12232A-YYH-TA, CFAG12232A-TMI-TA, CFAG12232D-NYG-VA, CFAG12232D-YYH-VA
Date Issued:	November 7, 2022
Summary:	Avant SBN1661G End-Of-Life Notification
Description:	The Avant SBN1661G (https://www.crystalfontz.com/controllers/Avant/SBN1661G) controller is no longer available. We will be providing replacement options that use the I-CORE AiP31520 controller. For more information on the replacement parts, contact support@crystalfontz.com.
Reason:	The Avant SBN1661G controller is no longer available.
