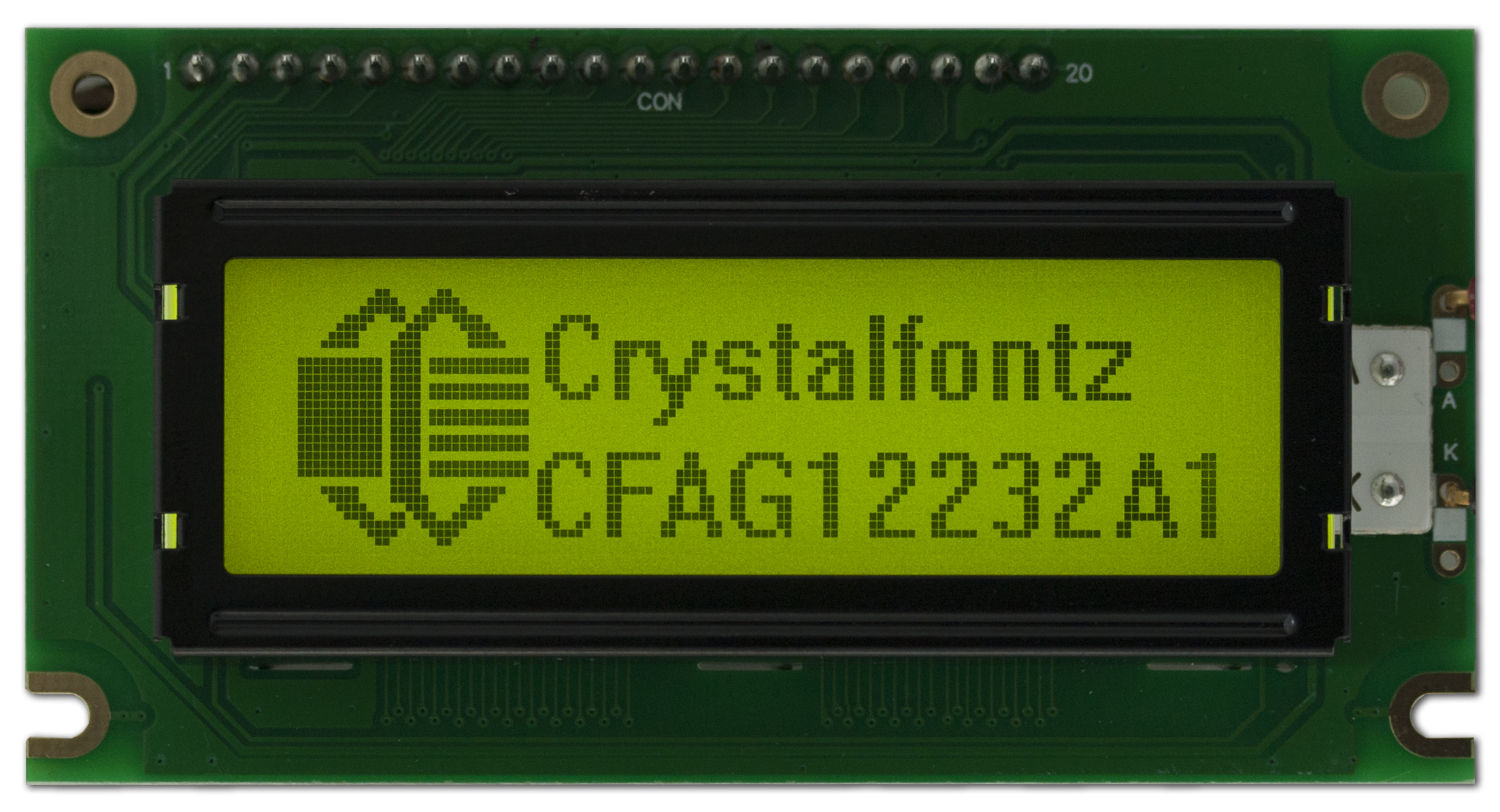

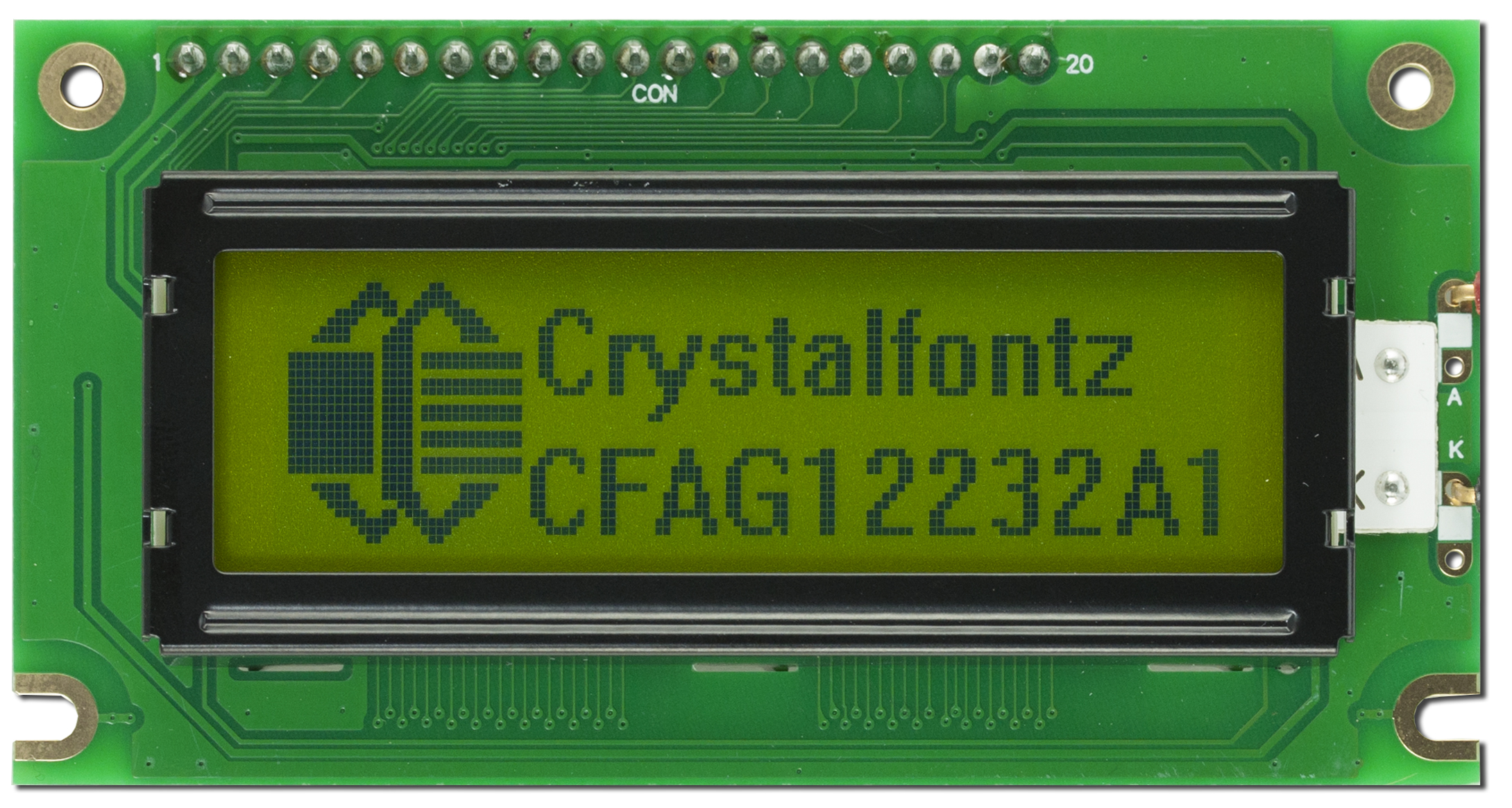

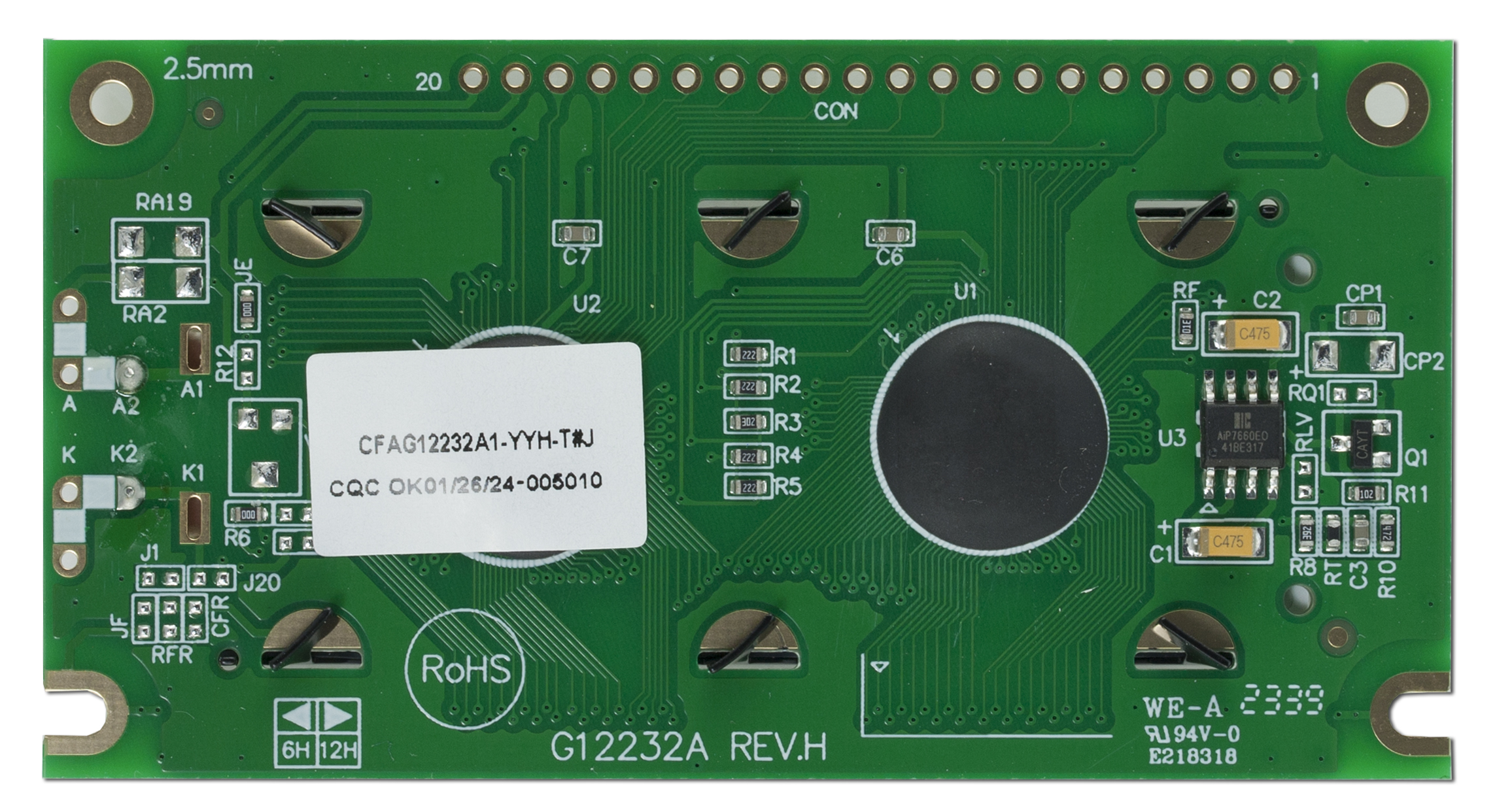

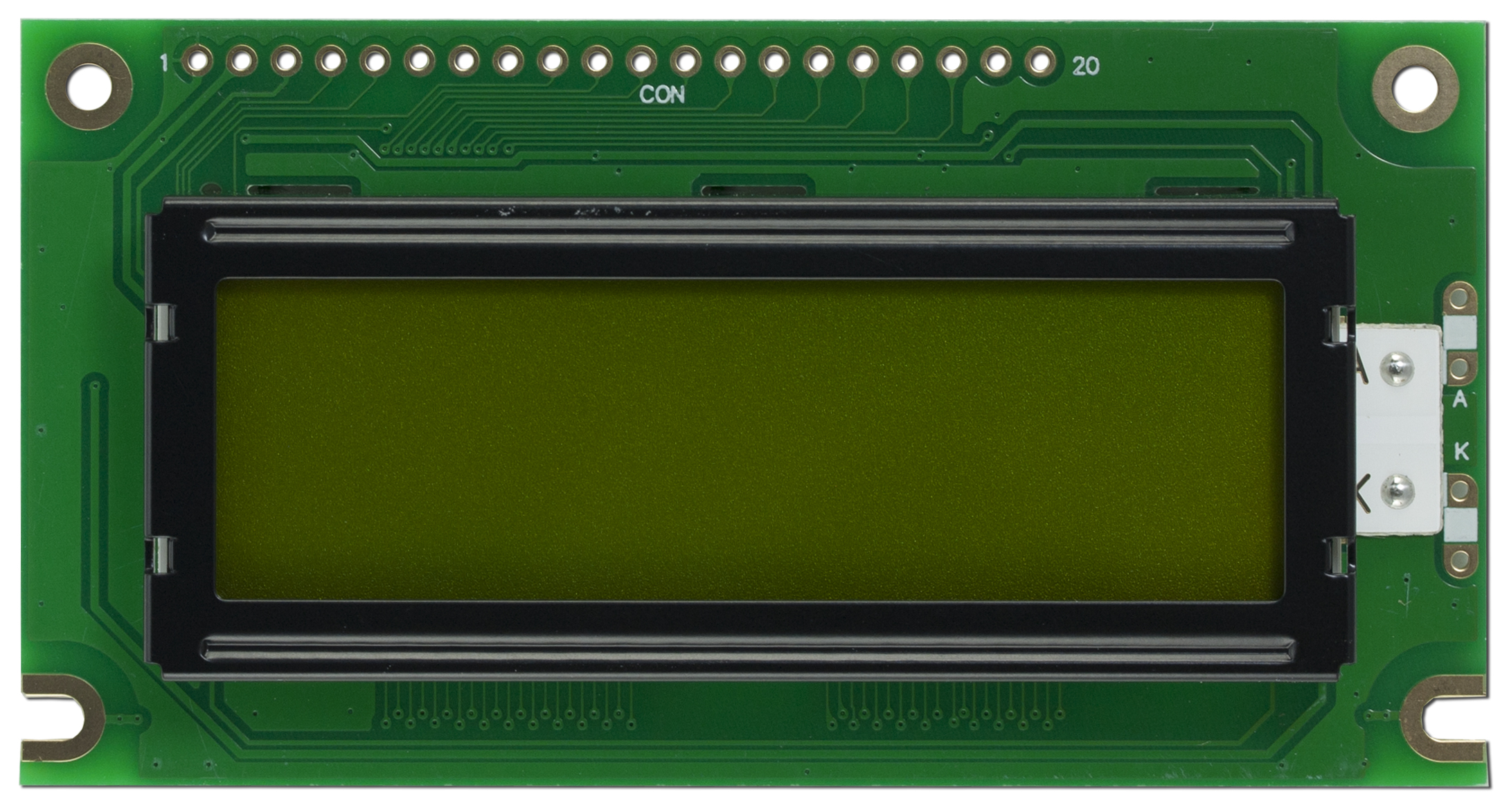

122x32 Graphic LCD DisplayPart Number: CFAG12232A1-YYH-TJThis is a 122x32 graphic LCD. It has a yellow/green background with dark pixels. The CFAG12232A1 family is form compatible with the CFAH1602A series of character LCD modules. You can easily upgrade your product that uses a CFAH1602A character display by switching to this graphic LCD or lower your costs by replacing this graphic LCD module with that character module
Thanks to the 0.1" through-holes (headers not included), this display is easy to integrate into a final product. The 6800 8-bit parallel interface is also simple to integrate and quick.
CFA - Crystalfontz America

G - Graphic

12232 - 122x32 pixels

A1 - Family and version

Y - Yellow-Green LED backlight

Y - STN Positive, Yellow LCD Mode

H - Transflective, 6:00 viewing direction

T - Built-in negative voltage generator and temperature compensation

J - Wuxi I-Core Controller

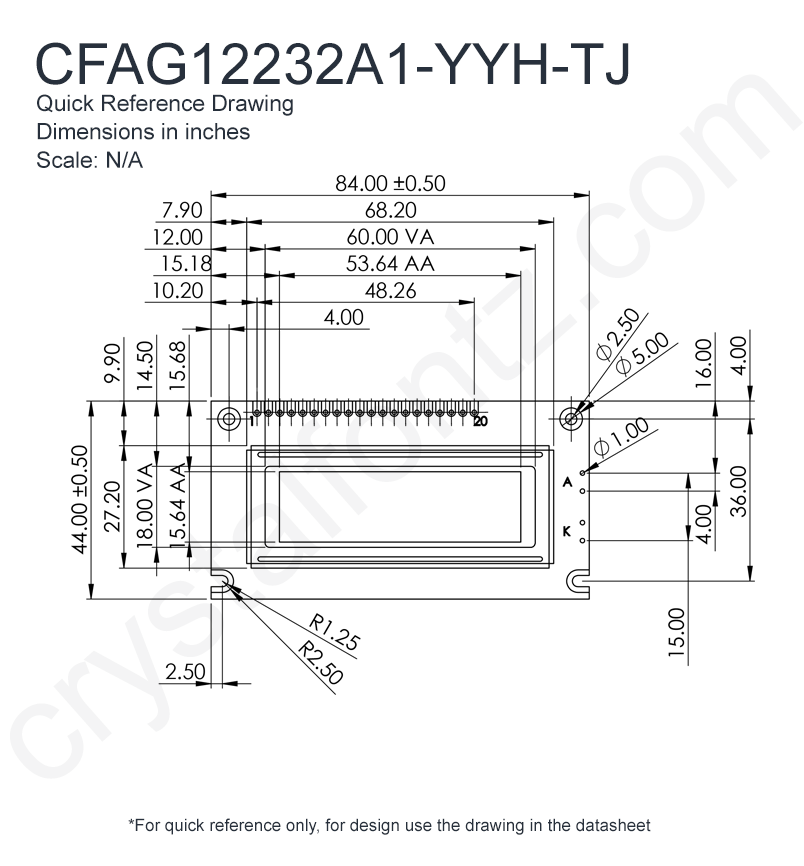

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            122 x 32


    Module Overall        width
        height
        depth


        millimeters
        84
        44
        13.7


        inches
        3.31
        1.73
        0.54



    Viewing Area        Width
        Height


        millimeters
        60
        18


        inches
        2.36
        0.71



    Active Area        Width
        Height


        millimeters
        53.64
        15.64


        inches
        2.11
        0.62



    Dot Size        Width
        Height


        millimeters
        0.4
        0.45


        inches
        0.016
        0.018



    Dot Pitch        Width
        Height


        millimeters
        0.44
        0.49


        inches
        0.017
        0.019



        Weight
            38g
Pin Count
            20

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
View Angle
            40°
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.7V
Supply Voltage for Logic Maximum
            3.6V
Supply Voltage for Logic Typical
            3.3V


        Supply Voltage for Driving Panel Typical
            4.45V
Supply Current Maximum
            4mA
Supply Current Typical
            2.5mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            4V
Forward Voltage Maximum
            4.5V
Forward Voltage Typical
            4.2V


        Forward Current Minimum
            96mA
Forward Current Maximum
            144mA
Forward Current Typical
            120mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°


 cable Electronics
Electronics

        Controller Documents
            Wuxi AiP31520
61 SEG / 16 COM Driver for Dot Matrix LCD
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12232A1-YYH-TJ Datasheet

 download Files and Downloads
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $17.24

            10 *
            $15.25

            20 *
            $14.74

            50 *
            $14.22

            100 *
            $14.01

            200 *
            $13.91

            300 *
            $13.23

            500 *
            $13.13

            1000 *
            $12.45

9 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						36-Pin 0.1" Header Pins
Add header pins? $0.33 ea.






						LCD Starter Kit with Potentiometer
Add a DevKit? $11.06 ea.





Module Overall	width	height	depth
millimeters	84	44	13.7
inches	3.31	1.73	0.54

Viewing Area	Width	Height
millimeters	60	18
inches	2.36	0.71

Active Area	Width	Height
millimeters	53.64	15.64
inches	2.11	0.62

Dot Size	Width	Height
millimeters	0.4	0.45
inches	0.016	0.018

Dot Pitch	Width	Height
millimeters	0.44	0.49
inches	0.017	0.019

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$17.24
10 *	$15.25
20 *	$14.74
50 *	$14.22
100 *	$14.01
200 *	$13.91
300 *	$13.23
500 *	$13.13
1000 *	$12.45

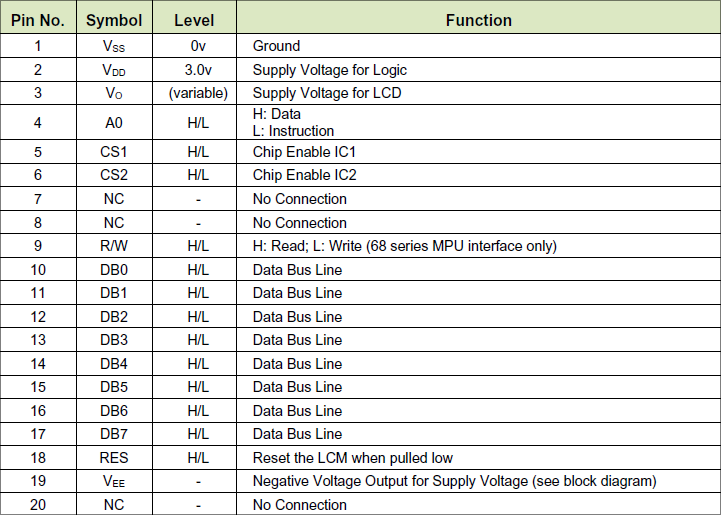

Pin Table
