800x480 5 Inch EVE Touchscreen TFT Display

Part Number: CFAF800480E2-050SC-A2

This TFT display module includes a beautiful capacitive touchscreen with an overhanging glass bezel mounted on a graphics acceleration PCB. This display module leverages the Bridgetek/FTDI EVE chip to simplify complex graphics.

The included 5" capacitive touch TFT display is top of the line. It's sunlight-readable, IPS, and has a 16M color depth. With the EVE accelerated board attached, this display module is ready for your most complex graphic.

If you like this display but are looking for a more traditional mounting style, We also offer a similar 800x480 Capacitive Touchscreen EVE TFT Module with a touchscreen that does not extend past the edge of the TFT.

Key features:

• Overhanging capacitive touchscreen bezel
• 5" Diagonal Display Area
• Five-point touch
• Graphics accelerating BT817 chip for easy graphics control
• Sunlight Readable
• SPI/Quad SPI interface
• Free Viewing Angle (IPS)
• Full-color TFT
• Can be powered off of a single voltage source

EVE Graphics Accelerator Features:

• Supports multiple widgets for simplified design implementation
• User interface design software (PC) simplifies the design process
• Hardware engine can recognize touch tags and track touch movement
• Enhanced sketch processing
• Anti-aliasing of primitive displayed objects for higher-quality graphics
• Assorted graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
• Programmable interrupt controller provides interrupts to host MCU
• Support playback of motion-JPEG encoded AVI videos
• Mono audio channel output with wave playback and built-in sound synthesizer
• PWM output for display backlight dimming control

Looking for accessories for your EVE TFT display module? We have 2 sizes of FFC cables 6-inch 30-pin FFC cables and 12-inch 30-pin FFC cables, plus a EVE breakout board.

Currently Shipping: HW Version 1v2, Firmware Version: 1v0

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  800 x 480

  Module Overall	width	height	depth
  millimeters	135	91.8	10.75
  inches	5.32	3.61	0.42

  Diagonal Dimension

  5"

  Viewing Area	Width	Height
  millimeters	109	65.8
  inches	4.29	2.59

  Active Area	Width	Height
  millimeters	108	64.8
  inches	4.25	2.55

  Dot Pitch	Width	Height
  millimeters	0.135	0.135
  inches	0.0053	0.0053

  Weight	134g

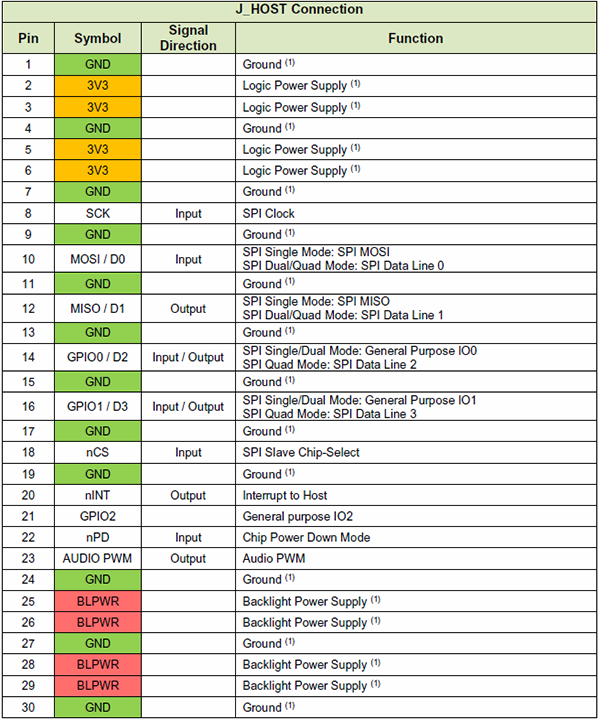

  Pin Count	30

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	TFT
  Polarizer	IPS
  View Angle	160°
  Sunlight Readable	Yes

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Dark

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	3V
  Supply Voltage for Logic Maximum	3.6V

  Supply Voltage for Logic Typical	3.3V
  Supply Current Typical	20mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	2.7V
  Forward Voltage Maximum	5.5V

  Forward Voltage Typical	5V
  Forward Current Typical	70mA

• nature Environmental

  Environmental

  Operating Temperatures	min
  Celsius	-20°
  Fahrenheit	-4°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Interface

  SPI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAF800480E2-050SC-A2 Datasheet




• download Files and Downloads
  folder_zip Hardware Design - 3D Model


  link EVE Demo Code Download on Github


  link EVE Demo Code Repository on Github
