5" EVE TFT Development kit from Crystalfontz

Product

Home » Products » Accessories » Dev Kits » EVE Development Kits

                In order to keep this display in production over the long term, we are revising it to the CFAF800480E1-050SN-A2-2. Please contact sales@crystalfontz.com with any questions.

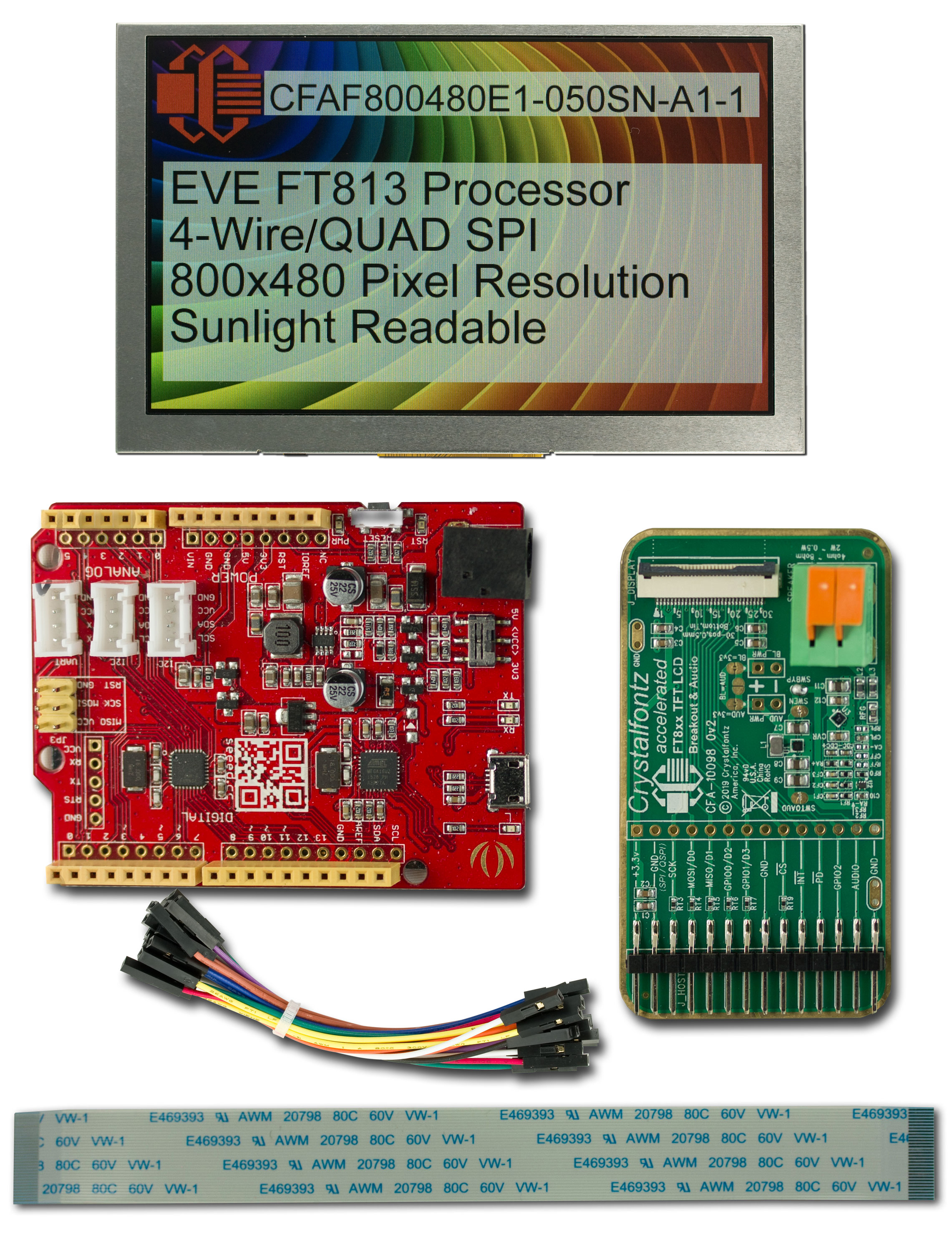

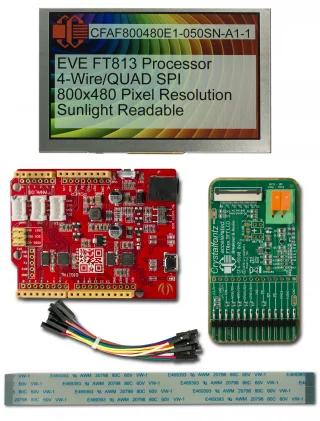

5" EVE TFT Development kitPart Number: CFAF800480E1-050SN-A1-2
         This development kit makes getting started with the 5" EVE module a cinch. Not only does this kit include the 5" display module, it also includes an EVE breakout board, and a Seeeduino, all wired up and connected.  All you have to do to run the included demo code is plug in the USB cable and apply power to the breakout board.

The included 5" display module comprises a fantastic TFT that is sunlight readable and has extremely wide viewing angles thanks to IPS technology. The display module is controlled by FTDI/Bridgetek's EVE chip, so beautiful graphics can be displayed and controlled. Read more about the benefits of EVE on our blog. The module also takes care of all the higher voltages, so the whole kit can be powered by a single USB cable.

If you're looking for a kit with touch, check out the 5" EVE Capacitive Touch Development Kit. square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            800 x 480

    Module Overall        width
        height
        depth

        millimeters
        120.7
        75.8
        8.75

        inches
        4.75
        2.98
        0.34

        Diagonal Dimension
            4.96"

    Viewing Area        Width
        Height

        millimeters
        110.3
        66.8

        inches
        4.34
        2.63

    Active Area        Width
        Height

        millimeters
        108
        64.8

        inches
        4.25
        2.55

    Dot Pitch        Width
        Height

        millimeters
        0.135
        0.135

        inches
        0.0053
        0.0053

        Weight
            125.8g

 visibility Optical Characteristics
Optical Characteristics

        Polarizer
            Transmissive
View Direction
            12 o'clock
View Angle
            170°
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V
Supply Current Typical
            20mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            12:00V

        Forward Current Maximum
            140mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Interface
            DOT-CLK interface / Generic RGB

 picture_as_pdf Datasheets
picture_as_pdfCFAF800480E1-050SN-A1-1 Datasheet

 download Files and Downloads
folder_zip Software Source - Arduino EVE FT813 Demo Code

Module Overall	width	height	depth
millimeters	120.7	75.8	8.75
inches	4.75	2.98	0.34

Viewing Area	Width	Height
millimeters	110.3	66.8
inches	4.34	2.63

Active Area	Width	Height
millimeters	108	64.8
inches	4.25	2.55

Dot Pitch	Width	Height
millimeters	0.135	0.135
inches	0.0053	0.0053

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11076: FTDI Chip Upgrade to FT817

Products Affected:	CFAF800480E1-050SC-A1-1, CFAF800480E1-050SC-A1-2, CFAF800480E1-050SN-A1-1, CFAF800480E1-050SN-A1-2
Date Issued:	February 10, 2021
Summary:	FTDI Chip Upgrade to FT817
Description:	We are changing this product by upgrading the FTDI chip to an FT817 and adding external flash to support storing image data. Changing to the new controller will require some slight software modifications for the touch versions. In addition, we will be adding a resistive touch option as well as a cap touch option with glass that exceeds the frame of the display for an extended mounting surface. Current PCB Version: h0v2 Current Firmware Version: f0v0
Reason:	Upgrade the EVE chip and add compatibility with the resistive touch display.
Availability:	First Quarter of 2021
Price Change:	Price is subject to change.
