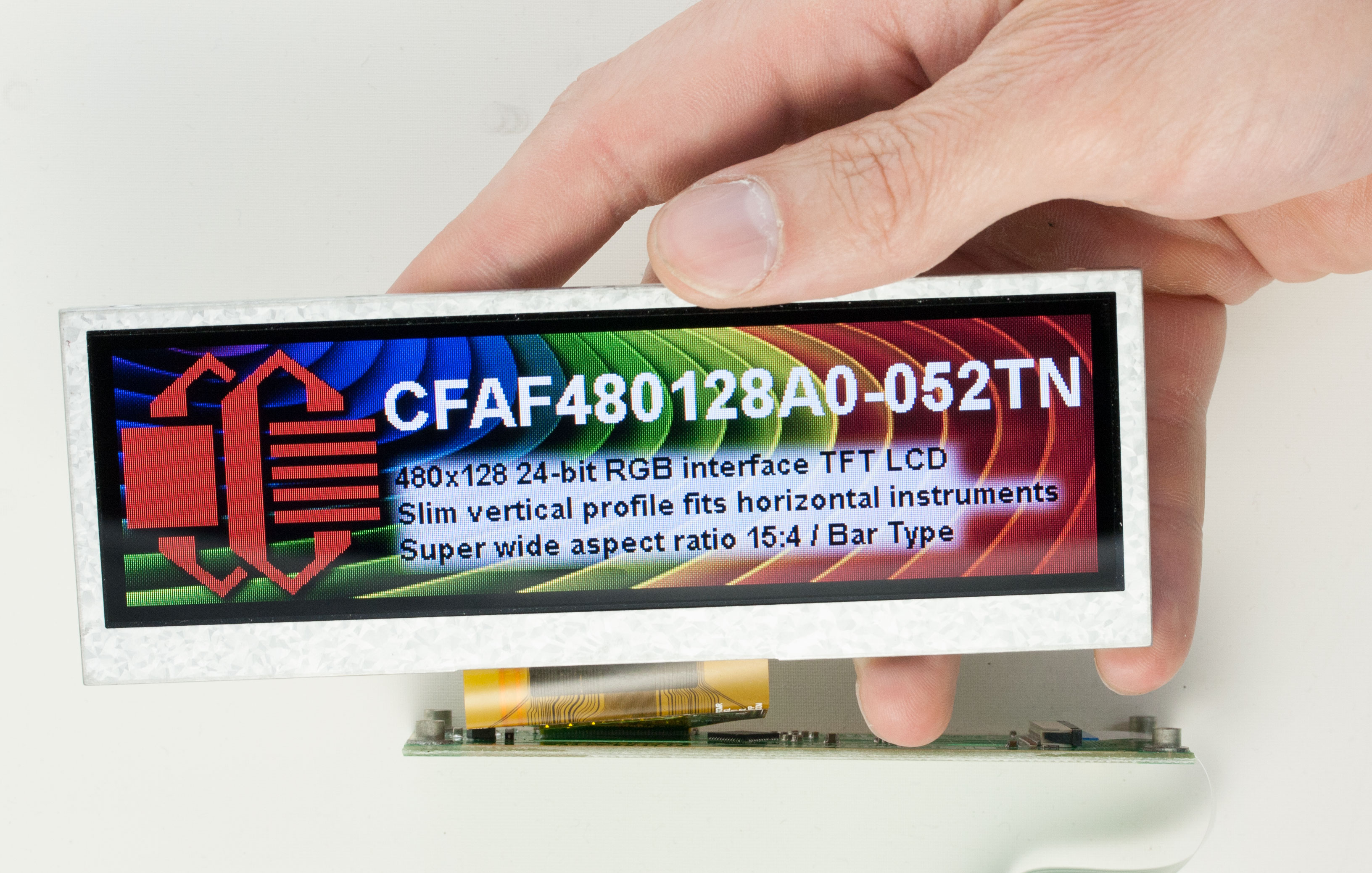

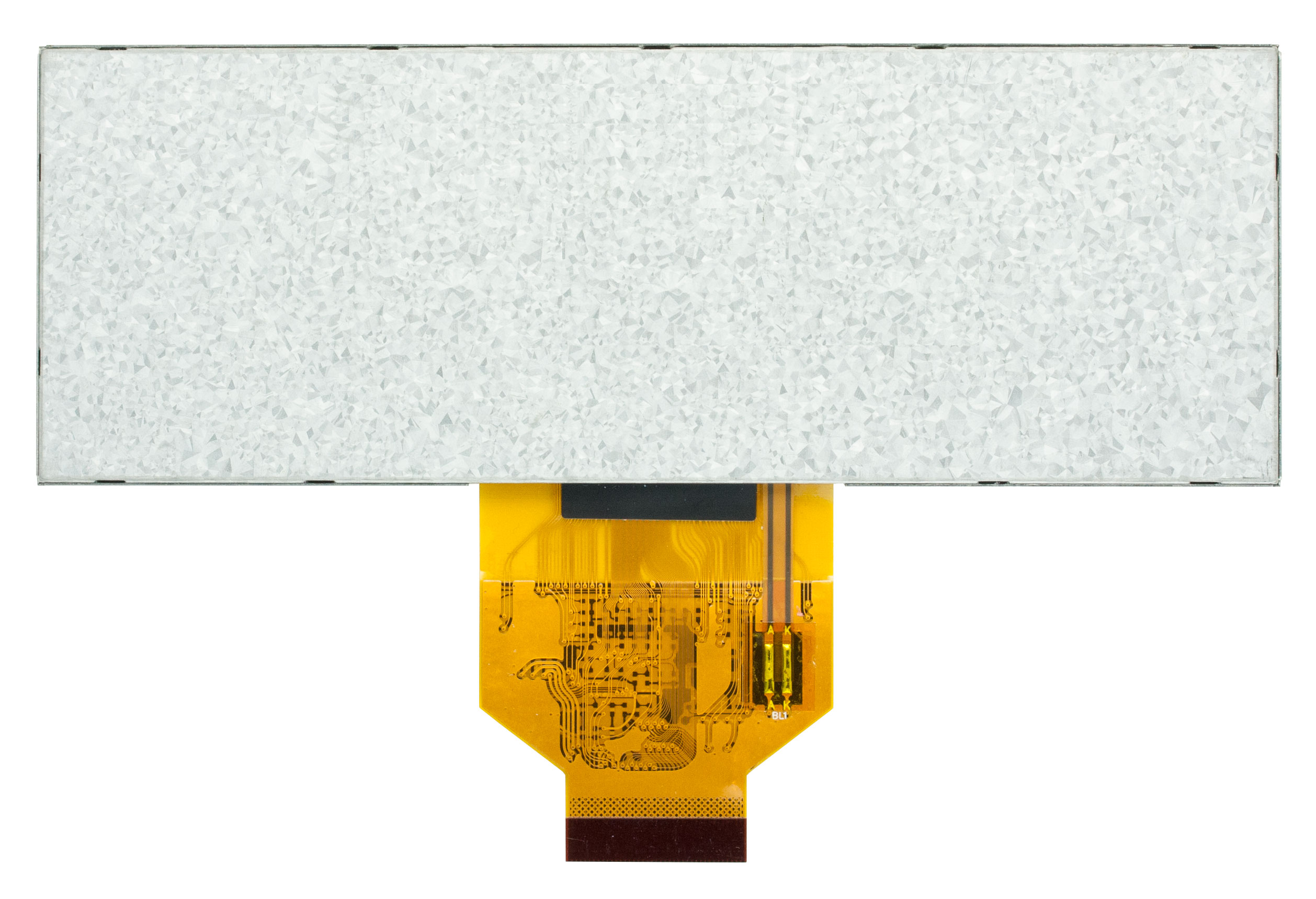

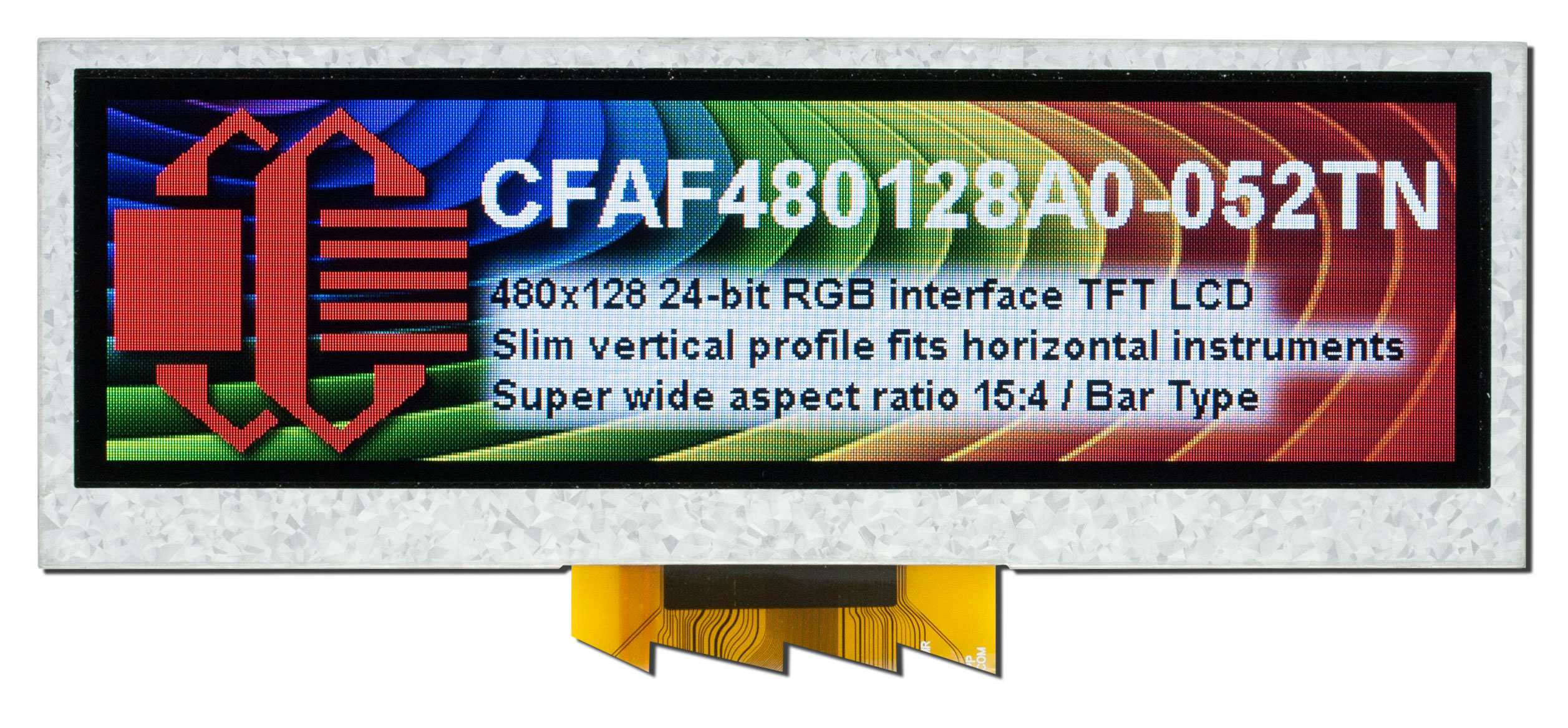

5.2-inch Bar-type TFT DisplayPart Number: CFAF480128A0-052TNWith its ultra-wide aspect ratio of nearly 4:1, this bar-type display excels in narrow spaces. Use this display as an information panel on an appliance or dashboard. This display can show wide graphics that get squished on other displays or can be broken into sections to take the place of multiple other displays.
The active area of the display is 5.2" on the diagonal and 5" wide. It has an RGB interface, and a white LED backlight. If you're looking for a smaller version of this display, we also carry a 3.9" bar-type display.
480x128 pixel display resolution
5.2-inch diagonal dimension
RGB interface
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            480 x 128

    Module Overall        width
        height
        depth

        millimeters
        140.4
        49.87
        3

        inches
        5.53
        1.96
        0.12

        Diagonal Dimension
            5.18"

    Viewing Area        Width
        Height

        millimeters
        133.4
        39.4

        inches
        5.25
        1.55

    Active Area        Width
        Height

        millimeters
        127.15
        33.91

        inches
        5.01
        1.34

    Dot Pitch        Width
        Height

        millimeters
        0.0883
        0.2649

        inches
        0.0035
        0.0104

    Flexible Cable (FFC/FPC)        length

        millimeters
        42.4

        inches
        1.669

        Weight
            46.2g
Pin Count
            40

 visibility Optical Characteristics
Optical Characteristics

        Polarizer
            Transmissive
View Direction
            6 o'clock
View Angle
            150°

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V
Supply Current Typical
            20mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            16.8V
Forward Voltage Maximum
            21V

        Forward Voltage Typical
            18.6V
Forward Current Typical
            80mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Interface
            DOT-CLK interface / Generic RGB

 picture_as_pdf Datasheets
picture_as_pdfCFAF480128A0-052TN Datasheet
(Datasheet V 20191023)
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1 *
            $69.98

            10 *
            $60.85

            20 *
            $58.67

            50 *
            $56.50

            100 *
            $55.63

            200 *
            $54.76

            500 *
            $51.30

            1000 *
            $47.54

1 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						40-Position ZIF Breakout Board
Add a 40-pin ZIF Breakout Board? $6.43 ea.

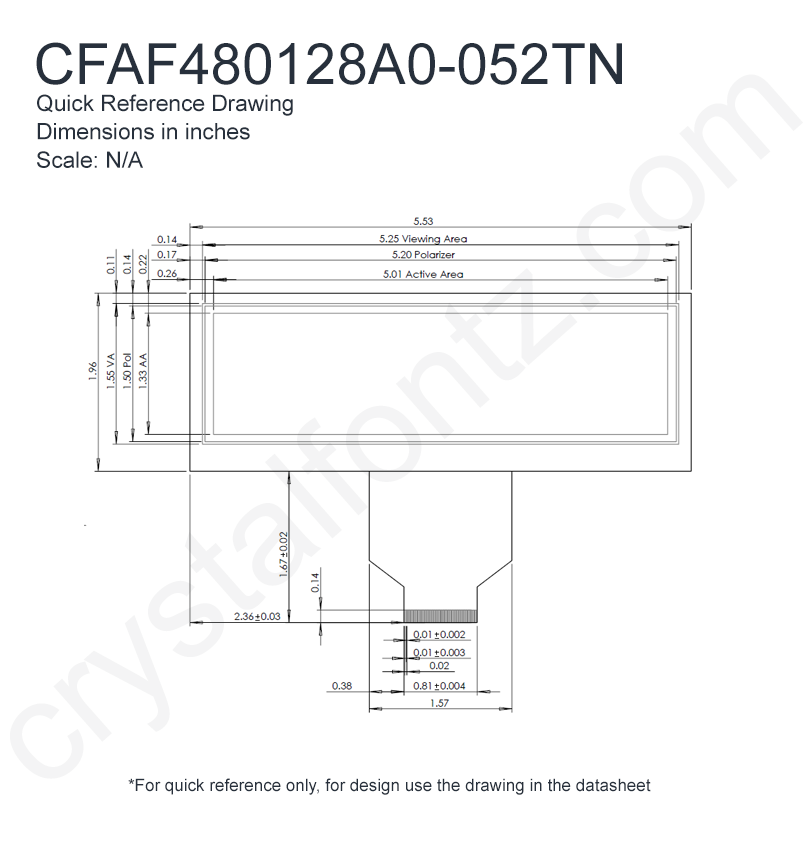

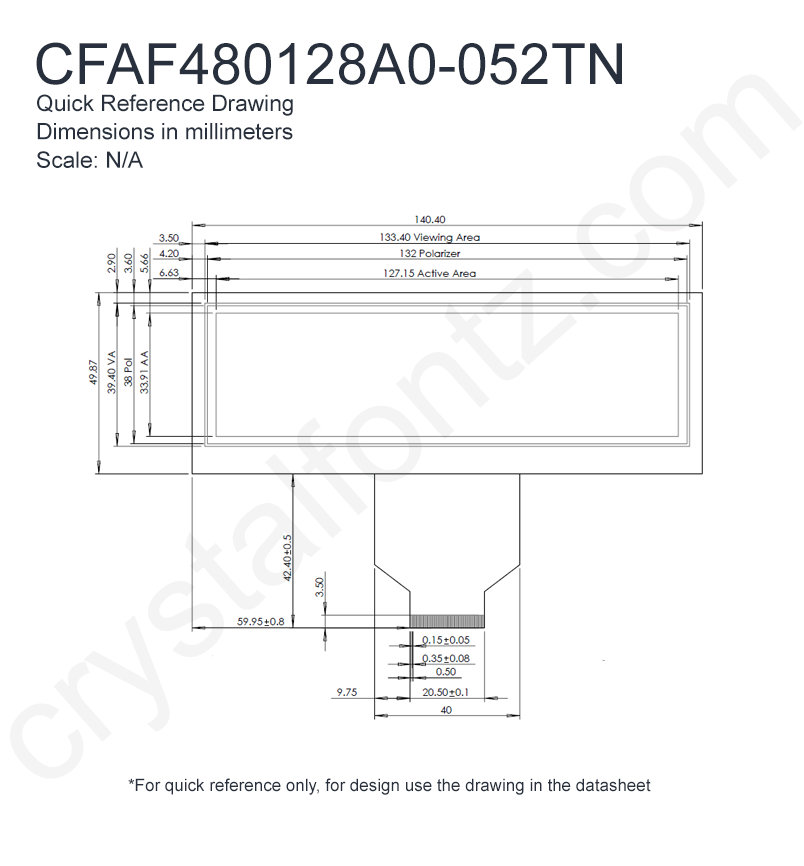

Module Overall	width	height	depth
millimeters	140.4	49.87	3
inches	5.53	1.96	0.12

Viewing Area	Width	Height
millimeters	133.4	39.4
inches	5.25	1.55

Active Area	Width	Height
millimeters	127.15	33.91
inches	5.01	1.34

Dot Pitch	Width	Height
millimeters	0.0883	0.2649
inches	0.0035	0.0104

Flexible Cable (FFC/FPC)	length
millimeters	42.4
inches	1.669

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1 *	$69.98
10 *	$60.85
20 *	$58.67
50 *	$56.50
100 *	$55.63
200 *	$54.76
500 *	$51.30
1000 *	$47.54

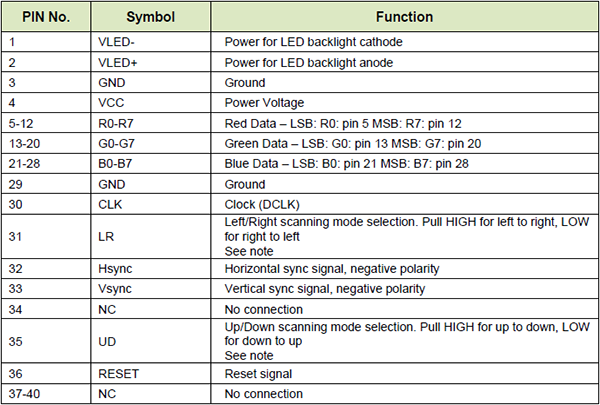

Pin Table
