                In order to keep this display in production over the long term, we are revising it the CFA480128E0-039TC-KIT number. Any backorders placed now will be fulfilled with the new part when it becomes available. Please contact support with any questions.
EVE Bar-Type TFT Development KitPart Number: CFAF480128A0-039TC-A1-2

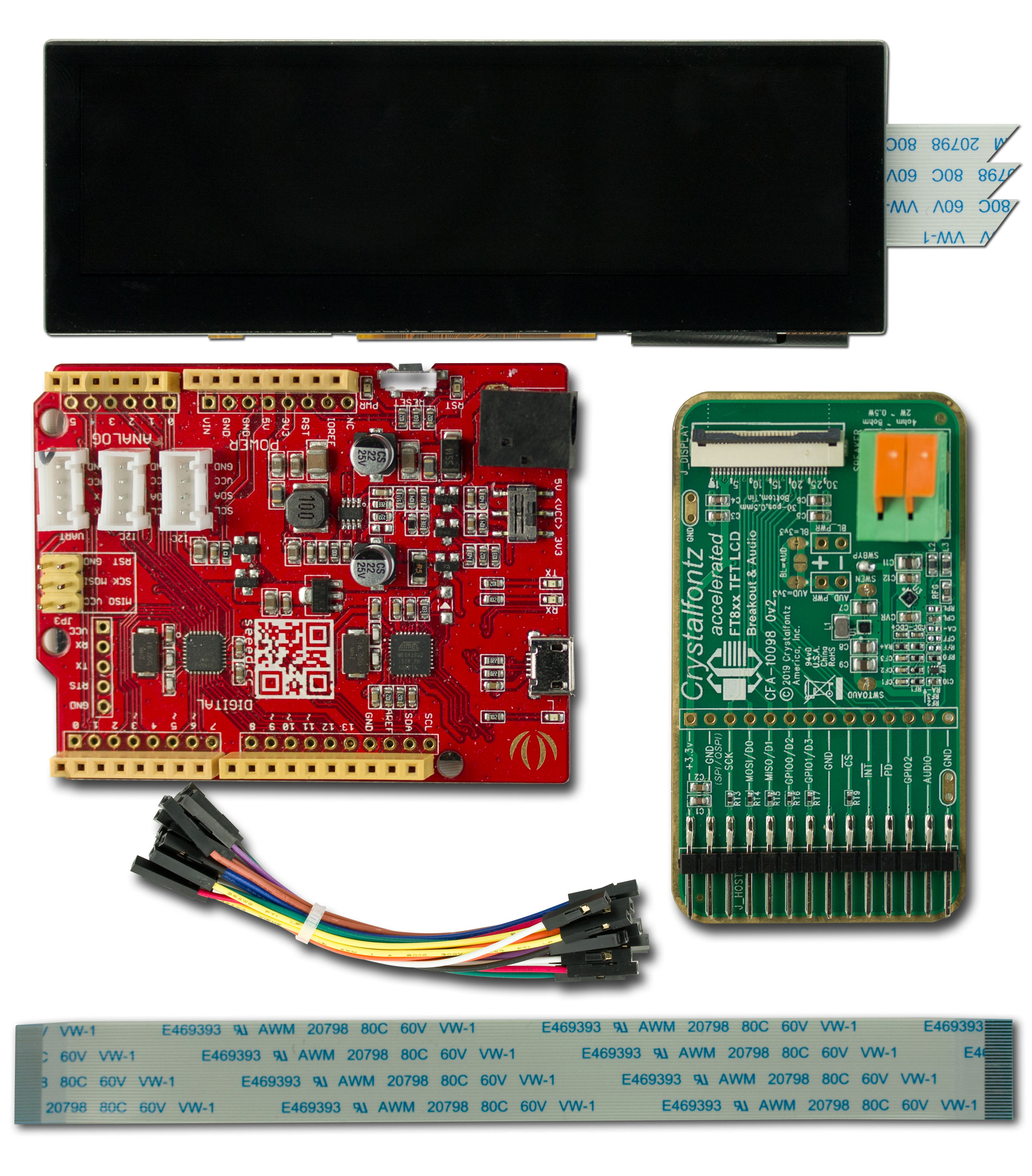

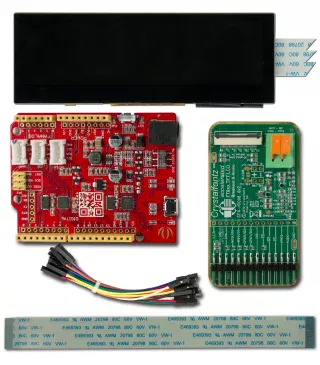

    This bar-type TFT development kit includes everything you need to get started prototyping and building with the 480x128 accelerated display module . This development kit includes the bar-type display module with the accelerator board connected an EVE Breakout Board connected to a Seeeduino loaded with demo code. Once you receive the development kit, all you need to do to get the demo kit running is check the connections and plug in the included USB cable.

Features:Great for rack-mount applications
Slim design with rear-facing pem-nuts for easy fastening to an enclosure
EVE2 accelerator
Cap touch
Adapter board has a jack to connect a speaker
 square_foot Physical Characteristics
Physical Characteristics

        Diagonal Dimension
            3.87"

 download Files and Downloads
folder_zip Software Source - Arduino SPI Demo Code

Other components worth considering

						MicroSD Card Reader
Need a MicroSD Reader? $9.89 ea.

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11127: End-Of-Life Notification

Products Affected:	CFAF480128A0-039TC-A1-1, CFAF480128A0-039TC-A1-2
Date Issued:	June 2, 2022
Summary:	End-Of-Life Notification
Description:	This is an update to change notice #11113. (https://www.crystalfontz.com/news/pcn.php?id=11113) The capacitive touch controller has gone EOL and is being replaced by a new touch controller. The firmware for the helper processor on our circuit board is also being modified to account for the new touch controller. The touch controller is translated by the helper processor and does not connect to the EVE so no changes to external software need to be made. The part numbers are changing as follows. CFAF480128A0-039TC-A1-1 -> CFA480128E0-039TC CFAF480128A0-039TC-A1-2 -> CFA480128E0-039TC-KIT
Reason:	To prepare for chip shortages, higher MOQs, and cost increases, Crystalfontz has determined to change the touch panel to a touch panel with a different touch controller.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11113: End-of-Life Notification

Products Affected:	CFAF480128A0-039TC, CFAF480128A0-039TC-A1-1, CFAF480128A0-039TC-A1-2
Date Issued:	January 17, 2022
Summary:	End-of-Life Notification
Description:	The capacitive touch controller used with this display is being changed to a more readily available controller. The part number for the replacement part is CFAF480128A1-039TC. The display itself is not changing.
Reason:	To prepare for chip shortages, higher MOQs, and cost increases, Crystalfontz has determined to change the touch panel to a touch panel with a different touch controller.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Product Update #11065: Firmware update.

Products Affected:	CFAF480128A0-039TC-A1-1, CFAF480128A0-039TC-A1-2
Date Issued:	June 11, 2020
Summary:	Firmware update.
Description:	The change is firmware only and the only change is to turn the backlight off until after the initialization of the display.
Reason:	If power is provided to the display the backlight is on until the initialization is sent. We have modified the firmware so the display stays off until the end-user has the ability to control the backlight.
Impact:	Hardware Version: 0v4 Software Version: 0v0
