320x240 3.5" Touch Screen Color TFT from Crystalfontz

Product

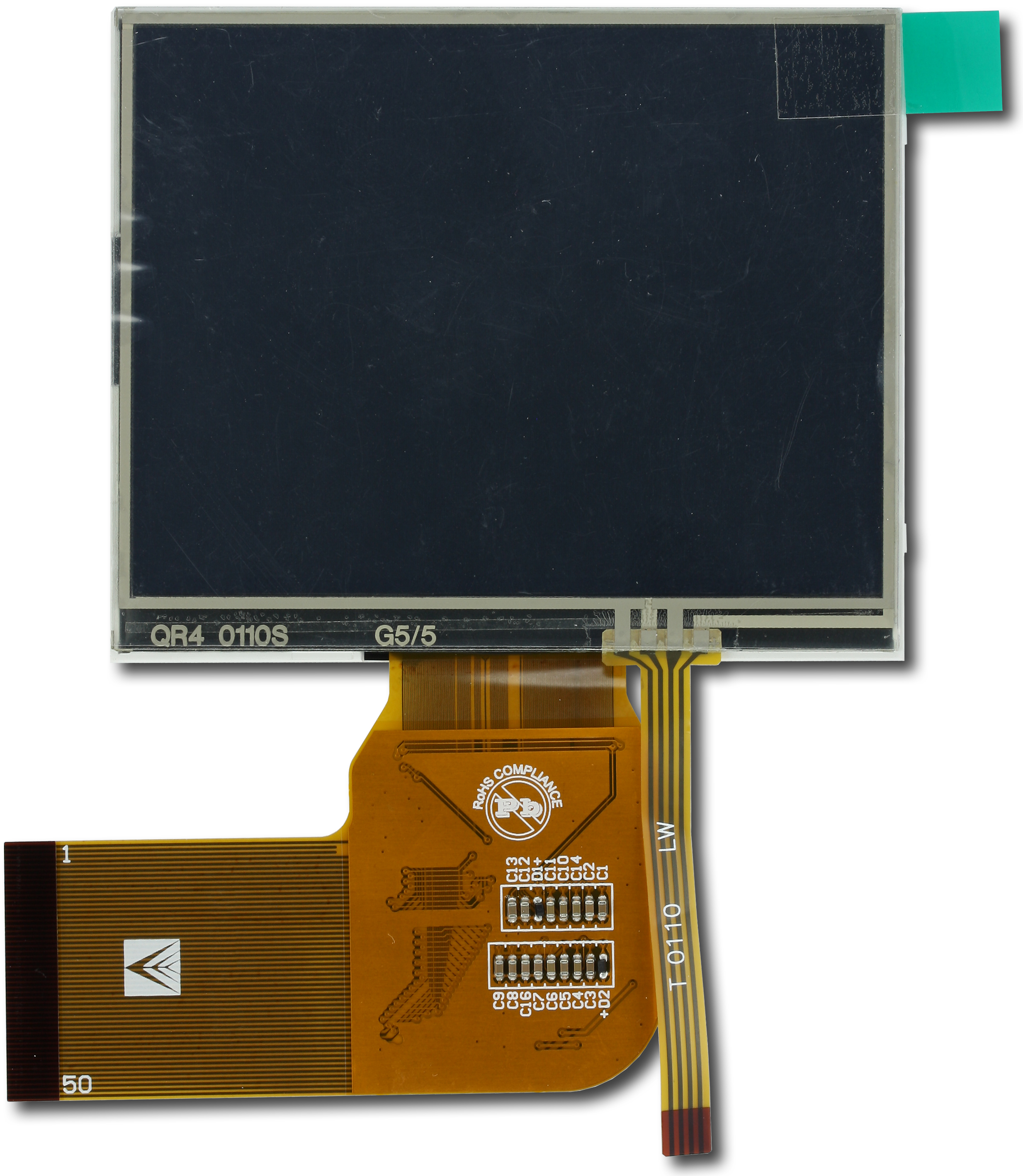

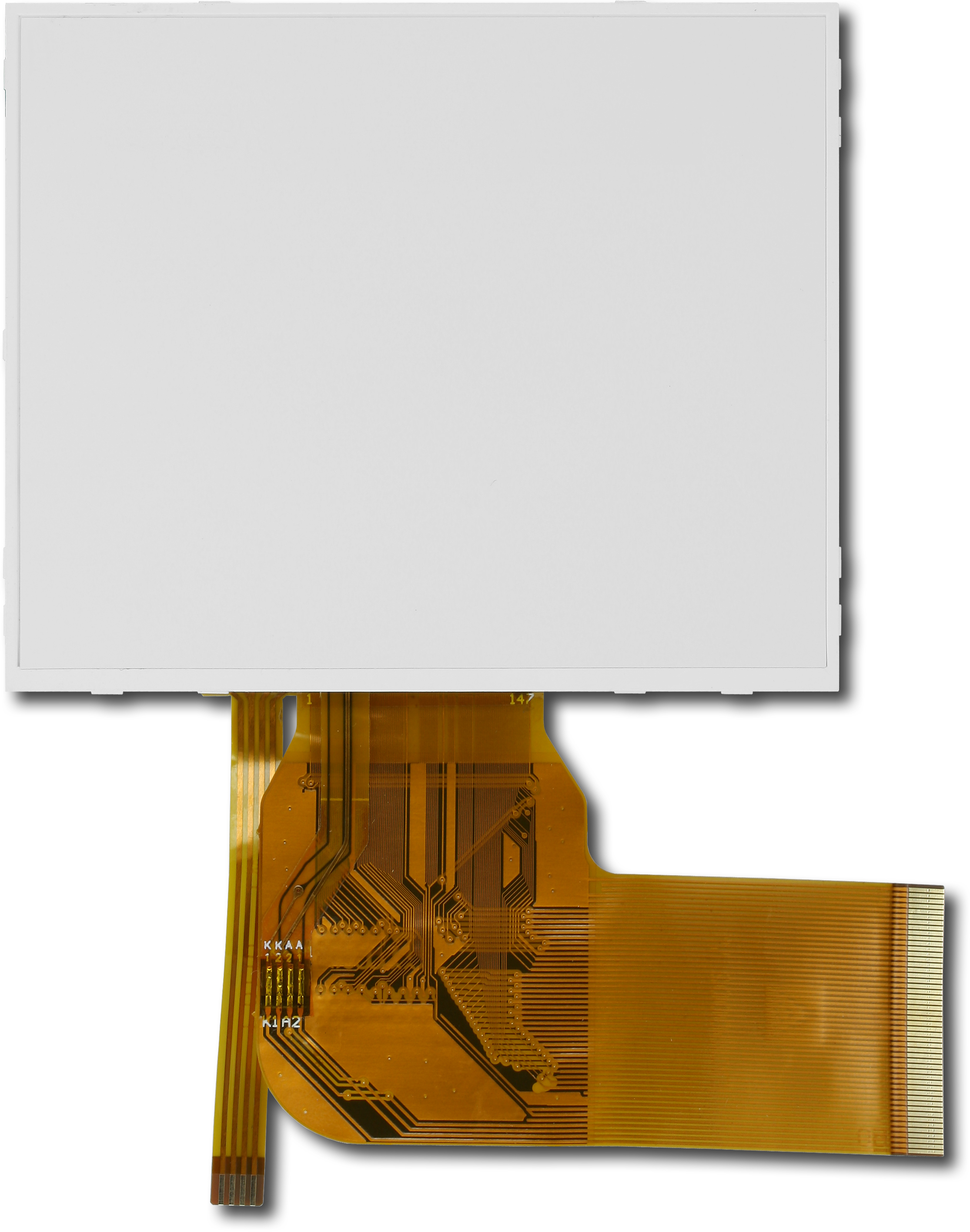

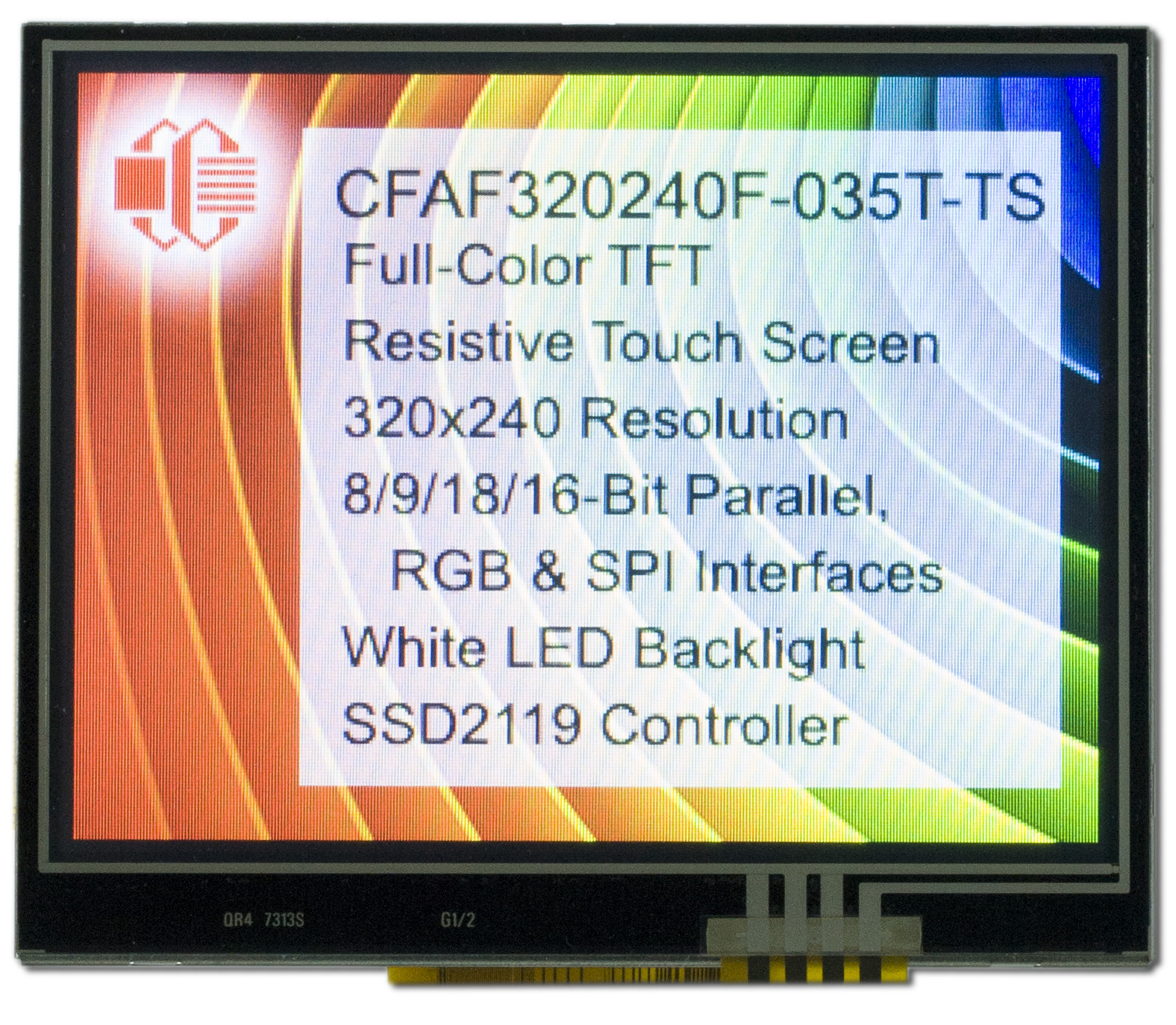

320x240 3.5" Touch Screen Color TFTPart Number: CFAF320240F-035T-TSTo improve user experience, this sharp looking 3.5-inch diagonal full-color QVGA 320x240 TFT has a 4-wire resistive touchscreen. The 50-pin Flat Flexible Cable (FFC) mates with standard 0.5 mm ZIF sockets.
For quick prototype development, this display is available in a kit with a Crystalfontz breakout/carrier board.(See Under ADDITIONAL OPTIONS below.)
For this same TFT without a touch screen, see the CFAF320240F-035T display module.
HighlightsActive Area is 3.5" diagonal, 70.08 (W) x 52.56 (H) mm (2.76" (W) x 2.07" (H)).
Choose from several interface modes to host:
     8-bit, 9-bit, 16-bit, and 18-bit parallel (8080 or 6800).
16-bit or 18-bit "DOTCLK" RGB.
3- or 4-wire SPI.

6:00 o'clock viewing direction (polarizer viewing direction) can be used in portrait or landscape orientation.
Temperature operation is from -20°C to +70°C.
To get you started, free downloadable sample code is under the DATASHEETS & FILES section.
This TFT and the optional carrier board are RoHS compliant.
Crystalfontz America, Incorporated is ISO 9001:2015 certified.
We offer free technical support via phone, chat, or email.
Product VariationsTouchscreenResistiveNone

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            320 x 240


    Module Overall        width
        height
        depth


        millimeters
        77.6
        64.4
        4.45


        inches
        3.06
        2.54
        0.18

*width / height does not include Foldable Tab


        Diagonal Dimension
            3.45"


    Active Area        Width
        Height


        millimeters
        70.08
        52.56


        inches
        2.76
        2.07



    Dot Size        Width
        Height


        millimeters
        0.06
        0.21


        inches
        0.002
        0.008



    Dot Pitch        Width
        Height


        millimeters
        0.22
        0.22


        inches
        0.009
        0.009



        Optional Connectors
            CS050Z50GB0


        Weight
            38g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TN
Polarizer
            Transmissive
View Direction
            0.25 o'clock


        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.5V
Supply Voltage for Logic Maximum
            3.6V
Supply Voltage for Logic Typical
            3V


        Module Connector Pitch
            0.5mm
Touchscreen Connector Pitch
            1mmmm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD2119
SSD2119 320 RGB x 240 TFT LCD Driver

Integrated Power Circuit, Source and Gate Driver and RAM
Interface
            16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAF320240F035TTS Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAF320240F-035T Series Data Sheet Release 2014-12-24.pdf

picture_as_pdfCFAF320240F-035T-TS Data Sheet Release 2012-07-18.pdf

picture_as_pdfCFAF320240F-035T-TS Data Sheet 2012-04-11.pdf

picture_as_pdfCFAF320240F-035T-TS Data Sheet v1.0.pdf
(Hardware A)
picture_as_pdfCFAF320240FTTS Data Sheet v1.1.pdf
(Datasheet V 1.1, Hardware A)
picture_as_pdfCFAF320240F-T-TS Data Sheet v1.0.pdf
(Datasheet V 1.0, Hardware A)
picture_as_pdfCFAF320240FTTS.pdf

download Files and Downloads
folder_zip Software Source - 4-Wire Arduino Demo Sketch
folder_zip Software Source - ATMega2561 Demo Code
folder_zip Hardware Design - CFA-10074 Carrier Board Hardware Files BOM Gerber 0v1 0v2
folder_zip Hardware Design - CFAF320240F-035T-TS 3D Model
folder_zip CAD Export - CFAF320240F Series 2D CAD

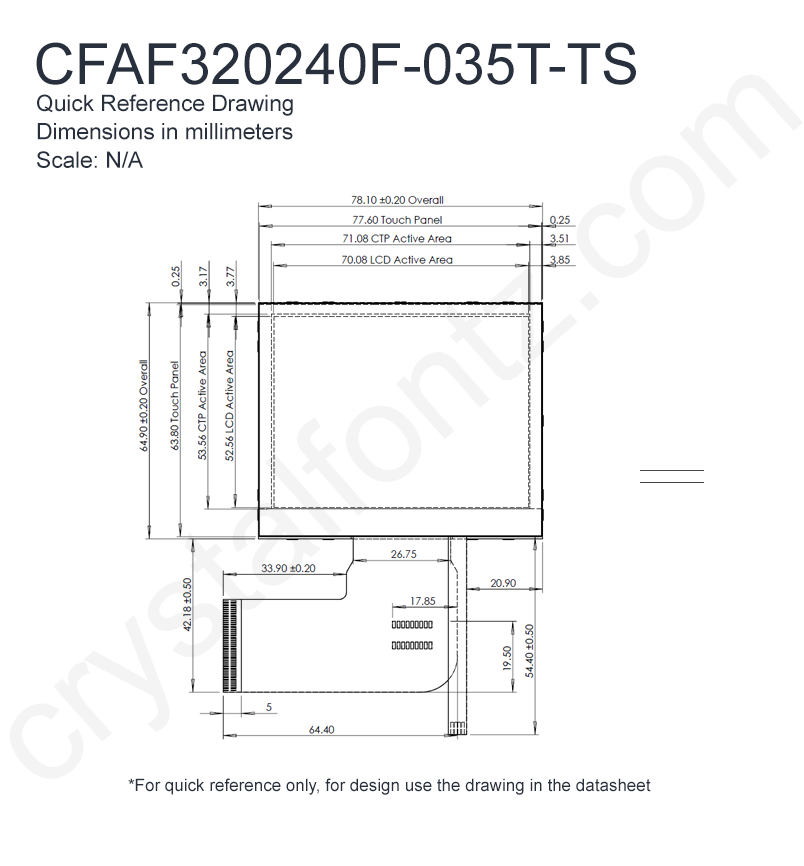

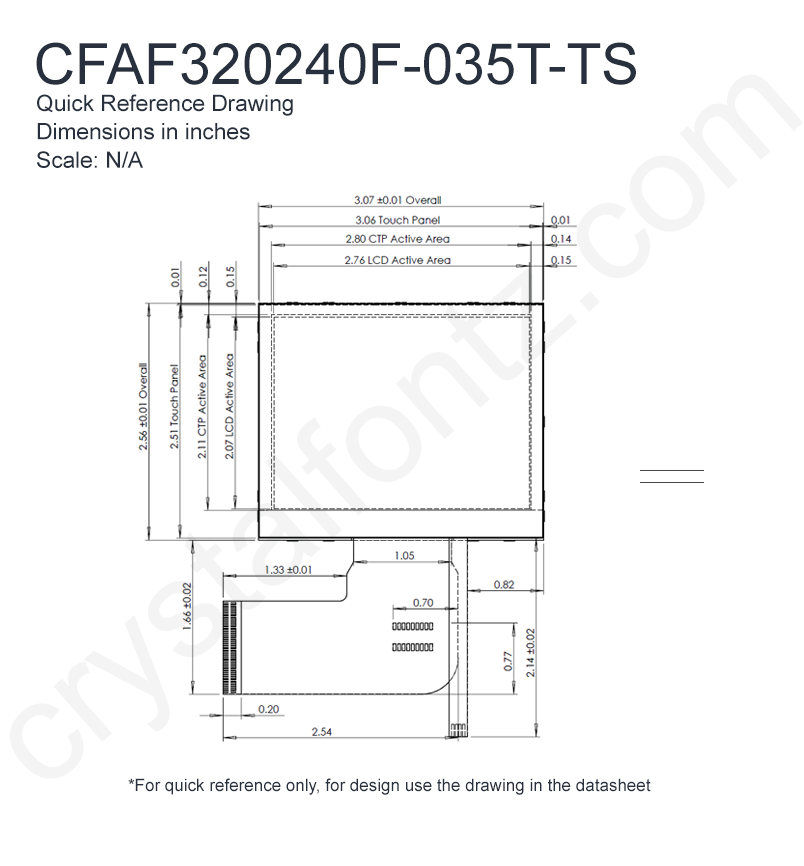

picture_as_pdf 1 to 1 Template - Outline Drawing
picture_as_pdf Other Document - CFAF320240F Series Interface Table
picture_as_pdf Other Document - Solomon Systech SSD2119 RGB Information
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH














Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $50.61

            10
            $49.16

            20
            $47.72

            50
            $43.55

            100
            $40.62

            200
            $40.37

            300 *
            $37.51

            500 *
            $35.64

            1000 *
            $33.31

237 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering


						50 Position, 0.50mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $1.76 ea.

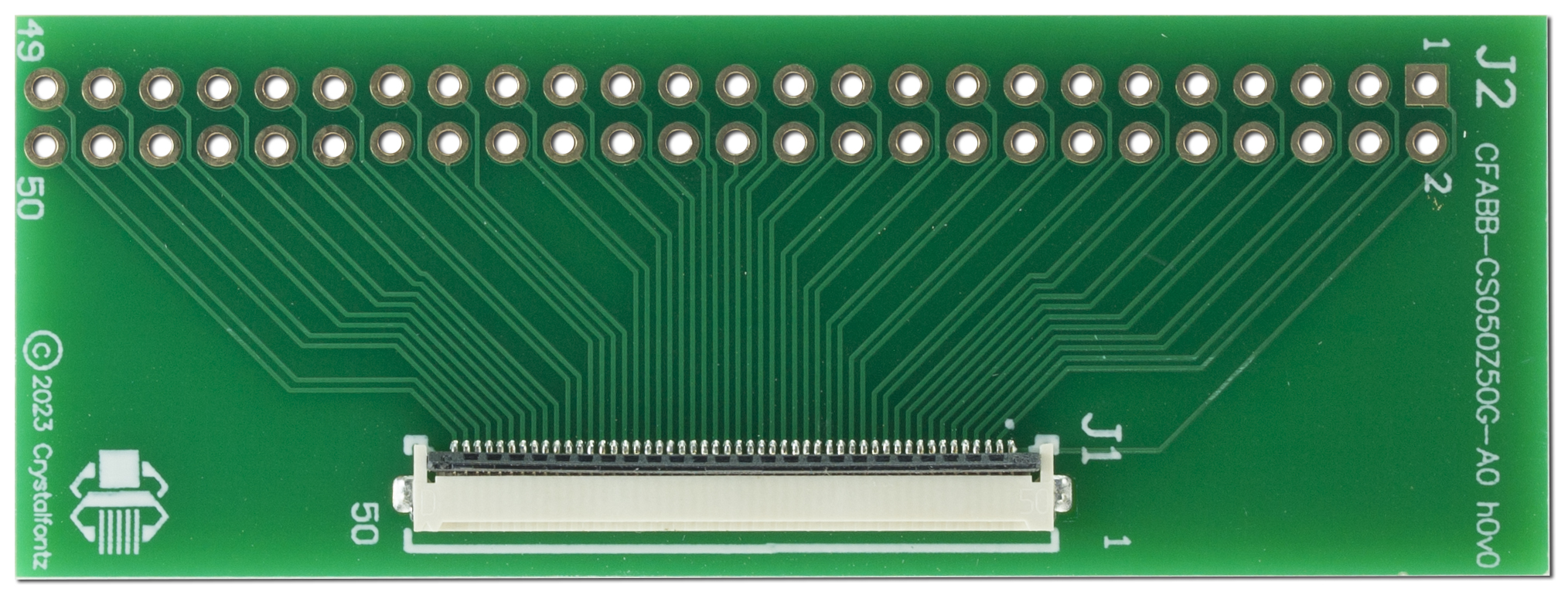

						50-Position ZIF Breakout Board
Add a 50-pin ZIF Breakout Board? $6.54 ea.





Module Overall	width	height	depth
millimeters	77.6	64.4	4.45
inches	3.06	2.54	0.18
*width / height does not include Foldable Tab

Active Area	Width	Height
millimeters	70.08	52.56
inches	2.76	2.07

Dot Size	Width	Height
millimeters	0.06	0.21
inches	0.002	0.008

Dot Pitch	Width	Height
millimeters	0.22	0.22
inches	0.009	0.009

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$50.61
10	$49.16
20	$47.72
50	$43.55
100	$40.62
200	$40.37
300 *	$37.51
500 *	$35.64
1000 *	$33.31

Additional Options
Notices

Additional Options

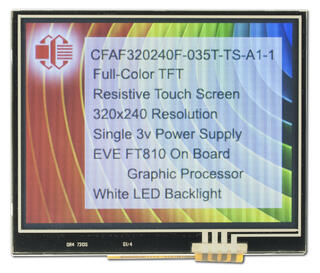

Add an EVE capable PCB to this display to speed up development.
