3" 240x400 EVE TFT Display from Crystalfontz

Product

                This product has been replaced by this 3" 240x400 EVE TFT Display.
3" 240x400 EVE TFT DisplayPart Number: CFAF240400E0-030TN-A1-1

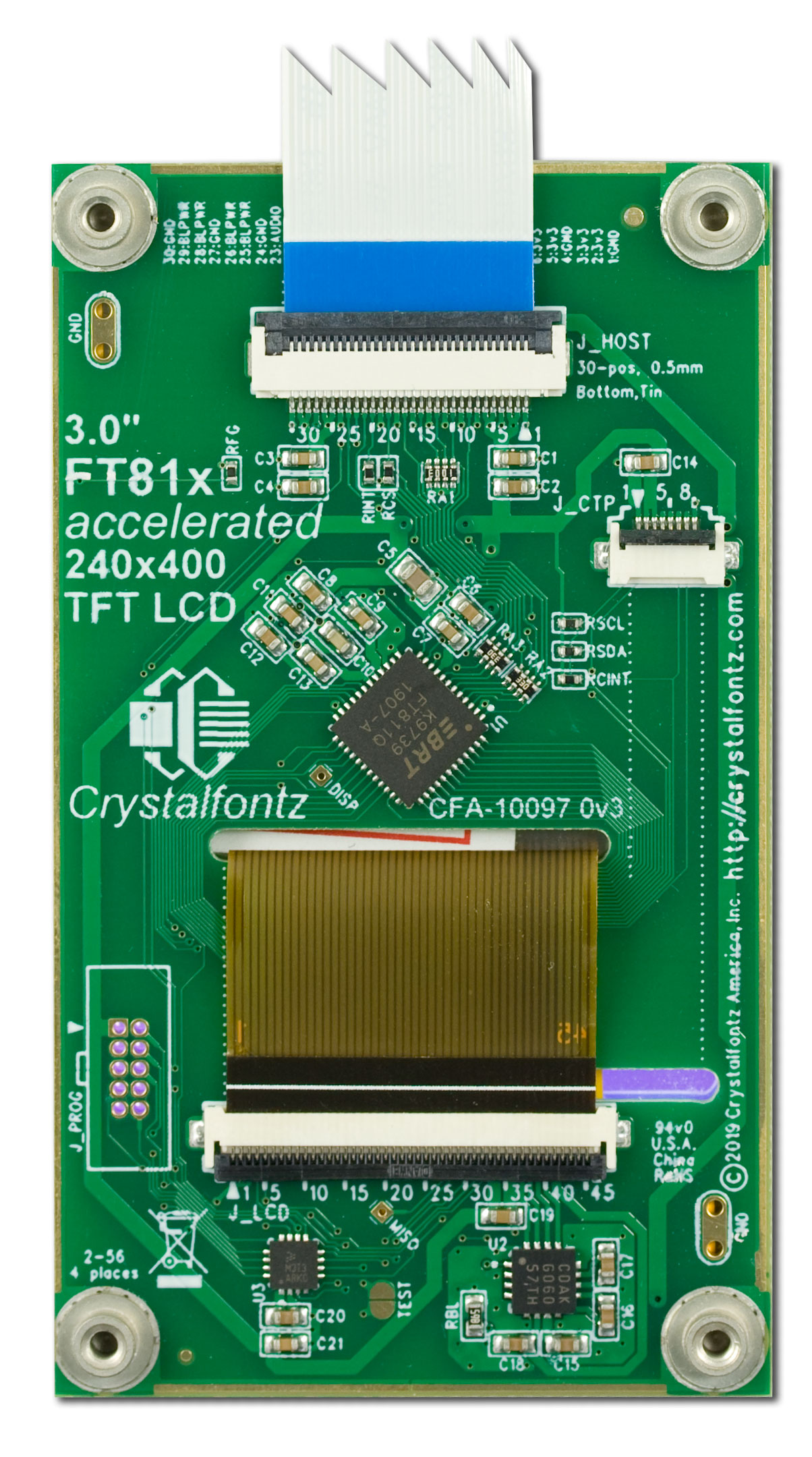

    This display module combines a 3" display with an embedded video engine (EVE) PCB for a powerful display module. The EVE PCB, powered by an FTDI/Bridgetek FT81x, accepts high-level commands, simplifying the creation of beautiful interfaces.

EVE Graphics Accelerator features include:
User interface design software by FTDI/Bridgetek to simplify the design process
Enhanced sketch processing
Anti-aliasing of primitive displayed objects
PWM output for display backlight dimming control
Support playback of motion-JPEG encoded AVI videos
30-pin FPC / ZIF Connection

Find out more about the powerful EVE chip on our blog.

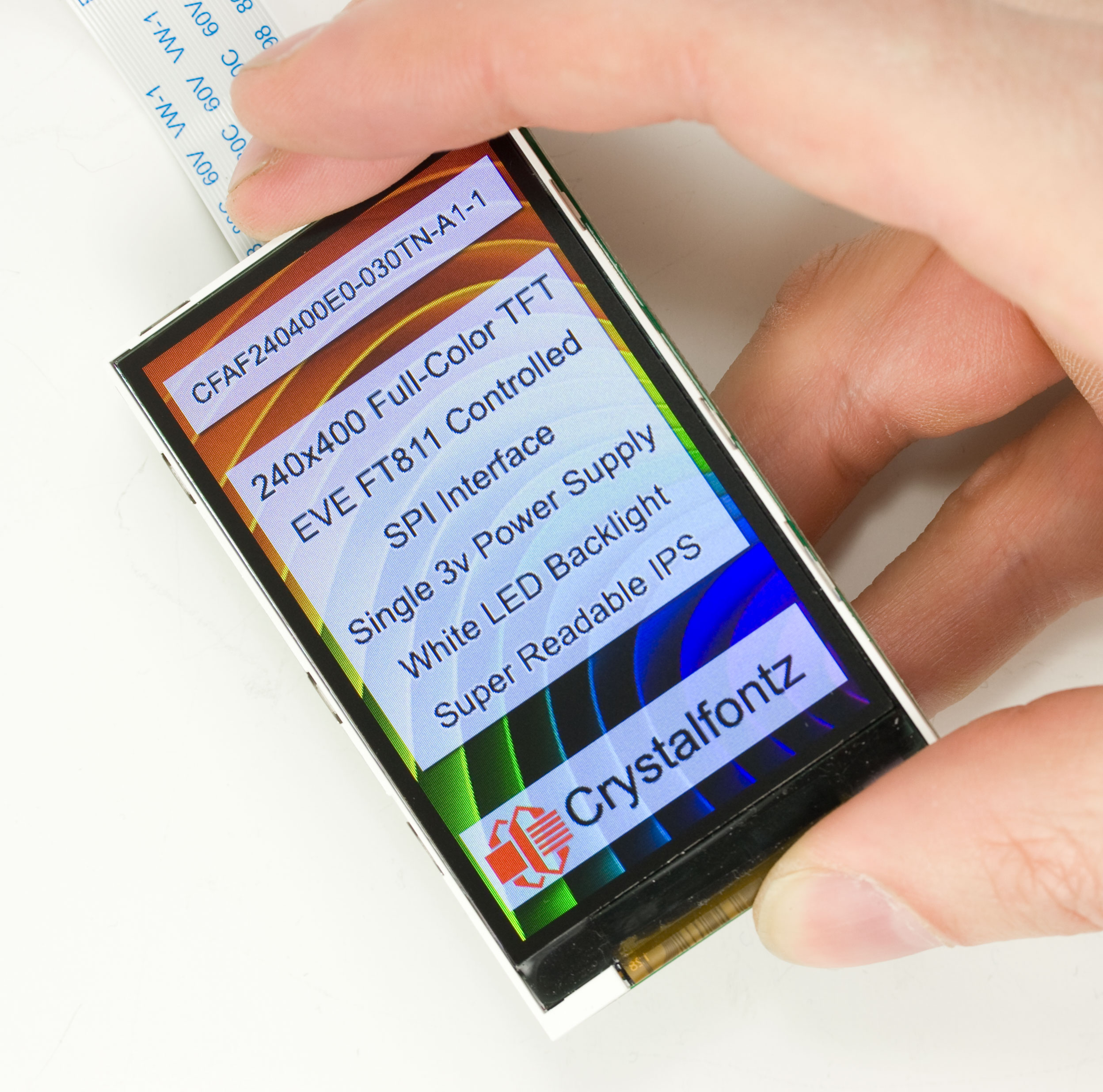

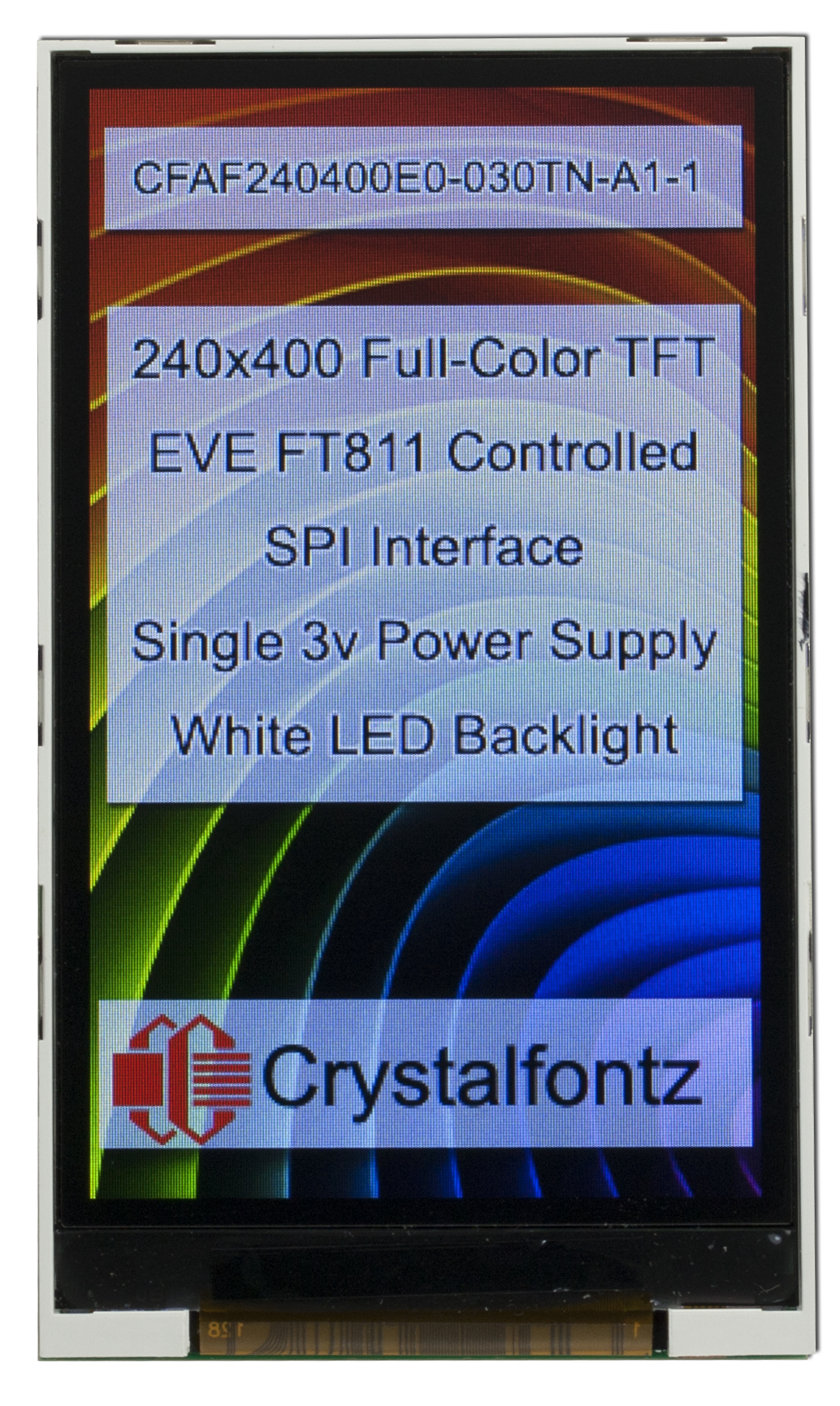

The TFT display included in this module is a 3" TFT with a resolution of 240x400.

We have everything you need to develop with the FTDI EVE platform including 12-inch 30-pin FPC cables, 6-inch 30-pin FPC cables and an EVE breakout board and any product support you may need.

The complete 3" 240x400 Full-Color EVE development kit for this module is also available. The development kit includes everything needed to get this display module working.

This model does not have a touch screen. For a 3" EVE module with touch, check out the 240x400 Touchscreen EVE TFT.

Product Variations

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 400

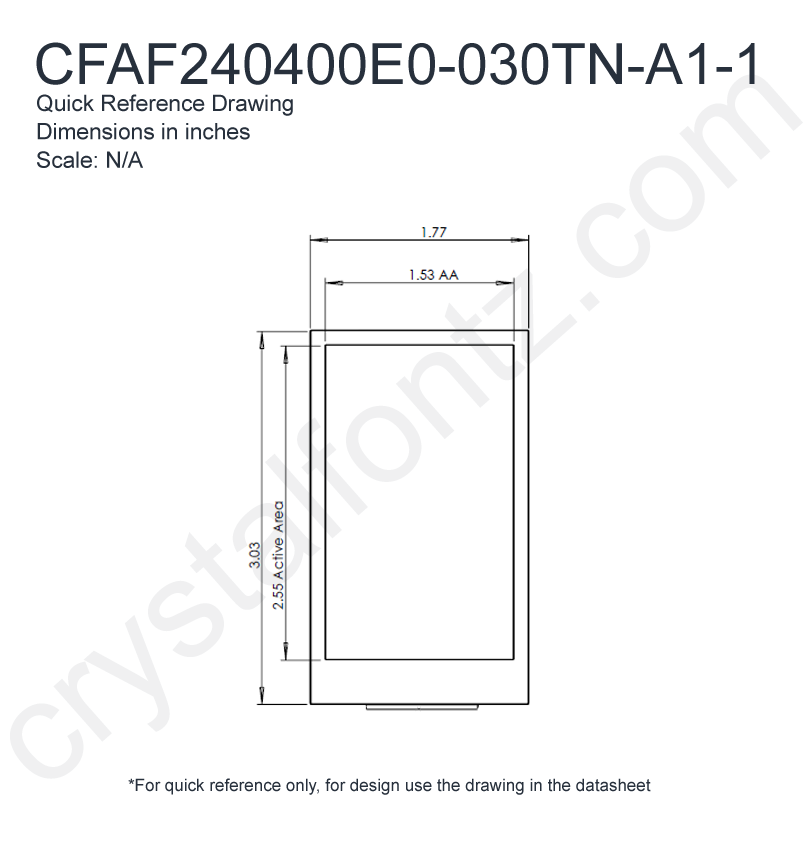

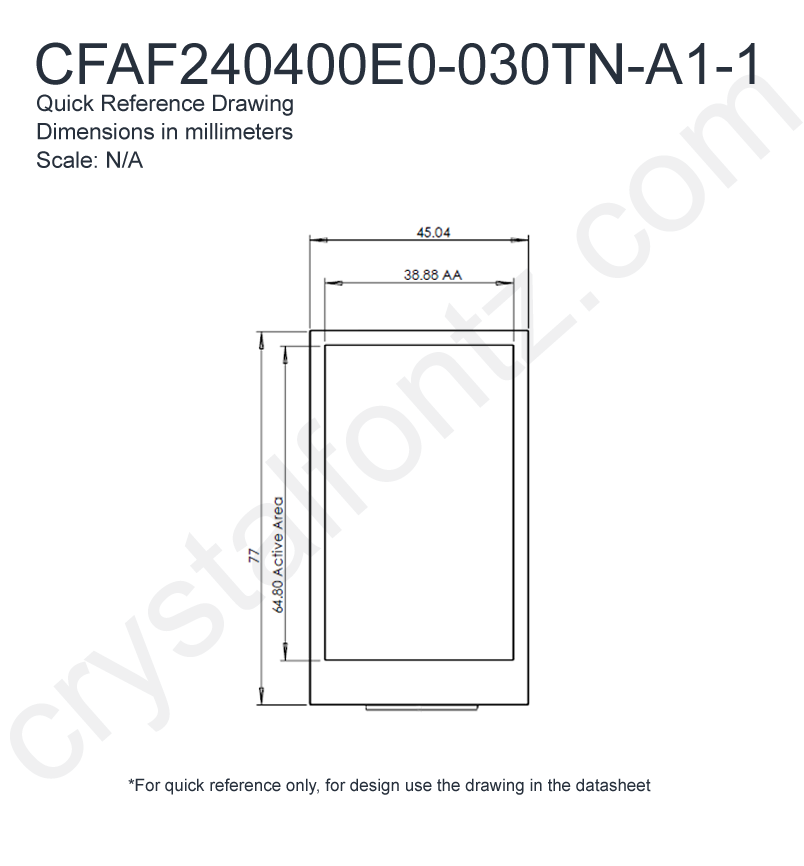

    Module Overall        width
        height
        depth

        millimeters
        45
        77
        7.3

        inches
        1.77
        3.03
        0.29

        Diagonal Dimension
            2.98"

    Active Area        Width
        Height

        millimeters
        38.88
        64.8

        inches
        1.53
        2.55

    Dot Pitch        Width
        Height

        millimeters
        0.162
        0.162

        inches
        0.0064
        0.0064

        Optional Connectors
            CS050Y30TB0

        Weight
            29.7g
Pin Count
            30

 visibility Optical Characteristics
Optical Characteristics

        Polarizer
            IPS
View Direction
            0.5 o'clock
View Angle
            75°

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2V
Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Driving Panel Typical
            3.3V

        Supply Current Maximum
            70mA
Supply Current Typical
            54mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            2.7V
Forward Voltage Maximum
            5.5V
Forward Voltage Typical
            3.3V

        Forward Current Maximum
            166mA
Forward Current Typical
            106mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Interface
            SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAF240400E0-030TN-A1-1 Datasheet

 download Files and Downloads
folder_zip Hardware Design - 3D Model
link Arduino Demo Code Download on Github
link Arduino Demo Code Repository on Github
link ESP32 Demo Code Repository on Github

Other components worth considering

						6-inch 30-pin FFC Cable
Need a FFC Cable? $2.30 ea.

						Assorted Imperial Screws
Add mounting screws $3.08 ea.

						30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Add 5 ZIFs $0.61 ea.

Module Overall	width	height	depth
millimeters	45	77	7.3
inches	1.77	3.03	0.29

Active Area	Width	Height
millimeters	38.88	64.8
inches	1.53	2.55

Dot Pitch	Width	Height
millimeters	0.162	0.162
inches	0.0064	0.0064

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Additional Options
Pin Table
Notices

Additional Options

Purchase with a Seeeduino and all the connectors you need to start development quickly.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11130: End-Of-Life Notification

Products Affected:	CFAF240400C0-030SC-A1-1, CFAF240400C0-030SC-A1-2, CFAF240400E0-030TN-A1-2, CFAF240400E0-030TN-A1-1
Date Issued:	June 9, 2022
Summary:	End-Of-Life Notification
Description:	Some modifications are being made to the PCB design to improve reliability and manufacturability. The board cutout for the capacitive touch screen is being moved and the reset line to the EVE chip is being routed to the reset pin for the helper processor onboard. The parts are being replaced as follows: CFAF240400C0-030SC-A1-1 -> EOL and replace with CFA240400E1-030TC CFAF240400C0-030SC-A1-2 -> EOL and replace with CFA240400E1-030TC-KIT CFAF240400E0-030TN-A1-1 -> EOL and replace with CFA240400E1-030TN CFAF240400E0-030TN-A1-2 -> EOL and replace with CFA240400E1-030TN-KIT
Reason:	The current PCB design requires the capacitive touch screen FPC tail to be stretched and needs to be given more slack. The reset line is not brought out to the helper processor on the current PCB revision so a reset toggle does not truly reset the whole system. Current PCB revision: 10097 h0v3
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11080: Firmware Change

Products Affected:	CFAF240400C0-030SC-A1-1, CFAF240400C0-030SC-A1-2, CFAF240400E0-030TN-A1-2, CFAF240400E0-030TN-A1-1
Date Issued:	March 15, 2021
Summary:	Firmware Change
Description:	The firmware is being updated to better manage the power down sequence.
Reason:	If the power down was very short, it could cause the microcontroller to go into a weird state resulting in abnormal display operation.
Availability:	Will be available in the next couple of weeks. We will release a notice when the cutover occurs.
