                This product is discontinued and has been replaced by CFAF240400D-030T

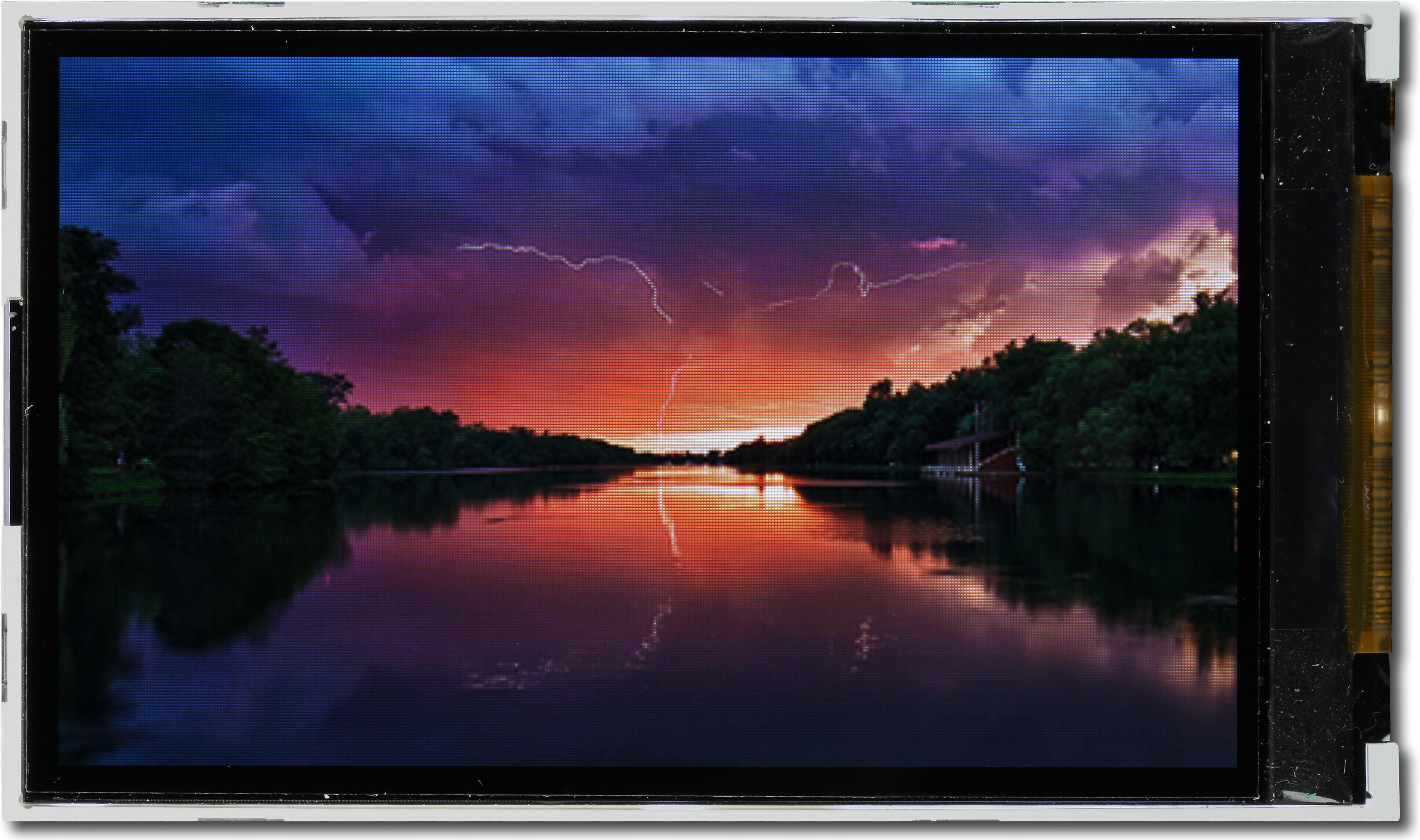

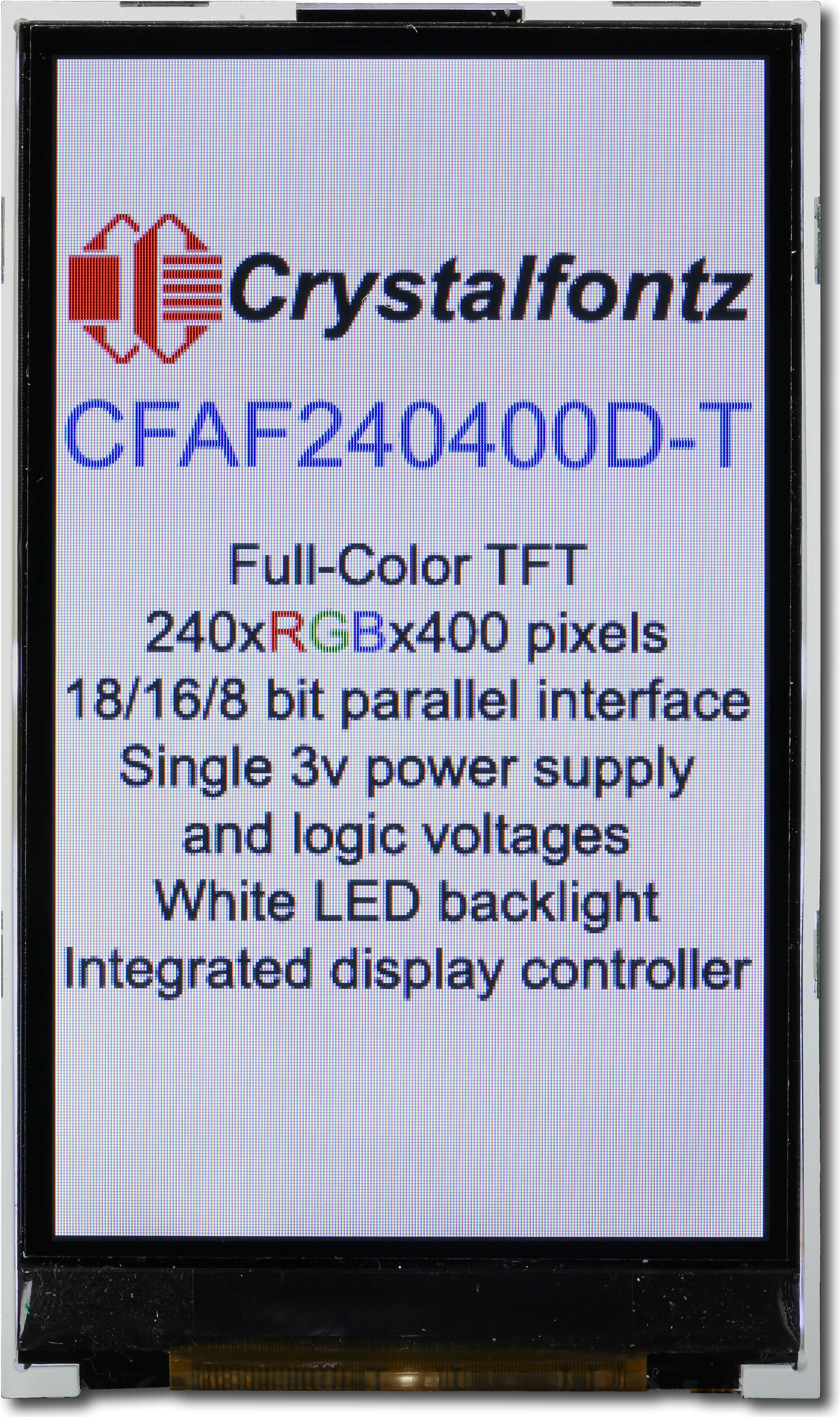

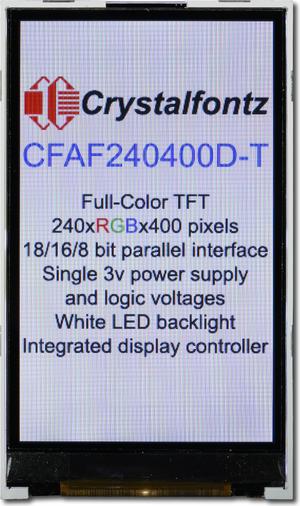

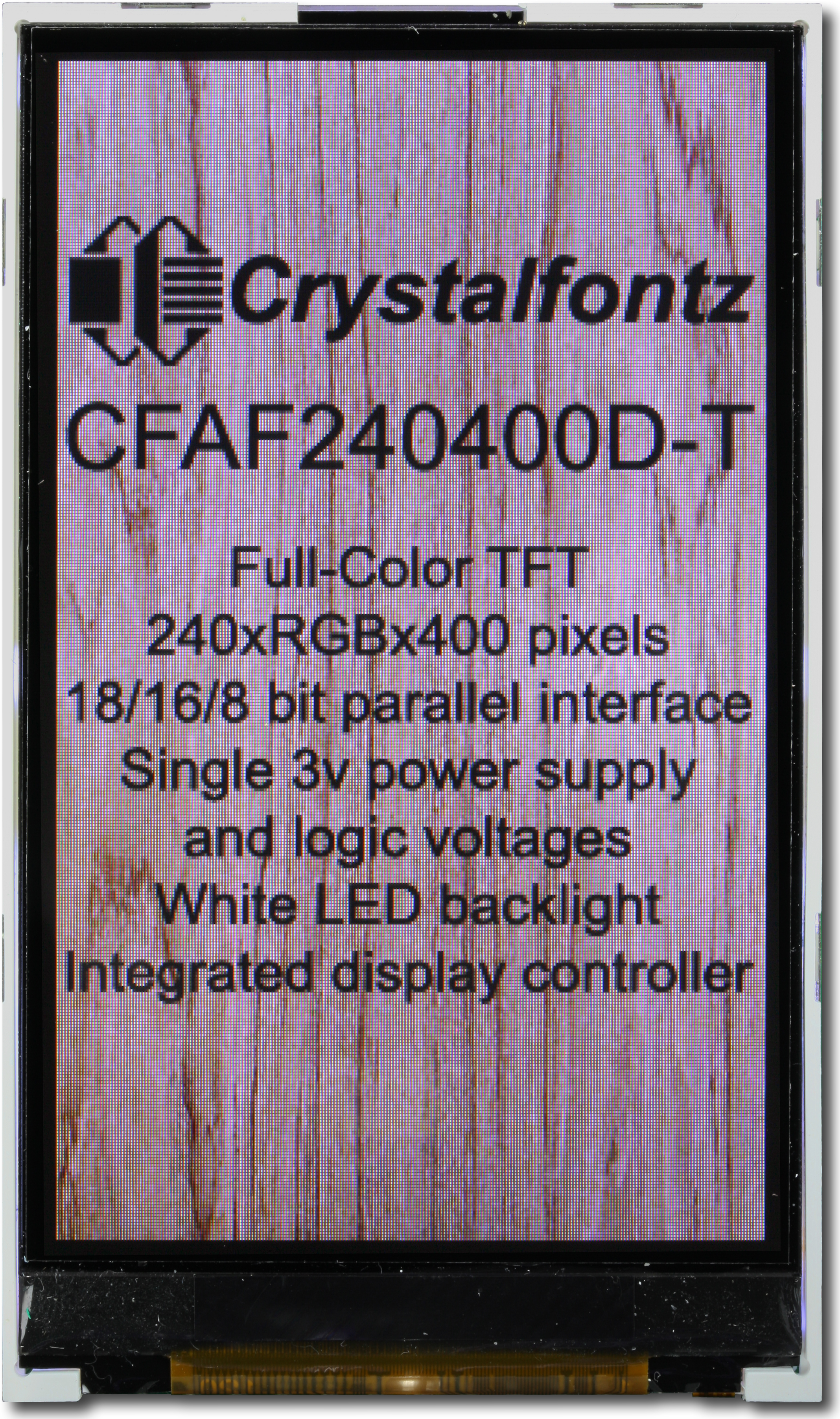

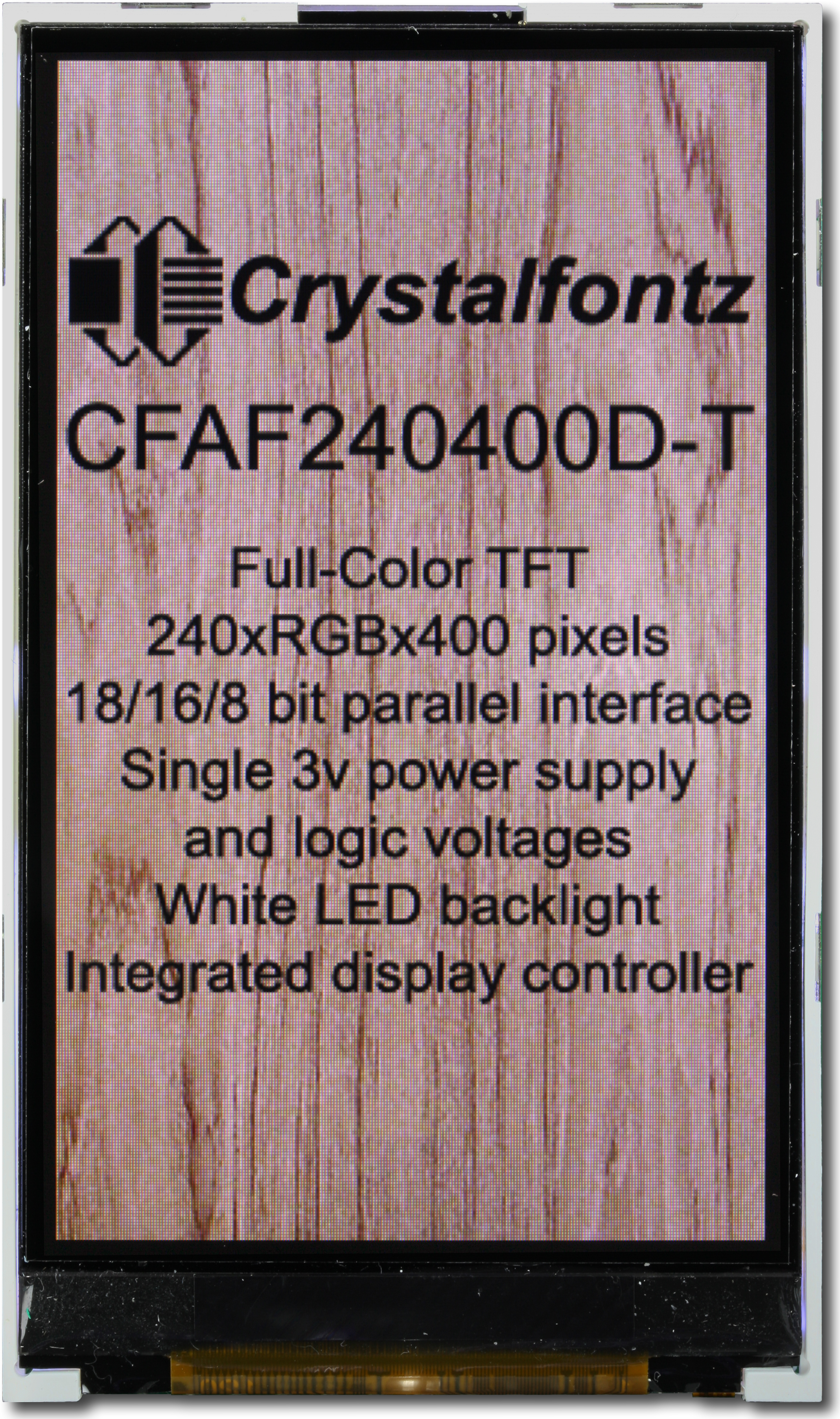

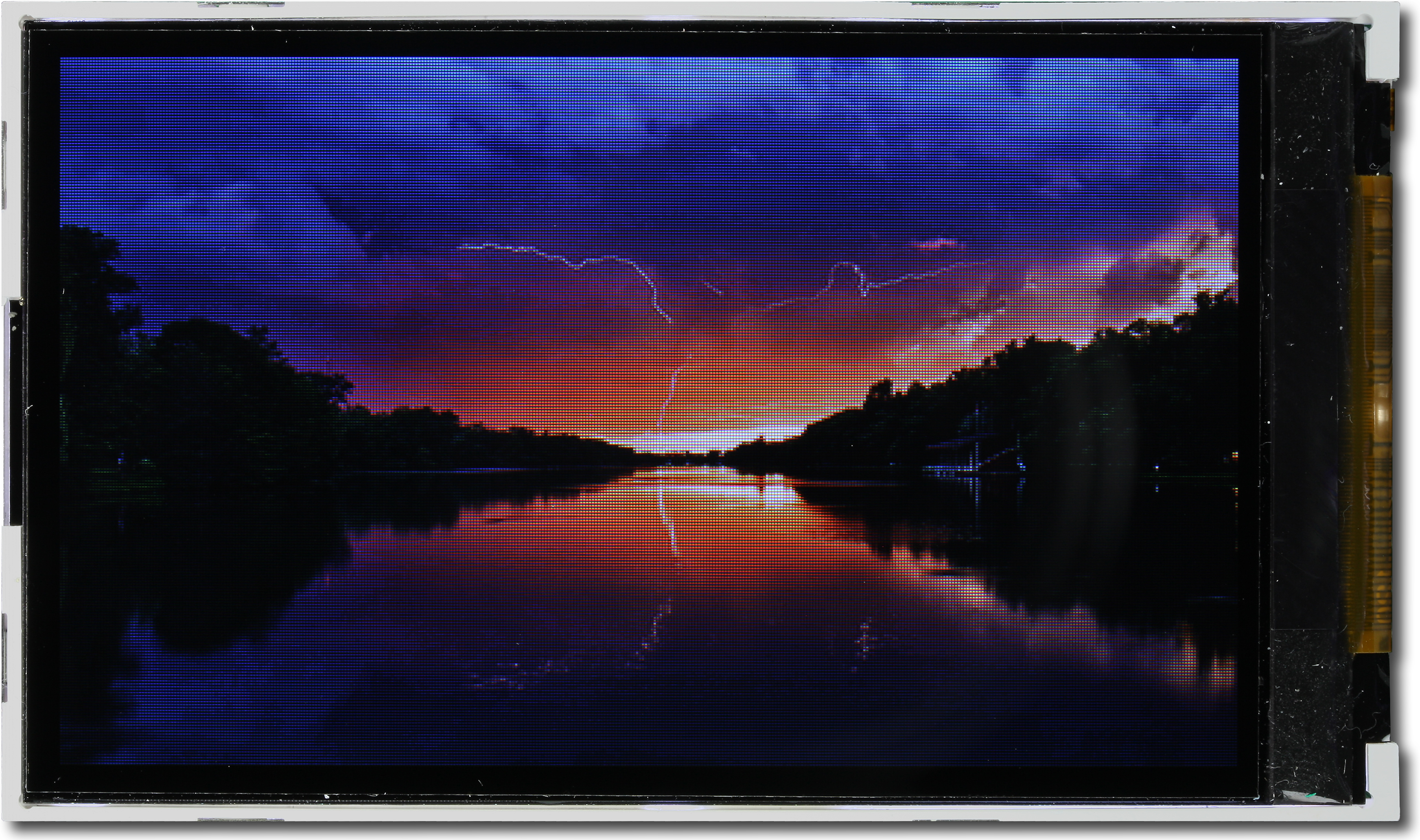

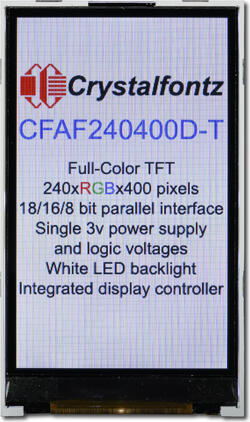

240x400  Parallel Color TFTPart Number: CFAF240400D-TThis display module is a 3 inch diagonal, 240xRGBx400, full color TFT LCD display. It has a wide-screen format and white LED backlight. Its integrated controller gives you a simple, fast, digital interface to the display through your 3v processor's port pins.

It may be used in either portrait or landscape orientation. In portrait mode, the narrow width of the TFT display works well with portable, handheld, or embedded systems. In landscape mode, the low profile of the TFT LCD display may be used for the user interface of 2U+ rack mount devices, or in bench top laboratory equipment such as power supplies, meters, and signal generators.
	240xRGBx400 Full color graphic TFT module
	Built-in Orise Tech SPFD5420A or compatible controller
	18/16/8-bit parallel interface
	Wide Temperature Range
	RoHS Compliant
 square_foot Physical Characteristics

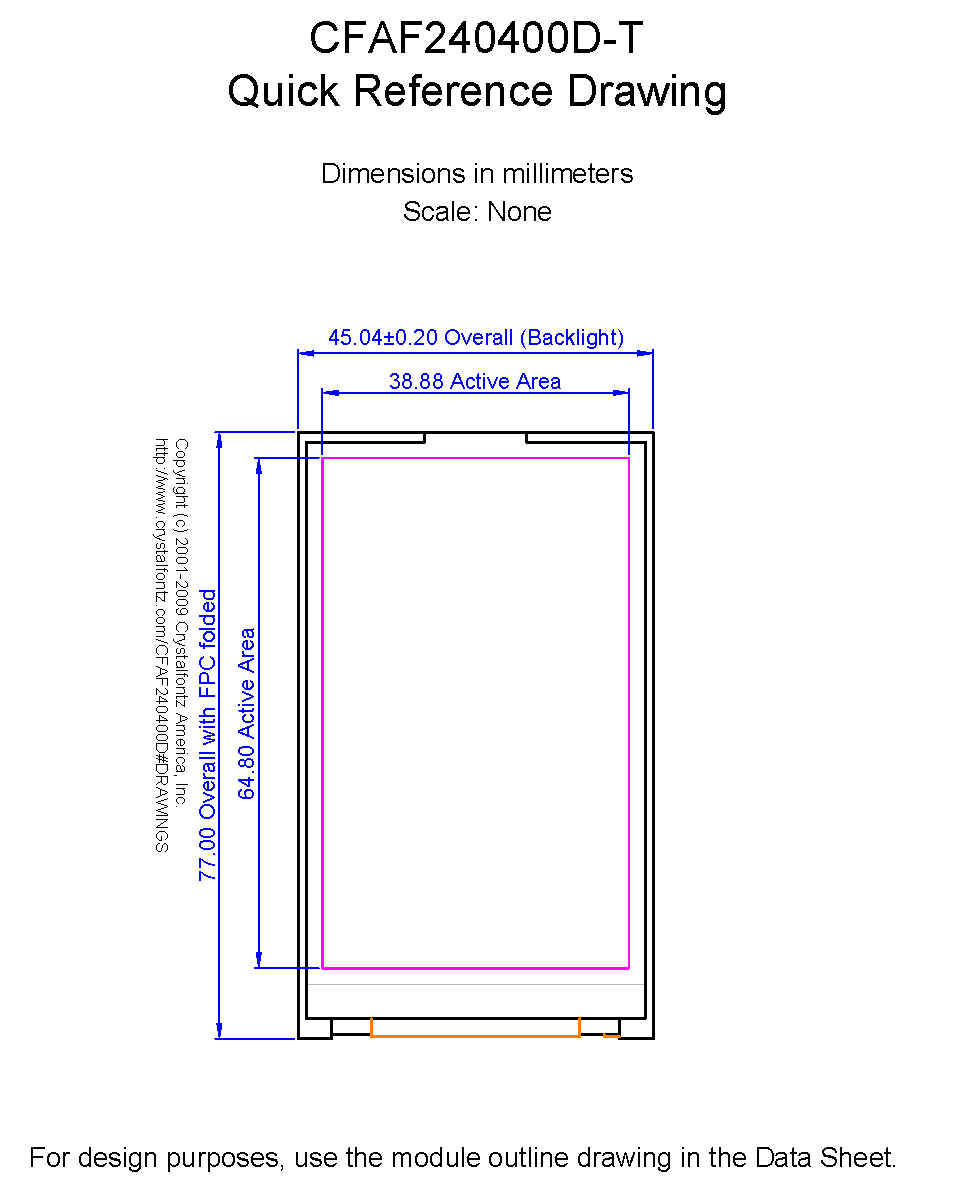

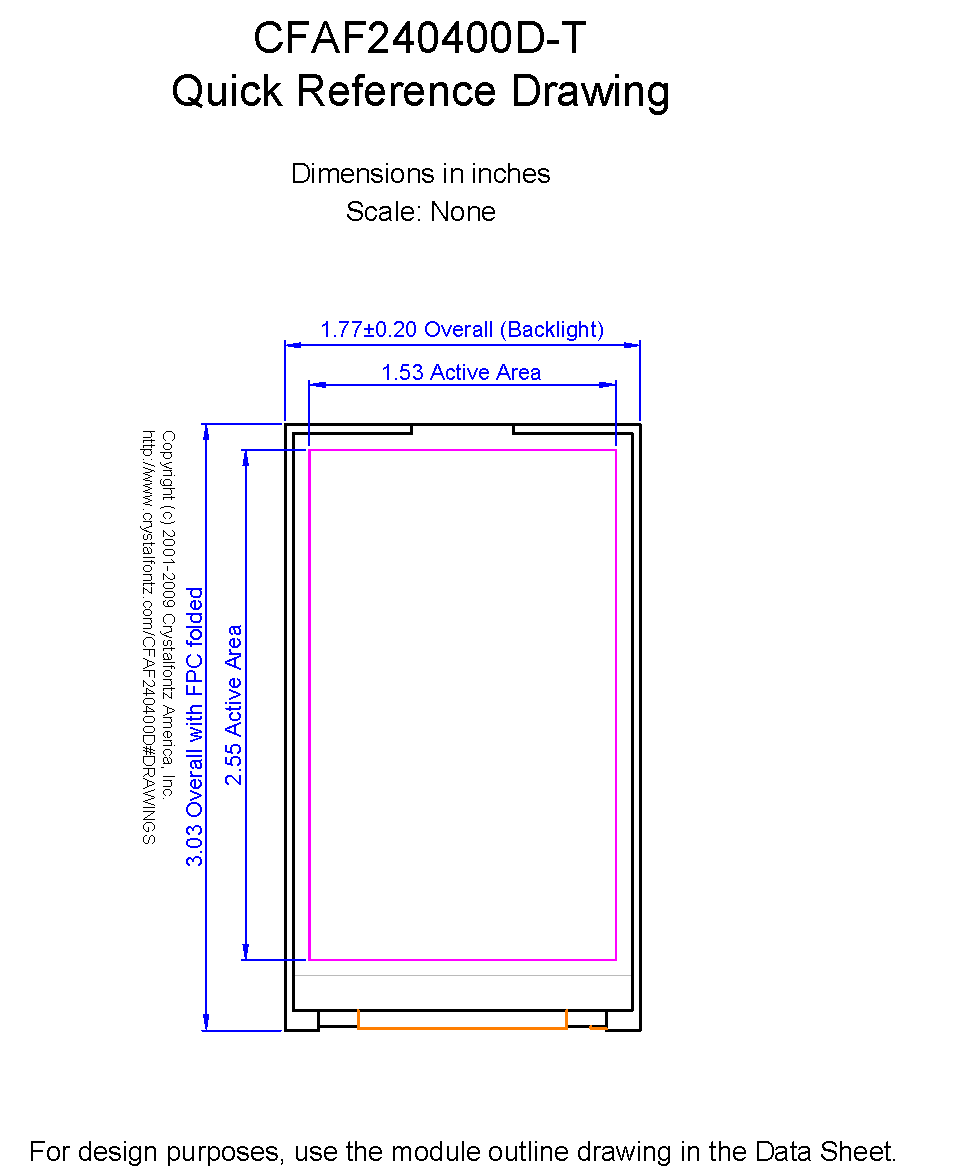

Physical Characteristics

        Column Dots x Row Dots
            240 x 400

    Module Overall        width
        height
        depth

        millimeters
        45.04
        77
        2.6

        inches
        1.77
        3.03
        0.10

*width / height does not include Foldable Tab

        Diagonal Dimension
            3"

    Viewing Area        Width
        Height

        millimeters
        43
        68.8

        inches
        1.69
        2.71

    Active Area        Width
        Height

        millimeters
        38.88
        64.8

        inches
        1.53
        2.55

    Dot Pitch        Width
        Height

        millimeters
        0.16
        0.16

        inches
        0.006
        0.006

        Weight
            16g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            12 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.7V
Supply Voltage for Logic Maximum
            3.3V

        Supply Voltage for Logic Typical
            2.8V
Module Connector Pitch
            0.8mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            3.2V

        Forward Current Typical
            60mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Orise Tech SPFD5420A
SPFD5420A

720-channel 6-bit Source Driver with

System-on-chip for Color

Amorphous TFT-LCDs
Interface
            16-bit Parallel, 18-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAF240400DTv0.2.pdf

 download Files and Downloads
folder_zip Software Source - ATMega2561 Demo Code
picture_as_pdf 1 to 1 Template - CFAF240400D-T

Module Overall	width	height	depth
millimeters	45.04	77	2.6
inches	1.77	3.03	0.10
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	43	68.8
inches	1.69	2.71

Active Area	Width	Height
millimeters	38.88	64.8
inches	1.53	2.55

Dot Pitch	Width	Height
millimeters	0.16	0.16
inches	0.006	0.006

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Note
Notices

Product Note:

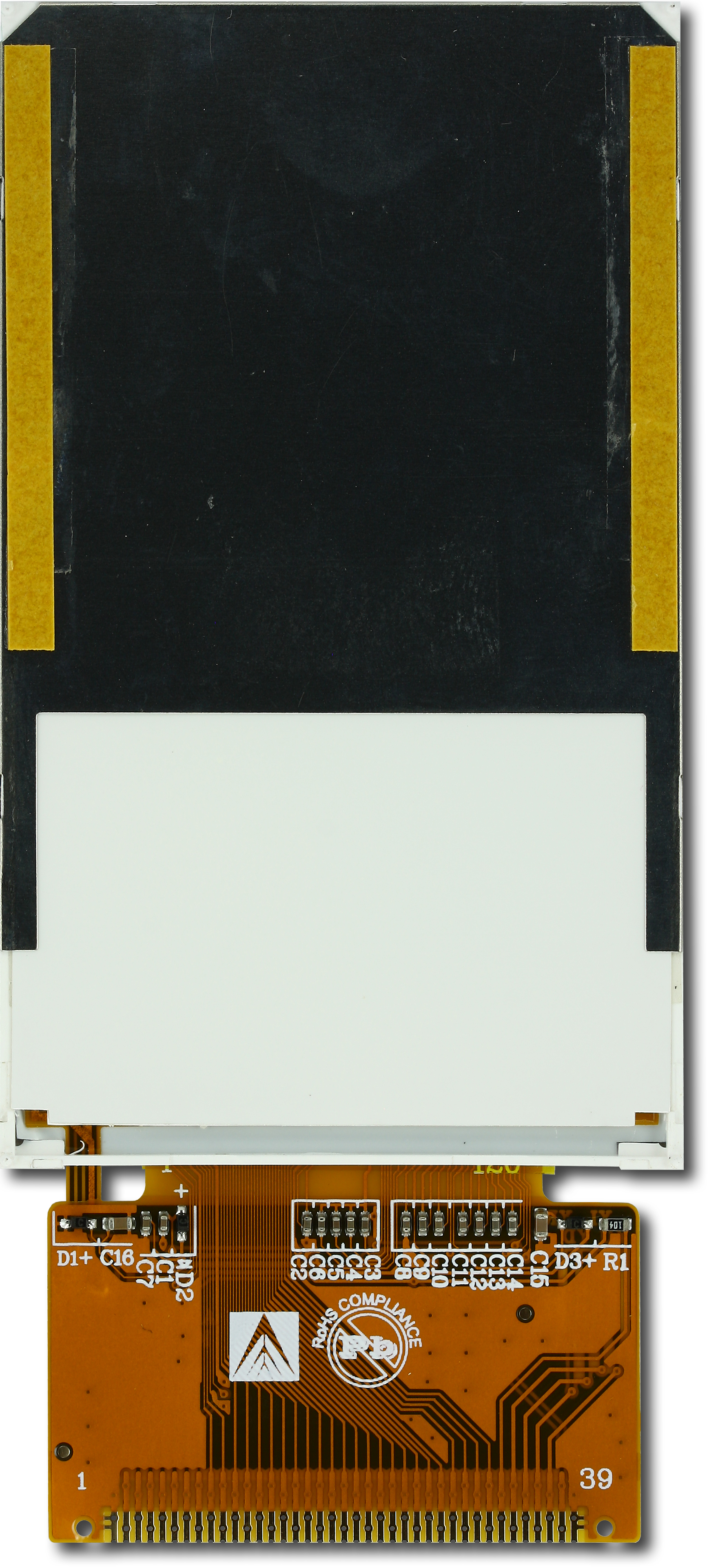

This module is engineered for high volume production. It uses a "TAB" (tape automated bonding) or "COF" (chip on flex) style flex tail. The TAB connector is soldered directly to corresponding pads on your PCB using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. Hot-bar soldering machines designed for prototype, rework or repair of TAB connections are available from equipment suppliers at reasonable cost. The TAB style connection requires no separate connector, so the cost is very low, and the ultra thin profile of the display is maintained.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10335: Change in TFT part numbers

Products Affected:	CFAF240320K-T-TS, CFAF176220M-T, CFAF240320E-T, CFAF128160C-T, CFAF240320P-T, CFAF320240F-T, CFAF320240F-T-TS, CFAF240400D-T, CFAF128160C-018T, CFAF176220U-020T, CFAF240400D-030T, CFAF320240F-035T
Date Issued:	March 29, 2011
Summary:	Change in TFT part numbers
Description:	We are changing our TFT part numbers to have them better describe the parts being ordered. The change should be complete for all TFT modules shipping within the next six months. Part numbers will change as follows: CFAF128160C-T will change to CFAF128160C-018T CFAF176220M-T will change to CFAF176220U-020T CFAF240320E-T will change to CFAF240320H-022T CFAF240320K-T-TS will change to CFAF240320K-024T-TS CFAF240320P-T will change to CFAF240320S-032T CFAF240400D-T will change to CFAF240400D-030T CFAF320240F-T will change to CFAF320240F-035T CFAF320240F-T-TS will change to CFAF320240F-035T-TS
Reason:	There are many TFT modules with the same logical dimensions (resolution) with considerably different sizes. In order to help ease any confusion, we have decided to add the diagonal dimension to the part number.
Impact:	The part number is all that is changing, there are no other changes to the parts, so there should be no significant impact.
Availability:	The transition period should be about six months from the date of this bulletin.

Part Change Notice #10289: Changed pin table wording, 3 pin names to reduce confusion about the interface select pins.

Product Affected:	CFAF240400D-T
Date Issued:	November 10, 2010
Summary:	Changed pin table wording, 3 pin names to reduce confusion about the interface select pins.
Description:	CFAF240400D series datasheet change.
Reason:	The name of one pin was confusing based on the pin names in the controller datasheet.
Impact:	None

240x400 Parallel Color TFT

Part Number: CFAF240400D-T

Physical Characteristics

Optical Characteristics

Electrical Specifications

Backlight Electrical Specifications

Environmental

Electronics

Product Note:

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10335: Change in TFT part numbers

Part Change Notice #10289: Changed pin table wording, 3 pin names to reduce confusion about the interface select pins.

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	TFT/Black
Polarizer	Transmissive
View Direction	12 o'clock

Backlight Color	White
Backlight Type	LED
Mode	Negative
Foreground Color	RGB
Background Color	Dark

Supply Voltage for Logic Minimum	2.7V
Supply Voltage for Logic Maximum	3.3V

Supply Voltage for Logic Typical	2.8V
Module Connector Pitch	0.8mm

Controller Documents	Orise Tech SPFD5420A SPFD5420A 720-channel 6-bit Source Driver with System-on-chip for Color Amorphous TFT-LCDs
Interface	16-bit Parallel, 18-bit Parallel, 8-bit Parallel
