                In order to keep this display in production over the long term, we are revising it to the CFAF240400A0-030T for customers who use the 8-bit interface or CFAF240400B0-030T for customers who use the 16-bit interface. Any backorders placed now will be fulfilled with the new part when it becomes available. Please contact sales with any questions.

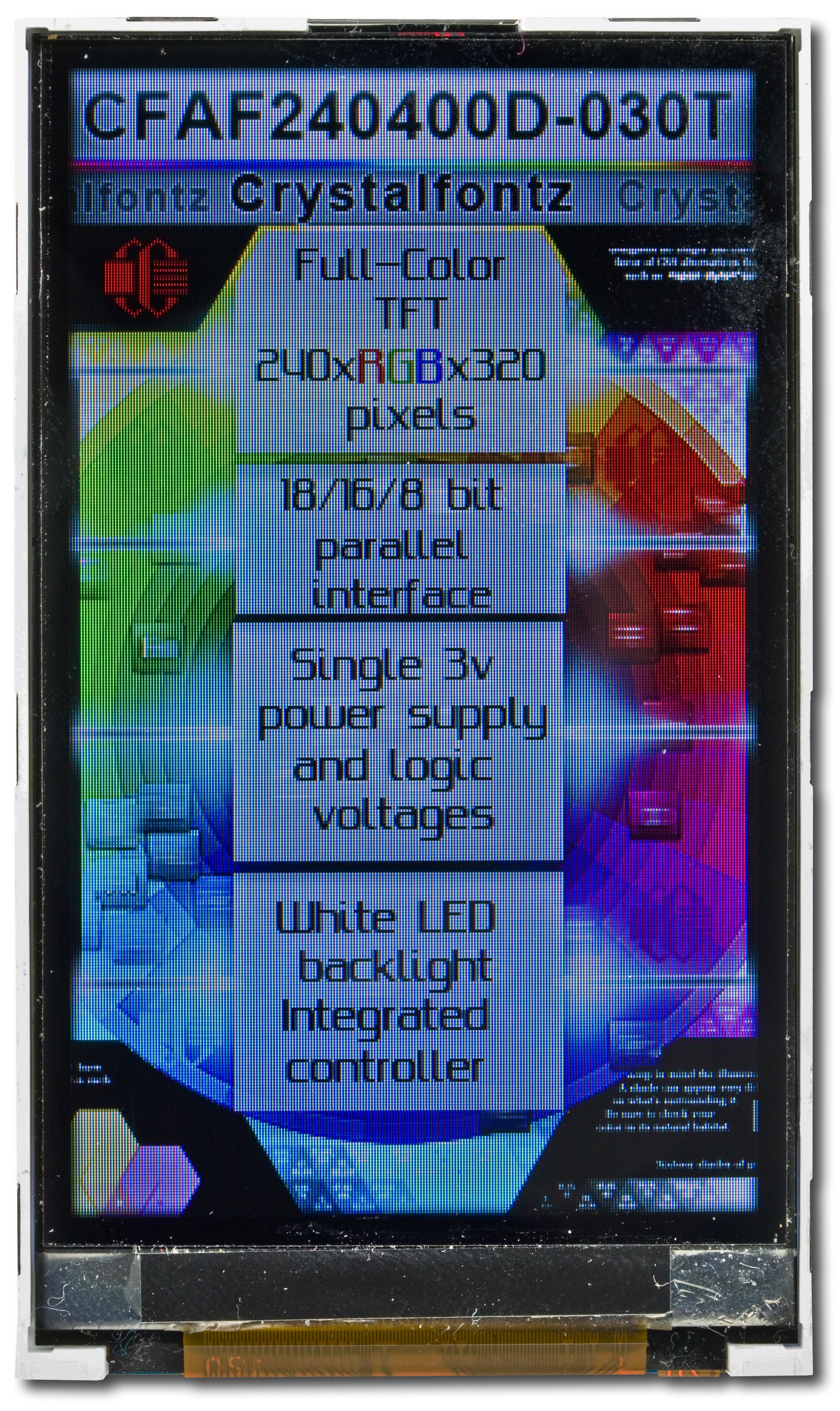

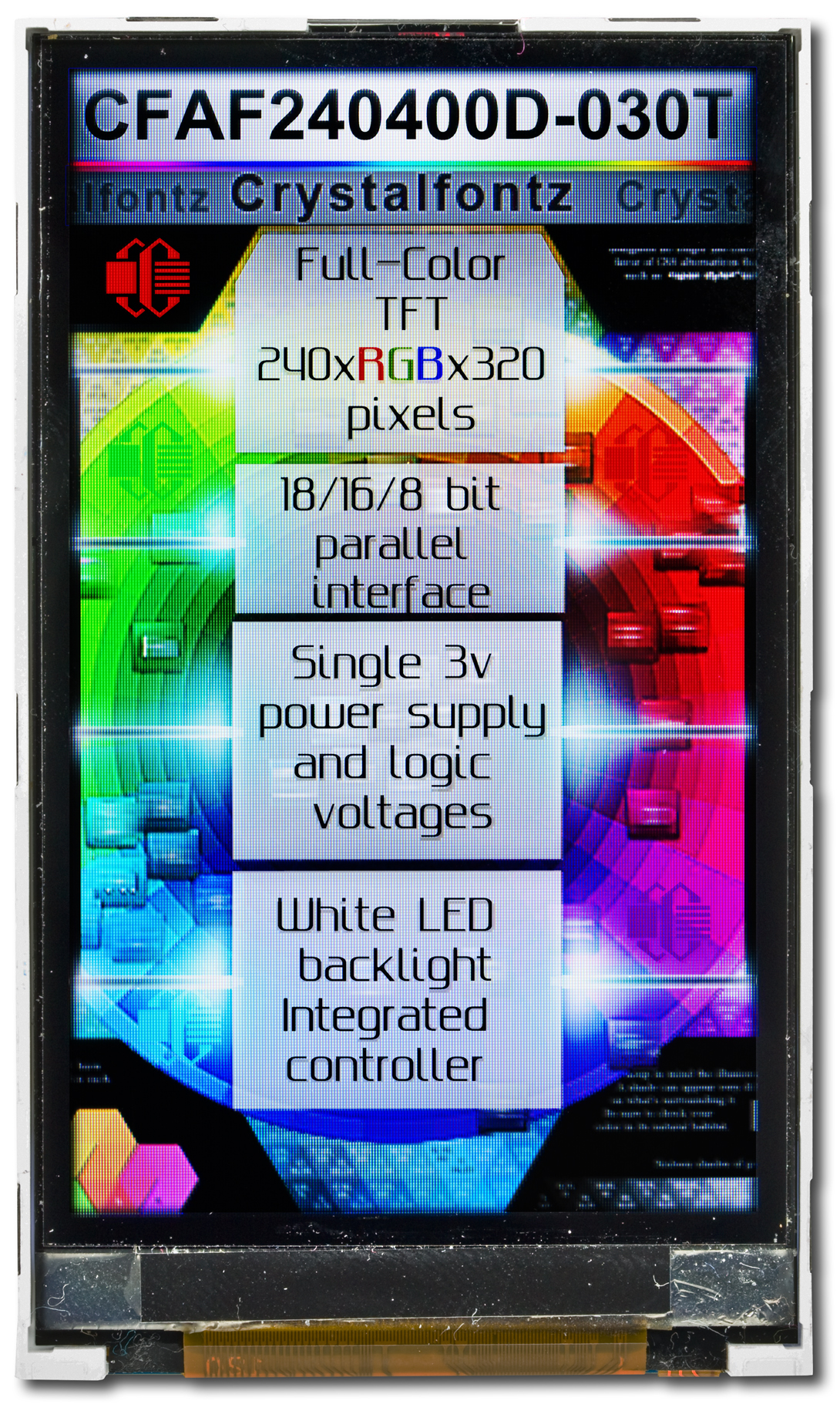

240x400 3" Full Color TFT LCDPart Number: CFAF240400D-030TThis 3.0" diagonal, 240x400 pixel, full RGB color graphic TFT display module boasts a 38.88mm x 64.80mm active area.
Four parallel interface modes are available: 8-bit, 9-bit, 16-bit or 18-bit.
The integrated Orise OTM4001A 720-channel 6-bit source driver or compatible controller, allows a single 3.3v supply for both power supply and logic.
The 12:00 o'clock viewing direction (polarizer viewing direction) is ideal for products viewed at or below eye level.

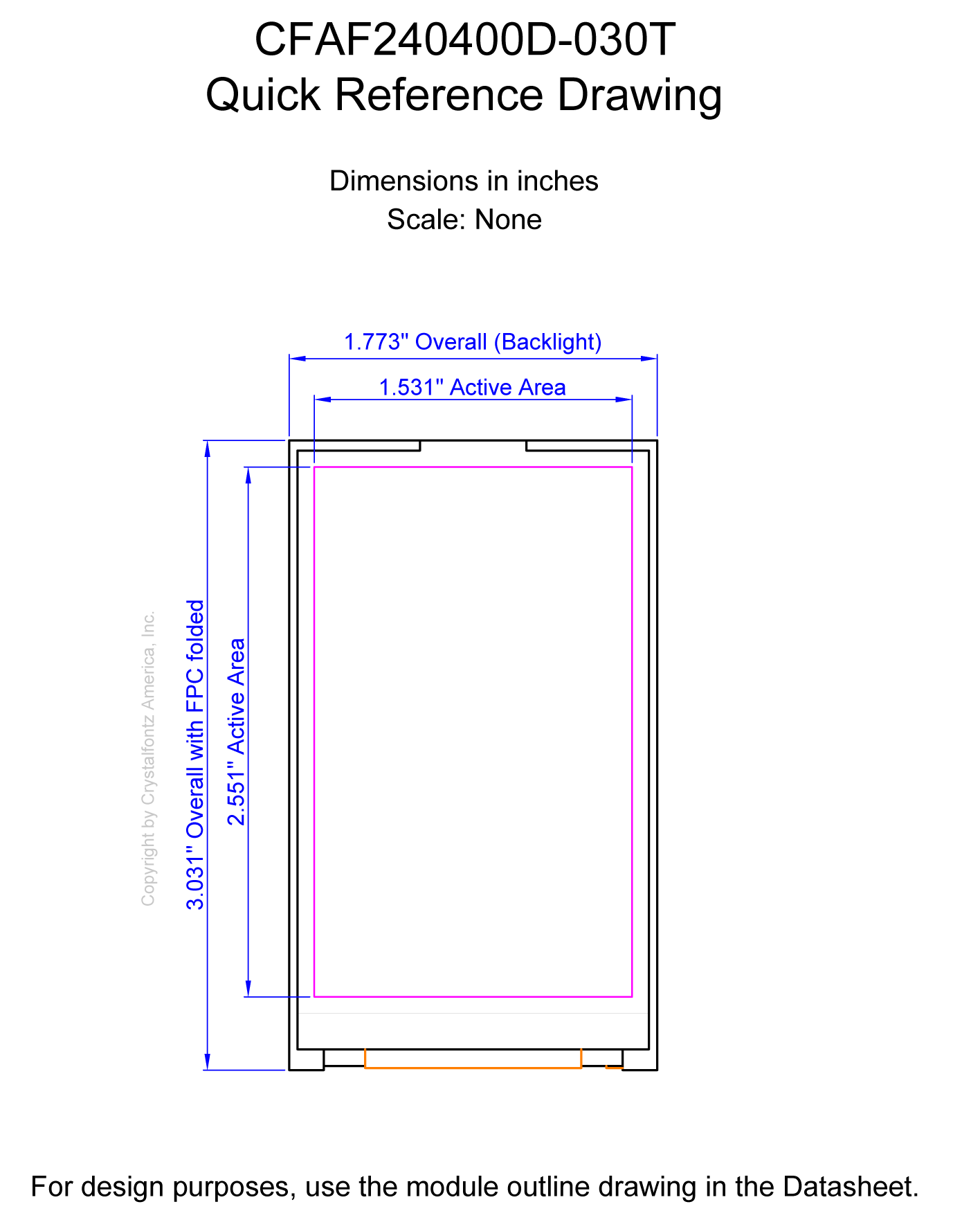

Measuring 45.03 x 77.00 millimeters overall with the FPC folded, you can mount this display in portrait or landscape orientation.
   In portrait orientation, the narrow width of this TFT works well with portable, handheld, or embedded systems.

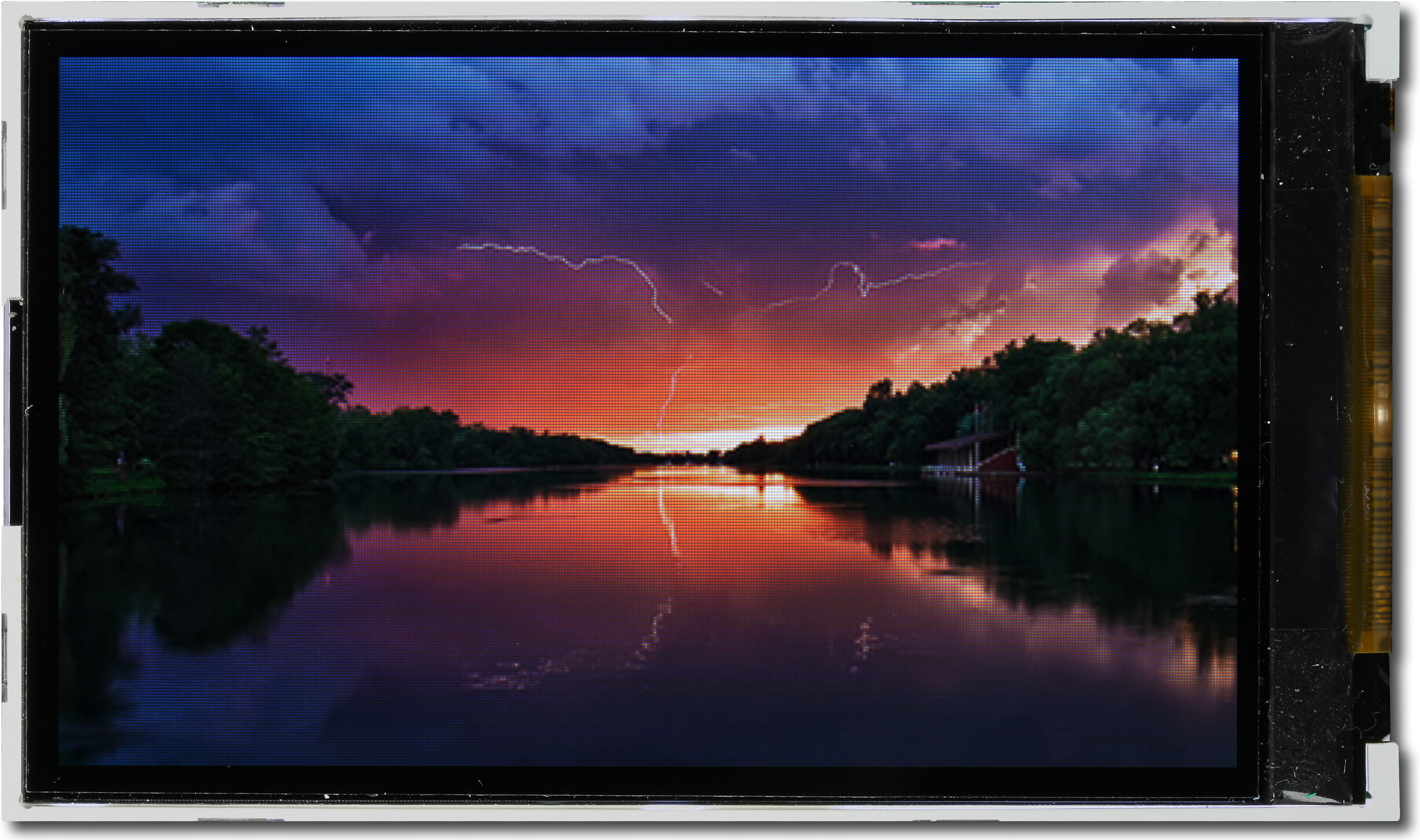

In landscape orientation, the low profile of this TFT may be used for the user interface of 2U+ rack mount devices or in benchtop laboratory equipment such as power supplies, meters, and signal generators.
For mass production, the display's tab makes fast and easy connection possible using a hot bar soldering machine.
Temperature operation is from -20°C to +70°C.
Questions? Contact our Technical Support Team for help.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 400

    Module Overall        width
        height
        depth

        millimeters
        45.04
        77
        2.5

        inches
        1.77
        3.03
        0.10

*width / height does not include Foldable Tab

        Diagonal Dimension
            2.98"

    Viewing Area        Width
        Height

        millimeters
        43
        68.8

        inches
        1.69
        2.71

    Active Area        Width
        Height

        millimeters
        38.88
        64.8

        inches
        1.53
        2.55

    Dot Size        Width
        Height

        millimeters
        0.16
        0.16

        inches
        0.006
        0.006

    Dot Pitch        Width
        Height

        millimeters
        0.162
        0.162

        inches
        0.0064
        0.0064

        Weight
            14g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TN
Polarizer
            Transmissive
View Direction
            0.5 o'clock

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.4V
Supply Voltage for Logic Maximum
            4.2V

        Supply Voltage for Logic Typical
            3.3V
Module Connector Pitch
            0.8mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            3.2V

        Forward Current Typical
            60mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Orise Tech OTM4001A
Orise Tech OTM4001A 720-channel 6-bit source driver with system-on-chip for color amorphous TFT-LCDs
Interface
            16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAF240400D030T Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAF240400D-030T Data Sheet 2014-12-11.pdf

picture_as_pdfCFAF240400D-030T Preliminary Data Sheet 2014-07-31.pdf

picture_as_pdfCFAF240400D-030T Data Sheet Preliminary.pdf

 download Files and Downloads
folder_zip Software Source - ATMega2561 Demo Code
folder_zip CAD Export - CFAF240400D-030T 2D CAD
picture_as_pdf 1 to 1 Template - CFAF240400D-030T 1 to 1

Module Overall	width	height	depth
millimeters	45.04	77	2.5
inches	1.77	3.03	0.10
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	43	68.8
inches	1.69	2.71

Active Area	Width	Height
millimeters	38.88	64.8
inches	1.53	2.55

Dot Size	Width	Height
millimeters	0.16	0.16
inches	0.006	0.006

Dot Pitch	Width	Height
millimeters	0.162	0.162
inches	0.0064	0.0064

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Additional Options
Note
Notices

Additional Options

As an option, you can order this TFT pre-assembled onto a breakout/carrier board. The board allows easy prototyping through its 0.1" headers. You can also include the carrier board in your end product to simplify construction and assembly. The carrier board contains a constant-current switching LED driver. The PCB is sized to fit neatly within the outline of the display.

This kit is available with or without standoffs in the four mounting holes. The standoffs allows the carrier board to be mounted using any 2-56 style screw. The standoffs are 3mm deep to ensure sturdy mounting points.

Product Note:

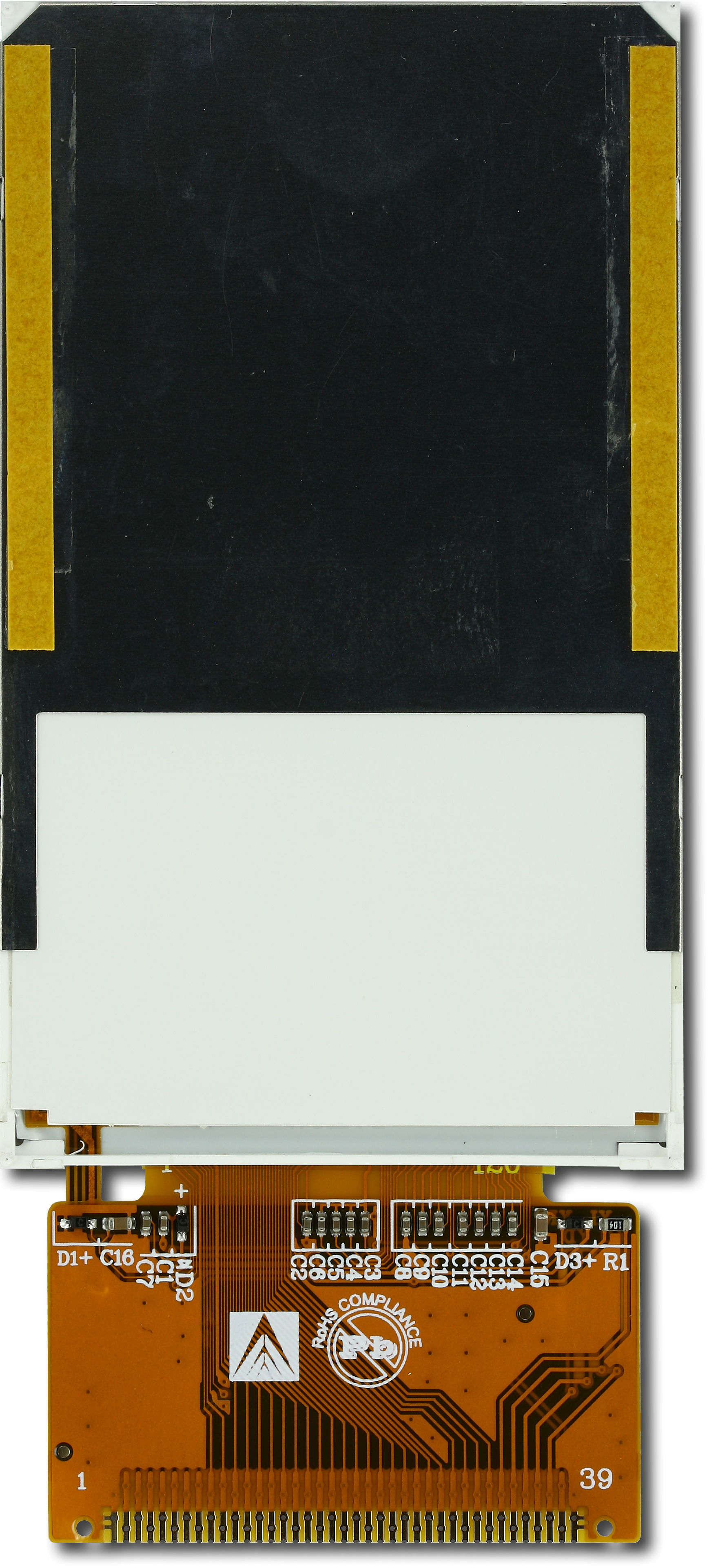

This module is engineered for high volume production. It uses a "TAB" (tape automated bonding) or "COF" (chip on flex) style flex tail. The TAB connector is soldered directly to corresponding pads on your PCB using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. Hot-bar soldering machines designed for prototype, rework or repair of TAB connections are available from equipment suppliers at reasonable cost. The TAB style connection requires no separate connector, so the cost is very low, and the ultra thin profile of the display is maintained.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11009: End-Of-Life Notification

Products Affected:	CFAF240400D-030T, CFAF240400D-030T-CB, CFAF240400D-030T-CB1
Date Issued:	September 26, 2018
Summary:	End-Of-Life Notification
Description:	The parts listed are being set to End of Life Status
Reason:	The Orise controller chip used on the CFAF240400D-030T has been discontinued by the manufacturer.
Impact:	The CFAF240400D-030T is not available. All stock has been depleted.
Recommendation:	Two replacements are available for the CFAF240400D-030T. The CFAF240400A0-030T is available for customers using an 8-bit parallel interface. https://www.crystalfontz.com/product/cfaf240400a0030t-240x400-3inch-tft-lcd-8-bit The CFAF240400B0-030T is available for customers using a 16-bit parallel interface. https://www.crystalfontz.com/product/cfaf240400b0030t-240x400-16bit-parallel-lcd Replacements for the CFAF240400D-030T-CB and CFAF240400D-030T-CB1 kits will be available at a later date.

Part Change Notice #10981: End-Of-Life Notification for CFAF240400D-030T

Products Affected:	CFAF240400D-030T, CFAF240400D-030T-CB, CFAF240400D-030T-CB1
Date Issued:	August 9, 2018
Summary:	End-Of-Life Notification for CFAF240400D-030T
Reason:	The Orise Tech OTM4001A Controller chip has been discontinued by the manufacturer. No direct replacement is available.
Impact:	This product will no longer be available when current stock is depleted. A last-time buy is not available.
Recommendation:	Replacement parts will be available by the first quarter of 2019. Information regarding the replacement parts will be posted on our website and in our newsletter as it becomes available.
Availability:	Contact Sales for more information on the availability of the CFAF240400D-030T. Availability of replacement parts is to be determined.

Product Update #10857: Update to PUN #10842: Functional change the BL (Pin 29)

Products Affected:	CFAF240400D-030T, CFAF240400D-030T-CB, CFAF240400D-030T-CB1
Date Issued:	June 1, 2017
Summary:	Update to PUN #10842: Functional change the BL (Pin 29)
Description:	On the 2BM-10005, the pin that enabled and disabled the backlight (Pin 29) was left floating with the expectation that the host system would drive that line. On the CFA-10075, that pin is tied to GND using a 1M Ohm resistor.
Reason:	Customer feedback has shown that this pin is not always being driven in every situation and the cut over between the 2BM-10005 and the CFA-10075 has caused compatibility issues.
Impact:	Customers not specifically enabling this pin, by driving it high, will find that the backlight does not illuminate.
Recommendation:	It is important to ensure that when using this carrier board, the BL pin should be driven by the host system. Preferably using a GPO in order to actively toggle the backlight.
Availability:	Immediate
Price Change:	None at this time

Product Update #10842: CFA10075 replacing 2BM-10005

Products Affected:	CFAF240400D-030T, CFAF240400D-030T-CB, CFAF240400D-030T-CB1
Date Issued:	February 16, 2017
Summary:	CFA10075 replacing 2BM-10005
Description:	2BM-10005 carrier board being replaced by CFA10075 carrier board
Reason:	As part of our continuous improvement, the design and manufacture of carrier board has been brought under in-house control.
Impact:	none
Recommendation:	The CFA-10075 has been designed and tested to be Fit, Form, and Functional compatible with the 2BM-10005. Testing in systems is encouraged, as with any product update.
Availability:	Immediate
Price Change:	None at this time.

Product Update #10335: Change in TFT part numbers

Products Affected:	CFAF240320K-T-TS, CFAF176220M-T, CFAF240320E-T, CFAF128160C-T, CFAF240320P-T, CFAF320240F-T, CFAF320240F-T-TS, CFAF240400D-T, CFAF128160C-018T, CFAF176220U-020T, CFAF240400D-030T, CFAF320240F-035T
Date Issued:	March 29, 2011
Summary:	Change in TFT part numbers
Description:	We are changing our TFT part numbers to have them better describe the parts being ordered. The change should be complete for all TFT modules shipping within the next six months. Part numbers will change as follows: CFAF128160C-T will change to CFAF128160C-018T CFAF176220M-T will change to CFAF176220U-020T CFAF240320E-T will change to CFAF240320H-022T CFAF240320K-T-TS will change to CFAF240320K-024T-TS CFAF240320P-T will change to CFAF240320S-032T CFAF240400D-T will change to CFAF240400D-030T CFAF320240F-T will change to CFAF320240F-035T CFAF320240F-T-TS will change to CFAF320240F-035T-TS
Reason:	There are many TFT modules with the same logical dimensions (resolution) with considerably different sizes. In order to help ease any confusion, we have decided to add the diagonal dimension to the part number.
Impact:	The part number is all that is changing, there are no other changes to the parts, so there should be no significant impact.
Availability:	The transition period should be about six months from the date of this bulletin.
