            This product has been replaced by the 3" TFT LCD Development Kit
240x400 3" TFT with Carrier BoardPart Number: CFAF240400A0-E1-1

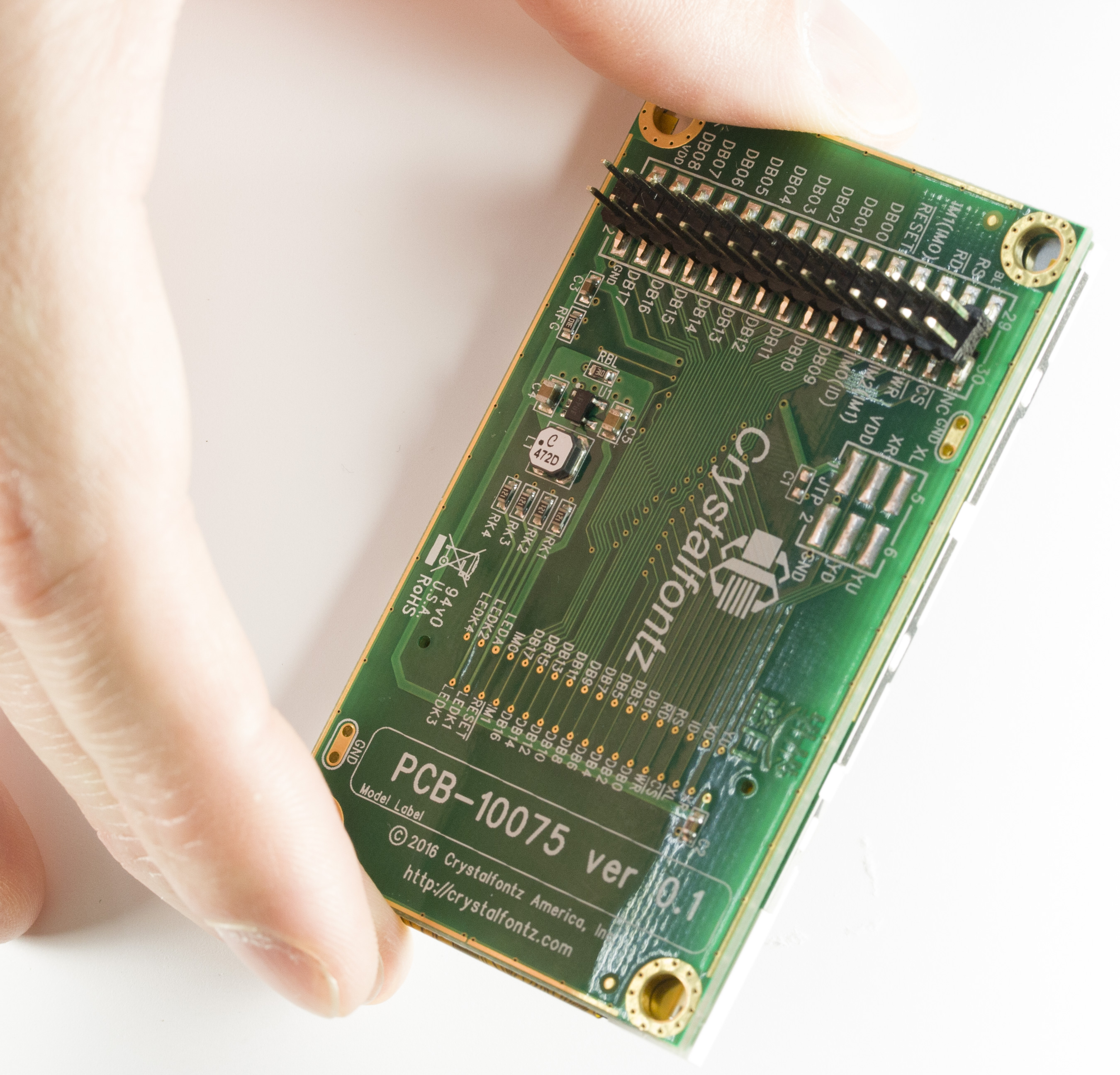

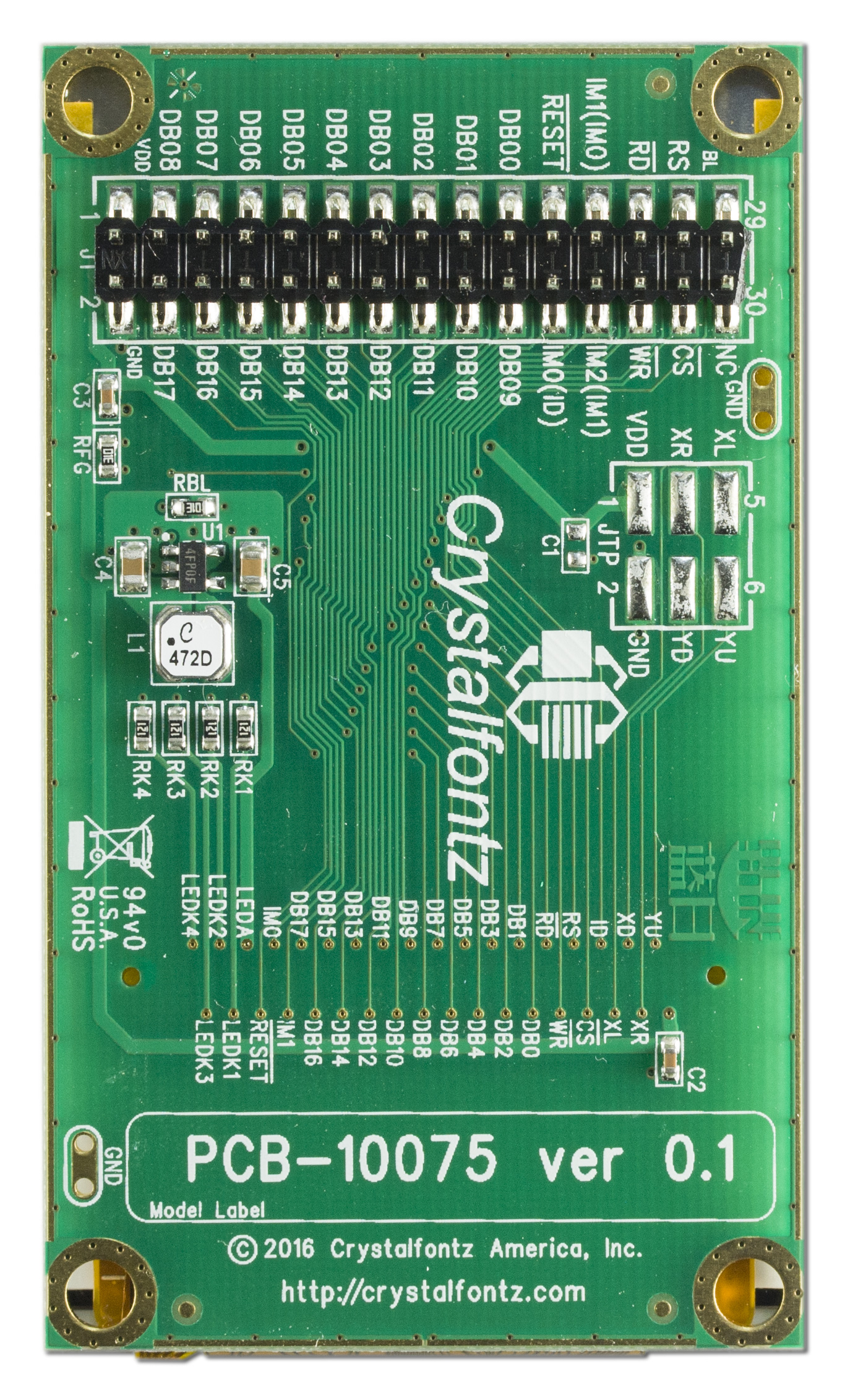

        This is a TFTLCD bundle with our beautiful 3" 240x400 TFT attached to a carrier board with includes the backlight driver so you can run it off a single power-supply. This carrier board is specifically for 8-bit parallel. square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 400

    Module Overall        width
        height

        millimeters
        45.04
        77

        inches
        1.77
        3.03

        Diagonal Dimension
            2.98"

        Weight
            30g

 picture_as_pdf Datasheets
picture_as_pdfCFAF240400A0-030T Datasheet

 download Files and Downloads
folder_zip Software Source - Arduino Demo Sketch
folder_zip Software Source - ATMega 2561 Demonstration Code
folder_zip Hardware Design - Carrier Board Build Package

Module Overall	width	height
millimeters	45.04	77
inches	1.77	3.03

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11038: The CFA10075 Carrier Board Version 0v1 used in the parts listed is being changed. The new version will be 0v2.

Products Affected:	CFAF240400A0-E1-1, CFAF240400A0-E2-1, CFAF240400A0-E1-2, CFAF240400B0-E1-1, CFAF240400B0-E2-1
Date Issued:	February 6, 2019
Summary:	The CFA10075 Carrier Board Version 0v1 used in the parts listed is being changed. The new version will be 0v2.
Reason:	The backlight driver has been improved. The backlight can now be forced on or off using solder jumpers.
Impact:	The function of the board has no other changes. The default configuration will be with the backlight on.
Recommendation:	Customers using this board should not see any changes in form, fit or function.
Availability:	The Version 0v2 board will be available when current stocks of Version 0v1 are depleted.
