3" TFT LCD Development Kit

Part Number: CFAF240400A0-E2-1

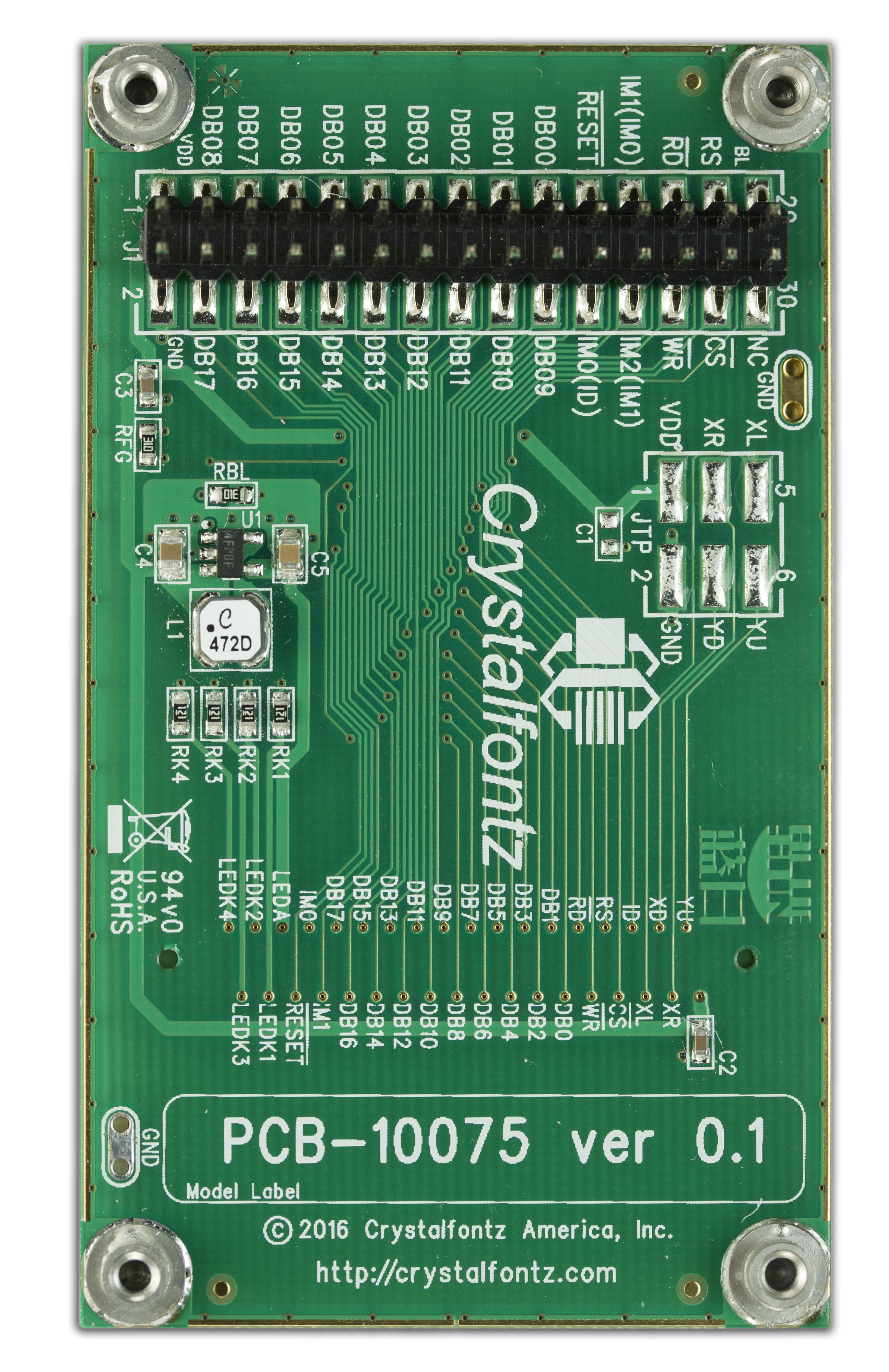

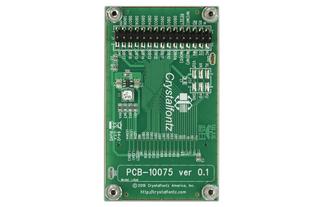

This TFT LCD development kit consists of a 8-bit 3" TFT LCD module mounted on a carrier board that includes a backlight driver. This carrier board is integrated with standoffs for easy installation into your product.

Physical Characteristics
Physical Characteristics

Column Dots x Row Dots 240 x 400

Module Overall width height

millimeters 45.04 77

inches 1.77 3.03

Diagonal Dimension 2.98"

Weight 40g
Datasheets

picture_as_pdf
CFAF240400A0-030T Datasheet
Files and Downloads

folder_zip Software Source - Arduino Demo Sketch
folder_zip Software Source - ATMega 2561 Demonstration Code
folder_zip Hardware Design - Carrier Board Build Package
Compliance Documents

picture_as_pdf Declaration of Conformity RoHS2

picture_as_pdf Declaration of Conformity REACH

3" TFT LCD Development Kit (CFAF240400A0-E2-1)

Quantity	Price
1	$42.06
10	$36.57
20	$35.26
50	$33.96
100	$33.43
200	$32.91
500 *	$32.65
1000 *	$32.40

* Pricing is subject to change. Contact us about potential lead times.

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11038: The CFA10075 Carrier Board Version 0v1 used in the parts listed is being changed. The new version will be 0v2.

Products Affected:	CFAF240400A0-E1-1, CFAF240400A0-E2-1, CFAF240400A0-E1-2, CFAF240400B0-E1-1, CFAF240400B0-E2-1
Date Issued:	February 6, 2019
Summary:	The CFA10075 Carrier Board Version 0v1 used in the parts listed is being changed. The new version will be 0v2.
Reason:	The backlight driver has been improved. The backlight can now be forced on or off using solder jumpers.
Impact:	The function of the board has no other changes. The default configuration will be with the backlight on.
Recommendation:	Customers using this board should not see any changes in form, fit or function.
Availability:	The Version 0v2 board will be available when current stocks of Version 0v1 are depleted.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAF240400A0-E2-1
