This product has reached end of life and has been replaced by CFAF240320D032T

Product

Home » Products » Serial LCD Displays » Graphic

                This product has reached end of life. We suggest the CFAF240320D-032T as a possible replacement.

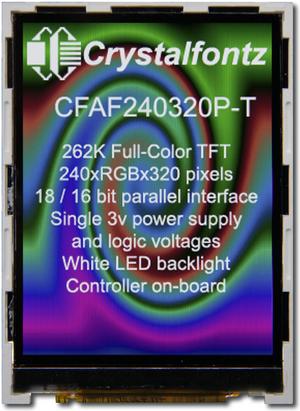

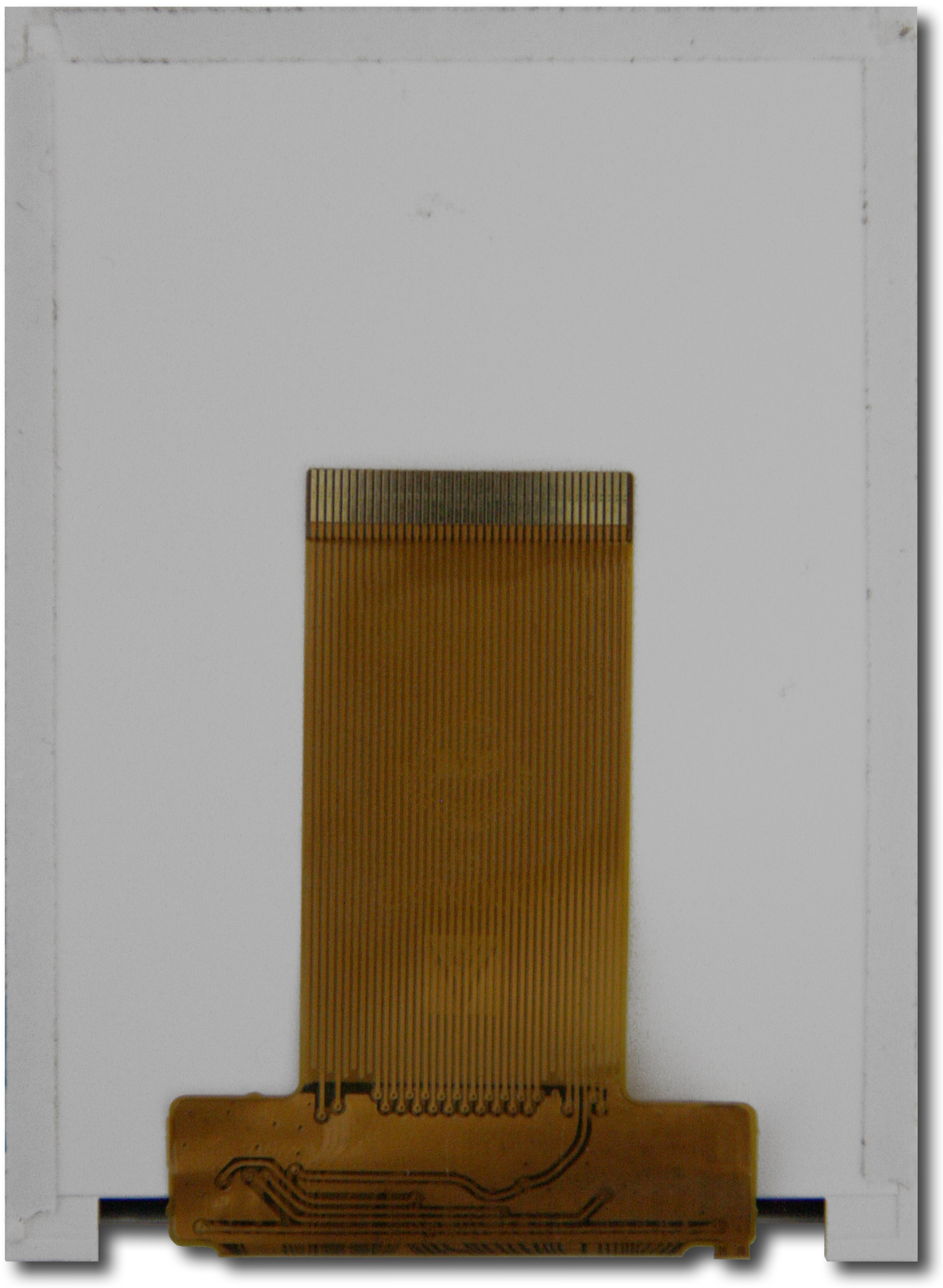

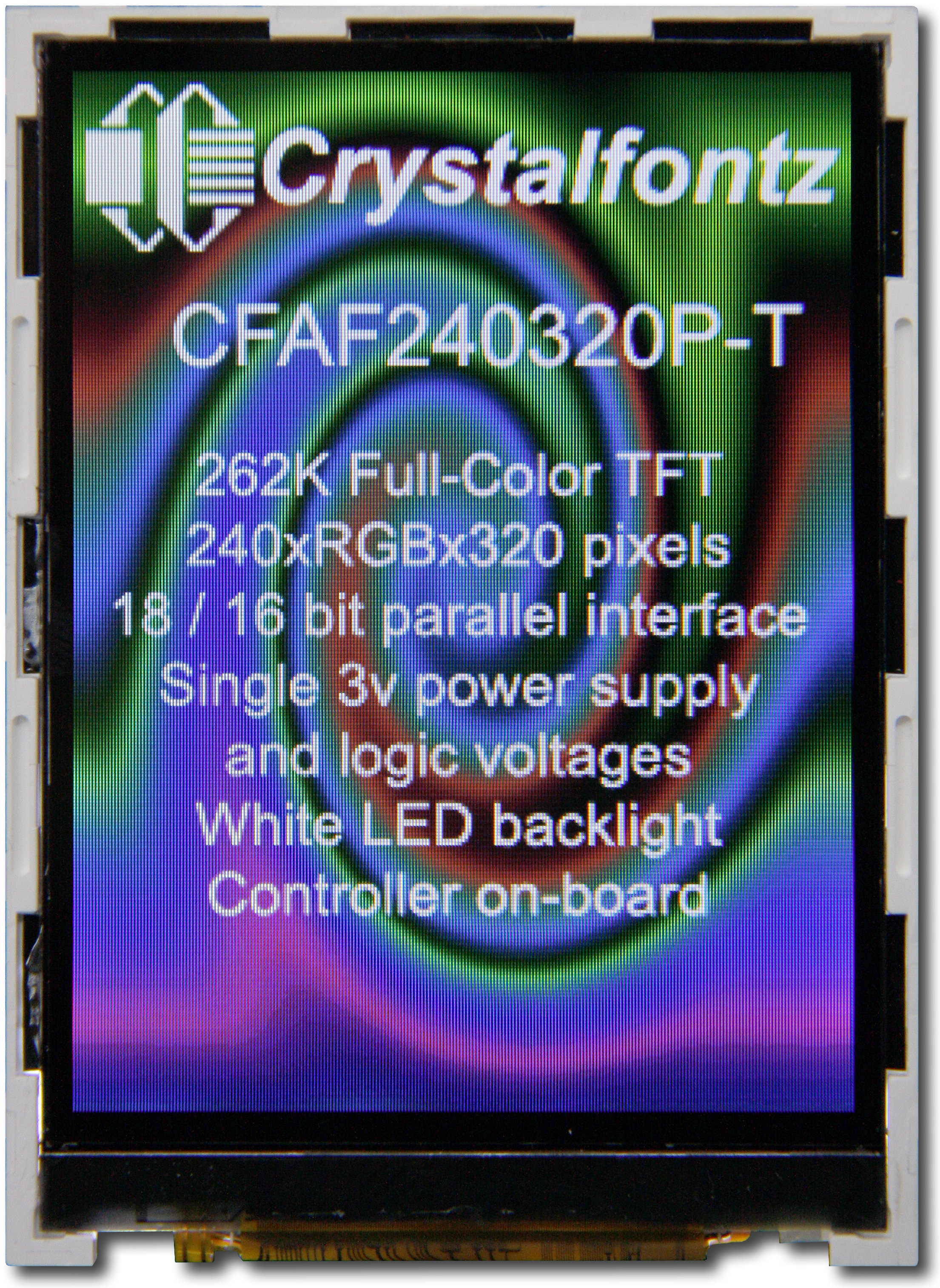

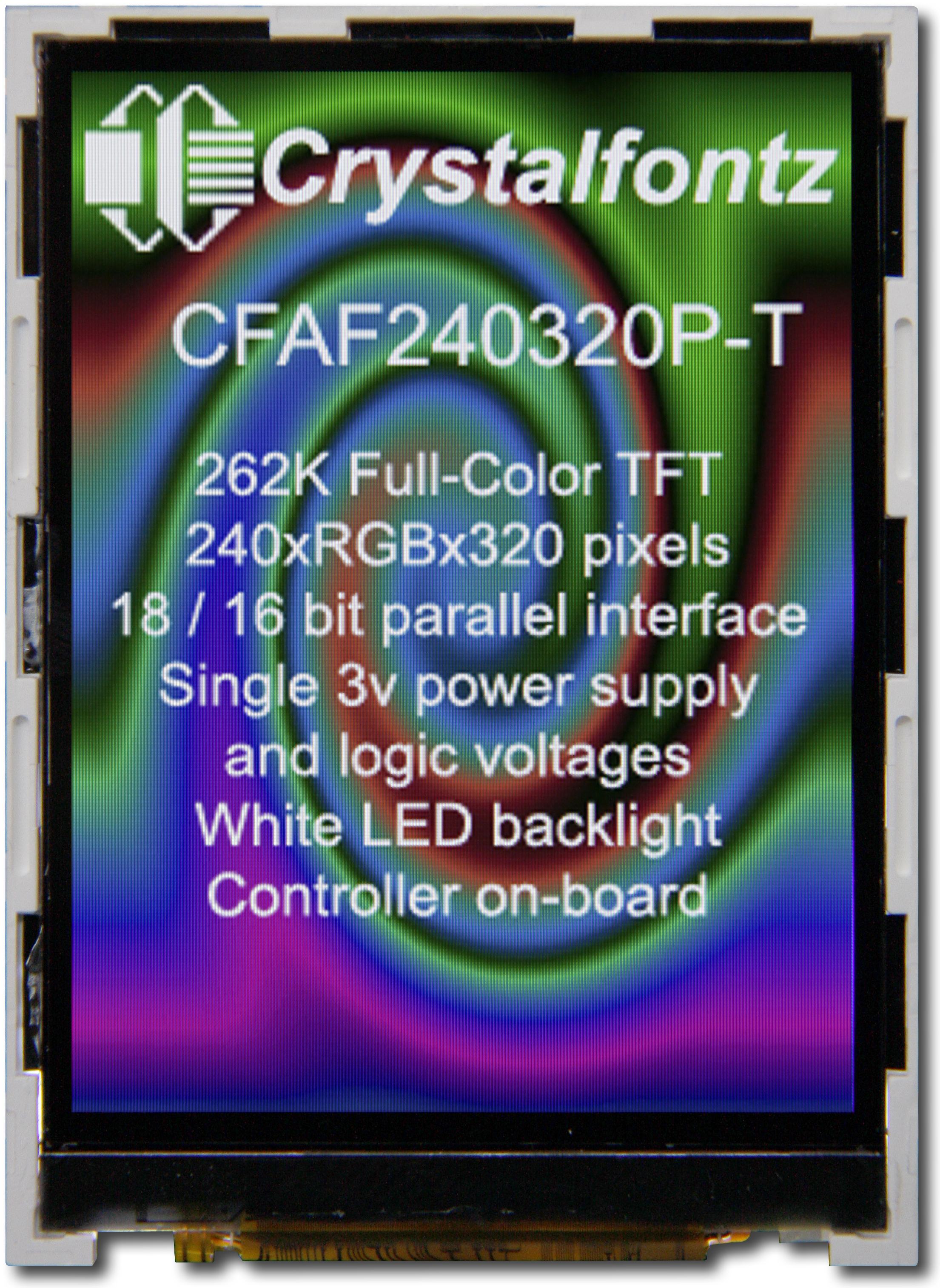

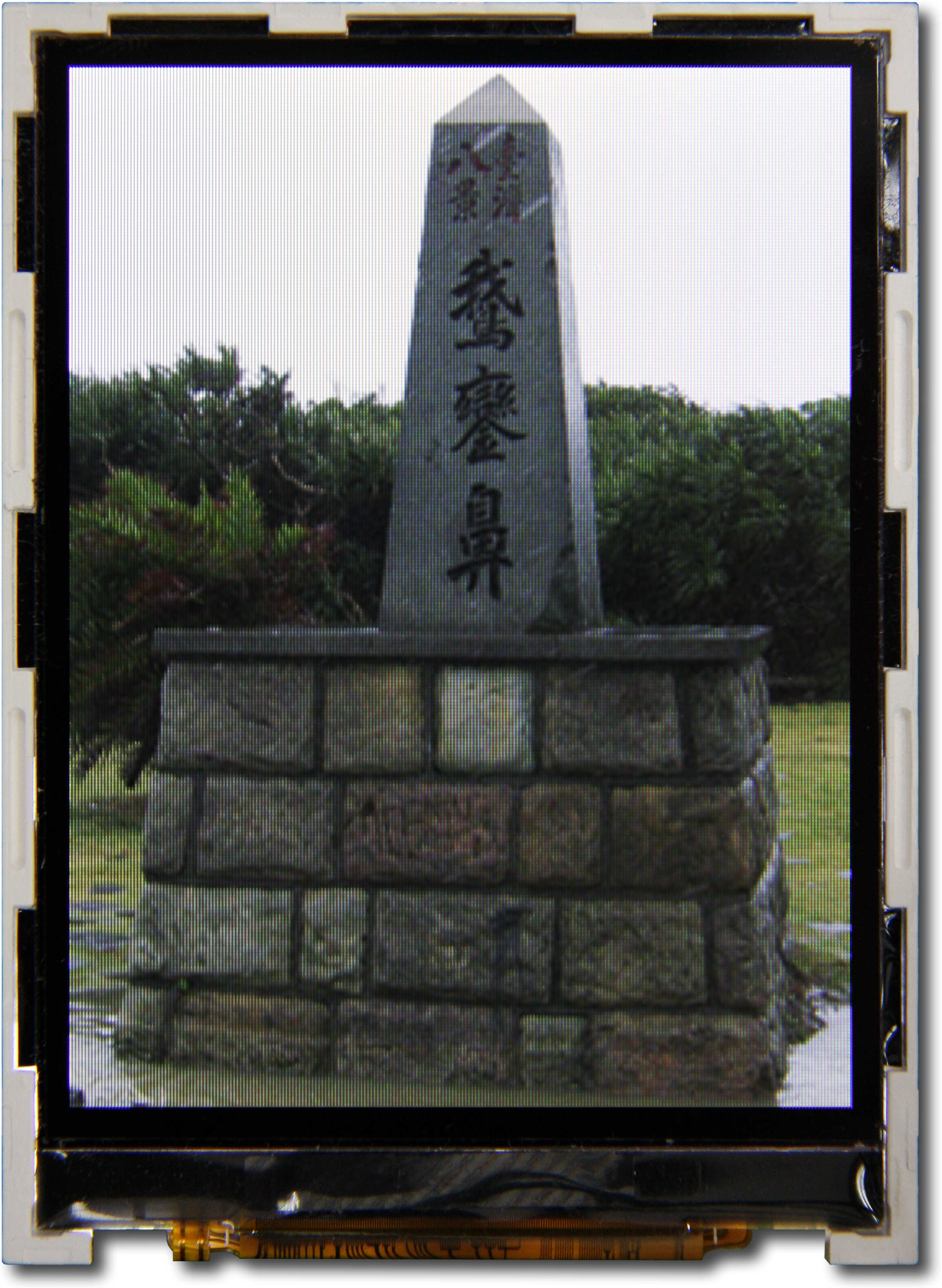

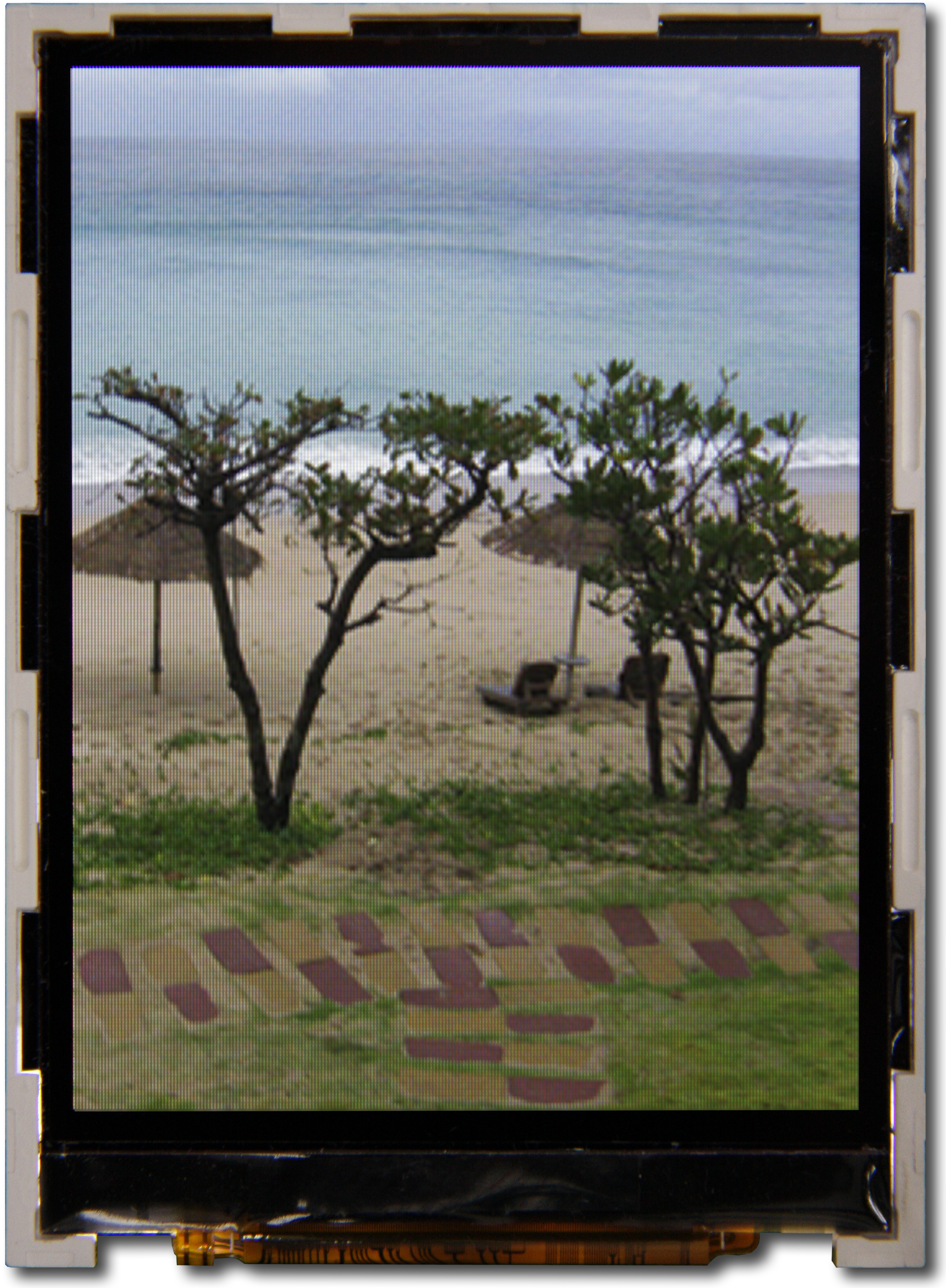

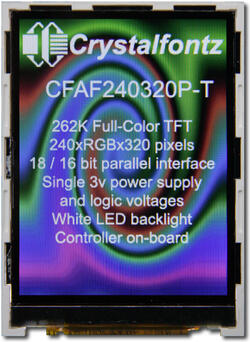

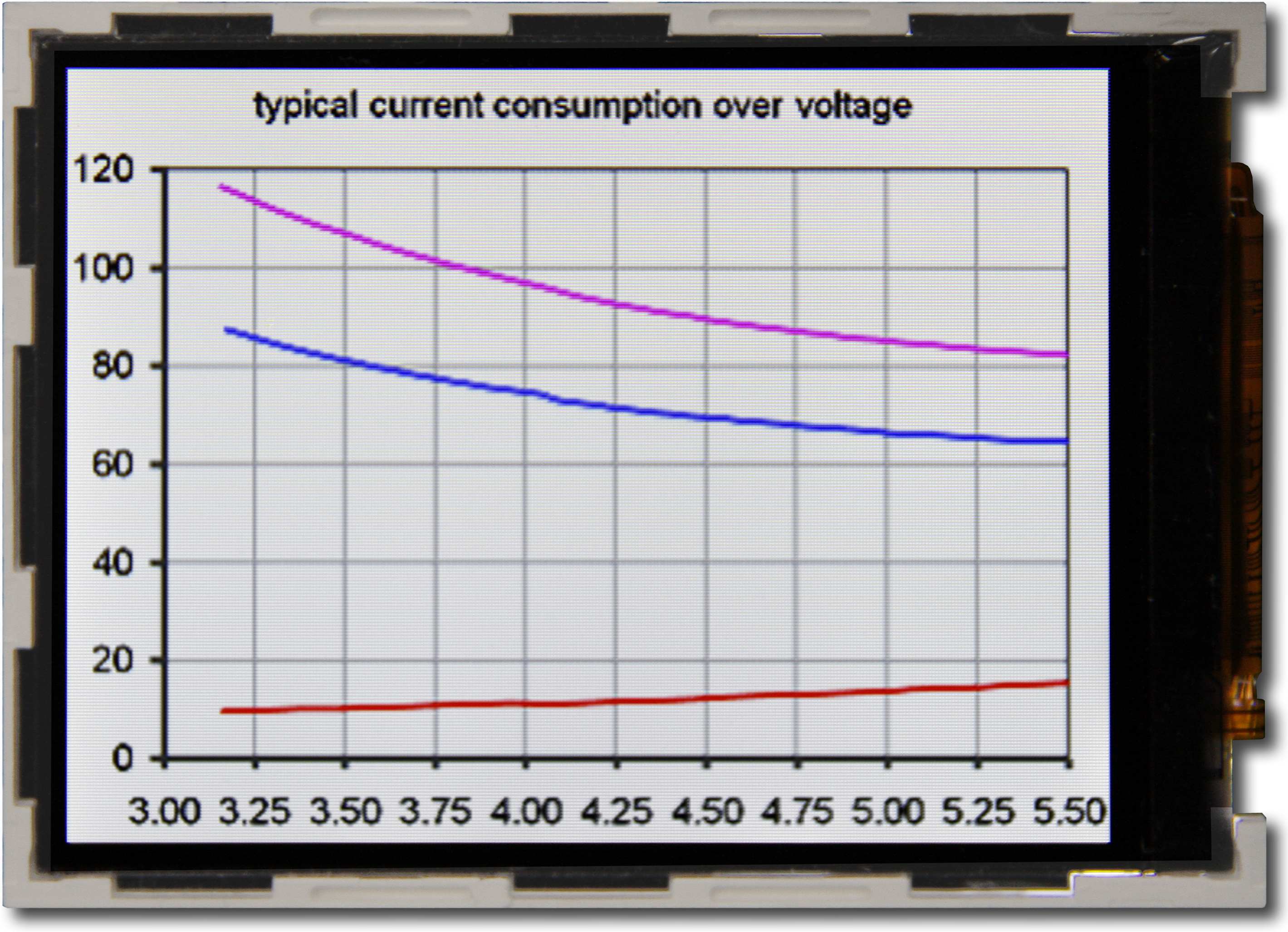

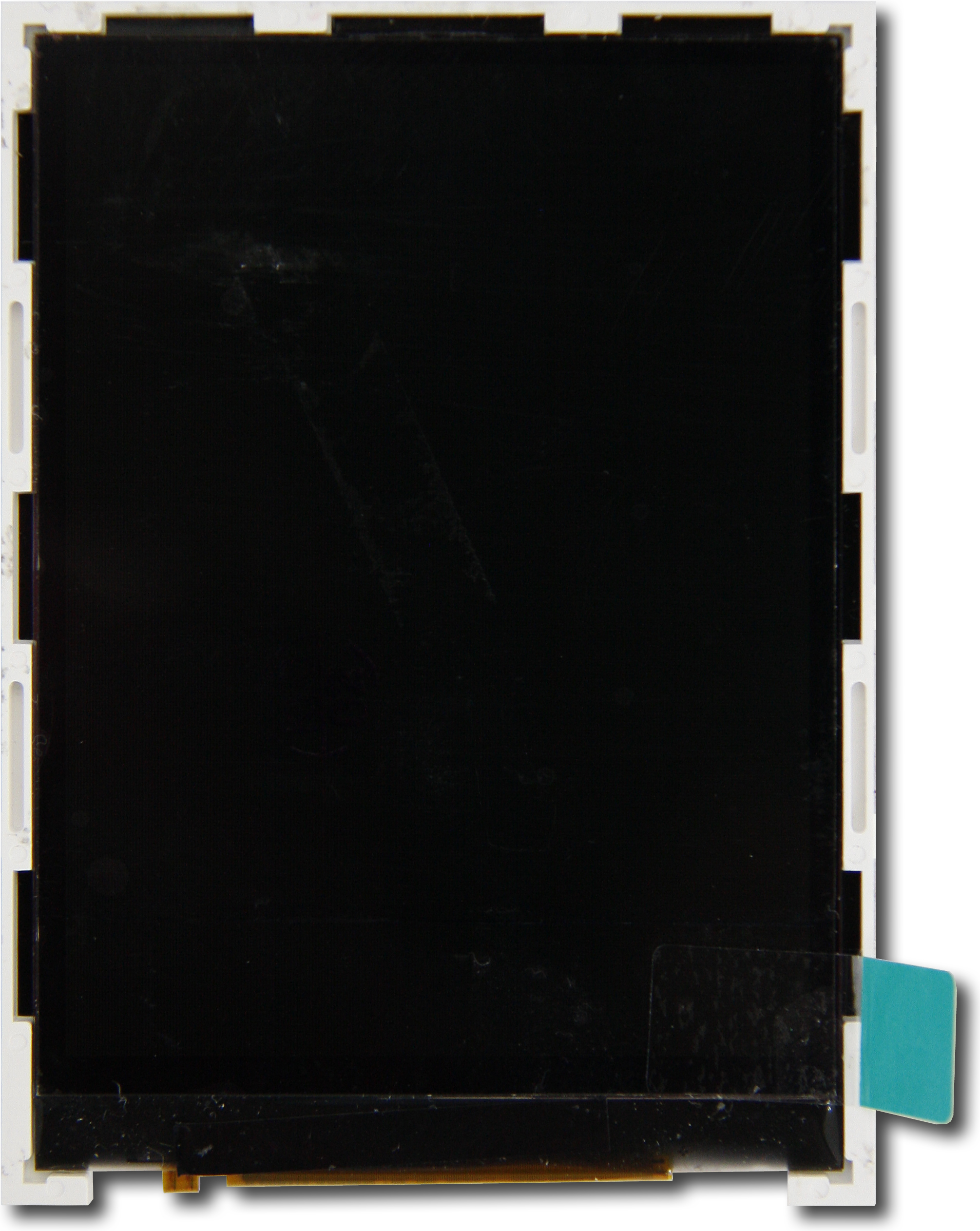

[EOL] 3v 240x320 Parallel Color TFTPart Number: CFAF240320P-TThis is a 3.2" diagonal, 240x320 pixel graphic TFT display module. Colors are displayed vibrantly and accurately, with 262,000 possible shades to bring stunning detail to any image. Its low power consumption makes this module a great choice for the display in your handheld or embedded product. Attractive pricing reduces the cost of your bill of materials without compromising on quality. The display includes an on-board controller and integrated white LED backlight. A single 40 pin, 0.5mm pitch FPC makes all the connections to the display, including the backlight. A standard ZIF mating connector can easily be mounted to your PCB (609-1200-1-ND, 609-1195-1-ND or similar).
	240xRGBx320 Full color graphic TFT module
		Built-in Orise Tech OTM3225A or compatible controller
	18/16-bit parallel interface
	Wide Temperature Range
	RoHS Compliant

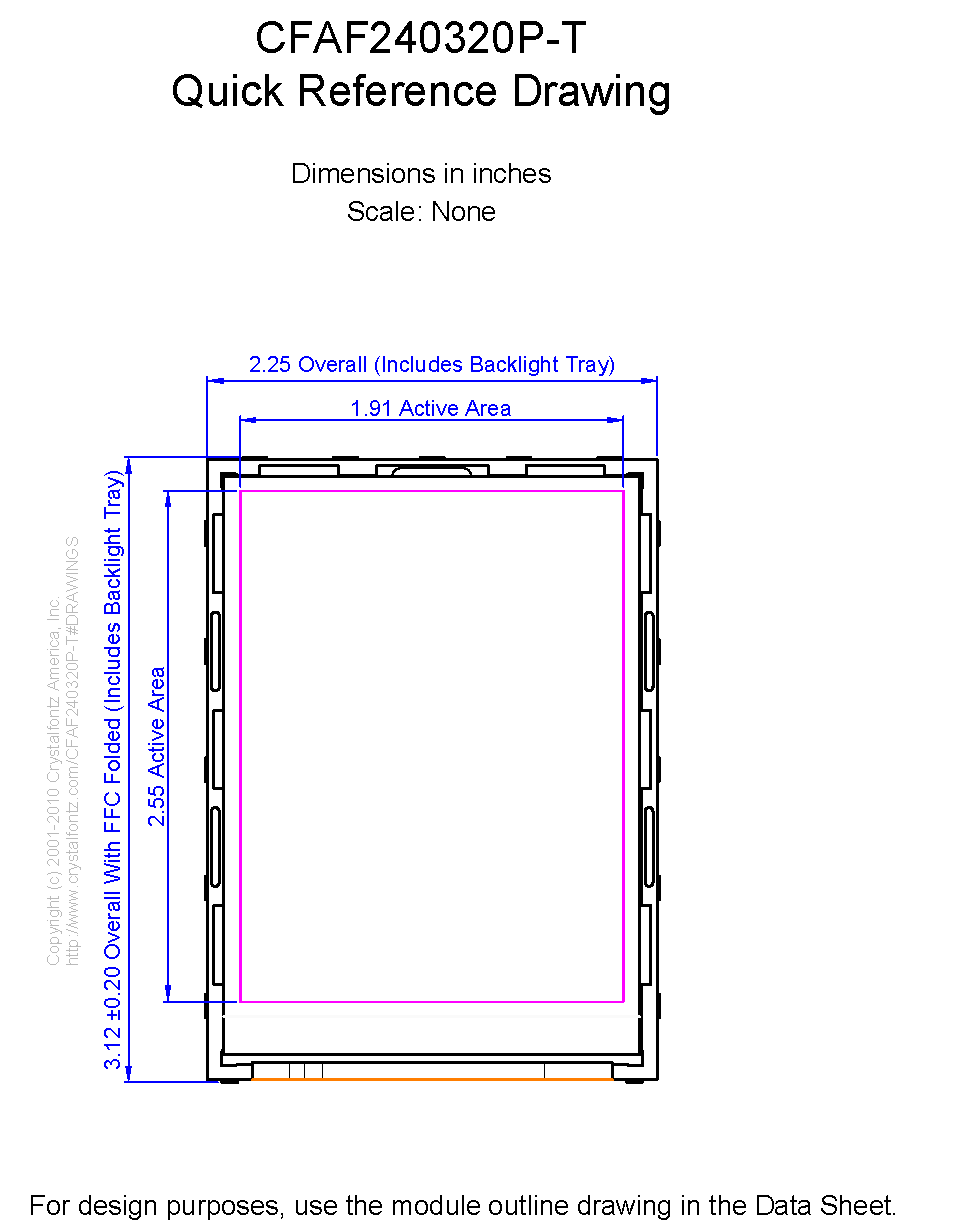

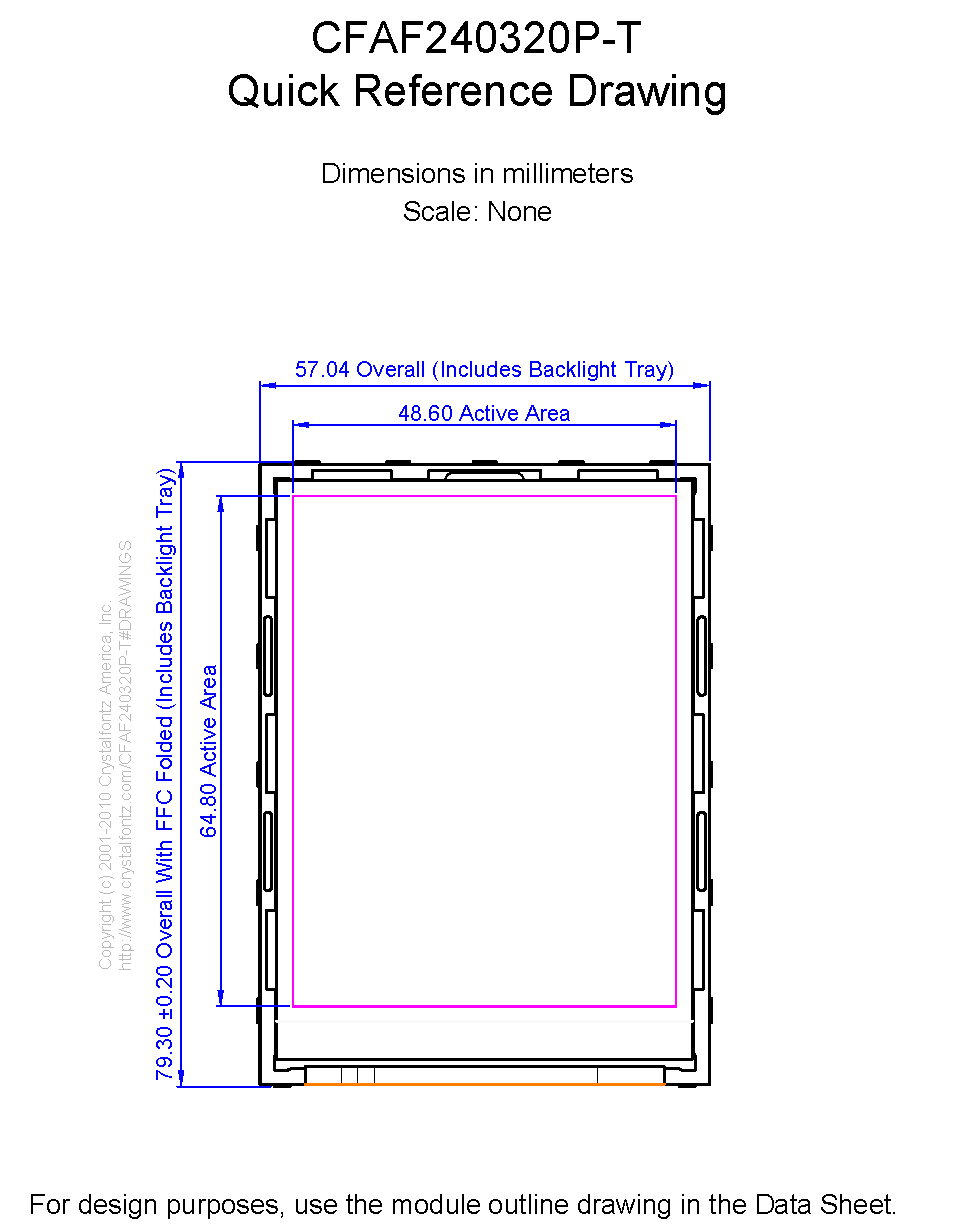

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 320

    Module Overall        width
        height
        depth

        millimeters
        57.04
        78.7
        3.1

        inches
        2.25
        3.10
        0.12

*width / height does not include Foldable Tab

        Diagonal Dimension
            3.2"

    Viewing Area        Width
        Height

        millimeters
        52.74
        74.4

        inches
        2.08
        2.93

    Active Area        Width
        Height

        millimeters
        48.6
        64.8

        inches
        1.91
        2.55

    Dot Pitch        Width
        Height

        millimeters
        0.2
        0.2

        inches
        0.008
        0.008

        Weight
            18g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            9 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.7V
Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Logic Typical
            2.8V

        Supply Current Typical
            8mA
Module Connector Pitch
            0.5mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            12.4V
Forward Voltage Maximum
            13.2V

        Forward Voltage Typical
            12.8V
Forward Current Typical
            15mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Orise Tech OTM3225A
OTM3225A

720-channel 6-bit source driver and

320-channel gate driver

with System-On-Chip (SOC) for color

amorphous TFT LCD
Interface
            16-bit Parallel, 18-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAF240320PT v01.pdf

 download Files and Downloads
folder_zip Software Source - Demonstration Code
folder_zip CAD Export - CFAF240320P-T 2D CAD
picture_as_pdf 1 to 1 Template - CFAF240320P-T 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	57.04	78.7	3.1
inches	2.25	3.10	0.12
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	52.74	74.4
inches	2.08	2.93

Active Area	Width	Height
millimeters	48.6	64.8
inches	1.91	2.55

Dot Pitch	Width	Height
millimeters	0.2	0.2
inches	0.008	0.008

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10335: Change in TFT part numbers

Products Affected:	CFAF240320K-T-TS, CFAF176220M-T, CFAF240320E-T, CFAF128160C-T, CFAF240320P-T, CFAF320240F-T, CFAF320240F-T-TS, CFAF240400D-T, CFAF128160C-018T, CFAF176220U-020T, CFAF240400D-030T, CFAF320240F-035T
Date Issued:	March 29, 2011
Summary:	Change in TFT part numbers
Description:	We are changing our TFT part numbers to have them better describe the parts being ordered. The change should be complete for all TFT modules shipping within the next six months. Part numbers will change as follows: CFAF128160C-T will change to CFAF128160C-018T CFAF176220M-T will change to CFAF176220U-020T CFAF240320E-T will change to CFAF240320H-022T CFAF240320K-T-TS will change to CFAF240320K-024T-TS CFAF240320P-T will change to CFAF240320S-032T CFAF240400D-T will change to CFAF240400D-030T CFAF320240F-T will change to CFAF320240F-035T CFAF320240F-T-TS will change to CFAF320240F-035T-TS
Reason:	There are many TFT modules with the same logical dimensions (resolution) with considerably different sizes. In order to help ease any confusion, we have decided to add the diagonal dimension to the part number.
Impact:	The part number is all that is changing, there are no other changes to the parts, so there should be no significant impact.
Availability:	The transition period should be about six months from the date of this bulletin.

Part Change Notice #10300: Controller change for CFAF240320P series of LCD modules.

Product Affected:	CFAF240320P-T
Date Issued:	December 13, 2010
Summary:	Controller change for CFAF240320P series of LCD modules.
Last revision:	Datasheet v1.0
Description:	PCN for CFAF240320P series of TFT LCD modules due to controller change from Solomon SSD1298 to Orise Technology OTM3225A.
Reason:	The Solomon SSD1298 is not being used any longer. The display now uses an Orise Technology OTM3225A.
Impact:	Because of the LCD controller change, a change to the initialization and functional code (write / read code changes, also CGRAM write, etc.) minor changes will be required. This change is pin-compatible with the previous version of this display, no change to the circuit will be necessary.
Recommendation:	Use code found on the module's web page on the Docs/Files tab as an example for the new controller.
Availability:	2010/12/15
Price Change:	N/A

[EOL] 3v 240x320 Parallel Color TFT

Part Number: CFAF240320P-T

Physical Characteristics

Optical Characteristics

Electrical Specifications

Backlight Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10335: Change in TFT part numbers

Part Change Notice #10300: Controller change for CFAF240320P series of LCD modules.

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	TFT/Black
Polarizer	Transmissive
View Direction	9 o'clock

Backlight Color	White
Backlight Type	LED
Mode	Negative
Foreground Color	RGB
Background Color	Dark

Supply Voltage for Logic Minimum	2.7V
Supply Voltage for Logic Maximum	3.3V
Supply Voltage for Logic Typical	2.8V

Supply Current Typical	8mA
Module Connector Pitch	0.5mm

Forward Voltage Minimum	12.4V
Forward Voltage Maximum	13.2V

Forward Voltage Typical	12.8V
Forward Current Typical	15mA

Controller Documents	Orise Tech OTM3225A OTM3225A 720-channel 6-bit source driver and 320-channel gate driver with System-On-Chip (SOC) for color amorphous TFT LCD
Interface	16-bit Parallel, 18-bit Parallel
