            This product has reached end of life and has been replaced by CFAF240320K1-024T-RT

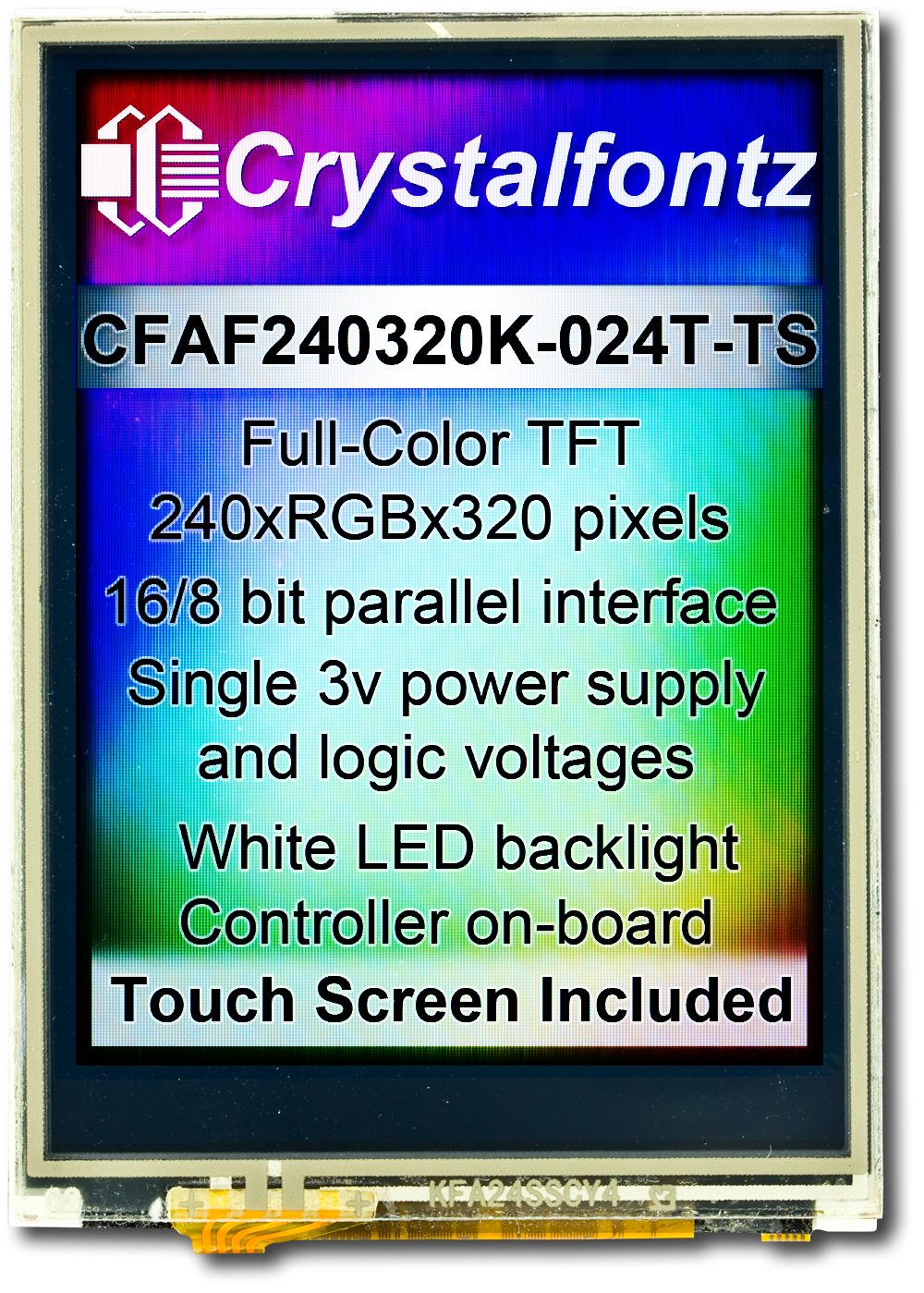

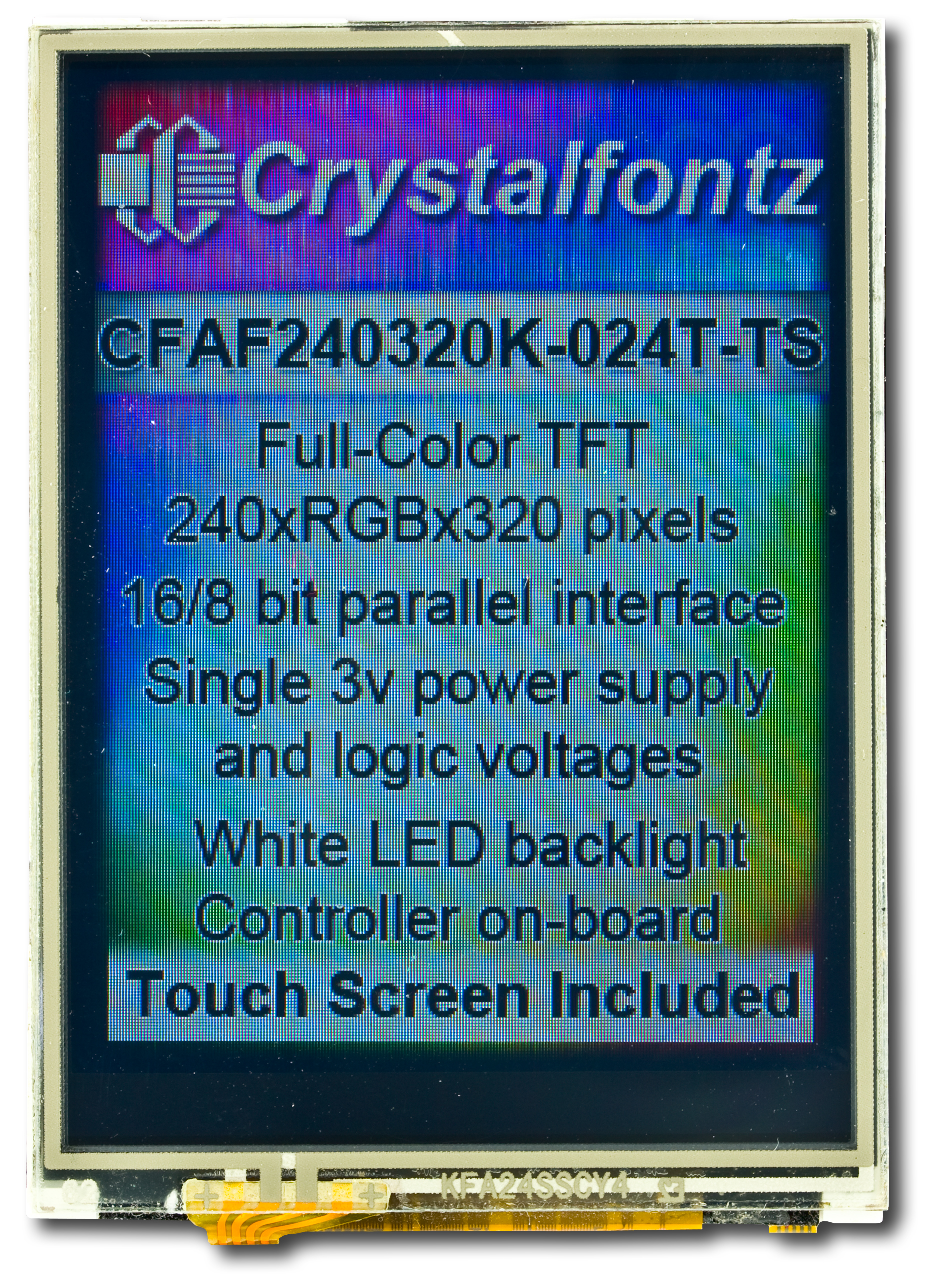

240x320 2.4" Touch Screen Color TFTPart Number: CFAF240320K-024T-TSThis graphic display module is a 2.4" diagonal, full color TFT.  Suitable for embedded applications, it is low-power, uses a white LED backlight, and has an integrated touch panel which has its connection brought out to the main TAB connector for the display.

It has an on-board controller and 3v single voltage for supply and logic (backlight not included), so you can easily use any modern microcontroller to interface with this display.  It uses an 8 or 16 bit parallel interface, specified via connections to the display.

This module looks wonderful, displaying all information in living color.
	240xRGBx320 Full color graphic TFT module
	Built-in Raydium RM68090 controller
	16/8 bit parallel interface
	Wide Temperature Range
	Touch panel included
	RoHS Compliant

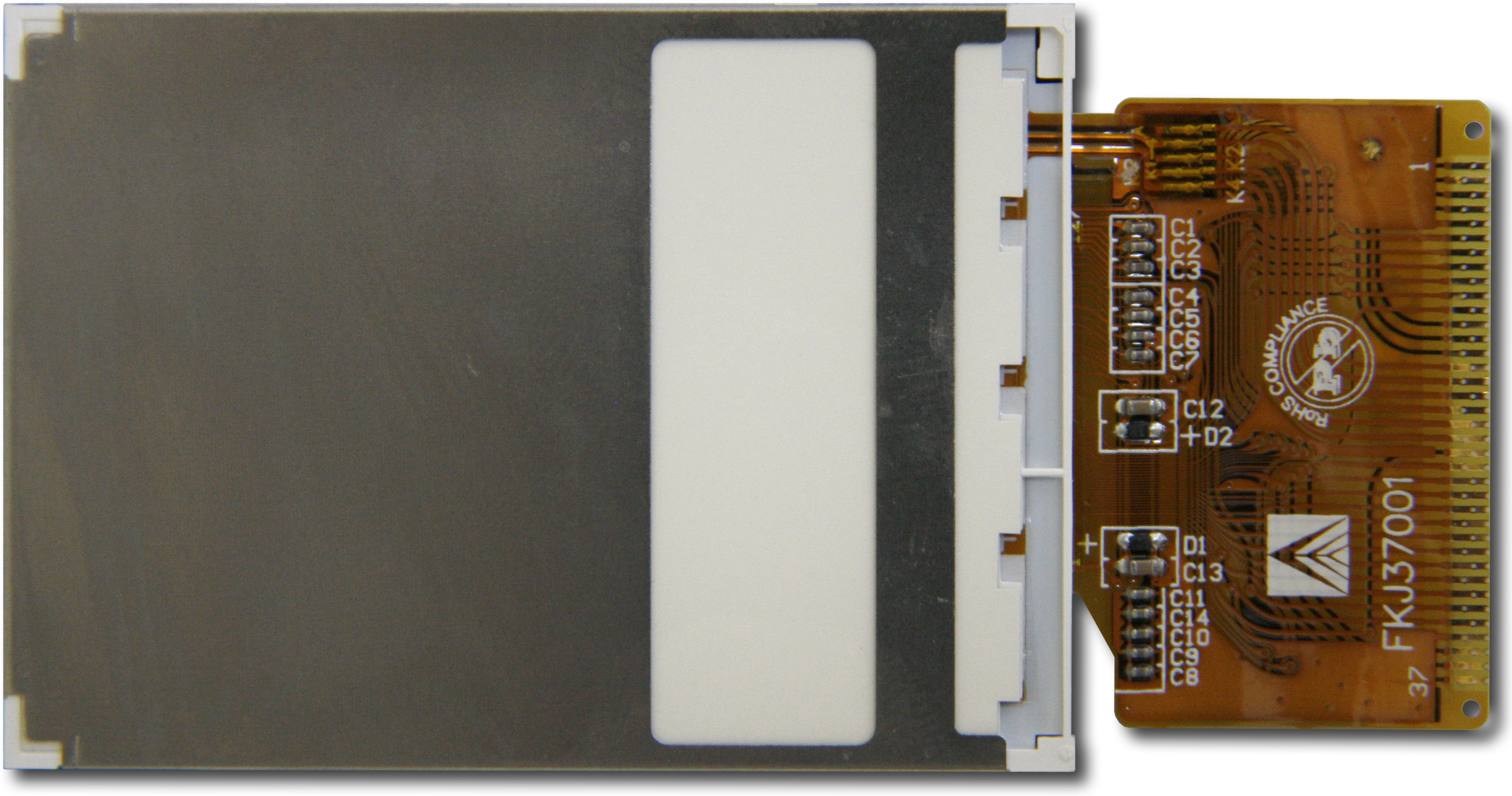

	The connector on the CFAF240320K-024T-TS is a flex tail mated with a "COG" (chip on glass) display construction. This style of connector is designed to be soldered directly to corresponding pads on your PCB by using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. There are hot-bar soldering machines made that are designed for prototype, rework or repair work of TAB connections.
 square_foot Physical Characteristics
Physical Characteristics

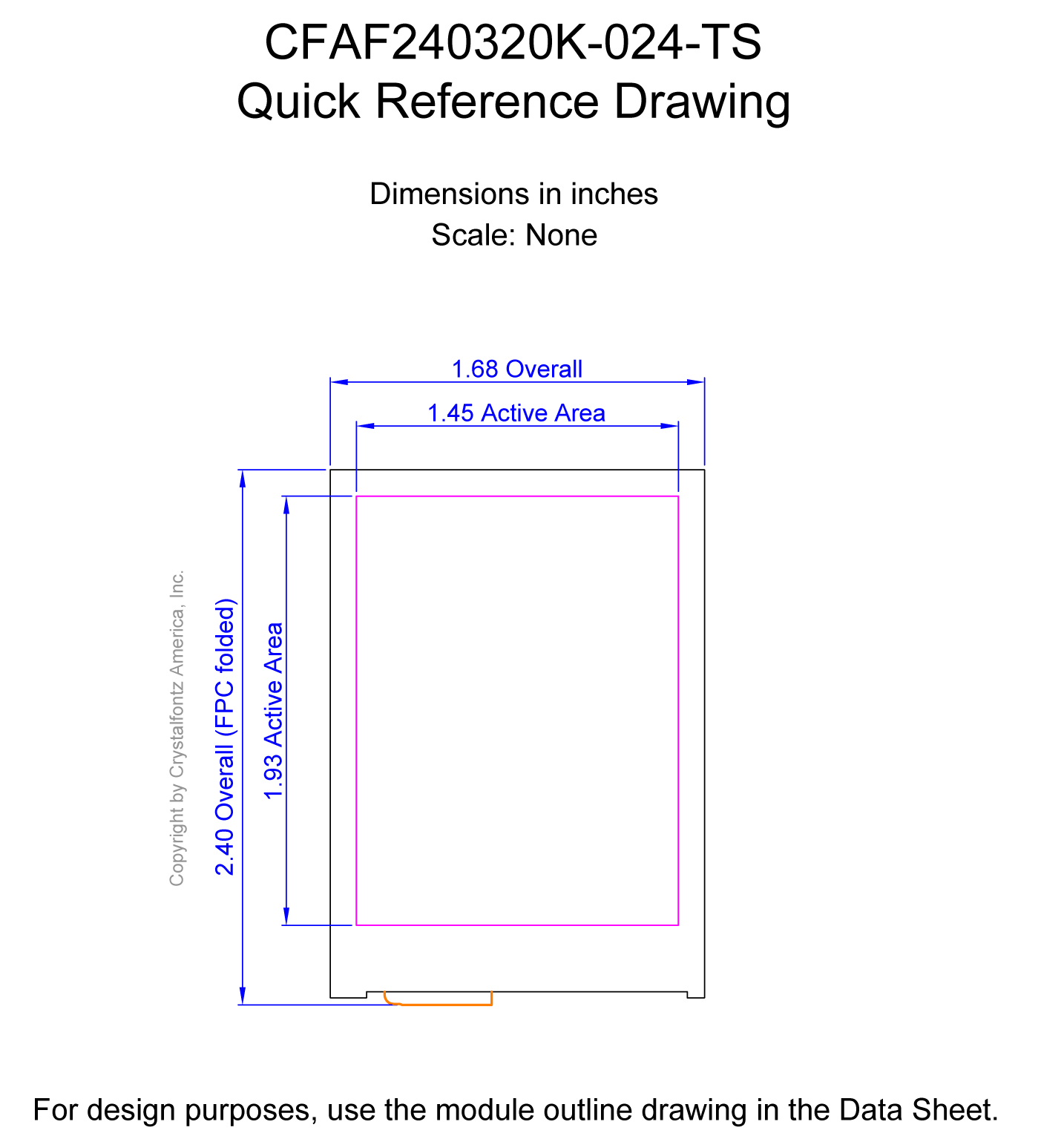

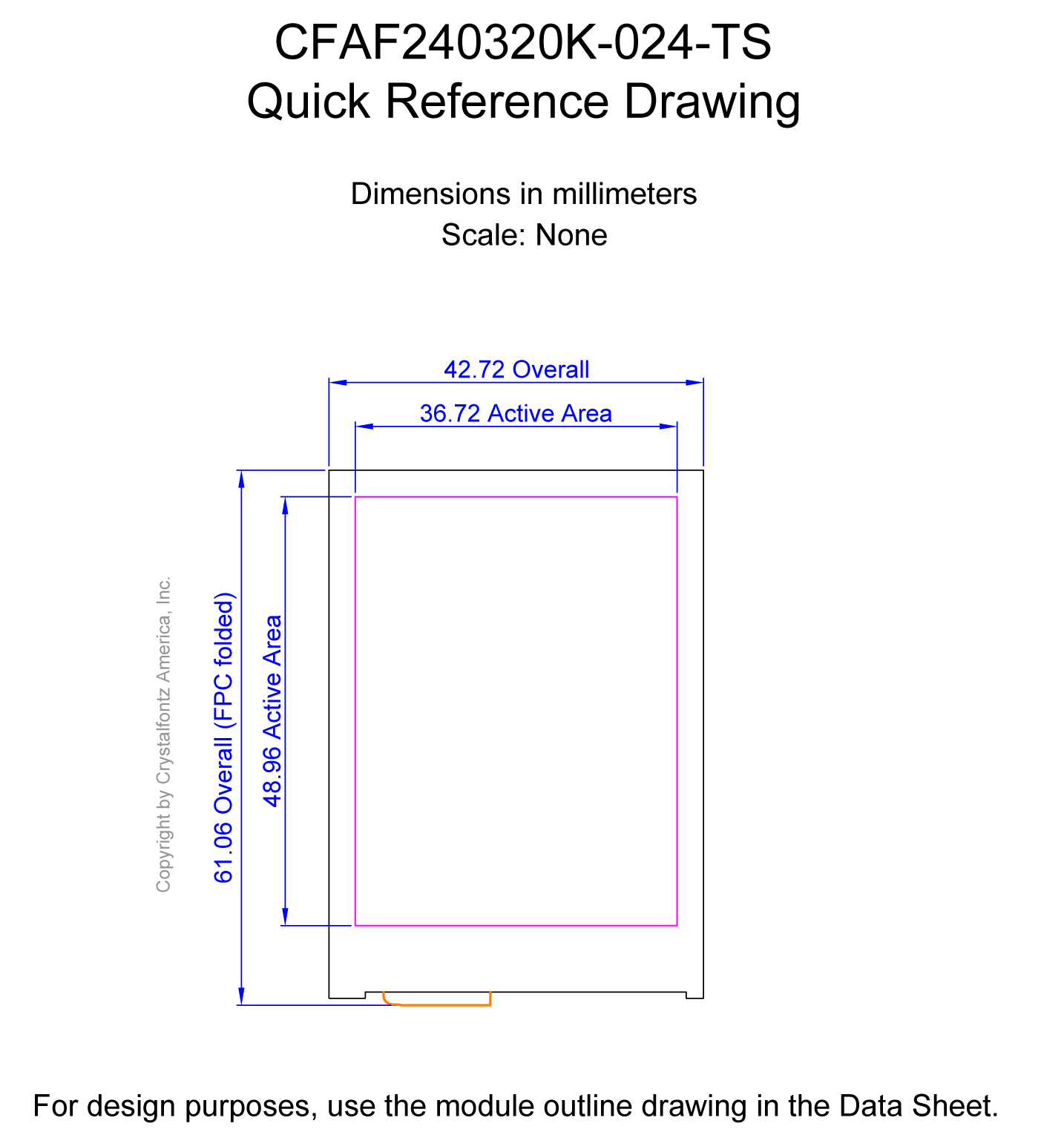

        Column Dots x Row Dots
            240 x 320

    Module Overall        width
        height
        depth

        millimeters
        42.72
        60.26
        2.7

        inches
        1.68
        2.37
        0.11

*width / height does not include Foldable Tab

        Diagonal Dimension
            2.4"

    Viewing Area        Width
        Height

        millimeters
        37.72
        53.16

        inches
        1.49
        2.09

    Active Area        Width
        Height

        millimeters
        36.72
        48.96

        inches
        1.45
        1.93

    Dot Pitch        Width
        Height

        millimeters
        0.153
        0.153

        inches
        0.0060
        0.0060

        Weight
            18g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Raydium Semiconductor RM68090
Single Chip Driver with 262K color

for 240RGBx320 a-Si TFT LCD
Interface
            16-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAF240320K024TTS Datasheet

picture_as_pdfCFAF240320K-024T-TS Data Sheet preliminary.pdf
(Hardware A)
 download Files and Downloads
folder_zip Software Source - AtMega2561 16bit Demo Code
folder_zip Software Source - ATMega2561 8-bit Demo Code
folder_zip CAD Export - CFAF240320K-024T-TS 2D CAD.ZIP
picture_as_pdf 1 to 1 Template - CFAF240320K-024T-TS 1 to 1.PDF

Module Overall	width	height	depth
millimeters	42.72	60.26	2.7
inches	1.68	2.37	0.11
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	37.72	53.16
inches	1.49	2.09

Active Area	Width	Height
millimeters	36.72	48.96
inches	1.45	1.93

Dot Pitch	Width	Height
millimeters	0.153	0.153
inches	0.0060	0.0060

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Note
Notices

This module is engineered for high volume production. It uses a "TAB" (tape automated bonding) or "COF" (chip on flex) style flex tail. The TAB connector is soldered directly to corresponding pads on your PCB using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. Hot-bar soldering machines designed for prototype, rework or repair of TAB connections are available from equipment suppliers at reasonable cost. The TAB style connection requires no separate connector, so the cost is very low, and the ultra thin profile of the display is maintained.

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10916: End-of-Life Notice

Product Affected:	CFAF240320K-024T-TS
Date Issued:	December 26, 2017
Summary:	End-of-Life Notice
Description:	This part has been assigned to End of Life Status
Reason:	Critical components have been discontinued by the manufacturer.
Impact:	This part is not recommended for new designs.
Recommendation:	We recommend this new display: https://www.crystalfontz.com/product/cfaf240320k1024trt-240x320-rgb-tft-lcd
Availability:	Until current stock is depleted

Product Update #10911: End-of-Life Notification

Product Affected:	CFAF240320K-024T-TS
Date Issued:	December 13, 2017
Summary:	End-of-Life Notification
Description:	This part has been assigned to End of Life Status.
Reason:	Critical components have been discontinued by the manufacturer.
Impact:	This part is not recommended for new designs.
Recommendation:	This part will be replaced by a new part.
Availability:	CFAF240320K-024 displays will be available until current stock is depleted. The replacement part will be available during the first quarter of 2018.
Price Change:	N/A

Product Update #10435: Controller change for CFAF240320K-024T-TS

Product Affected:	CFAF240320K-024T-TS
Date Issued:	October 19, 2012
Summary:	Controller change for CFAF240320K-024T-TS
Description:	The ILI9325C controller is being replaced by the RM68090.
Reason:	Supply shortages of the ILI9325C controller threatened to disrupt our ability to fill orders, so we have added the RM68090 as the new controller.
Impact:	Low. While most customers will not require a change to their initialization to continue to use the display, updated initialization code will improve the performance of the display.
Recommendation:	Update initialization code to be more in line with the RM68090 and this display module. Contact support@crystalfontz.com for more information.
Availability:	New orders, for approximately one year or more.
Price Change:	N/A

Part Change Notice #10345: Controller change for CFAF240320K-024T-TS

Products Affected:	CFAF240320K-T-TS, CFAF240320K-024T-TS
Date Issued:	April 25, 2011
Summary:	Controller change for CFAF240320K-024T-TS
Description:	The SPFD5408B-C controller is being replaced by the ILI9325C.
Reason:	The SPFD5408B-C has been discontinued by the manufacturer.
Impact:	Low. While most customers will not require a change to their initialization to continue to use the display, updated initialization code will improve the performance of the display.
Recommendation:	Update initialization code to be more in line with the ILI9325 and this display module.
Availability:	New orders, for approximately one year.
Price Change:	N/A

240x320 2.4" Touch Screen Color TFT

Part Number: CFAF240320K-024T-TS

Physical Characteristics

Optical Characteristics

Environmental

Electronics

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10916: End-of-Life Notice

Product Update #10911: End-of-Life Notification

Product Update #10435: Controller change for CFAF240320K-024T-TS

Part Change Notice #10345: Controller change for CFAF240320K-024T-TS

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	TFT/Black
Polarizer	Transmissive
View Direction	6 o'clock

Backlight Color	White
Backlight Type	LED
Mode	Negative
Foreground Color	RGB
Background Color	Dark

Controller Documents	Raydium Semiconductor RM68090 Single Chip Driver with 262K color for 240RGBx320 a-Si TFT LCD
Interface	16-bit Parallel, 8-bit Parallel
