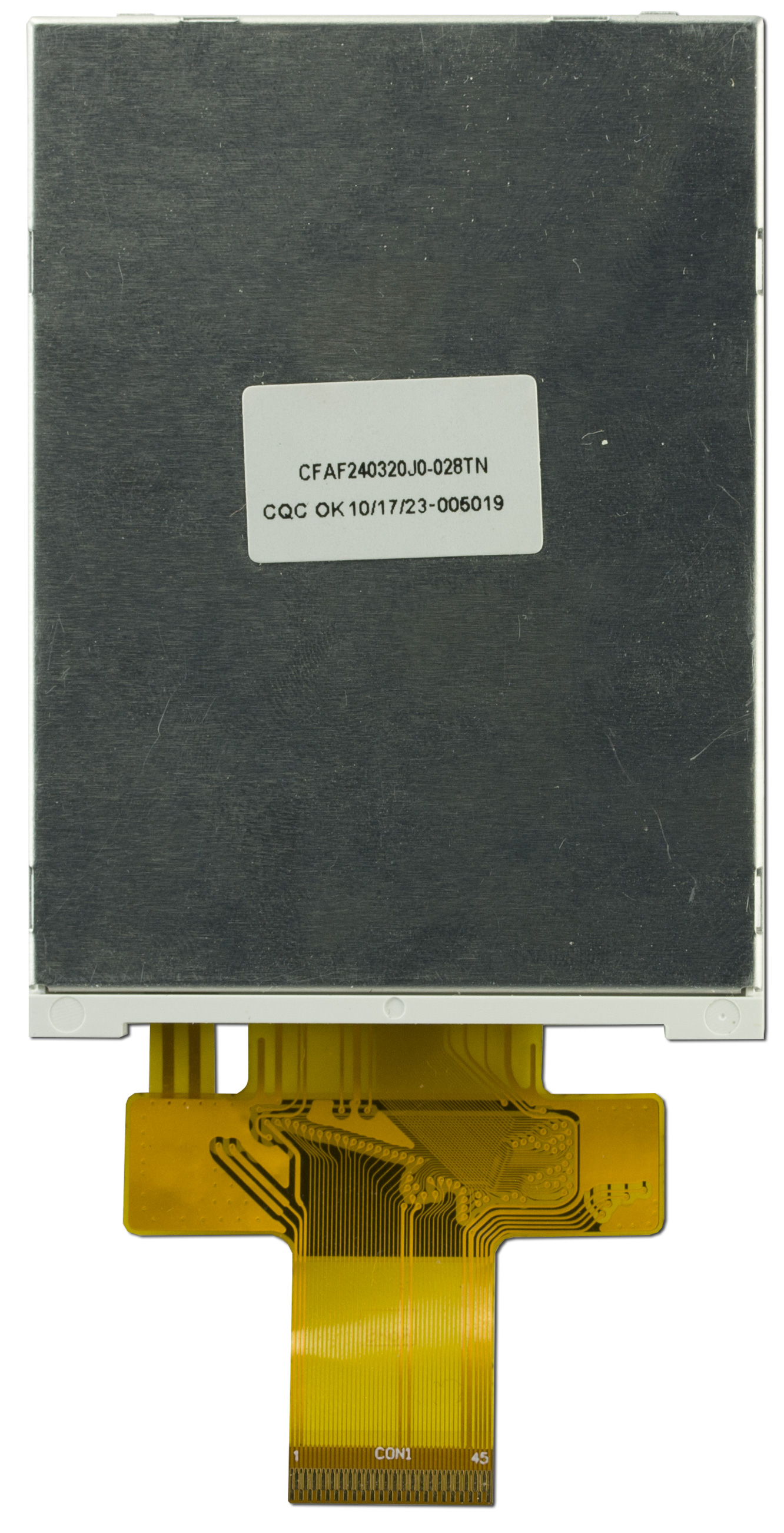

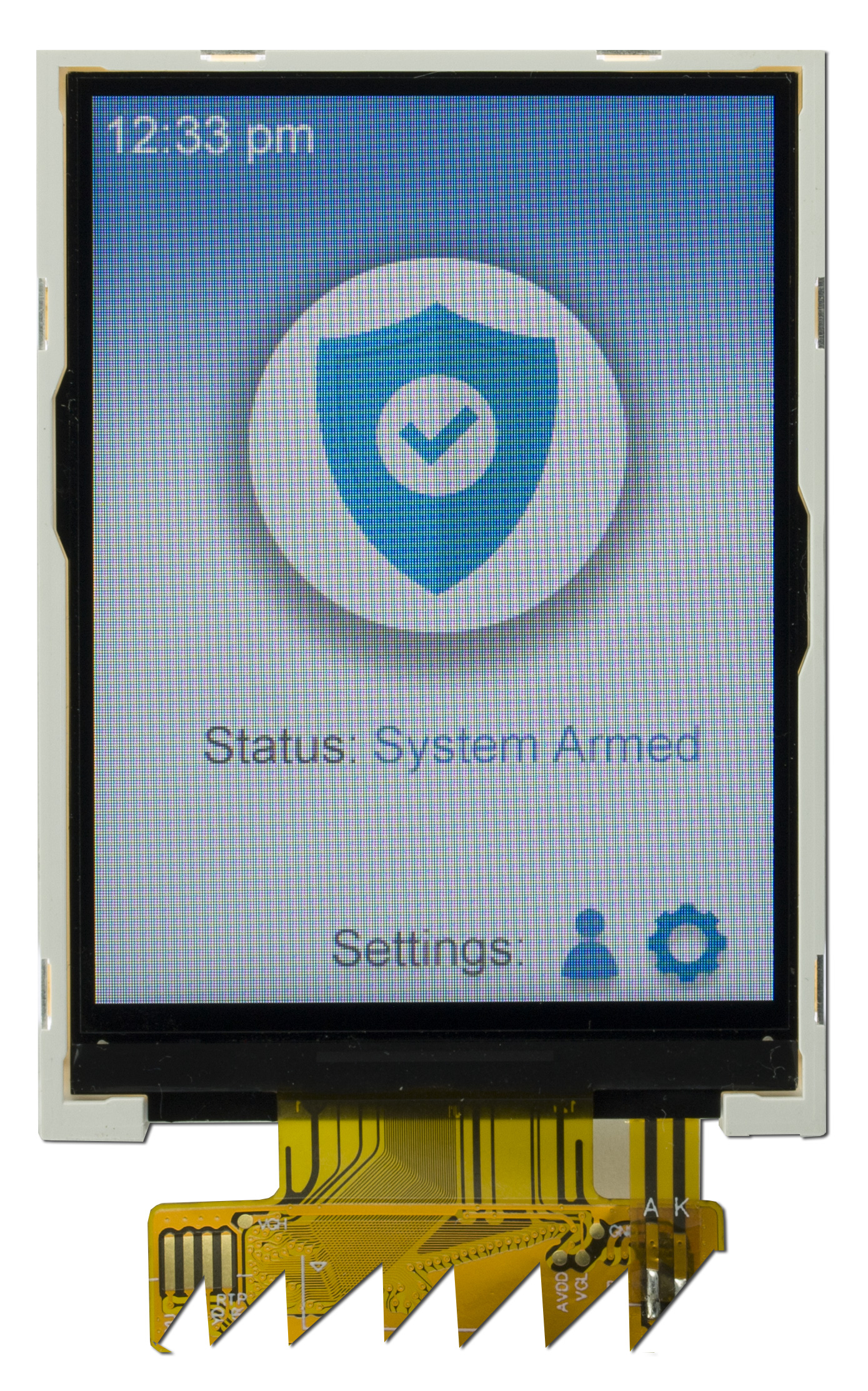

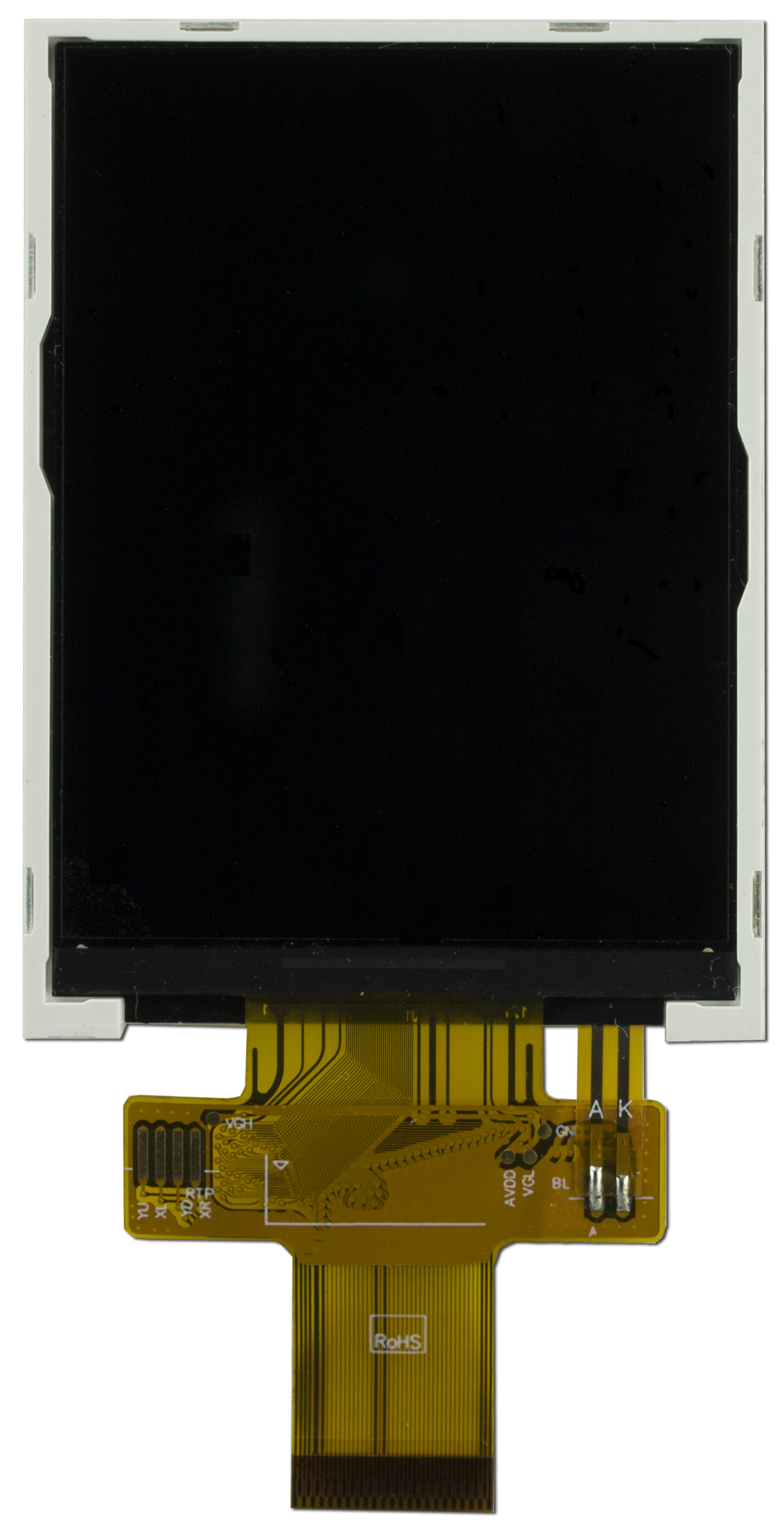

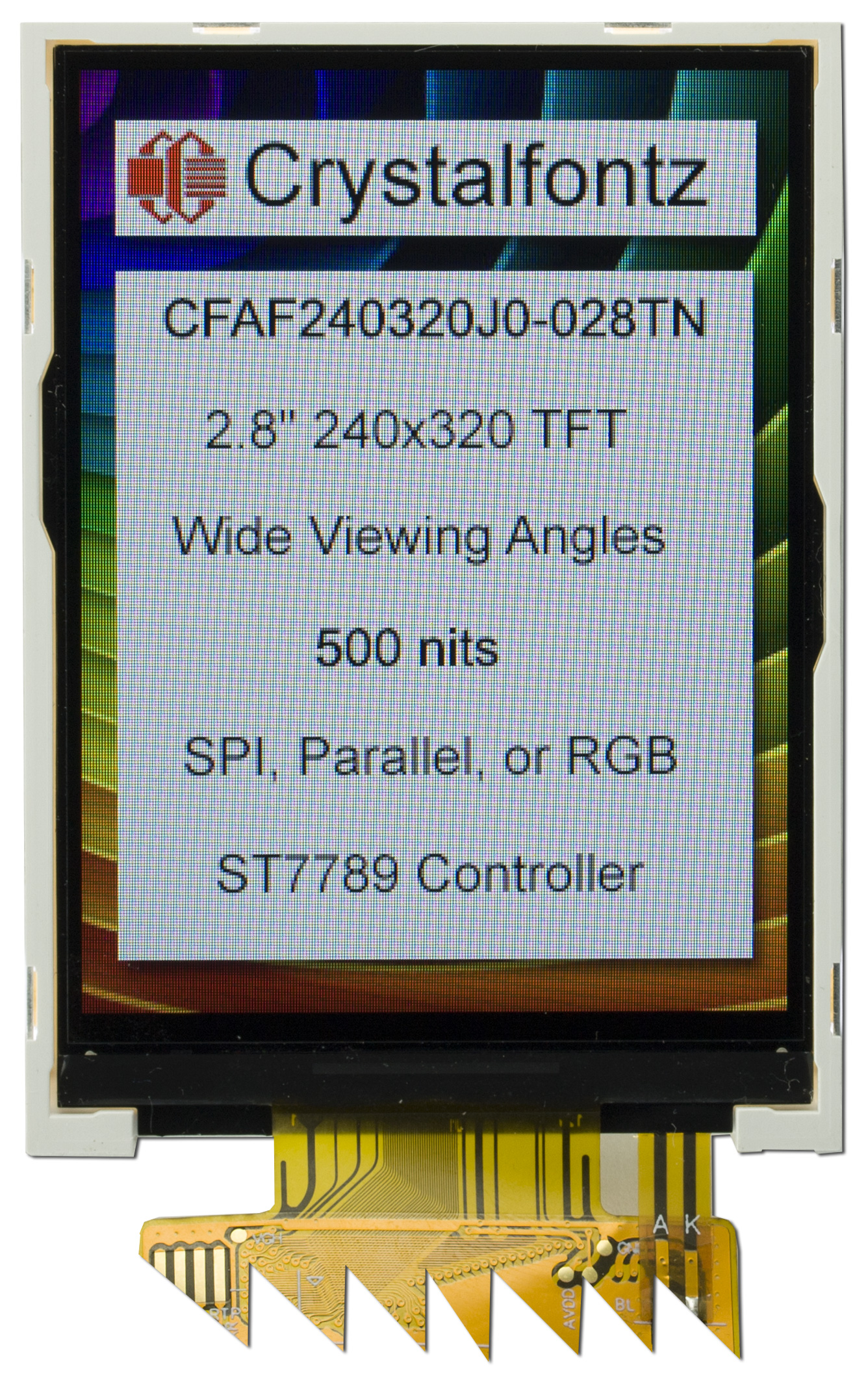

2.8" 240x320 IPS TFT Display

Part Number: CFAF240320J0-028TN

This 2.8" TFT uses IPS technology so this display looks nice even at super wide viewing angles. This display has a standard brightness backlight (500 nits), meaning it is great for use in regular indoor lighting or in dark environments, but may be a little difficult to read in direct sunlight.

3- or 4-Wire SPI is supported in addition to up to 18-bit parallel, meaning this display can be brought up with some simple wiring and a seeeduino or fully wired up for high speed communication.

IPS: Since this module is IPS it can be rotated 90° and used as a 320x240 2.8" Display, with the only difference being the FPC tail would be oriented off the side rather than the bottom. Viewability would not be affected, since IPS has an open viewing direction.

In addition to the resistive touch option, a capacitive touchscreen for this display is also available but requires a minimum order quantity. Reach out to us at support@crystalfontz.com if you're interested in a 2.8" capacitive touch display.

Part Number:
CFA - Crystalfontz America
F - TFT
240320 - 240 x 320 pixel resolution
J0 - Family and revision
028 - 2.8" diagonal
T - Standard brightness
N - No touchscreen

• grid_on Resolution

  Pixel Grid

  Column Dots	240 px
  Row Dots	320 px

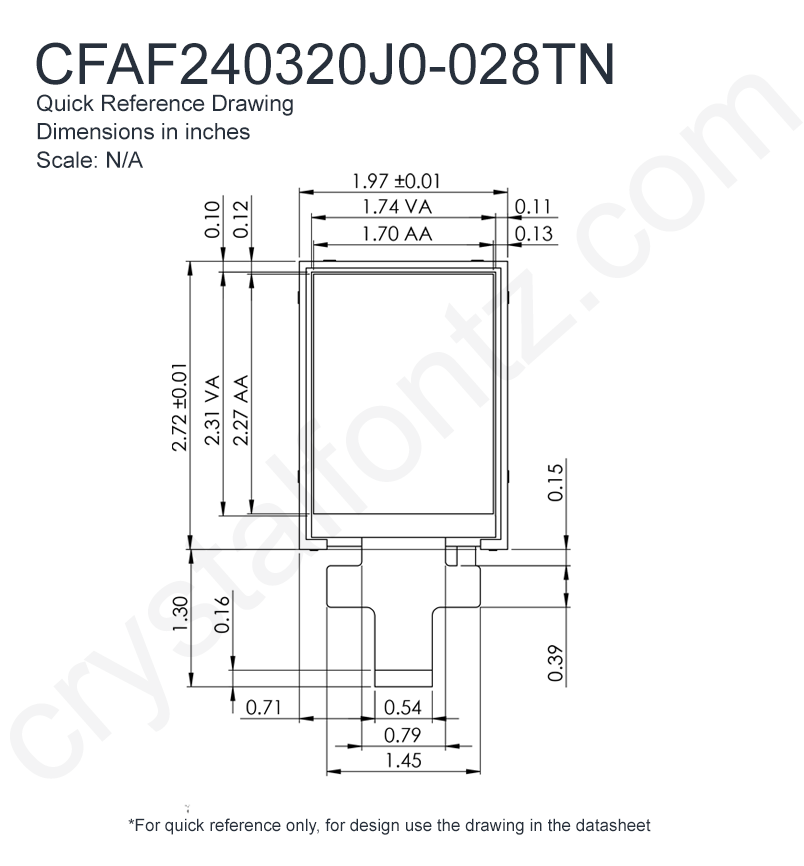

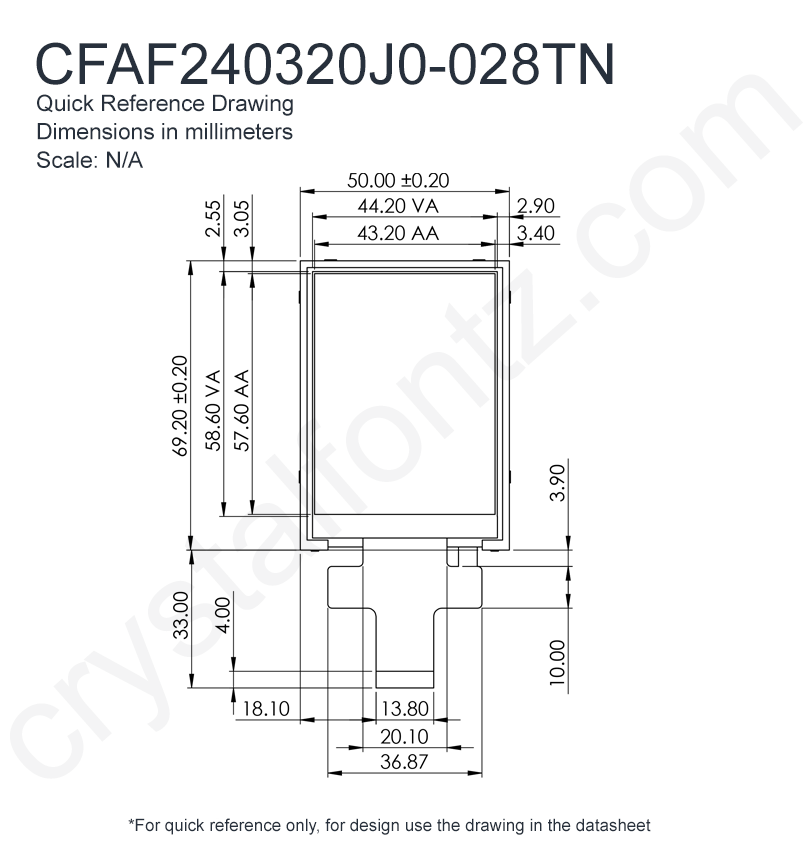

• square_foot Physical Dimensions

  Module	Metric	Imperial
  Overall Width	50.50 mm	1.988 in
  Overall Height	69.70 mm	2.744 in
  Overall Depth	4.55 mm	0.179 in
  Diagonal Dimension	2.8 in
  Weight	21.3 g
  Shape	Rectangle

  Display Area	Metric	Imperial
  Active Area Width	43.20 mm	1.701 in
  Active Area Height	57.60 mm	2.268 in

  Dot Geometry	Metric	Imperial
  Dot Pitch Width	0.18 mm	0.007 in
  Dot Pitch Height	0.18 mm	0.007 in
  Dot Size Width	0.18 mm	0.007 in
  Dot Size Height	0.18 mm	0.007 in

• build Mechanical

  Connectors

  Module Connector Type	ZIF
  Pin Count	45

• visibility Display Optics

  Technology

  Display Technology	TFT
  Glass Type	IPS

  Brightness

  Nits

  500 cd/m²

  Viewing

  View Angle

  160°

• palette Color & Appearance

  Display Colors

  Foreground Color	RGB
  Background Color	Dark

  Backlight

  Backlight Type	LED
  Backlight Color	White

• electric_bolt Electrical

  Display	Min	Typ	Max	Unit
  Supply Voltage - Logic
  Supply Voltage for Logic	3	3.3	3.6	V
  Supply Current	—	6.3	9.5	mA

• cable Interface

  Available Interfaces

  Standard Interface(s)

  SPI, 8-bit Parallel, 9-bit Parallel, 16-bit Parallel, 18-bit Parallel, DOT-CLK / Generic RGB

• nature Environmental

  Temperature

  	Min (°C)	Max (°C)	Min (°F)	Max (°F)
  Operating Temperature	-20°C	70°C	-4°F	158°F
  Storage Temperature	-30°C	80°C	-22°F	176°F

• info Product Metadata

  Controller

  Built-in Controller

  Sitronix ST7789V

• download Downloads
  Datasheets


  picture_as_pdf

  CFAF240320J0-028TN Datasheet






  Documents & Files


  folder_zip Hardware Design - 3D Model


  link Demo Code Repository on Github





  Controller Documents:
  link Sitronix ST7789V
• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH

• Change Notices
