This product has reached end of life and has been replaced by CFAF240320B1032TTS

Product

Home » Products » TFT LCD Displays » Resolution » 240x320

                This product is discontinued. We suggest the CFAF240320B1-032T-TS as a possible replacement.
NOTE: The suggested replacement CFAF240320B1-032T-TS is a similar sized display but is not identical and uses a different controller. While the discontinued CFAF240320A-032T-TS offered many interface options, the CFAF240320B1-032T-TS offers ONLY 8 bit / 16 bit parallel MCU interface.


Feel free to contact our tech support team for assistance in adapting a new display to your product.

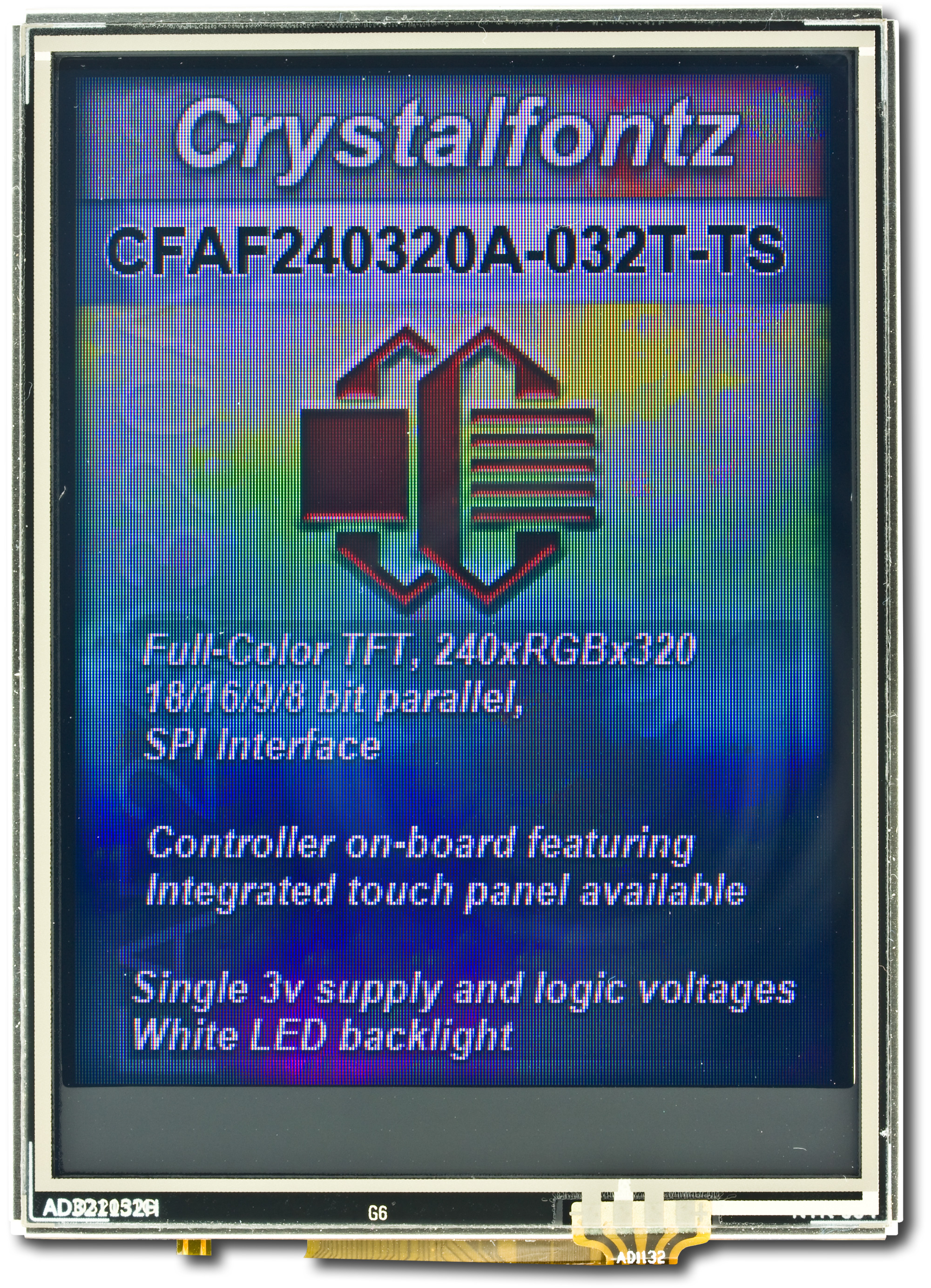

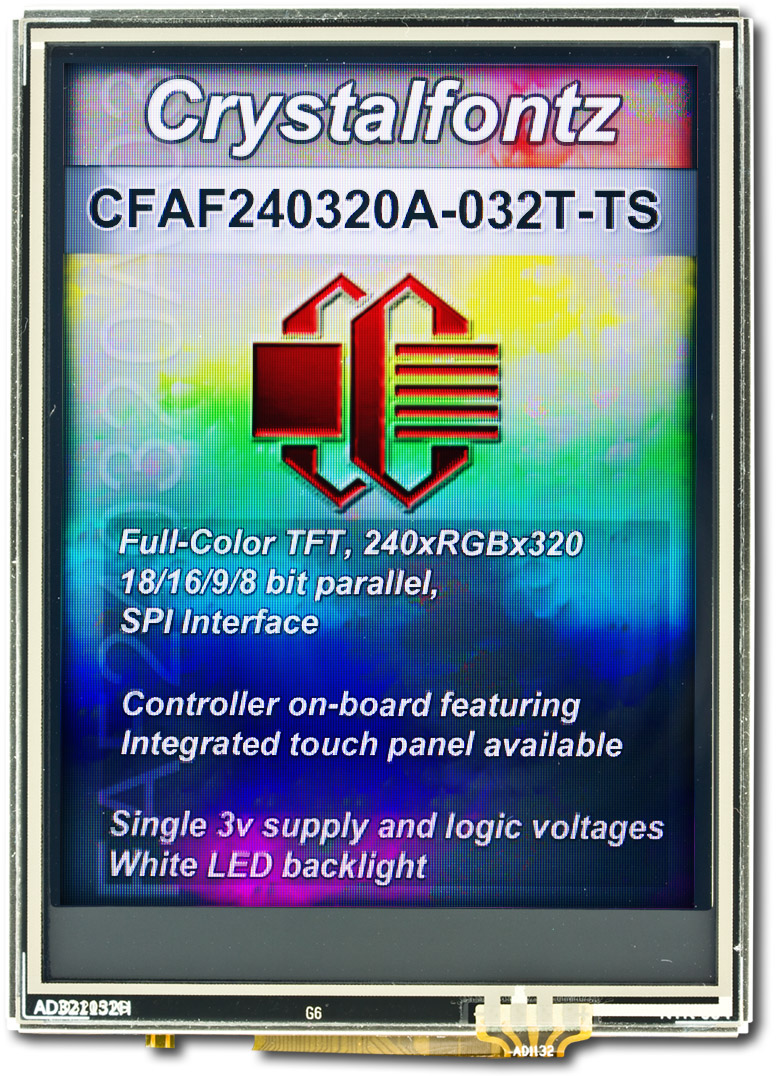

240x320  Color TFTPart Number: CFAF240320A-032T-TS3.2-inch graphic TFT touch screen display module,
Full color (262K) 240x 320,
Orise Tech OTM3225A driver,
16-bit 8080 parallel,
20°C to 70°C,
Mates with standard ZIF sockets
Full-color (262K) 240 x RGB x 320 display module consists of a TFT panel, a touch screen,
a driver IC, an FFC/FPC flexible cable, and an LED backlight.
Active Area is 3.2" diagonal, 48.60 (W) x 64.80 (H) millimeters (1.91" (W) x 2.55" (H).
Host interface is 16-bit, 8080 parallel.
Thanks to the integrated Orise Tech OTM3225A or compatible driver, only a single 3.3v supply is needed for both power supply and logic. Click here for the controller datasheet.
The display module's 45-pin FFC/FPC flexible cable mates with standard 0.5 mm ZIF sockets such as  609-1196-1-ND
9:00 o'clock viewing direction (polarizer viewing direction). Use in portrait or landscape orientation.
Temperature operation range is from -20°C to +70°C.
To get you started, free downloadable sample code is under the DATASHEETS & FILES tab below.
RoHS compliant. Crystalfontz America and factory are ISO certified.
For this TFT display module without the touch screen, click here .

To make prototyping with this display quick and easy, we offer this TFT mounted on a carrier board  CFAF240320A-032T-TS-CB .The carrier board supports a current driver for the LED backlight of the display.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 320


    Module Overall        width
        height
        depth


        millimeters
        57.54
        79.3
        4.33


        inches
        2.27
        3.12
        0.17

*width / height does not include Foldable Tab


        Diagonal Dimension
            3.2"


    Viewing Area        Width
        Height


        millimeters
        50.6
        71.26


        inches
        1.99
        2.81



    Active Area        Width
        Height


        millimeters
        48.6
        64.8


        inches
        1.91
        2.55



    Dot Pitch        Width
        Height


        millimeters
        0.21
        0.21


        inches
        0.008
        0.008



        Weight
            33g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            9 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.7V
Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Logic Typical
            2.8V


        Supply Current Typical
            8mA
Module Connector Pitch
            0.2mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            12.3V
Forward Voltage Maximum
            13.3V


        Forward Voltage Typical
            12.8V
Forward Current Typical
            20mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -30°
        75°


        Fahrenheit
        -22°
        167°



    Storage Temperatures        min
        max


        Celsius
        -40°
        85°


        Fahrenheit
        -40°
        185°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Orise Tech OTM3225C
OTM3225C

720-channel 6-bit source driver and

320-channel gate driver

with System-On-Chip (SOC) for color

amorphous TFT LCD

 picture_as_pdf Datasheets
picture_as_pdfCFAF240320A-032T Series Datasheet Release 2015-09-21.pdf

picture_as_pdfCFAF240320A-032T-TS Data Sheet 2012-05-04

 download Files and Downloads
folder_zip Software Source - CFAF240320A 16bit Initialization Code
folder_zip CAD Export - CFAF240320A-032T-TS 2D CAD














Module Overall	width	height	depth
millimeters	57.54	79.3	4.33
inches	2.27	3.12	0.17
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	50.6	71.26
inches	1.99	2.81

Active Area	Width	Height
millimeters	48.6	64.8
inches	1.91	2.55

Dot Pitch	Width	Height
millimeters	0.21	0.21
inches	0.008	0.008

Operating Temperatures	min	max
Celsius	-30°	75°
Fahrenheit	-22°	167°

Storage Temperatures	min	max
Celsius	-40°	85°
Fahrenheit	-40°	185°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10674: CFAF240320A-032T and CFAF240320A-032T-TS End of Life

Products Affected:	CFAF240320A-032T-TS-CB, CFAF240320A-032T-TS, CFAF240320A-032T-CB, CFAF240320A-032T
Date Issued:	October 7, 2015
Summary:	CFAF240320A-032T and CFAF240320A-032T-TS End of Life
Last revision:	A
Description:	CFAF240320A-032T and CFAF240320A-032T-TS is End Of Life as of 2015-10-07. This part is no longer being manufactured.
Reason:	Due to the discontinuation of this part's controller, this part can no longer be manufactured.
Impact:	Immediate.
Recommendation:	We are working diligently to source a replacement part. Once identified, we will issue a second PCN with the replacement part information.
Availability:	Current stock will be available until exhausted. Part will then be unavailable.
Price Change:	N/A

Product Update #10418: (New Product) CFAF240320A-032T-TS

New Product:	CFAF240320A-032T-TS
Date Issued:	May 11, 2012
Summary:	(New Product) CFAF240320A-032T-TS
Description:	Under TFT LCD Modules: 240x320 graphic TFT display module with integrated touch panel.

240x320 Color TFT

Part Number: CFAF240320A-032T-TS

Physical Characteristics

Optical Characteristics

Electrical Specifications

Backlight Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10674: CFAF240320A-032T and CFAF240320A-032T-TS End of Life

Product Update #10418: (New Product) CFAF240320A-032T-TS

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	TFT/Black
Polarizer	Transmissive
View Direction	9 o'clock

Backlight Color	White
Backlight Type	LED
Mode	Negative
Foreground Color	RGB
Background Color	Dark

Supply Voltage for Logic Minimum	2.7V
Supply Voltage for Logic Maximum	3.3V
Supply Voltage for Logic Typical	2.8V

Supply Current Typical	8mA
Module Connector Pitch	0.2mm

Forward Voltage Minimum	12.3V
Forward Voltage Maximum	13.3V

Forward Voltage Typical	12.8V
Forward Current Typical	20mA
