            In order to keep this display in production over the long term, we are revising it to the CFAF240320A0-024SN-A1-2. Any backorders placed now will be fulfilled with the new part when it becomes available. Please contact support@crystalfontz.com with any questions.
2.4" Sunlight Readable EVE TFT Development KitPart Number: CFAF240320A0-024SN-A1-2
        This full 2.4" EVE development kit includes everything needed to demonstrate either the 2.4" EVE module or the 2.4" standalone display. Simply plug the Seeeduino to power and supply 3.3V to the EVE Breakout Board to initiate a demonstration on the display.

Some special features:
Graphics accelerating FT811 chip for easy graphics control
Sunlight Readable (850 nits)
SPI interface
IPS (can be viewed from any direction)
Full-color TFT Display
Seeeduino demo kit running a demonstration program
EVE chip that supports the display and audio functionality

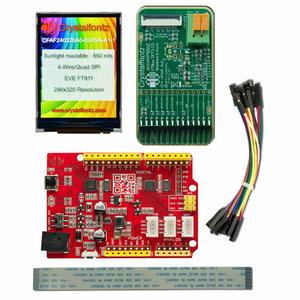

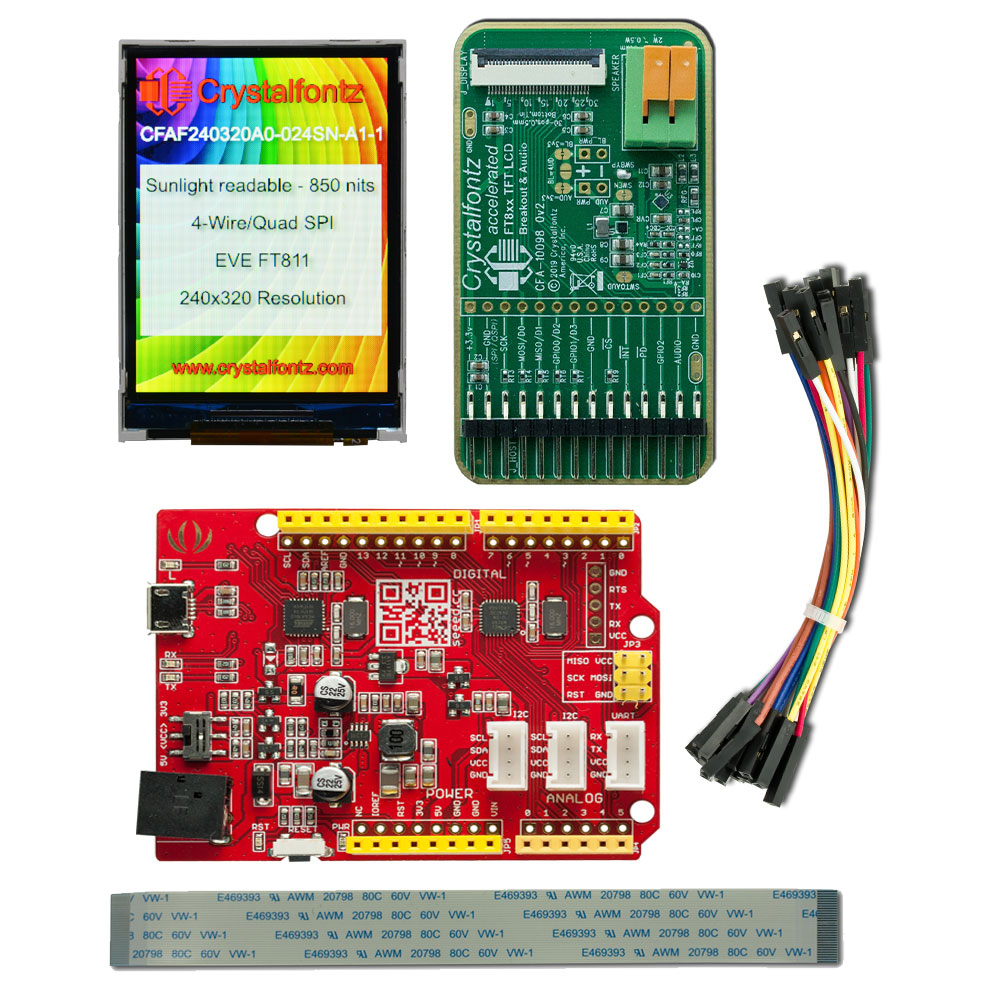

Included in this kit:
2.4" EVE module
Seeeduino
30-Pin flat flex cable
EVE breakout board
Necessary jumper wires
Necessary header pins
 square_foot Physical Characteristics
Physical Characteristics

        Diagonal Dimension
            2.41"

        Weight
            114.8g

 picture_as_pdf Datasheets
picture_as_pdfCFAF240320A0-024SN-A1-1 Datasheet

 download Files and Downloads
link Arduino Demo Code on Github
link Demo Code Repository on Github

Other components worth considering

						MicroSD Card Reader
Need a MicroSD Reader? $9.89 ea.

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11100: Board Revision

Products Affected:	CFAF240320A0-024SC-A1-1, CFAF240320A0-024SC-A1-2, CFAF240320A0-024SN-A1-1, CFAF240320A0-024SN-A1-2
Date Issued:	August 17, 2021
Summary:	Board Revision
Description:	The board is being revised to support a different NXP processor as the helper processor on the board. This will not affect the functionality of the module and is a drop-in replacement. Hardware Version Changes: h0v1 to h0v2 Firmware Version: N/A
Reason:	Due to the ongoing worldwide component shortage, we are unable to source the current processor until 2023. Instead of having a year-long lead time for our product, we are designing in a readily available processor.
Availability:	The new version will be available in Q4 of 2021.
