                This product is discontinued and has been replaced by CFAF128160C-018T

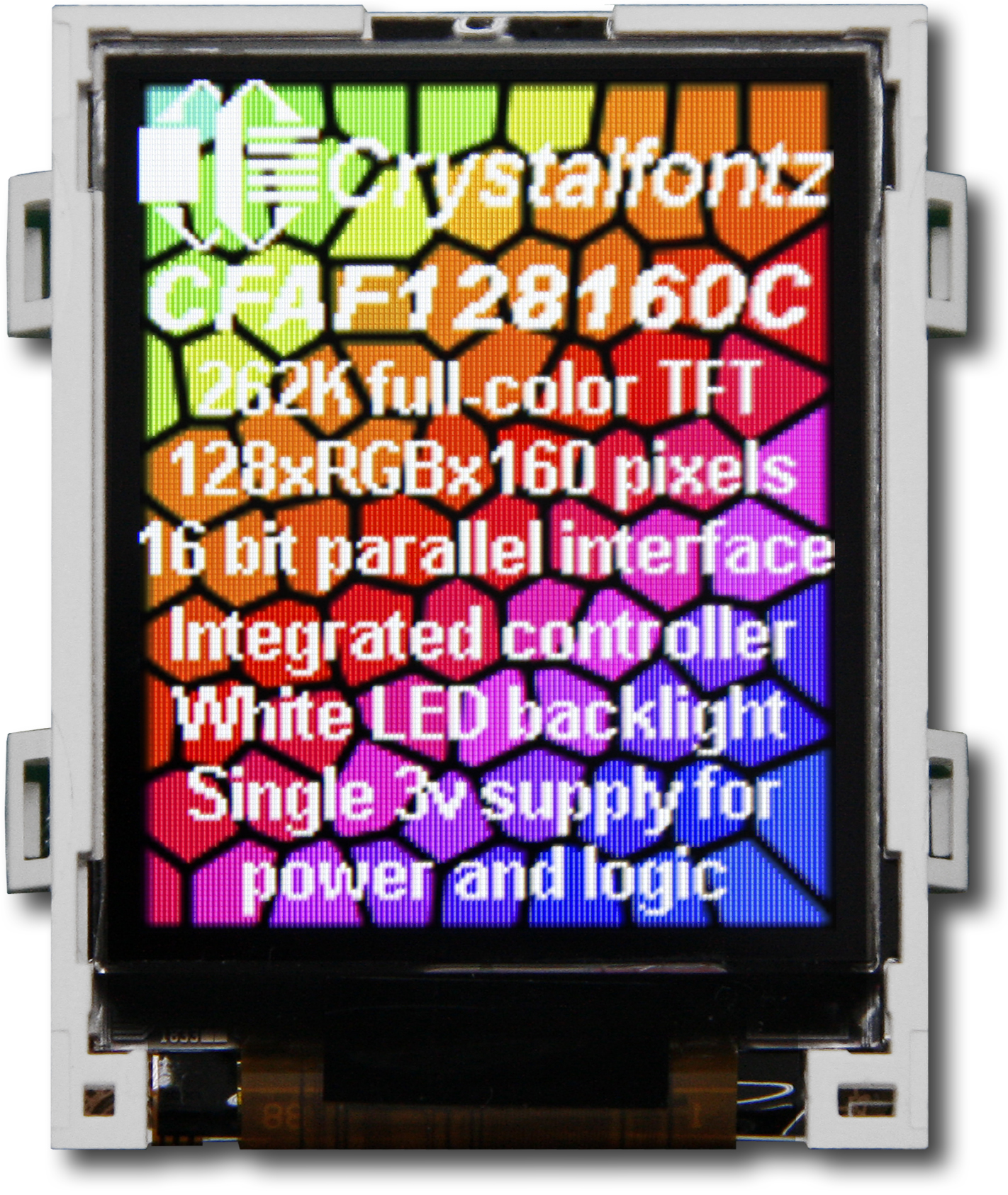

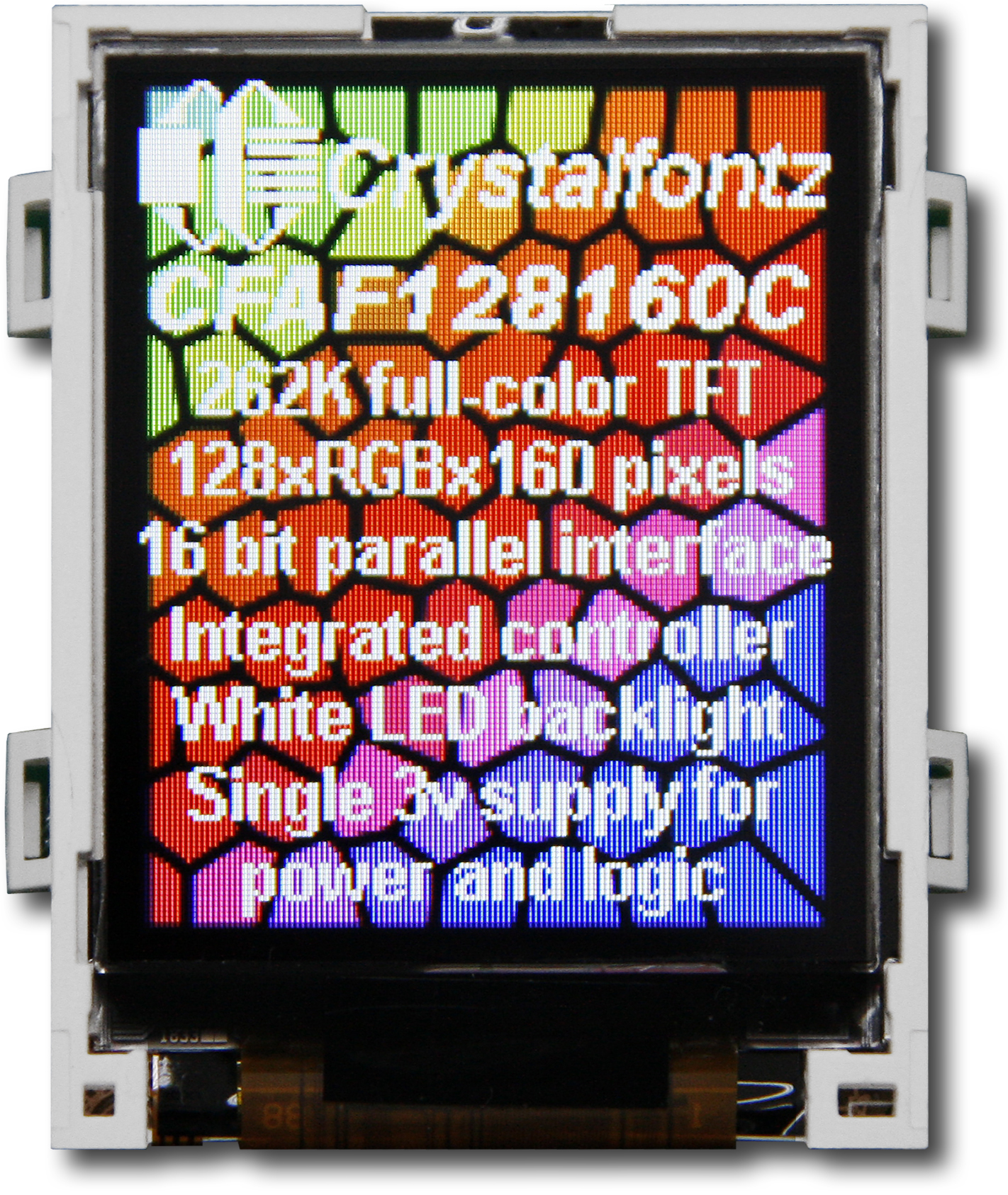

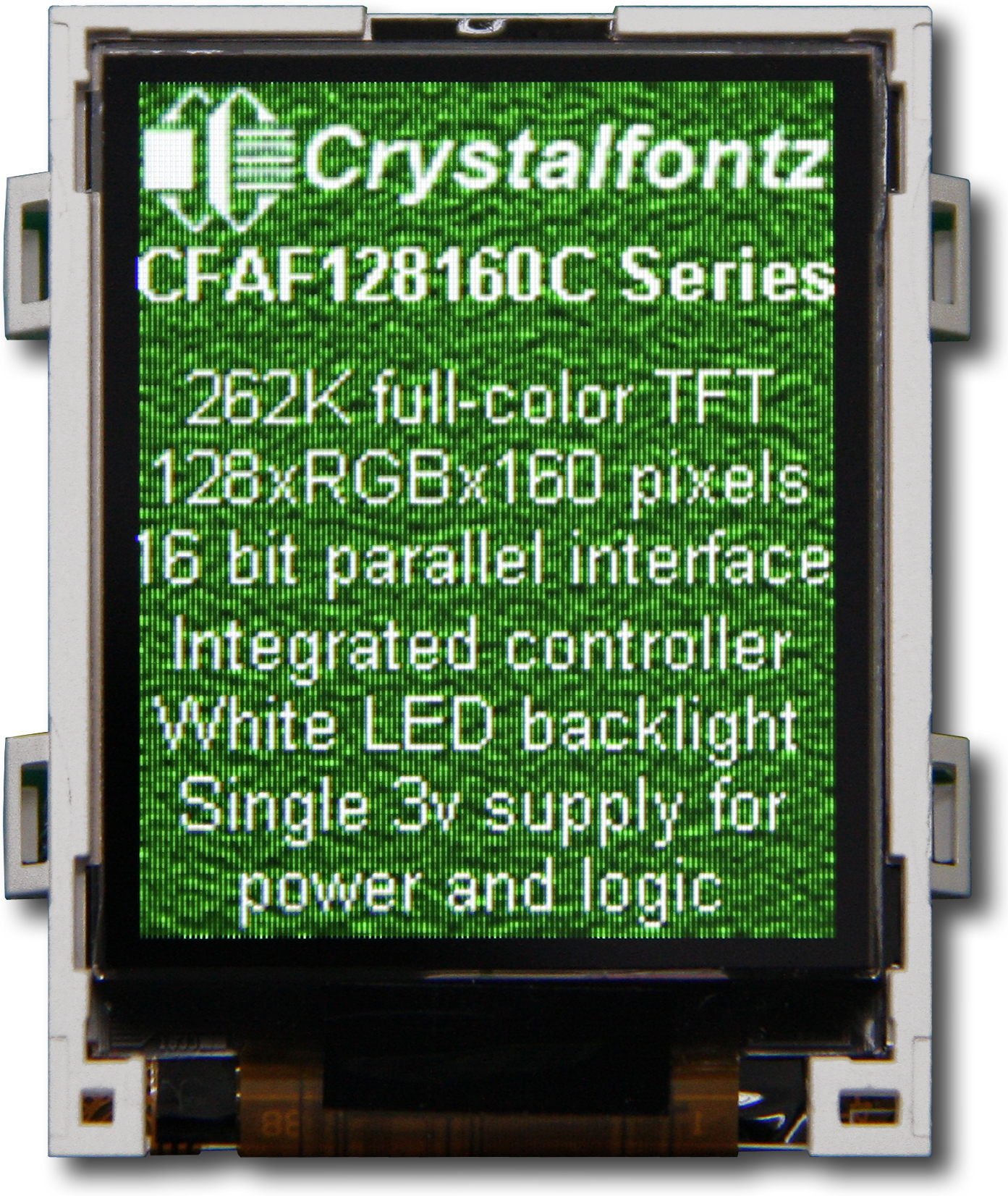

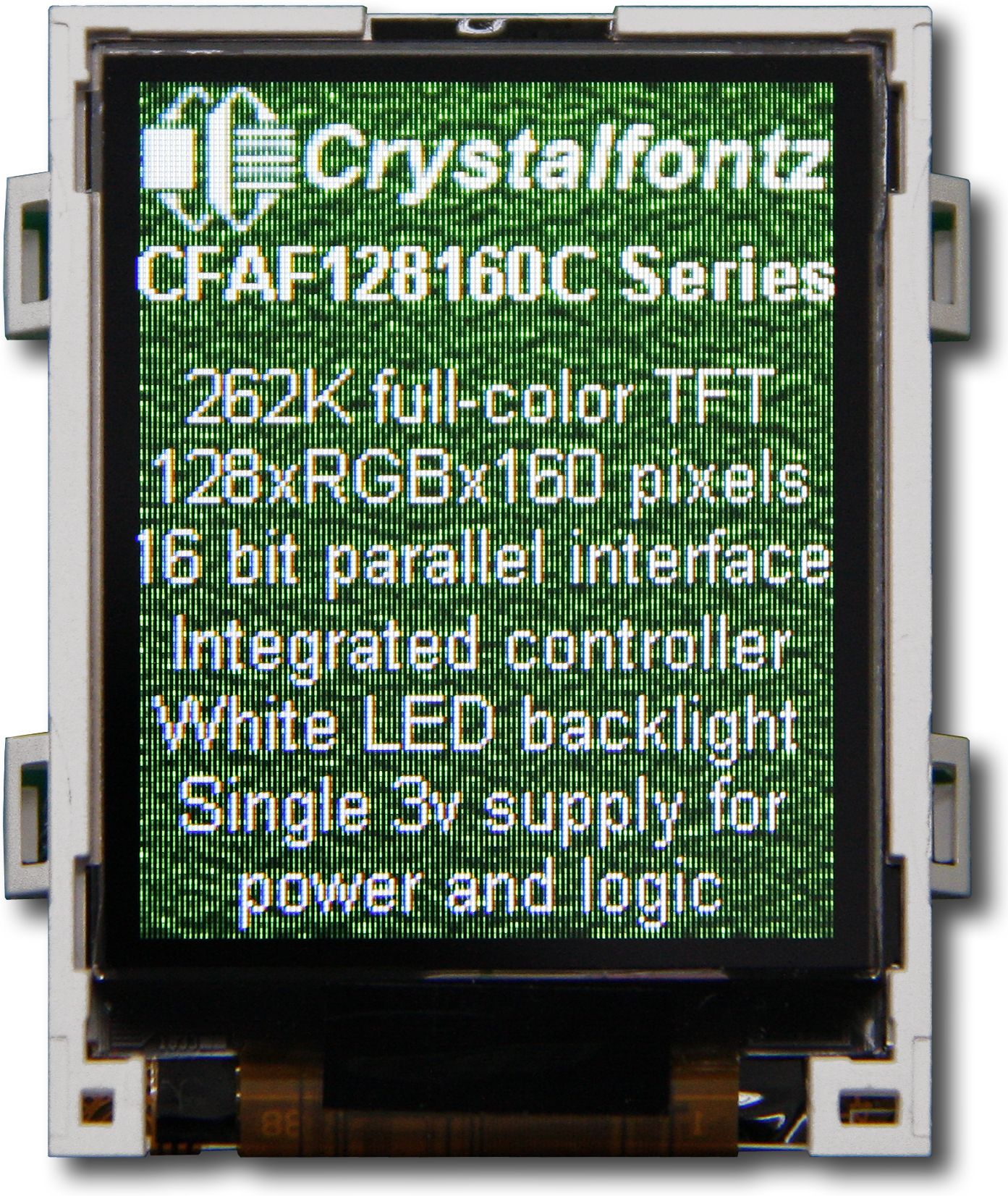

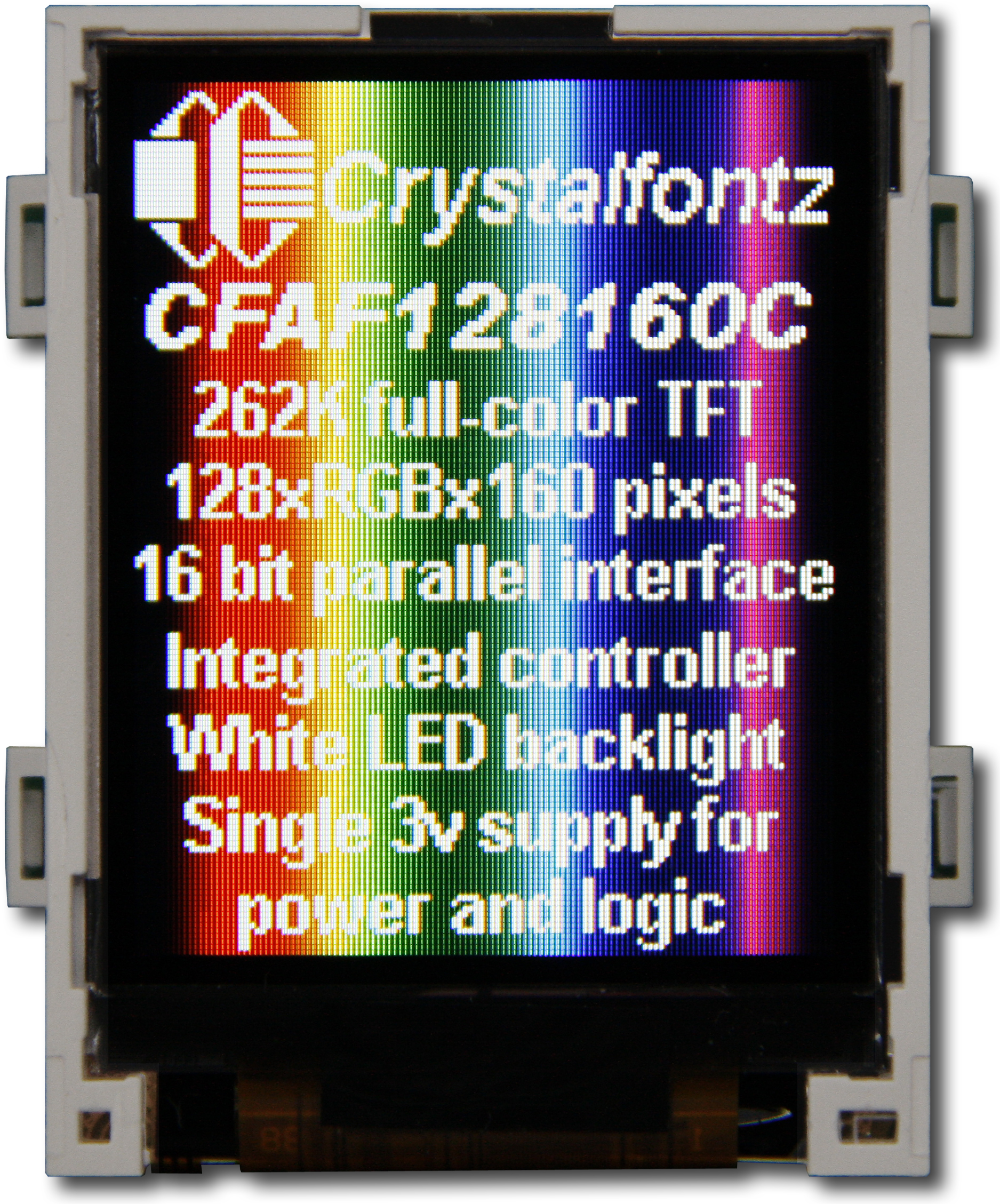

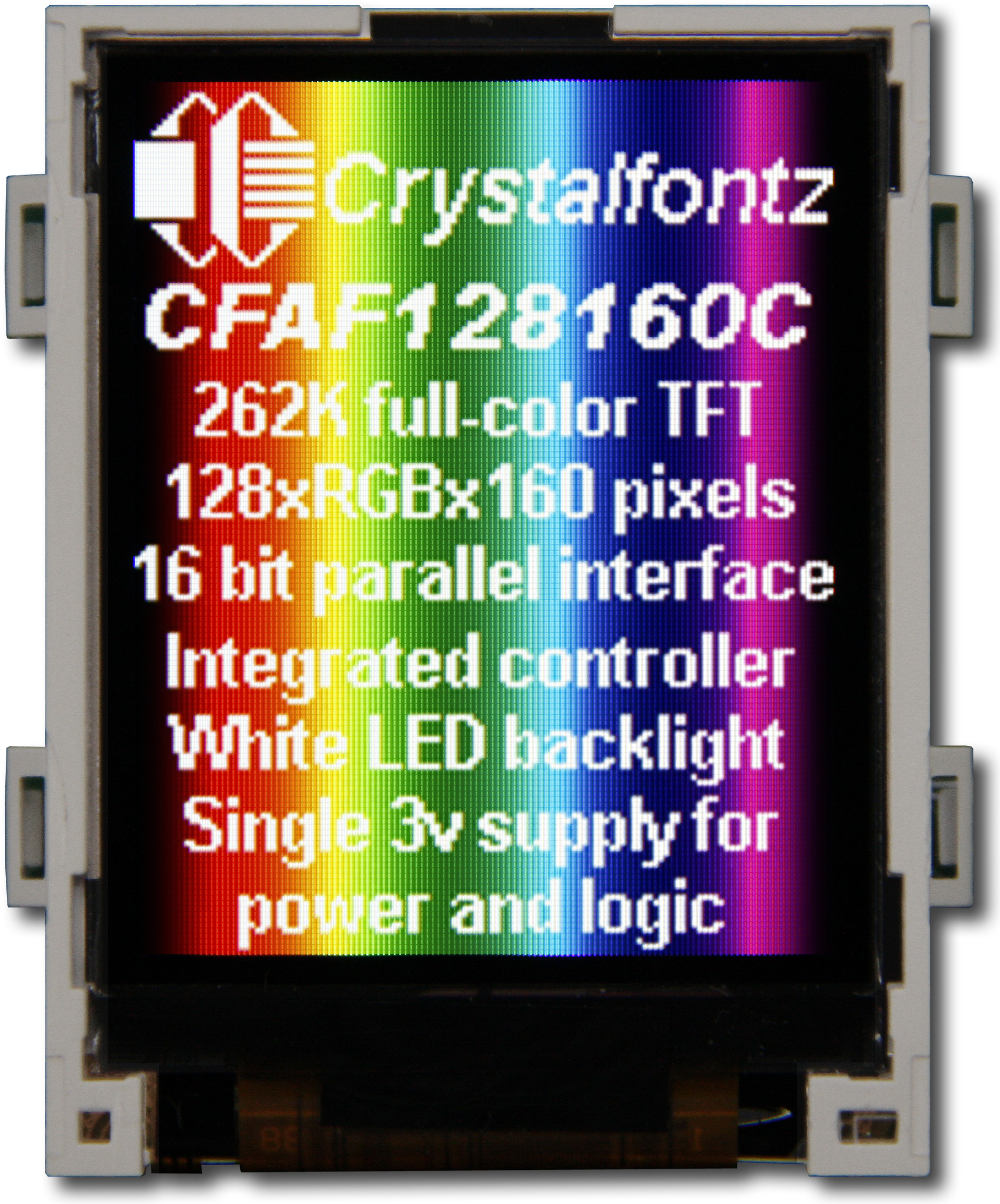

128x160  Parallel Color TFTPart Number: CFAF128160C-T128xRGBx160 262K full-color graphic TFT module. This 1.77" diagonal TFT display has an integrated controller, white LED backlight, and a 16-bit parallel data bus.  The CFAF128160C series requires only 3v for your supply and logic voltages and no external components for the display.
	128xRGBx160 Full color graphic TFT module
	Built-in ILI9363C Controller
	16-bit parallel interface
	Wide Temperature Range
	RoHS Compliant

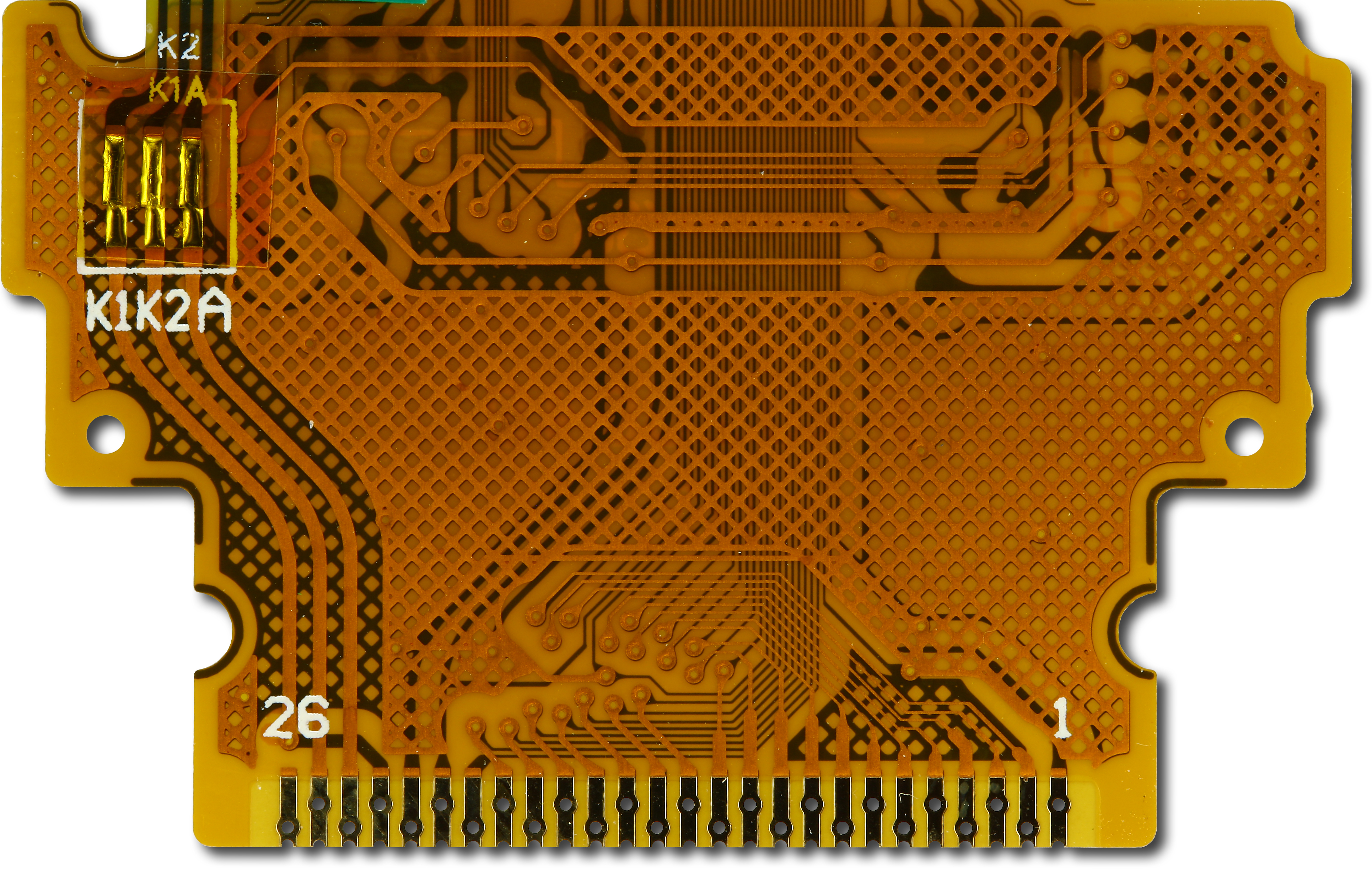

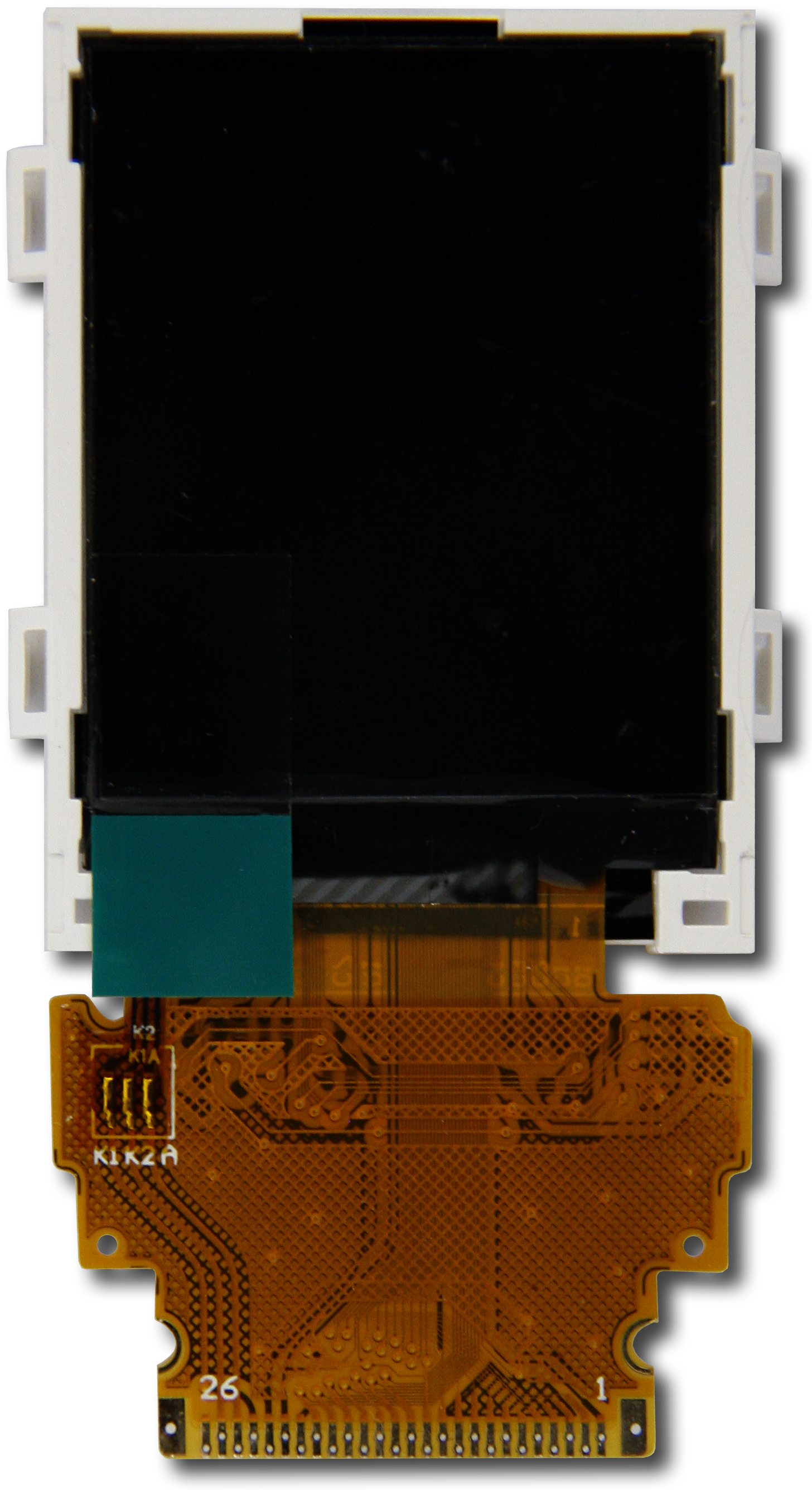

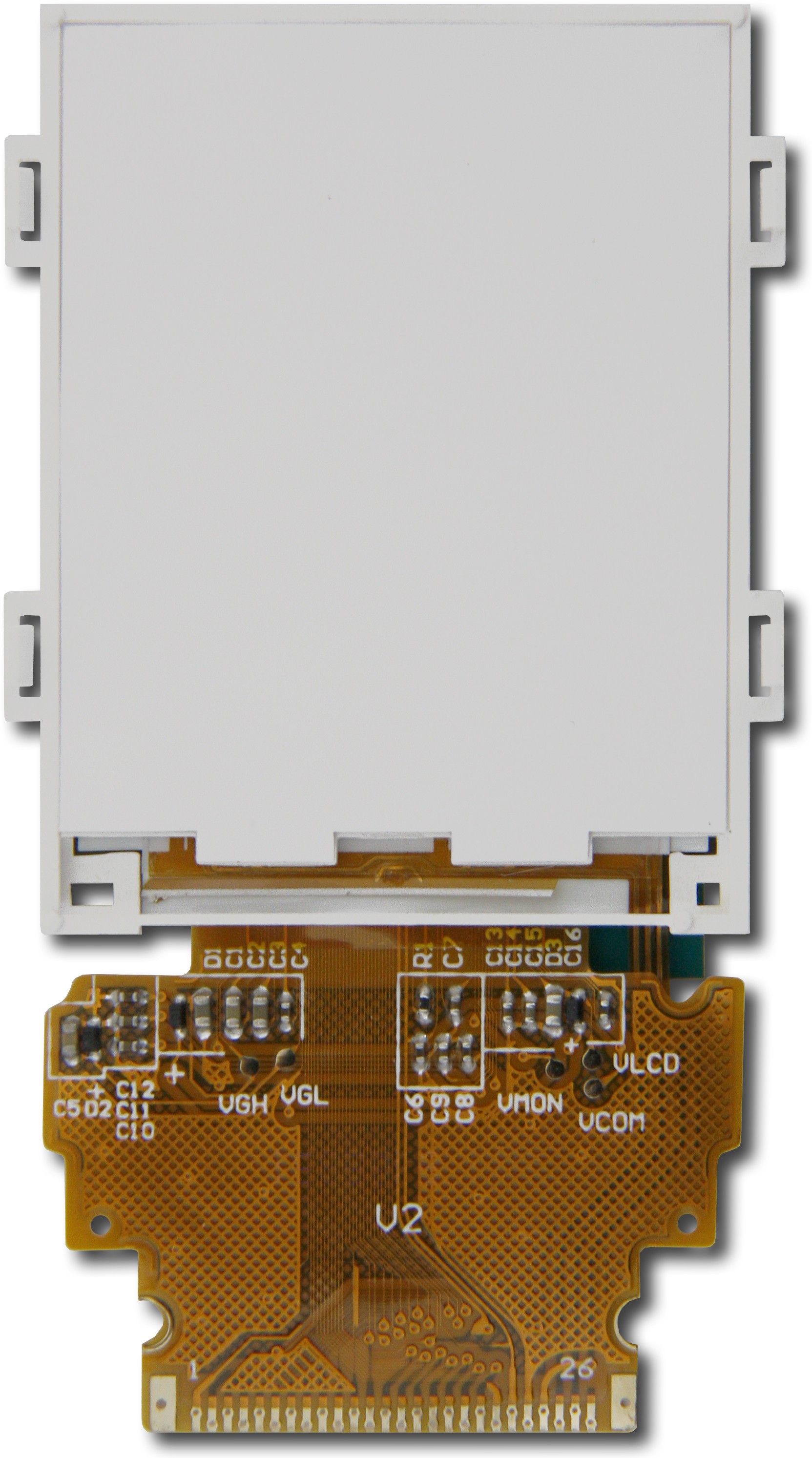

	The connector on the CFAF128160C-018T is a "COF" (chip on flex) style flex tail mated with a "COG" (chip on glass) display construction. This style of connector is designed to be soldered directly to corresponding pads on your PCB by using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. There are hot-bar soldering machines made that are designed for prototype, rework or repair work of TAB connections

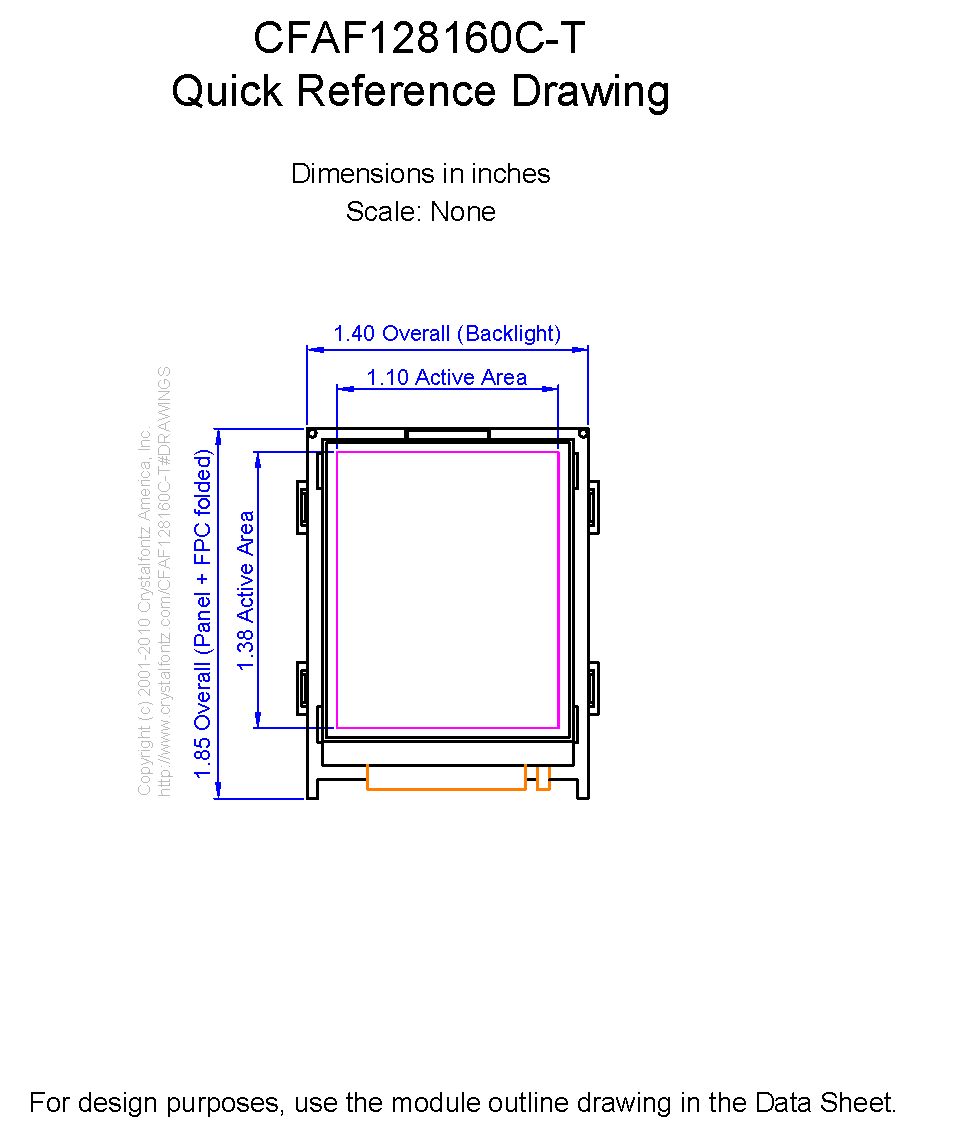

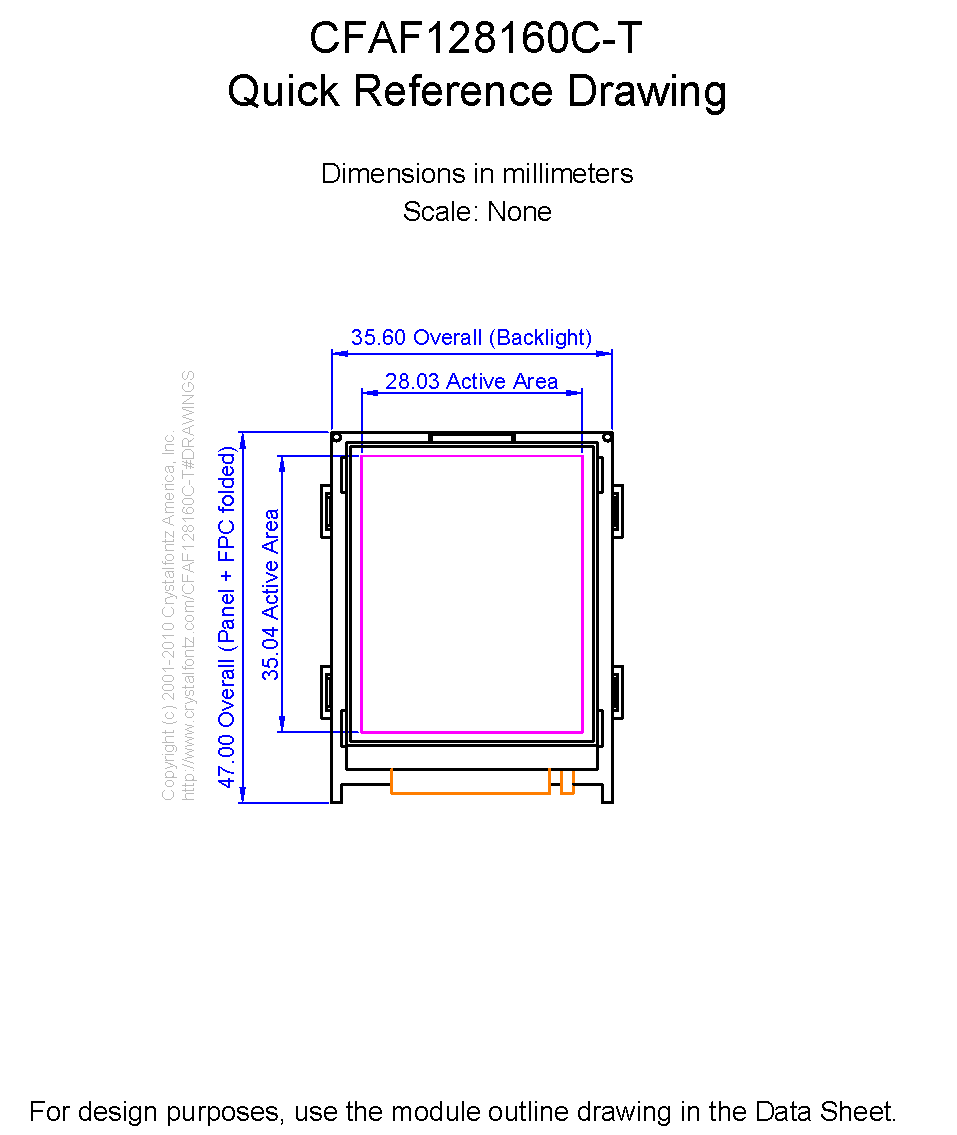

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 160

    Module Overall        width
        height
        depth

        millimeters
        35.6
        47
        5.6

        inches
        1.40
        1.85
        0.22

*width / height does not include Foldable Tab

        Diagonal Dimension
            1.77"

    Viewing Area        Width
        Height

        millimeters
        31.83
        37.39

        inches
        1.25
        1.47

    Active Area        Width
        Height

        millimeters
        28.03
        35.04

        inches
        1.10
        1.38

    Dot Size        Width
        Height

        millimeters
        0.21
        0.21

        inches
        0.008
        0.008

    Dot Pitch        Width
        Height

        millimeters
        0.22
        0.22

        inches
        0.009
        0.009

        Weight
            6g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Interface
            16-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAF128160C-T Data Sheet v2.0.pdf
(Hardware B)
picture_as_pdfCFAF128160C-T v1.0.pdf
(Datasheet V 1.0, Hardware A)
picture_as_pdfCFAF128160CT.pdf

 download Files and Downloads
folder_zip Software Source - ATMega2561 Demo Code
folder_zip CAD Export - CFAF128160C-T 2D CAD
picture_as_pdf 1 to 1 Template - CFAF128160C-T 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	35.6	47	5.6
inches	1.40	1.85	0.22
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	31.83	37.39
inches	1.25	1.47

Active Area	Width	Height
millimeters	28.03	35.04
inches	1.10	1.38

Dot Size	Width	Height
millimeters	0.21	0.21
inches	0.008	0.008

Dot Pitch	Width	Height
millimeters	0.22	0.22
inches	0.009	0.009

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%
