128x160 1.77" Full Color TFT LCD from Crystalfontz

Product

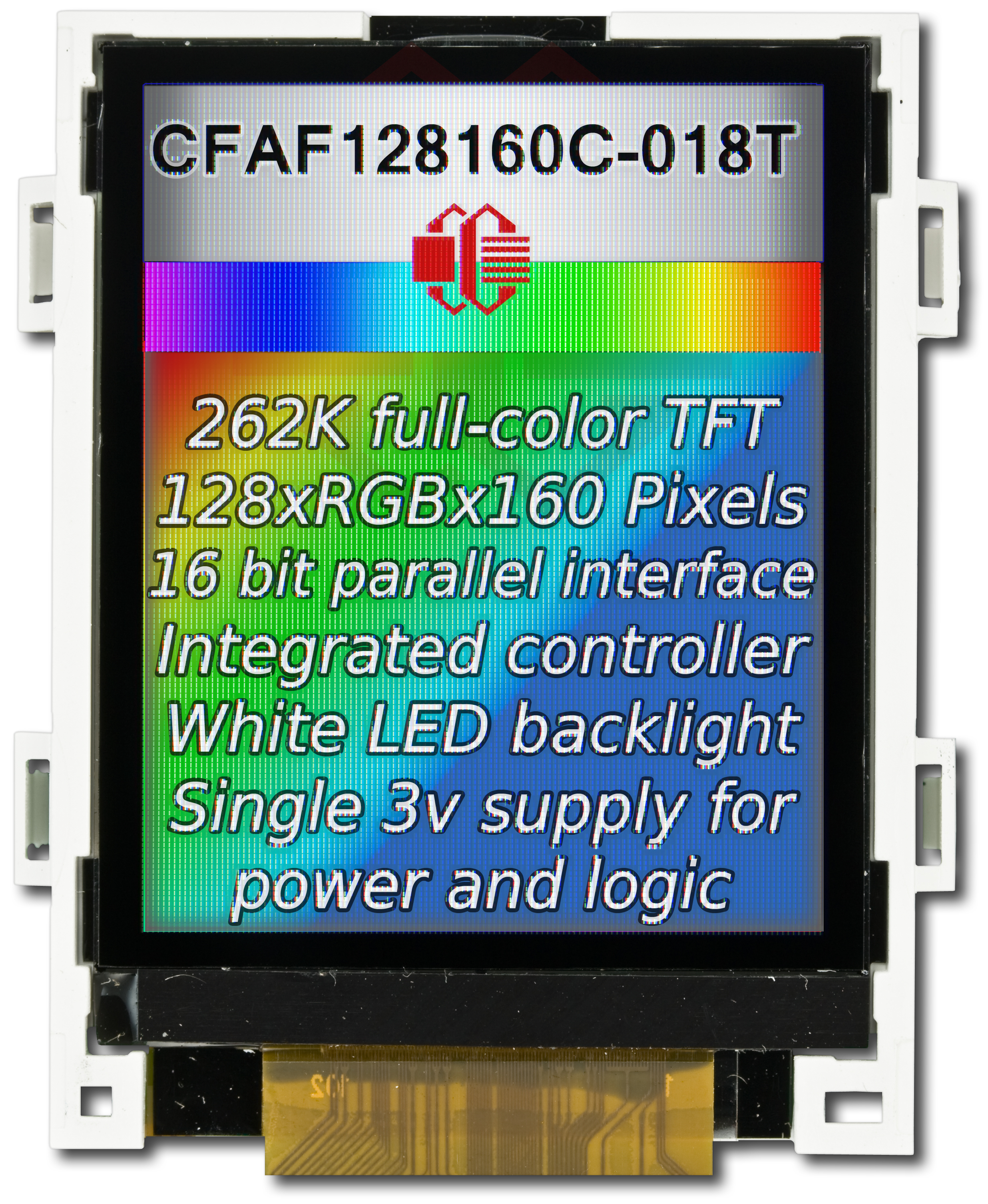

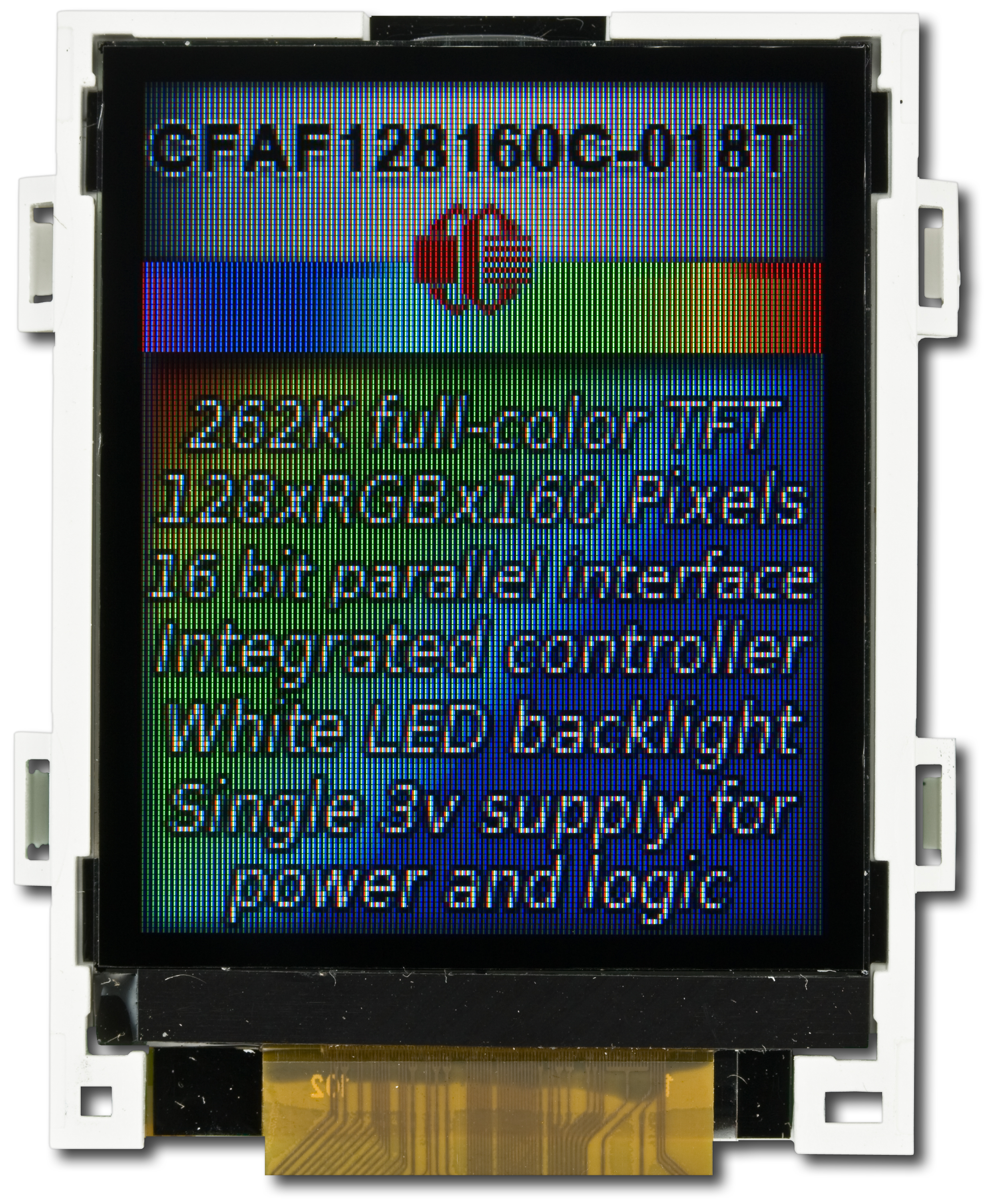

128x160 1.77" Full Color TFT LCDPart Number: CFAF128160C-018TNeed a 128x160 LCD? This TFT LCD  is a 1.77" 128x160 pixel, full-color, graphic display. This small TFT offers an integrated controller (the ILITek ILI9163C), a white LED backlight and 16-bit parallel interface. This 128x160 1.77" Full Color TFT LCD requires only a single 3v source for your supply and logic voltages and no external components for the display!
128xRGBx160 full color graphic TFT module.
This display module has an integrated ILItek ILI9163C or compatible controller.
16-bit parallel interface.
Operating temperature range is from -20°C to +70°C.
All of our TFT displays are RoHS compliant.
Crystalfontz America Incorporated is ISO 9001:2015 certified.

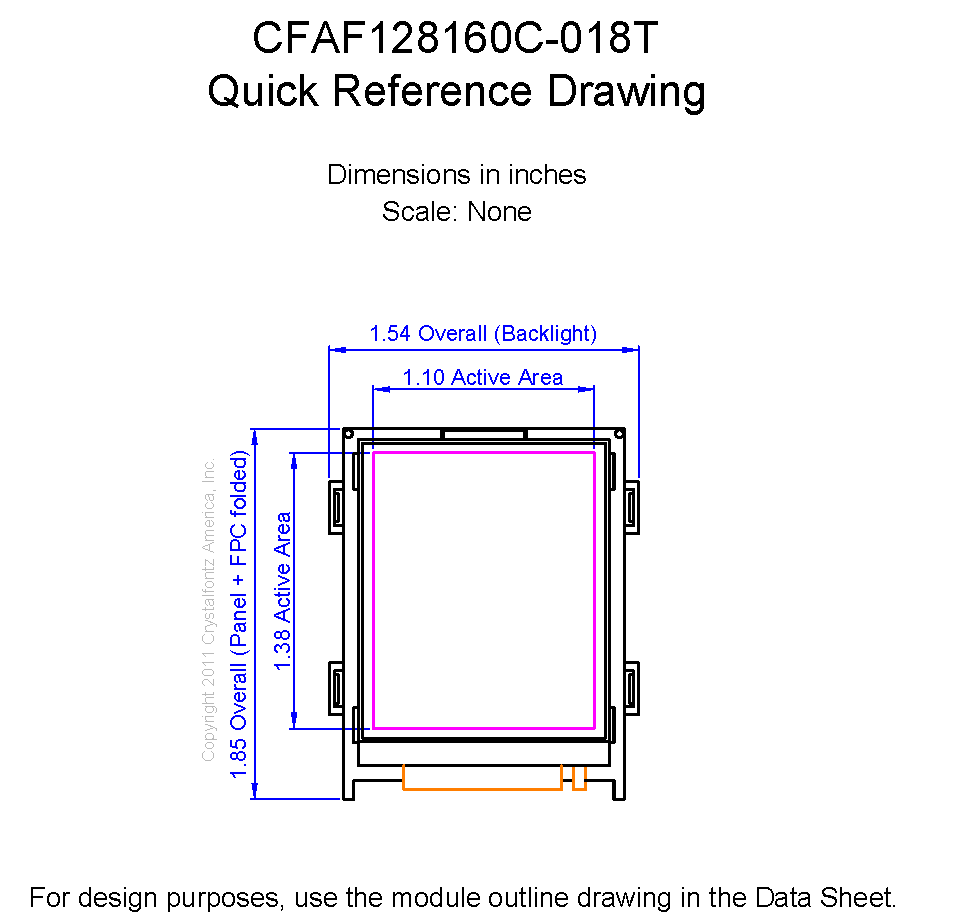

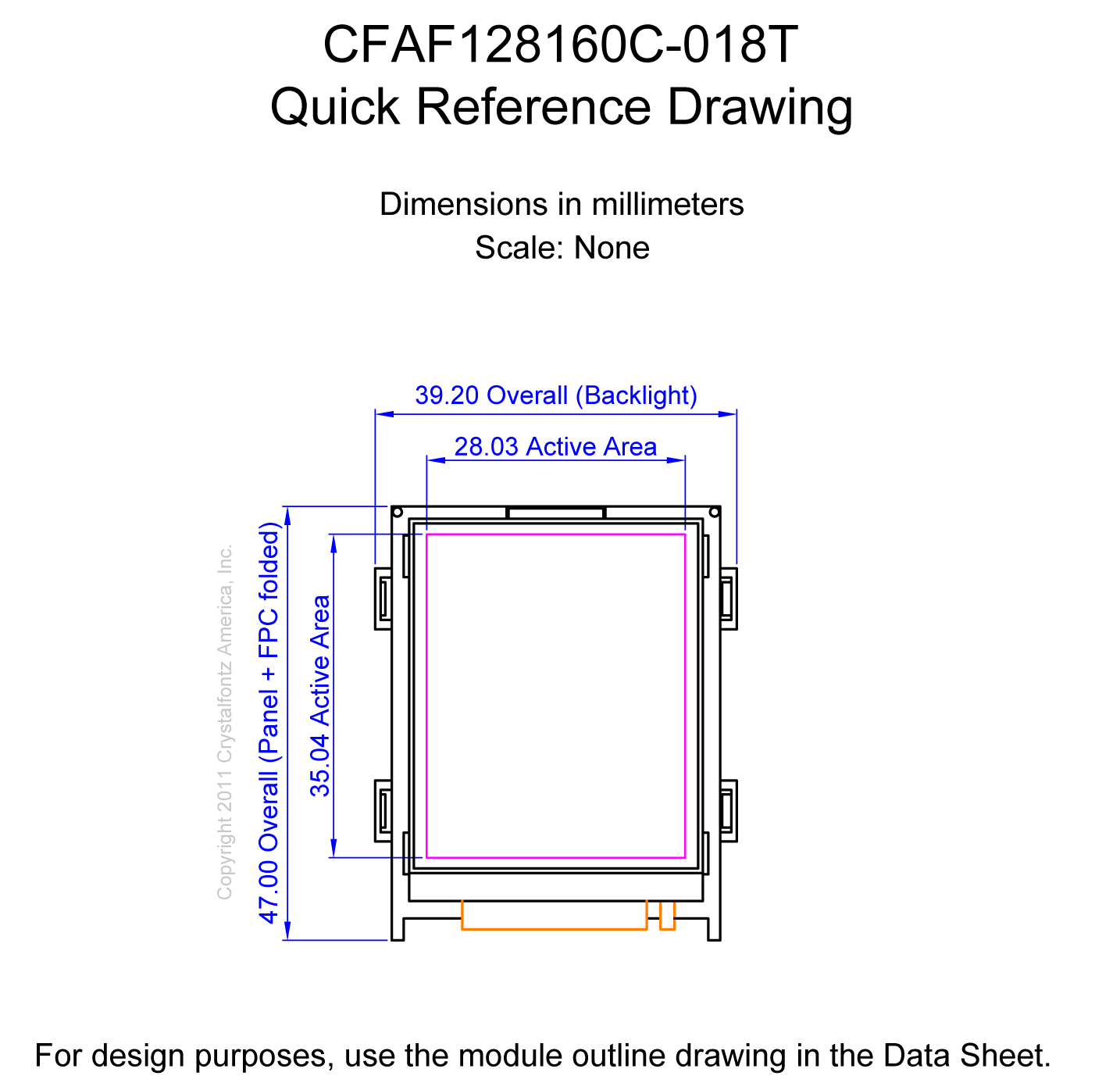

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 160


    Module Overall        width
        height
        depth


        millimeters
        39.2
        47
        5.9


        inches
        1.54
        1.85
        0.23

*width / height does not include Foldable Tab


        Diagonal Dimension
            1.77"


    Active Area        Width
        Height


        millimeters
        28.03
        35.04


        inches
        1.10
        1.38



    Dot Size        Width
        Height


        millimeters
        0.21
        0.21


        inches
        0.008
        0.008



    Dot Pitch        Width
        Height


        millimeters
        0.22
        0.22


        inches
        0.009
        0.009



        Weight
            8g
Pin Count
            26

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            0.25 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.6V
Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Logic Typical
            2.9V


        Supply Voltage for Driving Panel Typical
            3.2V
Supply Current Minimum
            15mA
Supply Current Typical
            20mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            3.2V
Forward Current Minimum
            3.1mA


        Forward Current Maximum
            3.3mA
Forward Current Typical
            20mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Ilitek ILI9163C
a-Si TFT LCD Single Chip Driver

132RGBx162 Resolution and 262K color
Interface
            16-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAF128160C018T Datasheet

download Files and Downloads
folder_zip Software Source - ATMega2561 Demo Code
folder_zip CAD Export - CFAF128160C-018T
picture_as_pdf 1 to 1 Template - CFAF128160C-018T
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

















Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $11.82

            10
            $10.74

            20
            $10.59

            50
            $10.35

            100
            $10.19

            200
            $9.94

            500
            $9.03

            1000
            $7.26

2771 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Module Overall	width	height	depth
millimeters	39.2	47	5.9
inches	1.54	1.85	0.23
*width / height does not include Foldable Tab

Active Area	Width	Height
millimeters	28.03	35.04
inches	1.10	1.38

Dot Size	Width	Height
millimeters	0.21	0.21
inches	0.008	0.008

Dot Pitch	Width	Height
millimeters	0.22	0.22
inches	0.009	0.009

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$11.82
10	$10.74
20	$10.59
50	$10.35
100	$10.19
200	$9.94
500	$9.03
1000	$7.26

Note
Notices

Product Note:

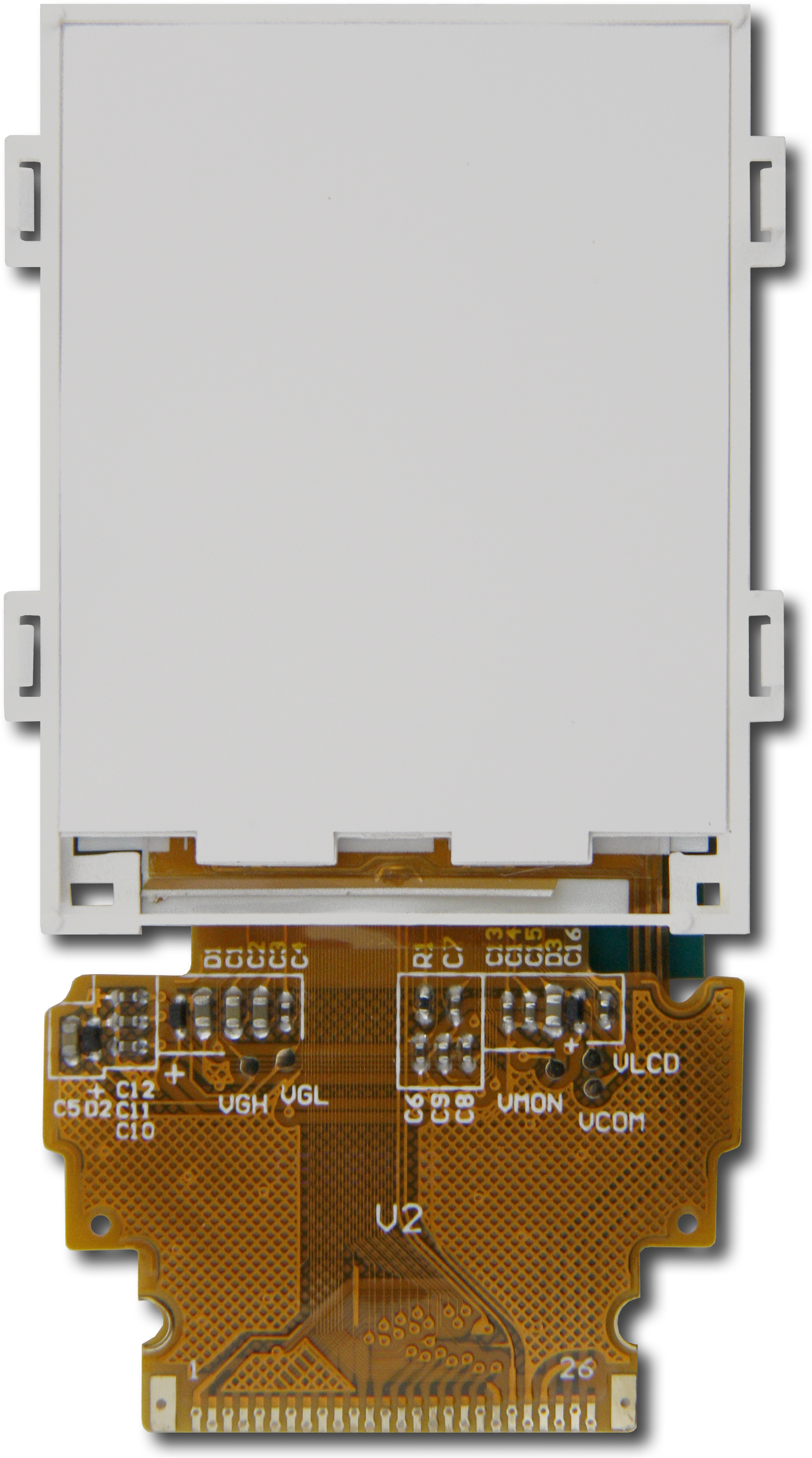

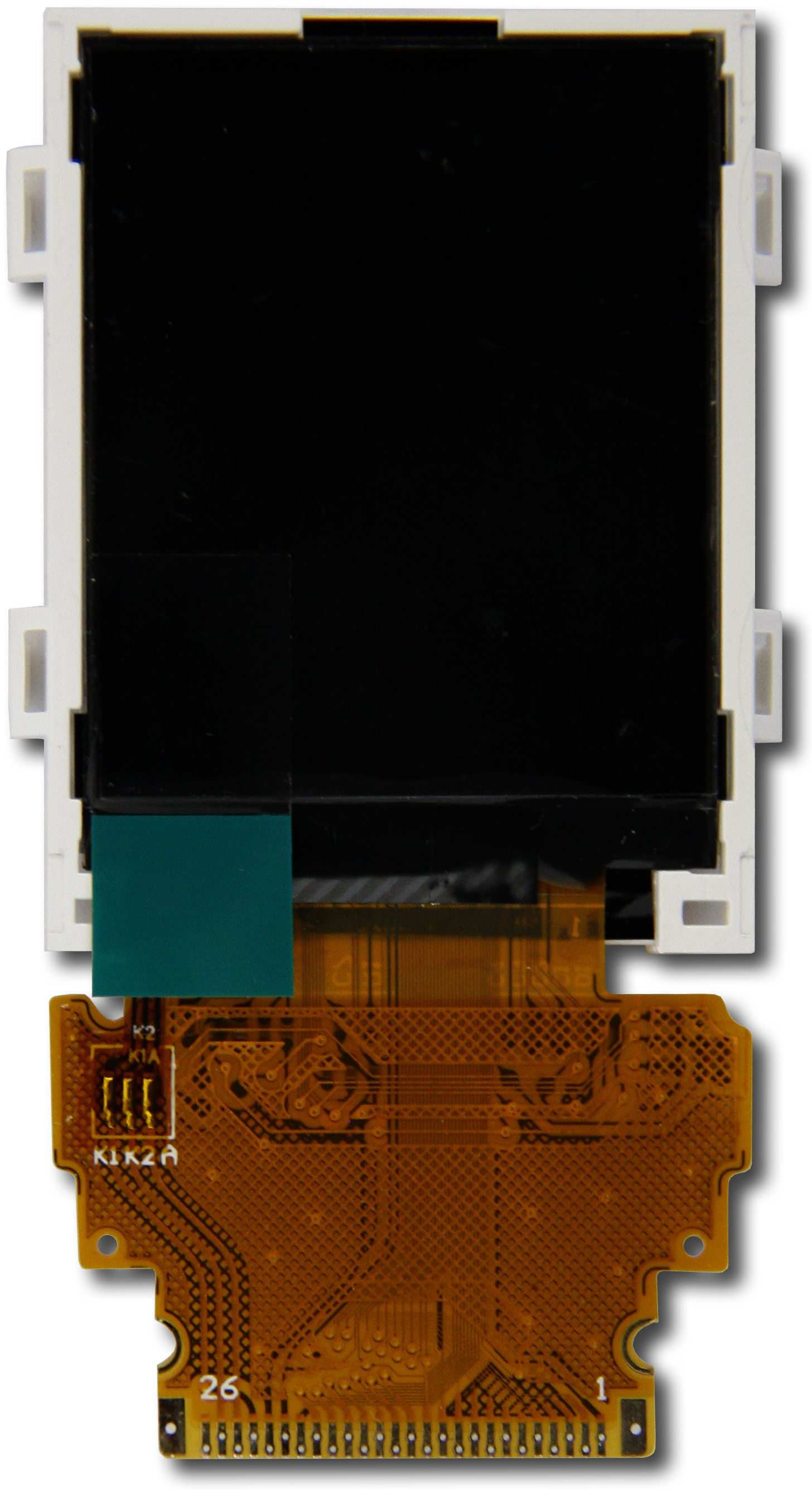

The connector on the CFAF128160C-018T is a "COF" (chip on flex) style flex tail mated with a "COG" (chip on glass) display construction. This style of connector is designed to be soldered directly to corresponding pads on your PCB by using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. There are hot-bar soldering machines made that are designed for prototype, rework or repair work of TAB connections

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10369: Part change notification for CFAF128160C-018T series of TFT LCD modules

Product Affected:	CFAF128160C-018T
Date Issued:	October 31, 2011
Summary:	Part change notification for CFAF128160C-018T series of TFT LCD modules
Last revision:	1.0
Description:	Revised datasheet, minor changes to non-controller related information.
Reason:	Sitronix ST7735 not being used any longer, display is now using an ILITEK ILI9163C
Impact:	Because of the LCD controller change, a change to the initialization and functional code (write / read code changes, also CGRAM write, etc.) minor changes will be required. This change is pin-compatible with the previous version of this display, no change to the circuit for communication or backlight will be necessary.
Recommendation:	Use code found on the CFAF128160C-018T page as an example for the new controller.
Availability:	November/December 2011

Product Update #10335: Change in TFT part numbers

Products Affected:	CFAF240320K-T-TS, CFAF176220M-T, CFAF240320E-T, CFAF128160C-T, CFAF240320P-T, CFAF320240F-T, CFAF320240F-T-TS, CFAF240400D-T, CFAF128160C-018T, CFAF176220U-020T, CFAF240400D-030T, CFAF320240F-035T
Date Issued:	March 29, 2011
Summary:	Change in TFT part numbers
Description:	We are changing our TFT part numbers to have them better describe the parts being ordered. The change should be complete for all TFT modules shipping within the next six months. Part numbers will change as follows: CFAF128160C-T will change to CFAF128160C-018T CFAF176220M-T will change to CFAF176220U-020T CFAF240320E-T will change to CFAF240320H-022T CFAF240320K-T-TS will change to CFAF240320K-024T-TS CFAF240320P-T will change to CFAF240320S-032T CFAF240400D-T will change to CFAF240400D-030T CFAF320240F-T will change to CFAF320240F-035T CFAF320240F-T-TS will change to CFAF320240F-035T-TS
Reason:	There are many TFT modules with the same logical dimensions (resolution) with considerably different sizes. In order to help ease any confusion, we have decided to add the diagonal dimension to the part number.
Impact:	The part number is all that is changing, there are no other changes to the parts, so there should be no significant impact.
Availability:	The transition period should be about six months from the date of this bulletin.
