Yellow-Green 244x68 Graphic Display Module from Crystalfontz

Product

Home » Products » USB LCD Displays » Graphic

                This product is not recommended for new designs because it's end-of-life. The price has been reduced for all remaining inventory.
Alternatively, you might choose a different color.
Yellow-Green 244x68 Graphic Display ModulePart Number: CFA835-YYKThe CFA835 product series are intelligent graphic LCD modules that offer USB and Serial interface, 6 button keypad, 4 status LED's and 5 GPIO.
CFA835-YYK FeaturesVersatile and reliable packet based communications with set of 61 commands simplifies programming for your particular application.
Commands include tools to draw lines, rectangles, and circles. For example, create a chart to display temperature fluctuations over time.
Five GPIOs can be used to control other devices or can be configured for optional ATX functionality.
Only a single supply is needed. Wide power supply voltage range (VDD= +3.3v to +5.0v) is perfect for embedded systems.
Made for the demands of a commercial environment, temperature operating range is -20°C minimum to +70°C maximum.
The 12:00 o'clock viewing direction ensures optimal viewing for your products viewed at or below eye level.
Fully decoded 6-button keypad allows key combinations. Large translucent silicone keys are responsive.
Edge-lit backlight with 12 LEDs, 6 per side.
Adjustable backlight and contrast. Backlight and contrast are fully voltage regulated over the power supply range.
Front of display has four bicolor (red + green) LED status lights. For example, green could indicate "acceptable speed" while yellow-orange indicates "heavy usage, slow".
Add multiple optional CFA-FBSCABs to customize your order for temperature sensing and fan controls (up to 256 temperature sensors and 64 fans).
Easily integrate the CFA835 into your design with choice to two types of optional mounting brackets.
Attractive stainless steel bezel or select from 4 overlay colors when used with a bracket.

Not sure which graphic USB display module to choose? Compare all of our intelligent display modules.Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightDark on Light Gray
White LED BacklightLight on Blue
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            244 x 68


    Module Overall        width
        height
        depth


        millimeters
        142
        38
        20.8


        inches
        5.59
        1.50
        0.82

*depth doesn't include Keypad


        Diagonal Dimension
            3.19"


    Viewing Area        Width
        Height


        millimeters
        83
        27.5


        inches
        3.27
        1.08



    Active Area        Width
        Height


        millimeters
        77.97
        22.38


        inches
        3.07
        0.88



    Character Size        Width
        Height


        millimeters
        3.23
        4.88


        inches
        0.127
        0.192



    Character Pitch        Width
        Height


        millimeters
        3.9
        5.6


        inches
        0.154
        0.220



    Dot Size        Width
        Height


        millimeters
        0.3
        0.33


        inches
        0.012
        0.013



    Dot Pitch        Width
        Height


        millimeters
        0.33
        0.35


        inches
        0.013
        0.014



        Weight
            55g


        Keystroke Travel
            2.4mm
Keypad Depth
            12mm

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Yellow-Green
Polarizer
            Transflective
View Direction
            12 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3.3V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V


        Supply Current Minimum
            41mA
Supply Current Maximum
            166mA
Module Connector Pitch
            2.54mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Interface
            Logic Level Serial, RS232, USB

 picture_as_pdf Datasheets
picture_as_pdfCFA835 Data Sheet Release 2014-10-20.pdf

Previous Versions of Datasheetpicture_as_pdfCFA835 Data Sheet Release 2014-10-13.pdf

 download Files and Downloads
folder_zip Software Source - Linux - List  USB Device Path Script
folder_zip Software Binary - WHQL CFA735/835 USB Driver
folder_zip Hardware Design - 3D Model - CFA735/835

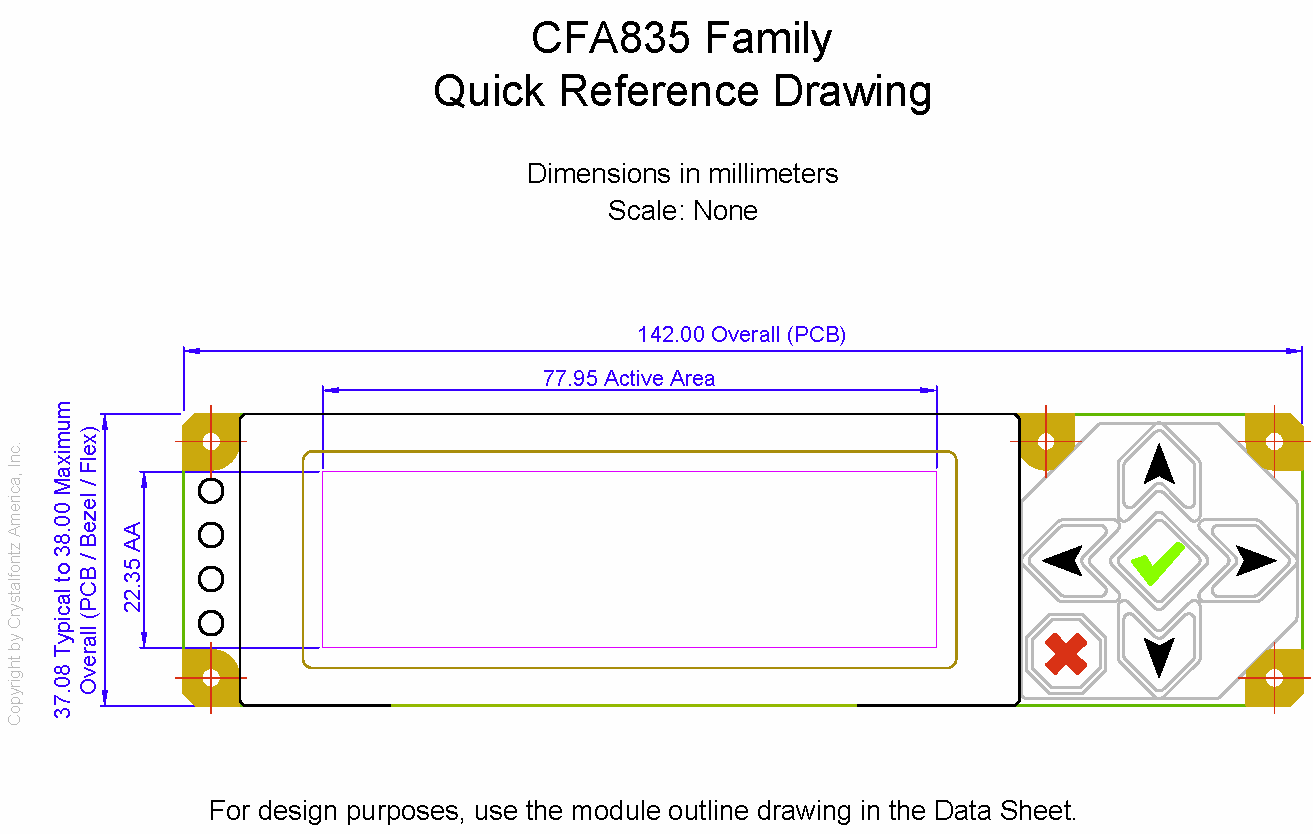

picture_as_pdf 1 to 1 Template - CFA835 Family 1 to 1 Outline Drawing
picture_as_pdf Other Document - BRKT635 5.25" Half-Height LCD Drive Bay Mounting Bracket
picture_as_pdf Other Document - CFA835 Source Code Acknowledgments
picture_as_pdf Other Document - Intelligent LCD Comparison
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Add to cart without customizations
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:


        Prices without customizations:


            Quantity
            Unit Price


            1
            $70.15

503 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
