800x480 4.3" Resistive Touchscreen EVE TFT Development Kit

Part Number: CFA800480E0-043SR-KIT

A full Seeeduino development kit for the 4.3" resistive touch EVE display module simplifies getting started with the EVE module. It includes the display wired up and a Seeeduino loaded with a demo sketch, so once power is applied you can see the display in action.

Key features:

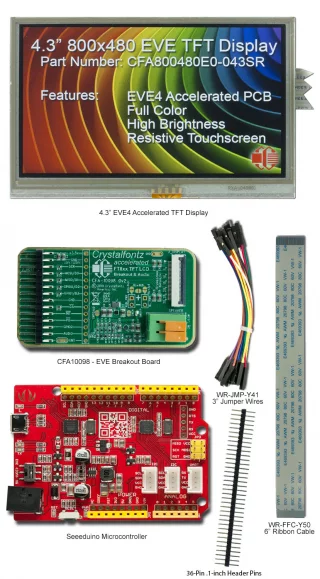

• Seeeduino demo kit including an EVE breakout board, all wires/headers required, the Seeeduino, and display module
• Graphics accelerating BT817 chip for easy graphics control
• Resistive touchscreen
• Sunlight readable
• SPI interface
• IPS
• Full color TFT

Part Number:
CFA - Crystalfontz America
800480 - 800x480 pixel resolution
E0 - EVE part, Family and revision
043 - 4.3" diagonal dimension
S - Sunlight readable
R - Resistive touchscreen
KIT - Full Seeeduino kit

• grid_on Resolution

  Pixel Grid

  Column Dots	800 px
  Row Dots	480 px

  Color

  Color Depth

  256k bits

  Ratio

  Aspect Ratio

  5:3

• square_foot Physical Dimensions

  Module	Metric	Imperial
  Overall Width	105.50 mm	4.154 in
  Overall Height	67.15 mm	2.644 in
  Overall Depth	9.70 mm	0.382 in
  Diagonal Dimension	4.3 in
  Weight	122.5 g
  Shape	Rectangle

  Display Area	Metric	Imperial
  Active Area Width	95.04 mm	3.742 in
  Active Area Height	53.86 mm	2.120 in

• build Mechanical

  Connectors

  Pin Count

  30

• visibility Display Optics

  Technology

  Display Technology	EVE TFT
  Glass Type	IPS – TFT
  Polarizer	Transmissive

  Brightness

  Nits

  740 cd/m²

  Viewing

  View Angle	160°
  Brightness Rating	Sunlight

• palette Color & Appearance

  Display Colors

  Foreground Color	RGB
  Background Color	Black
  Glass Color	Dark

  Backlight

  Backlight Type	LED
  Backlight Color	White

• electric_bolt Electrical

  Display	Min	Typ	Max	Unit
  Supply Voltage - Logic
  Supply Voltage for Logic	3	3.3	3.6	V
  Supply Voltage - Panel
  Supply Voltage for Driving Panel	—	3.3	—	V

  Backlight	Min	Typ	Max	Unit
  Voltage
  Forward Voltage	2.7	5	9	V
  Current
  Forward Current	—	191	—	mA

• cable Interface

  Available Interfaces

  Standard Interface(s)

  SPI

• touch_app Touch

  Capability

  Touch Screen

  Resistive

• nature Environmental

  Temperature

  	Min (°C)	Max (°C)	Min (°F)	Max (°F)
  Operating Temperature	-20°C	70°C	-4°F	158°F
  Storage Temperature	-30°C	80°C	-22°F	176°F

• info Product Metadata

  Classification

  Special Characteristics

  EVE Kit
