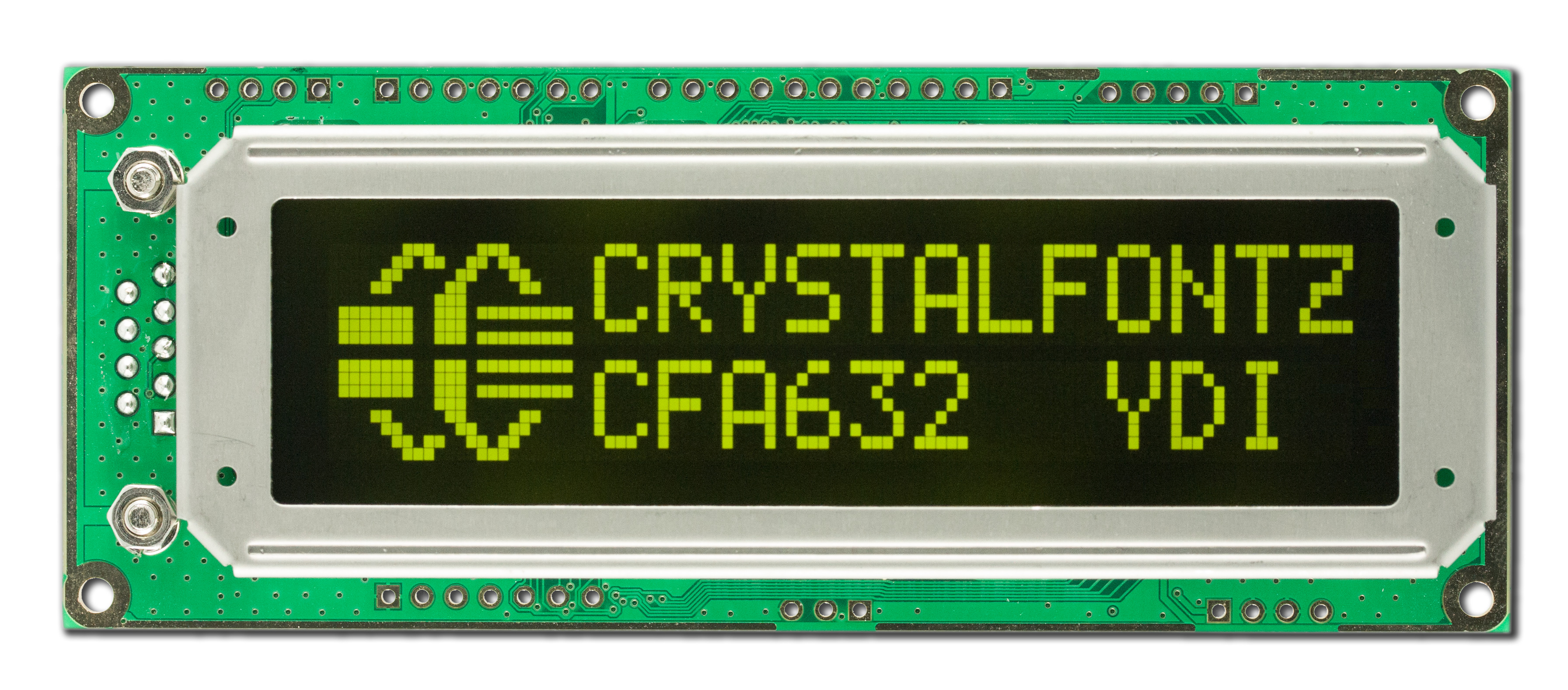

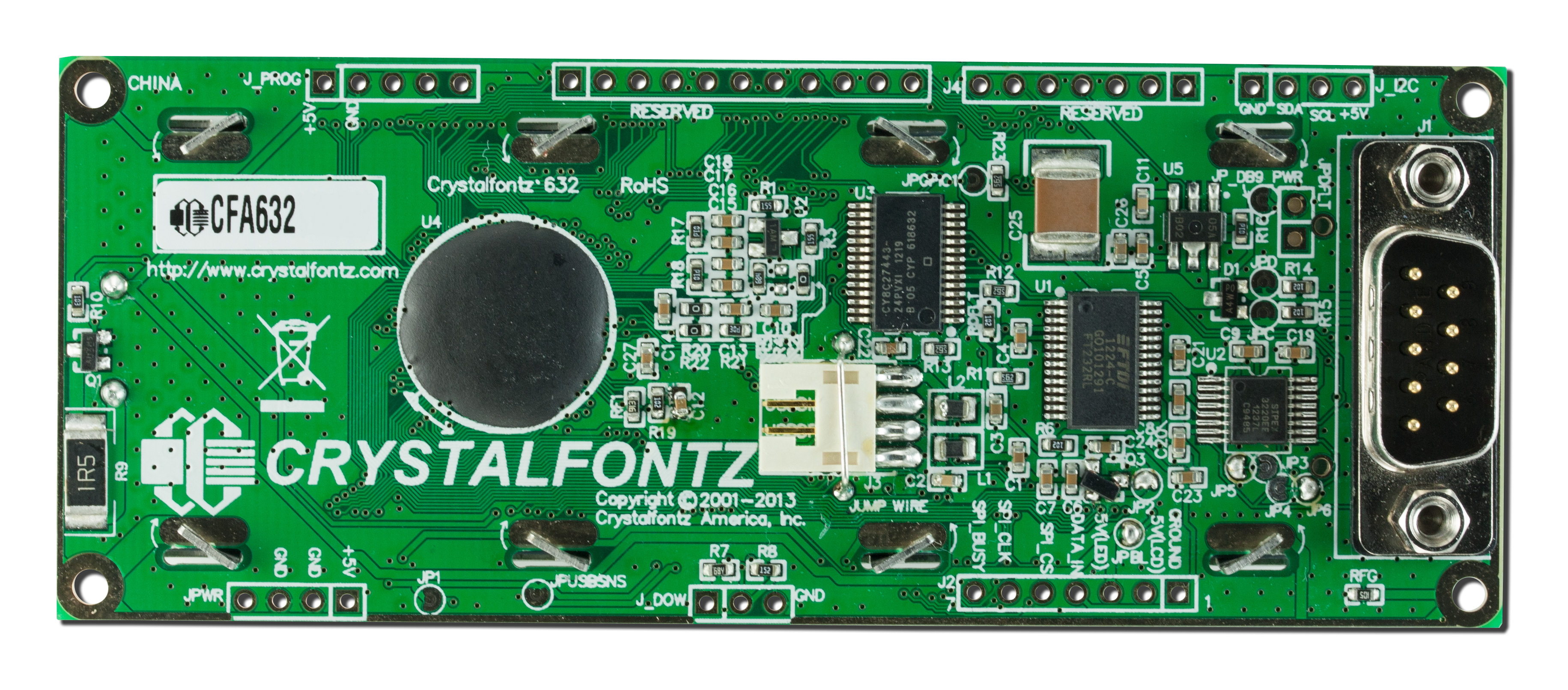

Dark 16x2 Character Serial LCDPart Number: CFA632-YDI-KNLogic Level Serial (inverted) - 16x2 character LCD module, RoHS / REACH Compliant, Yellow-Green LED Backlight, FFSTN Negative (Black), Transmissive -20°C to +70°C operation, 6:00 viewing angle.
Large easy-to-read LCD in a compact size can display 16 characters x 2 lines. Overall module size is 108.00 mm width x 42.00 mm height x 19.90 mm depth (4.25" x 1.65" x 0.78"). Character height is 7.30 mm (0.29").
The CFA632 can use any of SIX interfaces on any CFA632 module by simply changing the interface selection using a command setting and making the appropriate jumper configurations.
Optional PC CDROM mounting bracket with overlay for a single bay is available after adding a display module to cart. Mounting dimensions are 5.25" (W) x 1" (H).
Adjustable contrast. The module’s default contrast value will be acceptable for many applications. If necessary, you can adjust the contrast by using control command.
Extended voltage (9-15 volts for interfaces using DB9 connector) and 5 volts power inputs standard for the controller. Backlight is 5 volts only.
Use the nonvolatile memory capability (EEPROM) to customize the “power-on” display settings.

Not sure which serial character LCD to choose? Compare all of our intelligent display modules.Product VariationsInterfacesSPII2CLogic Level Serial InvertedLogic Level SerialUSBRS232
ColorsDark on Yellow-Green
Yellow-Green LED BacklightYellow-Green on Dark
Yellow-Green LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2


    Module Overall        width
        height
        depth


        millimeters
        108
        42
        19.9


        inches
        4.25
        1.65
        0.78



    PCB Outline        width
        height
        depth


        millimeters
        108
        42
        19.9


        inches
        4.25
        1.65
        0.78



        Diagonal Dimension
            3.01"


    Viewing Area        Width
        Height


        millimeters
        82.3
        22.5


        inches
        3.24
        0.89



    Active Area        Width
        Height


        millimeters
        74.82
        15.8


        inches
        2.95
        0.62



    Character Size        Width
        Height


        millimeters
        3.84
        7.3


        inches
        0.151
        0.287



    Character Pitch        Width
        Height


        millimeters
        4.68
        8.5


        inches
        0.184
        0.335



    Dot Size        Width
        Height


        millimeters
        0.72
        0.86


        inches
        0.028
        0.034



    Dot Pitch        Width
        Height


        millimeters
        0.78
        0.92


        inches
        0.031
        0.036



        Weight
            72g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            FFSTN
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Negative
Foreground Color
            Yellow-Green
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Typical
            5V

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        10%
        90%


 cable Electronics
Electronics

        Interface
            Logic Level Serial Inverted

 picture_as_pdf Datasheets
picture_as_pdfCFA632 Series Data Sheet Release Date 2015-03-30.pdf
(Datasheet V 2015-03-30, Hardware 3.3, Firmware 3.3)
Previous Versions of Datasheetspicture_as_pdfCFA632 Family Data Sheet Release Date 2014-02-25.pdf
(Hardware 3.3, Firmware 2.2)
picture_as_pdfCFA632 Family Data Sheet Release Date 2013-07-15.pdf
(Hardware 3.3, Firmware 3.2)
picture_as_pdfCFA632 Family Preliminary Data Sheet Release Date 2013-06-26.pdf
(Datasheet V 2013-06-26, Hardware 3.3, Firmware 3.2)
 download Files and Downloads
picture_as_pdf Hardware Design - Drive Bay Bracket Overlay Template
picture_as_pdf Hardware Design - Drive Bay Mounting Bracket
folder_zip CAD Export - CFA632 2D CAD
picture_as_pdf 1 to 1 Template - CFA632 Series 1 to 1 Outline Drawing
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Add to cart without customizations
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:


        Prices without customizations:


            Quantity
            Unit Price


            1
            $66.31

            10
            $54.80

            20
            $52.84

            50
            $50.89

            100
            $50.09

            200
            $49.70

            500
            $49.31

            1000
            $48.53

1289 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Interfaces	SPI I2C Logic Level Serial Inverted Logic Level Serial USB RS232

Colors	Dark on Yellow-Green Yellow-Green LED Backlight Yellow-Green on Dark Yellow-Green LED Backlight

Module Overall	width	height	depth
millimeters	108	42	19.9
inches	4.25	1.65	0.78

PCB Outline	width	height	depth
millimeters	108	42	19.9
inches	4.25	1.65	0.78

Viewing Area	Width	Height
millimeters	82.3	22.5
inches	3.24	0.89

Active Area	Width	Height
millimeters	74.82	15.8
inches	2.95	0.62

Character Size	Width	Height
millimeters	3.84	7.3
inches	0.151	0.287

Character Pitch	Width	Height
millimeters	4.68	8.5
inches	0.184	0.335

Dot Size	Width	Height
millimeters	0.72	0.86
inches	0.028	0.034

Dot Pitch	Width	Height
millimeters	0.78	0.92
inches	0.031	0.036

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	10%	90%

Prices without customizations:
Quantity	Unit Price
1	$66.31
10	$54.80
20	$52.84
50	$50.89
100	$50.09
200	$49.70
500	$49.31
1000	$48.53

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11226: Change to ENIG from Gold Plating

Products Affected:	CFA631-RMF-KU1, CFA631-RMF-KU2, CFA631-RMF-KU, CFA631-TMF-KU, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-YFH-KU, CFA632-YDI-KU, CFA634-TFH-KS, CFA634-TMI-KS, CFA634-YFH-KS, CFA634-YDI-KS, CFA634-TFH-KU, CFA634-TMI-KU, CFA634-YFH-KU, CFA634-YDI-KU, CFA631-RMF-KU32, CFA631-RMF-KU128, CFA631-RMF-KU160, CFA631-RMF-KU33, CFA631-RMF-KU129, CFA631-RMF-KU161, CFA631-RMF-KU-162, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP, CFA634-YDI-KC, CFA634-TMI-KC, CFA634-YFH-KC, CFA634-TFH-KC, CFA634-YFH-KL, CFA634-TFH-KL, CFA634-TMI-KL, CFA634-YDI-KL, CFA634-TFH-KP, CFA634-YFH-KP, CFA634-TMI-KP, CFA634-YDI-KP, CFA634-TFH-KN, CFA634-YFH-KN, CFA634-TMI-KN, CFA634-YDI-KN, CFA631P-TMF-KU, DBBK-CFA631-RMF-KU1, DBBK-CFA631-RMF-KU2, DBBK-CFA631-RMF-KU32, DBBK-CFA631-RMF-KU33, DBBK-CFA631-RMF-KU34, DBBK-CFA631-RMF-KU128, DBBK-CFA631-RMF-KU129, DBBK-CFA631-RMF-KU130, DBBK-CFA631-RMF-KU160, DBBK-CFA631-RMF-KU161, DBBK-CFA631-RMF-KU162
Date Issued:	September 5, 2023
Summary:	Change to ENIG from Gold Plating
Description:	The plating on these PCBs is changing from gold plating to ENIG.
Reason:	Gold plating is not as often used anymore and ENIG is a better plating process.
Availability:	This will be implemented on serial numbers with a SN date more recent than week 21 of 2023 with one exception: SNs 2321634TFHP544035 - 2321634TFHP544219 on a CFA634-TFH product will have the original gold plating. Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #10658: Deprecation of "Drive Bay Kit Configurator" / New part numbers for drive bay kits.

Products Affected:	CFA631-RMF-KU1, CFA631-RMF-KU2, CFA631-RMF-KU, CFA633-YYB-KS, CFA633-TMC-KS, CFA633-RMC-KS, CFA633-YYB-KU, CFA633-TMC-KU, CFA633-RMC-KU, CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KL, CFA631-TMF-KU, CFA635-TFE-KU, CFA635-YYE-KL, CFA635-TMF-KU, CFA635-YYE-KU, DS635-AL, DS635-BG, DS635-BK, DS635-AK, CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-YYH-KI, CFA633-YYH-KS, CFA633-TMI-KS, CFA633-YYH-KU, CFA633-TMI-KU, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-YFH-KU, CFA632-YDI-KU, CFA634-TFH-KS, CFA634-TMI-KS, CFA634-YFH-KS, CFA634-YDI-KS, CFA634-TFH-KU, CFA634-TMI-KU, CFA634-YFH-KU, CFA634-YDI-KU, CFA633-RDI-KU, CFA633-RDI-KS, CFA533-TFH-KU, CFA533-TFH-KS, CFA633-TFH-KU, CFA633-TFH-KS, CFA533-TFH-KL, CFA533-TFH-KC, CFA735-TFK-KR, CFA735-TFK-KT, CFA735-TML-KR, CFA735-TML-KT, CFA735-YYK-KR, CFA735-YYK-KT, CFA631-RMF-KU32, CFA631-RMF-KU128, CFA631-RMF-KU160, CFA631-RMF-KU33, CFA631-RMF-KU129, CFA631-RMF-KU161, CFA631-RMF-KU-162, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP, CFA634-YDI-KC, CFA634-TMI-KC, CFA634-YFH-KC, CFA634-TFH-KC, CFA634-YFH-KL, CFA634-TFH-KL, CFA634-TMI-KL, CFA634-YDI-KL, CFA634-TFH-KP, CFA634-YFH-KP, CFA634-TMI-KP, CFA634-YDI-KP, CFA634-TFH-KN, CFA634-YFH-KN, CFA634-TMI-KN, CFA634-YDI-KN, CFA631P-TMF-KU
Date Issued:	July 1, 2015
Summary:	Deprecation of "Drive Bay Kit Configurator" / New part numbers for drive bay kits.
Description:	Starting August 1, 2015 the "Drive Bay Kit Configurator" located at https://www.crystalfontz.com/products/select_kit.html will no longer be functional for ordering one of our Serial or USB displays (CFA533, CFA631, CFA632, CFA633, CFA634, CFA635, and CFA735) in a bracket or SLED. This functionality is being moved to the Customize and Add to Cart process when checking out. This will allow for further customization by our customers to better fit their needs. This change will eliminate the current "kits", but will add options not previously available such as pre-configured ATX functionality, and ALL the currently available interfaces will be orderable in a drive bay bracket or SLED. The new part numbers will have the bracket / SLED and overlay type as a PREFIX to the configured part number. The choice for bracket / SLED to a display order will be via the cart options. Our CFA835 displays were introduced with these configuration options. To see how the new options will look, and what the new part numbers will look like, please see one of our CFA835 parts: https://www.crystalfontz.com/cart/addtocart.php?product_id=2277&qty=1 NOTE: The SLED is only available for the CFA635, CFA735, and CFA835 products.
Reason:	As part of our continuous improvement process, we are integrating the ordering of displays in drive bay and SLED kits as part of the display ordering process.
Impact:	Drive bay kits in their current configuration will no longer be available.
Recommendation:	Place orders prior to 2015-08-01 for upcoming production needs via our website or by contacting our logistics department via email: sales@crystalfontz.com, or by calling 1-888-206-9720 (International call +1-509-892-1200). After the 2015-08-01, please contact our engineering department via support@crystalfontz.com to assist you with ordering your bracket / SLED kits.
Availability:	Starting 2015-08-01, the bracket and SLED options for our serial and USB display will be part of the ordering process for the displays
Price Change:	Pricing bracket / SLED configurations will reflect manufacturing costs.

Part Change Notice #10650: CFA634 Firmware update

Products Affected:	CFA632-YFH-KS, CFA632-YDI-KS, CFA632-YFH-KU, CFA632-YDI-KU, CFA634-TFH-KS, CFA634-TMI-KS, CFA634-YFH-KS, CFA634-YDI-KS, CFA634-TFH-KU, CFA634-TMI-KU, CFA634-YFH-KU, CFA634-YDI-KU, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP, CFA634-YDI-KC, CFA634-TMI-KC, CFA634-YFH-KC, CFA634-TFH-KC, CFA634-YFH-KL, CFA634-TFH-KL, CFA634-TMI-KL, CFA634-YDI-KL, CFA634-TFH-KP, CFA634-YFH-KP, CFA634-TMI-KP, CFA634-YDI-KP, CFA634-TFH-KN, CFA634-YFH-KN, CFA634-TMI-KN, CFA634-YDI-KN
Date Issued:	March 25, 2015
Summary:	CFA634 Firmware update
Last revision:	3.1
Description:	As part of our continuous improvement process, the CFA634 firmware is being revised from 3.1 to 3.2 with the following changes: Improved cursor position control when display is sent carriage return Boot screen will reflect selected interface when using the JPDFLT jumper after module reboot Access to location \002 Extended Register Removed (command \030, 0x1E, Ctrl+=) Updated datasheet will include details of the above changes, as well as general fixes.
Reason:	Bug fixes and usability improvements.
Impact:	Changes effect all CFA634 products. Firmware update is compatible with existing code, other than changes to command 30.
Recommendation:	Prior to implementing the new firmware into production, it is recommended that engineering samples be ordered and tested.
Availability:	Displays with new firmware will begin shipping during 2Q 2015.
Price Change:	No price change is planned for this change.

Part Change Notice #10649: CFA632 Firmware update

Products Affected:	CFA632-YFH-KS, CFA632-YDI-KS, CFA632-YFH-KU, CFA632-YDI-KU, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP
Date Issued:	March 25, 2015
Summary:	CFA632 Firmware update
Last revision:	3.2
Description:	As part of our continuous improvement process, the CFA632 firmware is being revised from 3.2 to 3.3 with the following changes: Improved cursor position control when display is sent carriage return Boot screen will reflect selected interface when using the JPDFLT jumper after module reboot Access to location \002 Extended Register Removed (command \030, 0x1E, Ctrl+=) Updated datasheet will include details of the above changes, as well as general fixes. ECO-50
Reason:	Bug fixes and usability improvements.
Impact:	Changes effect all CFA632 products. Firmware update is compatible with existing code, other than changes to command 30.
Recommendation:	Prior to implementing the new firmware into production, it is recommended that engineering samples be ordered and tested.
Availability:	Displays with new firmware will begin shipping during 2Q 2015.
Price Change:	No price change is planned for this change.

Part Change Notice #10579: Reverted the SPI functionality to Crystalfontz CFA632 legacy implementation.

Products Affected:	CFA632-YMC-KS, CFA632-NFA-KS, CFA632-YFB-KU, CFA632-YMC-KU, CFA632-NFA-KU, CFA632-NFG-KS, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-NFG-KU, CFA632-YFH-KU, CFA632-YDI-KU, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP
Date Issued:	December 20, 2013
Summary:	Reverted the SPI functionality to Crystalfontz CFA632 legacy implementation.
Last revision:	v3.2.5
Description:	Reverted the SPI functionality to Crystalfontz CFA632 legacy implementation where the SPI_BUSY line is used as a busy indicator instead of the module's unused transmit line. Firmware will migrate from v3.2.5 to v3.2.6
Reason:	To maintain legacy functionality.
Impact:	Impact to customers utilizing SPI functionality only.
Recommendation:	For questions please contact Technical Service at 1-888-206-9720.

Product Update #10505: (New Product) CFA632-YDI-KN

New Product:	CFA632-YDI-KN
Date Issued:	July 9, 2013
Summary:	(New Product) CFA632-YDI-KN
Description:	Intelligent Serial LCD Modules: 16x2 Logic Level Serial (inverted) LCD, Y/G LED Backlight, FFSTN Negative,Transmissive -20°C to +70°C, 6:00.
