16x2 Character LCD ModulePart Number: CFA533-YYH-KULooking for a USB compatible LCD with a keypad?
Our CFA-533 is the ideal solution when you need a highly readable USB character LCD and a keypad in one. This character display module integrates easily into both Windows ® & Linux devices.
The CFA-533 is an intelligent 16x2 character USB LCD with keypad. The USB interface allows you to easily connect the CFA-533 LCD to your host device using a USB cable. You can change the text displayed on the LCD, and read the keypad through the USB. The USB interface is implemented using a genuine FTDI FT232RL USB UART with rock-solid WHQL signed Windows drivers and is fully supported under Linux. The LCD's USB interface is exposed as a COM port, new software is easy to write and legacy applications are easy to support.

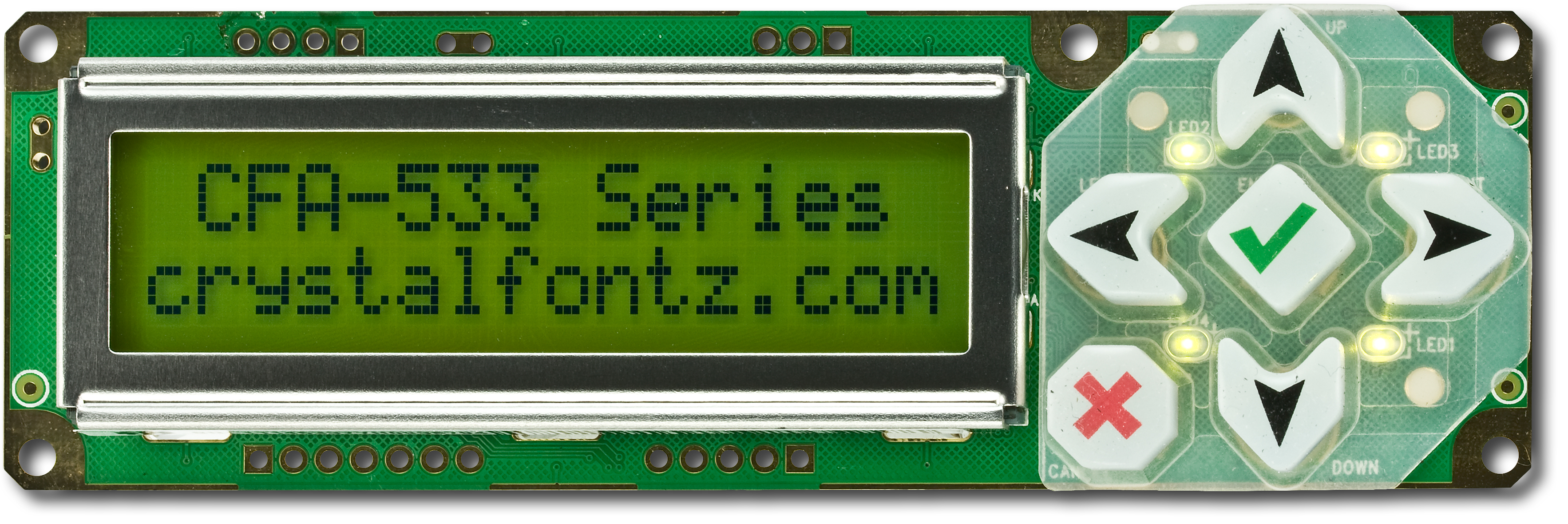

This CFA533-YYH variant shows crisp, dark letters against a yellow-green backlit background. The keypad is backlight in a matching yellow-green. Since the LCD is a backlit positive STN, the CFA533-YYH USB LCD is easily viewable in all lighting conditions, from direct sunlight to a completely dark room.
The CFA-533 solves your entire front panel requirements in one simple, proven device. The 2x16 LCD display allows showing critical error or status messages, and the keypad can be used to interact with the user, all over the single USB connection. The CFA-533 USB display fits easily in the front panel of a 1U appliance.
The CFA-533 USB LCD can also reset your system as well as power it on and off using its ATX power supply control functionality. This way the CFA-533 can replace the ubiquitous power and reset switches while cleaning up the front panel design and simplifying your BOM and assembly.
With the CFA-533 USB LCD, you also get the great (and free) support that Crystalfontz is known for.
USB host interface controls the LCD and reads the keypad
Compact size: fits in a 1U rack mount case (35mm overall height).
Integrated 16x2 LED backlit character LCD.
Integrated LED backlit 6-button translucent silicon keypad with screened legend.
Advanced digital GPIO control with PWM output.
Robust packet based communications protocol with CRC.
Non-volatile memory (EEPROM): Set the "power-on" display screen, plus 16-bytes for storing IP, netmask, or system serial number.
ATX power supply control functionality
Temperature monitoring: up to 32 channels at up to 0.5 deg C absolute accuracy using WRDOWY17 DS18B20 temperature sensors.
Available in a 5.25" half-height LCD drive bay kit when adding to cart.
Sample applications and source code readily available: cfTest, CrystalControl2, and Linux Example Code.

Wondering which USB character display module to use? Compare all of our intelligent display modules.

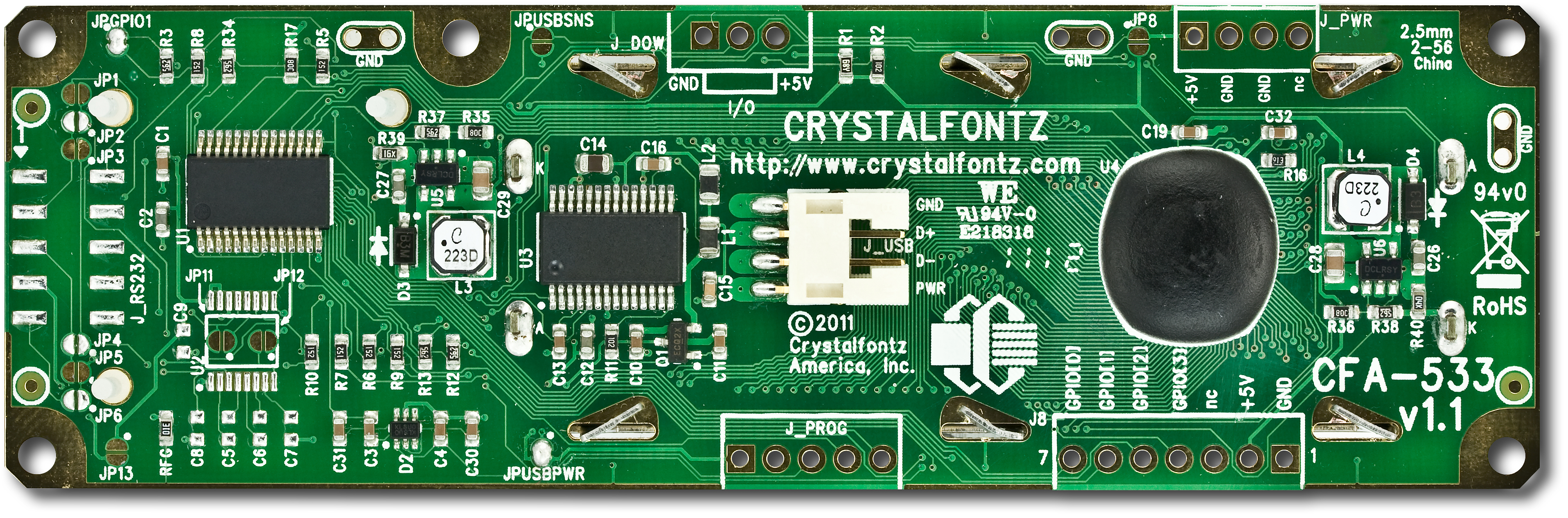

Currently Shipping: HW Version 1.1, Firmware Version: U1v2

Product VariationsInterfacesI2CLogic Level SerialRS232USB
ColorsDark on Light Gray
White LED BacklightWhite on Blue
White LED BacklightDark on Yellow-Green
Yellow-Green LED Backlight

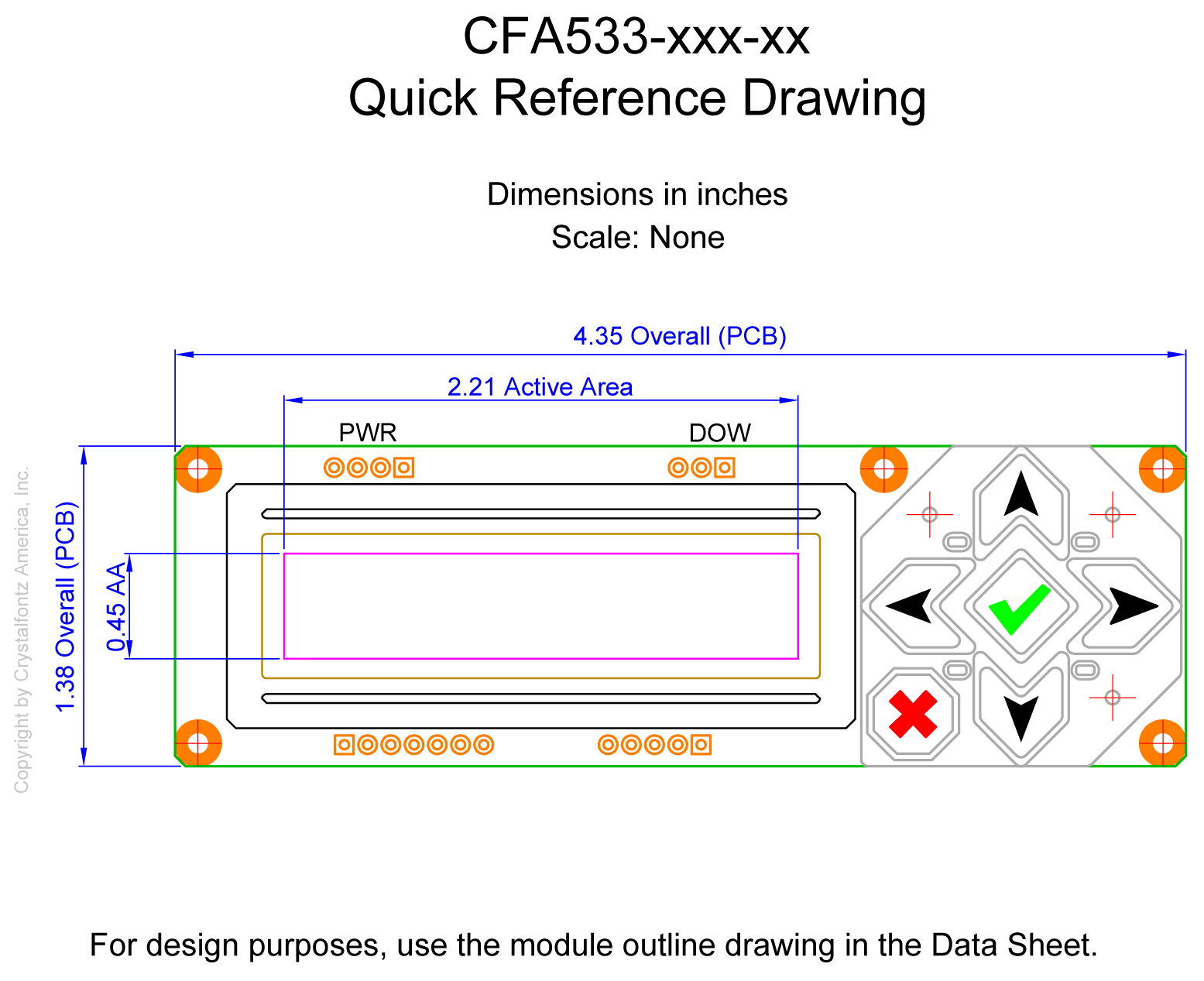

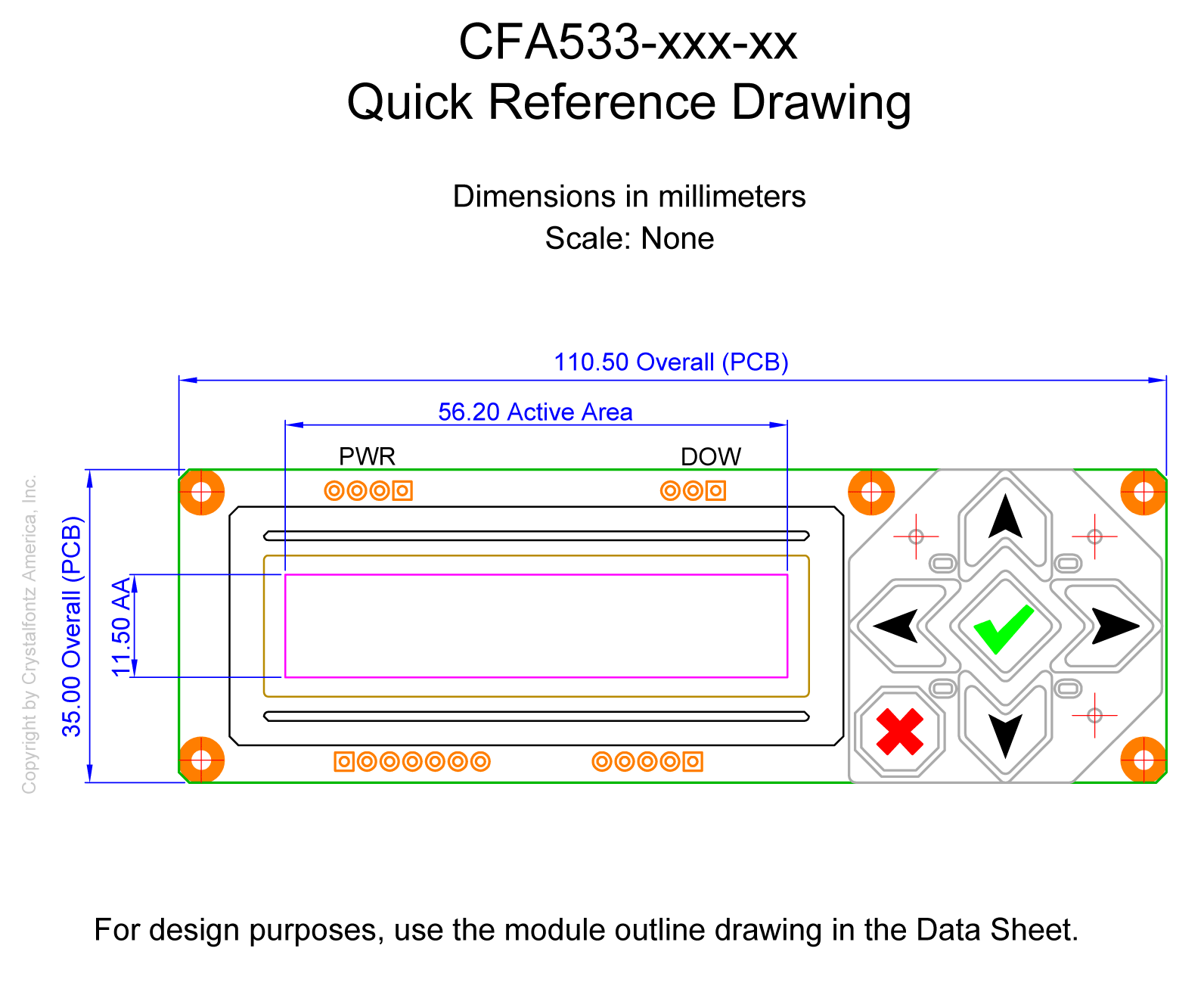

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2


    Module Overall        width
        height
        depth


        millimeters
        110.5
        35
        16.6


        inches
        4.35
        1.38
        0.65

*depth doesn't include Keypad


    PCB Outline        width
        height


        millimeters
        110.5
        35


        inches
        4.35
        1.38



        Diagonal Dimension
            2.26"


    Viewing Area        Width
        Height


        millimeters
        61
        15.8


        inches
        2.40
        0.62



    Active Area        Width
        Height


        millimeters
        56.2
        11.5


        inches
        2.21
        0.45



    Character Size        Width
        Height


        millimeters
        2.95
        5.55


        inches
        0.116
        0.219



    Character Pitch        Width
        Height


        millimeters
        3.55
        5.95


        inches
        0.140
        0.234



    Dot Size        Width
        Height


        millimeters
        0.55
        0.65


        inches
        0.022
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.7


        inches
        0.024
        0.028



        Weight
            41g


        Keystroke Travel
            2.4mm

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Interface
            USB

 picture_as_pdf Datasheets
picture_as_pdfCFA533-YYH-KU Data Sheet v3.0.pdf
(Hardware 1.1, Firmware 1u1)
Previous Versions of Datasheetspicture_as_pdfCFA533-YYH-KU Data Sheet v2.1.pdf
(Datasheet V 2.1, Hardware 1.0, Firmware u1.0)
picture_as_pdfCFA533-YYH-KU Data Sheet v2.0.pdf
(Datasheet V 2.0, Hardware 1.0, Firmware u1.0)
picture_as_pdfCFA-533-YYH-KU v1.1.pdf
(Datasheet V 1.1, Hardware 0.1, Firmware u0.2)
picture_as_pdfCFA-533-YYH-KU v1.0.pdf
(Datasheet V 1.0, Hardware 0.1, Firmware u0.2)
 download Files and Downloads
folder_zip Software Source - Linux - List  USB Device Path Script
folder_zip CAD Export - CFA533 KU - 3D CAD Reference Files
settings_application CAD Export - CFA533 KU - 3D E-Drawing Viewer File
settings_application CAD Export - CFA533 Family HW v1.1 2D CAD.dwg
settings_application CAD Export - CFA533 Family HW v1.1 2D CAD.dxf
picture_as_pdf 1 to 1 Template
picture_as_pdf Other Document - Intelligent LCD Comparison
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Add to cart without customizations
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:


        Prices without customizations:


            Quantity
            Unit Price


            1
            $67.42

            10
            $65.47

            20
            $61.08

            50
            $56.72

            100
            $52.34

            200
            $47.96

            500
            $43.60

            1000 *
            $39.22

917 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


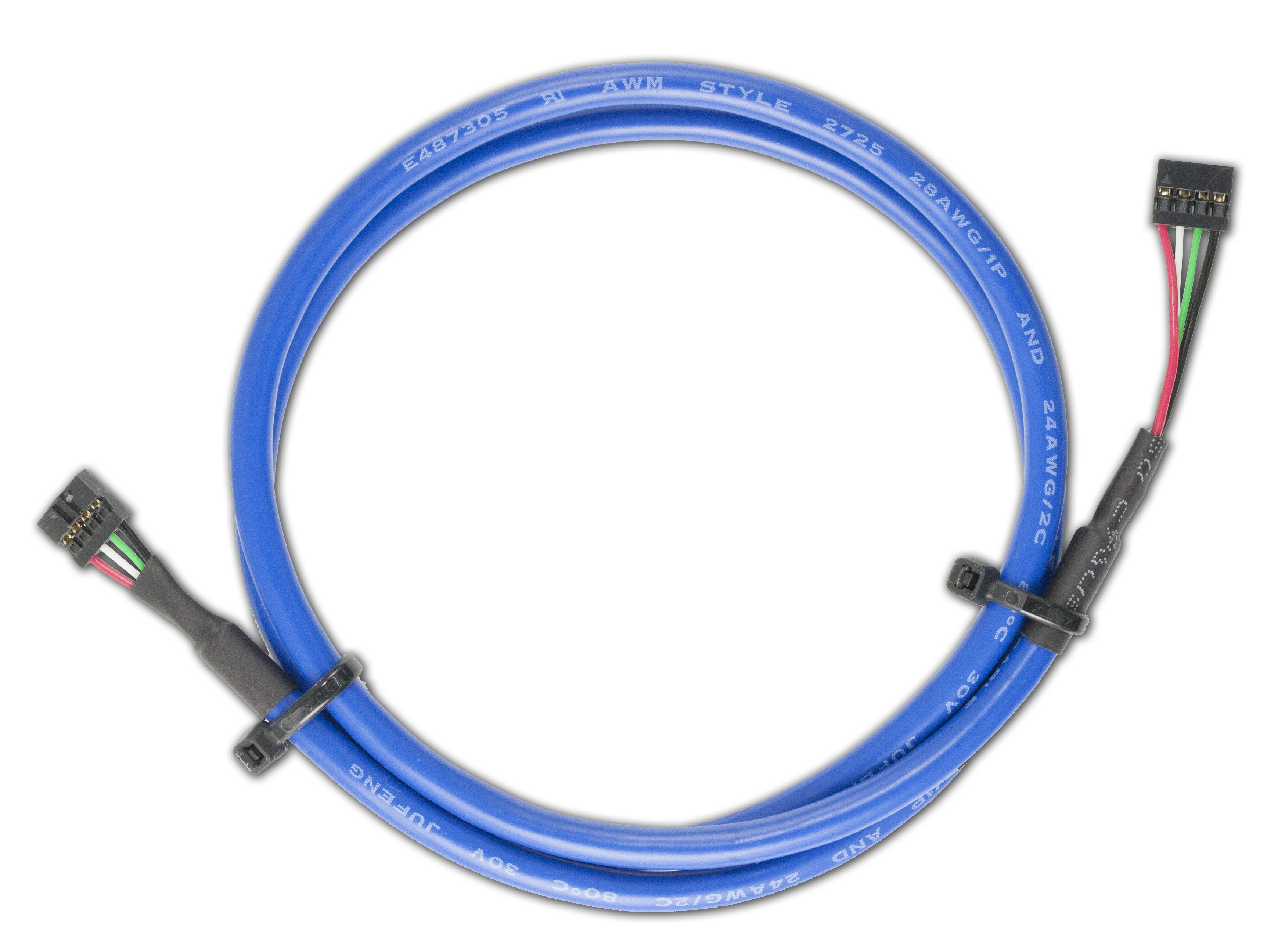

						USB-C to 4 pin 2mm header
Add a USB-C Cable? $5.30 ea.





Interfaces	I2C Logic Level Serial RS232 USB

Colors	Dark on Light Gray White LED Backlight White on Blue White LED Backlight Dark on Yellow-Green Yellow-Green LED Backlight

Module Overall	width	height	depth
millimeters	110.5	35	16.6
inches	4.35	1.38	0.65
*depth doesn't include Keypad

PCB Outline	width	height
millimeters	110.5	35
inches	4.35	1.38

Viewing Area	Width	Height
millimeters	61	15.8
inches	2.40	0.62

Active Area	Width	Height
millimeters	56.2	11.5
inches	2.21	0.45

Character Size	Width	Height
millimeters	2.95	5.55
inches	0.116	0.219

Character Pitch	Width	Height
millimeters	3.55	5.95
inches	0.140	0.234

Dot Size	Width	Height
millimeters	0.55	0.65
inches	0.022	0.026

Dot Pitch	Width	Height
millimeters	0.6	0.7
inches	0.024	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Prices without customizations:
Quantity	Unit Price
1	$67.42
10	$65.47
20	$61.08
50	$56.72
100	$52.34
200	$47.96
500	$43.60
1000 *	$39.22

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11243: Keypad LED Change

Products Affected:	CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-YYH-KI, CFA633-YYH-KS, CFA633-TMI-KS, CFA633-YYH-KU, CFA633-TMI-KU, CFA633-RDI-KU, CFA633-RDI-KS, CFA533-TFH-KU, CFA533-TFH-KS, CFA633-TFH-KU, CFA633-TFH-KS, CFA533-TFH-KL, CFA533-TFH-KC
Date Issued:	October 4, 2023
Summary:	Keypad LED Change
Description:	The keypad LEDs are changing to an alternative LED. There is no visual difference.
Reason:	Switching suppliers to improve manufacturability.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #10724: CFA533 series Hardware revision 1.1 to 1.4

Products Affected:	CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-TFH-KU, CFA533-TFH-KS, CFA533-TFH-KL, CFA533-TFH-KC
Date Issued:	July 8, 2016
Summary:	CFA533 series Hardware revision 1.1 to 1.4
Last revision:	1.1
Description:	The CFA533 series of advanced display modules will be changing from the current hardware version 1.1 to version 1.4. Design changes were made for backwards compatibility. Hardware version 1.4 requires firmware version 1.2 or newer.
Reason:	As part of our continuous improvement, design changes have been made to the hardware of the CFA533 series of advanced display modules for improved manufacturability, improved quality, and a lower current profile.
Impact:	Factory default configuration has no functional changes. Standard and custom configurations are not affected by the new hardware layout. CFA533 hardware version 1.4 should replace the previous version of the CFA533 with no physical changes and is considered a fit and form replacement. Six 0 ohm resistors have been added as factory default for closing the following jumpers: JPGPIO1 -> RJPGPIO1 JPUSBPWR -> RJPUSBPWR JP2 -> RJP2 JP4 -> RJP4 JP6 -> RJP6 JP8 -> RJP8 Solder jumpers are still in place for configuration after jumper resistor removed. Jumpers will appear open. Configuration changes not performed by Crystalfontz America, Inc. will need to make note of this manufacturing change.
Recommendation:	CFA533 hardware version 1.4 is considered a fit and form replacement. Testing of new hardware is recommended when available.
Availability:	CFA533 hardware version 1.4 should begin shipping Q4 2016. Engineering samples for testing / validation will be available during this same time frame.
Price Change:	No price change is currently scheduled.

Part Change Notice #10658: Deprecation of "Drive Bay Kit Configurator" / New part numbers for drive bay kits.

Products Affected:	CFA631-RMF-KU1, CFA631-RMF-KU2, CFA631-RMF-KU, CFA633-YYB-KS, CFA633-TMC-KS, CFA633-RMC-KS, CFA633-YYB-KU, CFA633-TMC-KU, CFA633-RMC-KU, CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KL, CFA631-TMF-KU, CFA635-TFE-KU, CFA635-YYE-KL, CFA635-TMF-KU, CFA635-YYE-KU, DS635-AL, DS635-BG, DS635-BK, DS635-AK, CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-YYH-KI, CFA633-YYH-KS, CFA633-TMI-KS, CFA633-YYH-KU, CFA633-TMI-KU, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-YFH-KU, CFA632-YDI-KU, CFA634-TFH-KS, CFA634-TMI-KS, CFA634-YFH-KS, CFA634-YDI-KS, CFA634-TFH-KU, CFA634-TMI-KU, CFA634-YFH-KU, CFA634-YDI-KU, CFA633-RDI-KU, CFA633-RDI-KS, CFA533-TFH-KU, CFA533-TFH-KS, CFA633-TFH-KU, CFA633-TFH-KS, CFA533-TFH-KL, CFA533-TFH-KC, CFA735-TFK-KR, CFA735-TFK-KT, CFA735-TML-KR, CFA735-TML-KT, CFA735-YYK-KR, CFA735-YYK-KT, CFA631-RMF-KU32, CFA631-RMF-KU128, CFA631-RMF-KU160, CFA631-RMF-KU33, CFA631-RMF-KU129, CFA631-RMF-KU161, CFA631-RMF-KU-162, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP, CFA634-YDI-KC, CFA634-TMI-KC, CFA634-YFH-KC, CFA634-TFH-KC, CFA634-YFH-KL, CFA634-TFH-KL, CFA634-TMI-KL, CFA634-YDI-KL, CFA634-TFH-KP, CFA634-YFH-KP, CFA634-TMI-KP, CFA634-YDI-KP, CFA634-TFH-KN, CFA634-YFH-KN, CFA634-TMI-KN, CFA634-YDI-KN, CFA631P-TMF-KU
Date Issued:	July 1, 2015
Summary:	Deprecation of "Drive Bay Kit Configurator" / New part numbers for drive bay kits.
Description:	Starting August 1, 2015 the "Drive Bay Kit Configurator" located at https://www.crystalfontz.com/products/select_kit.html will no longer be functional for ordering one of our Serial or USB displays (CFA533, CFA631, CFA632, CFA633, CFA634, CFA635, and CFA735) in a bracket or SLED. This functionality is being moved to the Customize and Add to Cart process when checking out. This will allow for further customization by our customers to better fit their needs. This change will eliminate the current "kits", but will add options not previously available such as pre-configured ATX functionality, and ALL the currently available interfaces will be orderable in a drive bay bracket or SLED. The new part numbers will have the bracket / SLED and overlay type as a PREFIX to the configured part number. The choice for bracket / SLED to a display order will be via the cart options. Our CFA835 displays were introduced with these configuration options. To see how the new options will look, and what the new part numbers will look like, please see one of our CFA835 parts: https://www.crystalfontz.com/cart/addtocart.php?product_id=2277&qty=1 NOTE: The SLED is only available for the CFA635, CFA735, and CFA835 products.
Reason:	As part of our continuous improvement process, we are integrating the ordering of displays in drive bay and SLED kits as part of the display ordering process.
Impact:	Drive bay kits in their current configuration will no longer be available.
Recommendation:	Place orders prior to 2015-08-01 for upcoming production needs via our website or by contacting our logistics department via email: sales@crystalfontz.com, or by calling 1-888-206-9720 (International call +1-509-892-1200). After the 2015-08-01, please contact our engineering department via support@crystalfontz.com to assist you with ordering your bracket / SLED kits.
Availability:	Starting 2015-08-01, the bracket and SLED options for our serial and USB display will be part of the ordering process for the displays
Price Change:	Pricing bracket / SLED configurations will reflect manufacturing costs.

Part Change Notice #10352: CFA533 USB and Serial firmware v1.1

Products Affected:	CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-TFH-KU, CFA533-TFH-KS, CFA533-TFH-KL
Date Issued:	August 2, 2011
Summary:	CFA533 USB and Serial firmware v1.1
Last revision:	v1.0
Description:	With the release of CFA533 v1.1 hardware, PCN 10351 the firmware for the Serial - KL and KS suffix, and USB - KU suffix interface modules is being revised to v1.1. The following changes are being implemented in this release: Bug fixes: Command 11 - Cursor movement and control Command 20 - DOW command input correction for data size limits Command 9 - Improved data input checking Command 10 - Corrected response from controller for line 1 of DDRAM Enhancements: Command 28, data[1] - ATX power functionality pulse width variable effects power on, power off, and reset pulses. Command 28, data[1] - ATX power functionality pulse width option of 255 to hold pulse low until +5v state changes. Command 28 - ATX power functionality power off feature is more compatible with well power managed systems. This is a passive feature and not configurable. Baud rate for serial interface is now more accurate across the module's range of operating voltages. NOTE: CFA533 v1.1 firmware will only ship on CFA533 v1.1 hardware.
Reason:	As part of our continuous improvement process, the CFA533 family is being revised to firmware v1.1. This was done based on customer feedback to improve the functionality and reliability of the CFA533 family.
Impact:	The changes in the CFA533 v1.1 firmware should be a drop in replacement in most applications. The exception will be if a data[1] of 255 was used with Command 28 when setting up the module. This value will not longer be an 8 second pulse, but conform to the new functionality.
Recommendation:	Participate in discounted pricing for first run CFA533 v1.1 hardware /firmware based modules through September 30, 2011.
Availability:	First run CFA533 v1.1 hardware based modules with v1.1 firmware, and datasheet will be available for customer qualification / in-house approval on August 8, 2011 through September 30, 2011 for a maximum quantity of three at the currently published 50 piece price. Volume shipment end of Q3 2011 Shipments of v1.0 hardware with v1.0 firmware will continue until inventory levels exhausted. Full transition to v1.1 hardware and firmware expected by end of Q4 2011.
Price Change:	No price change is scheduled at this time. Pricing will be reviewed Q1 2012.

Part Change Notice #10351: CFA533 family hardware revision v1.1

Products Affected:	CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-YYH-KI, CFA533-TFH-KU, CFA533-TFH-KS, CFA533-TFH-KL, CFA533-TFH-KC
Date Issued:	August 2, 2011
Summary:	CFA533 family hardware revision v1.1
Last revision:	v1.0
Description:	The CFA533 v1.1 hardware changes are as follows: New inductor package for backlight control circuit. This is being done to improve the manufacturabilty of the CFA533. Addition of JPGPIO1. This jumper will be closed by default and bypasses a 5KΩ pull-up resistor that is in line with GPIO[1] to the micro-controller. Improved Yellow-green backlight for the YYH variants. The backlight now has a total of 10 yellow-green LEDs instead of 6. This improves the visual quality and appearance of the LCD backlight. Typical weight will increase to 43g, from 41g for the CFA533 YYH variants.
Reason:	As part of our continuous improvement process, the CFA533 family is being revised to hardware v1.1. This was done based on customer feedback to improve the functionality and appearance of the CFA533 family.
Impact:	Hardware v1.1 should be a drop in replacement for most applications. No form or fit changes have been implemented. The exception may be with the YYH variants. Due to the increased number of yellow-green LEDs in the LCD backlight, the current profile of these variants has increased.
Recommendation:	Participate in discounted pricing for first run CFA533 v1.1 hardware based modules through September 30, 2011.
Availability:	First run CFA533 v1.1 hardware based modules and datasheet will be available for customer qualification / in-house approval on August 8, 2011 through September 30, 2011 for a maximum quantity of three at the currently published 50 piece price. Volume shipment end of Q3 2011 Shipments of v1.0 hardware will continue until inventory levels exhausted. Full transition to v1.1 hardware expected by end of Q4 2011.
Price Change:	No price change is scheduled at this time. Pricing will be reviewed Q1 2012.
Attachment:	CFA533_1-1_HW_PCN.pdf (828KB)

Part Change Notice #10291: Technical Bulletin TB01: Comparison of CFA533 and CFA633 Modules by Version Number

Products Affected:	CFA633-YYB-KS, CFA633-TMC-KS, CFA633-YYB-KU, CFA633-TMC-KU, CFA633-RMC-KU, CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-YYH-KI, CFA633-YYH-KS, CFA633-TMI-KS, CFA633-YYH-KU, CFA633-TMI-KU, CFA633-RDI-KU, CFA633-RDI-KS
Date Issued:	November 10, 2010
Summary:	Technical Bulletin TB01: Comparison of CFA533 and CFA633 Modules by Version Number
Description:	The attached PDF file describes differences between our CFA633 v1.5x and CFA633 v2.0 intelligent display module series. We also list the CFA533 series as a comparison for customers who do not require the fan control available in the CFA633 series. Hardware version numbers are silk screened on the back of the PCBs. Additional information can be found in supporting documents for PCN: https://www.crystalfontz.com/products/document/2371/CFA633_v1-5a_to_v1-5c_changes.pdf https://www.crystalfontz.com/products/pcnfile/10286/PCN_CFA633_2-0.pdf
Reason:	Clarify the differences between the different modules.
Impact:	None.
Attachment:	TB01_Comparison_of_CFA533_and_CFA633_Modules.pdf (86KB)

Part Change Notice #10282: Keypad height change

Products Affected:	CFA633-YYB-KS, CFA633-TMC-KS, CFA633-RMC-KS, CFA633-YYB-KU, CFA633-TMC-KU, CFA633-RMC-KU, CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KL, CFA635-TFE-KU, CFA635-YYE-KL, CFA635-TMF-KU, CFA635-YYE-KU, CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-YYH-KI
Date Issued:	June 6, 2010
Summary:	Keypad height change
Description:	Over the next 6 months or so, we will be transitioning to a keypad that is 1.5mm taller than the keypad currently shipping on these modules.
Reason:	We have found that in all cases that we are aware of, the keypad being 1.5mm taller will alleviate some customer difficulties.
Recommendation:	If you need the keypad to remain the same height for your application, please email support@crystalfontz.com so that we can set aside some of the shorter keypads for your company's application.
Availability:	~0-6 months.
Price Change:	None.
