20x4 Character Enclosed LCD Module from Crystalfontz

Product

Home » Products » USB LCD Displays » Character

                All existing XES635BKTFEKU products are transitioning to XES635BKTFKKU as part of our continuous improvement process. Once all current stock is depleted, you'll be able to purchase the new part number.

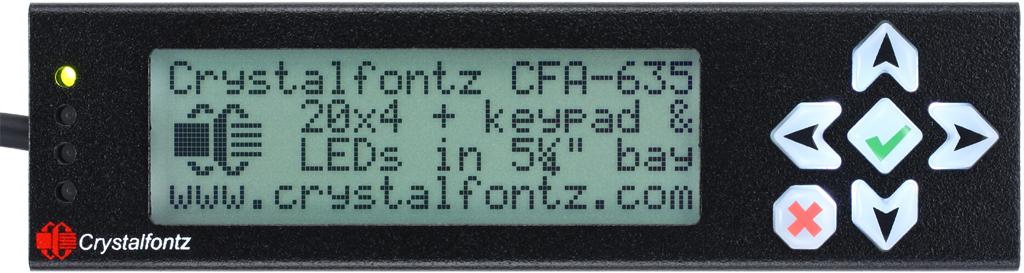

20x4 Character Enclosed LCD ModulePart Number: XES635BK-TFE-KUUSB LCD 20x4, Keypad, External Enclosure, White Edge LED Backlight, RoHS compliant, FSTN Positive, Transflective, 0°C to +50°C, 12:00 viewing angle. Includes ~9 foot black low-drop captive USB "A" cable.
	LED backlit 20x4 LCD
	Integrated LED backlit 6-button translucent silicon keypad with screened legend
	Four bicolor (red + green) LEDs. The LEDs’ brightness can controlled by the host software, which allows mixing the LEDs to produce other colors (yellow and orange)
	Three color options:
					Yellow-green backlit positive mode LCD, yellow/green keypad backlight ("YYE")
			White backlit negative mode LCD, blue keypad backlight ("TMF")
			White backlit positive mode LCD, white keypad backlight ("TFE")

	Fully decoded keypad: any key combination is valid and unique
	LCD characters are contiguous in both X and Y directions to allow the host software to display "gapless" bar graphs in horizontal or vertical directions
	USB interface for both power and data (115200 baud equivalent throughput)
	Robust packet based communications protocol with 16-bit CRC
	Built-in microcontroller
	RoHS Compliant
	Non-volatile memory capability ("EEPROM"):
					Customize the "power-on" display and LED settings
			16-byte "scratch" register for storing IP, netmask, system serial number

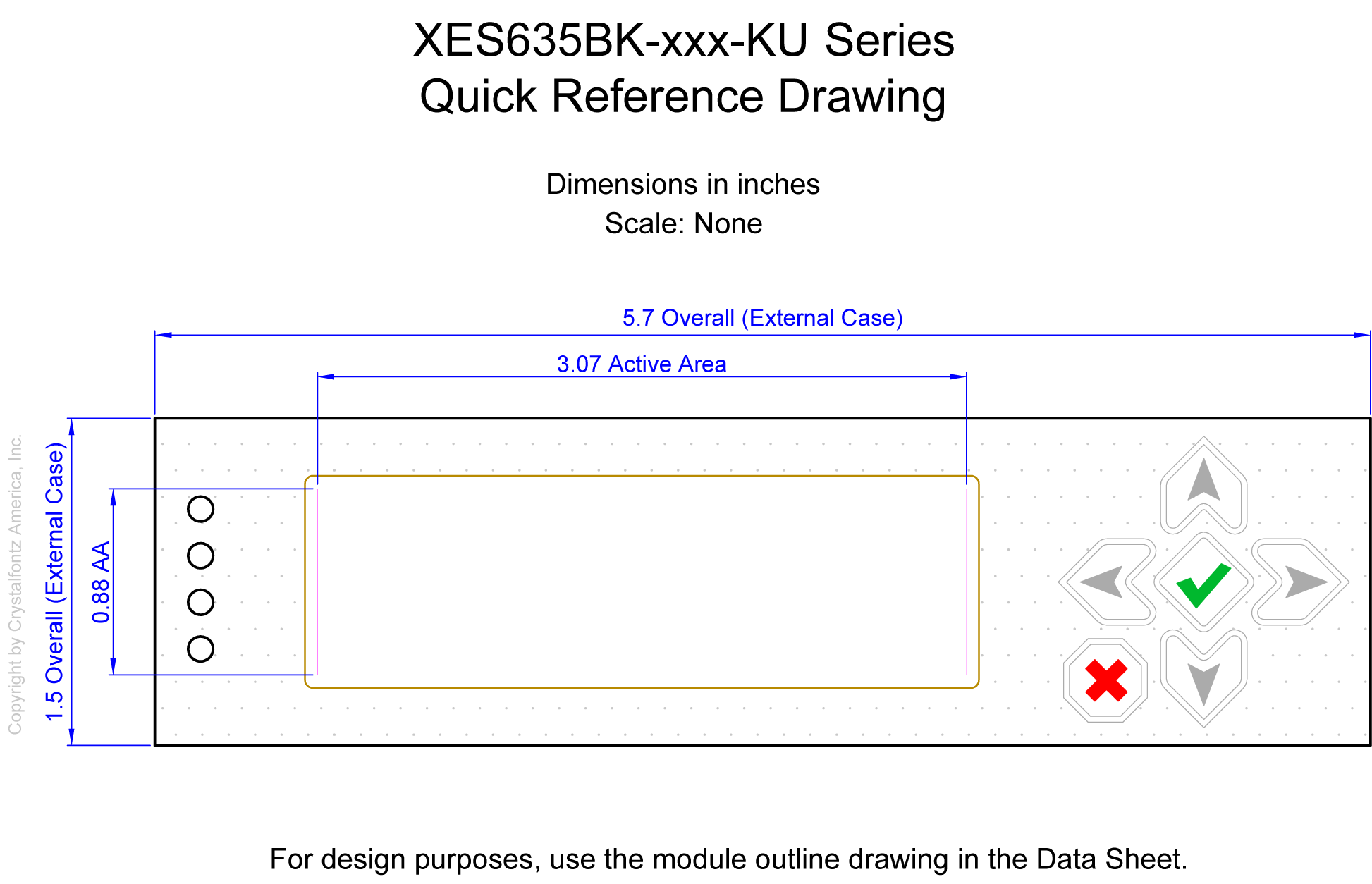

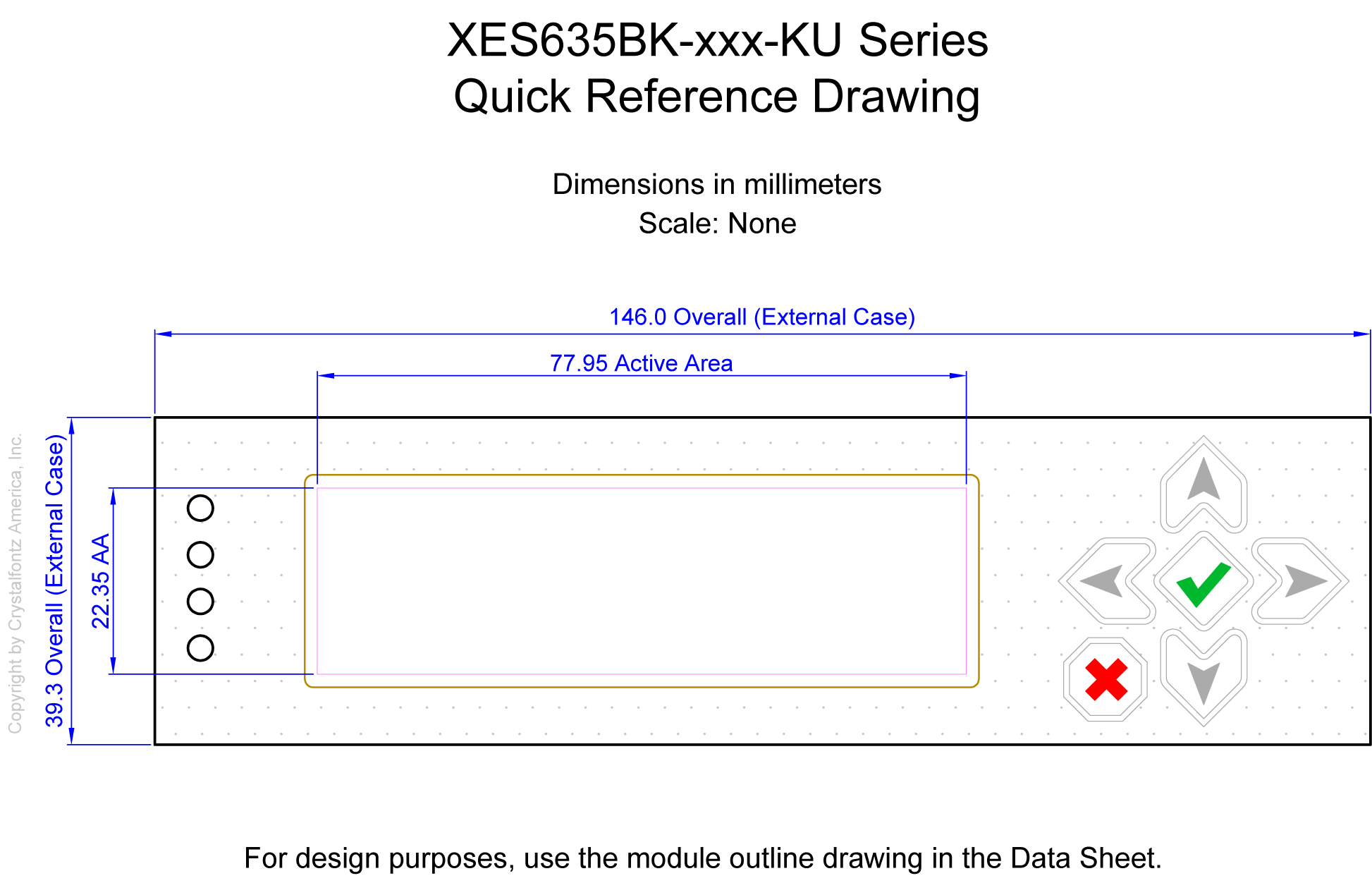

 square_foot Physical Characteristics
