CFA533/633 LCD Drive Bay Bracket

Part Number: DB533-BK

Do you already have a CFA533 or CFA633 and wish you had a drive bay mounting bracket for it? You're in luck! With the drive bay mounting bracket, a CFA533/CFA633 easily mounts to an open computer drive bay slot. This mounting bracket comes with all the necessary hardware to mount a CFA533/633.

Different color overlays are available. Please email sales with your desired color. We do not maintain stock on overlays, so minimum quantities may apply.

Note that this is only the mounting bracket! If you need a display and bracket, go to the page of the display you need. and click the "Customize and Add to Cart" button, then you can choose the option to add a mounting bracket.

• Mounts a backlit CFA533 or CFA633 display in a single PC "CDROM" size 5 1/4" drive bay.
• Precision formed rigid metal bracket

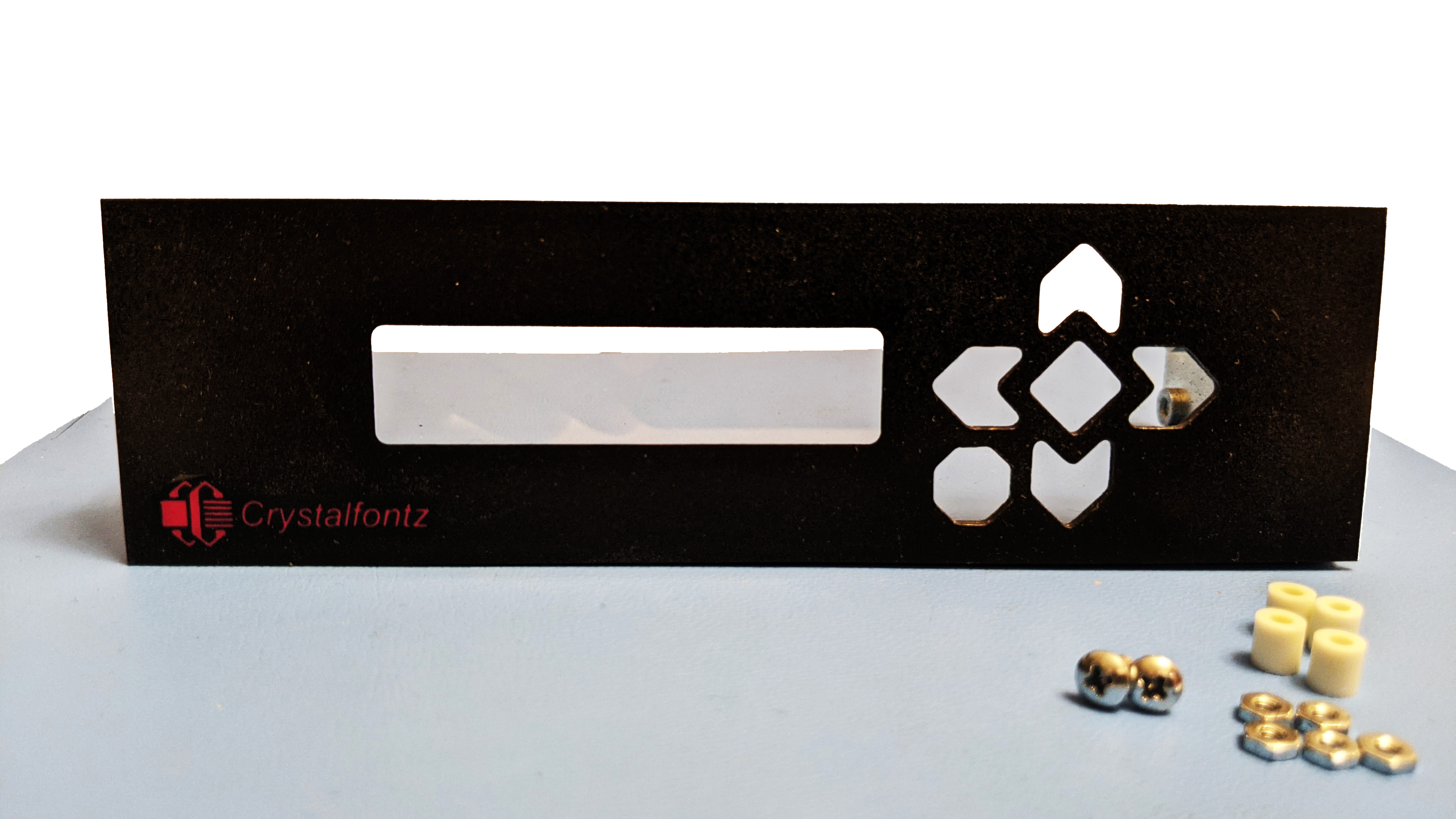

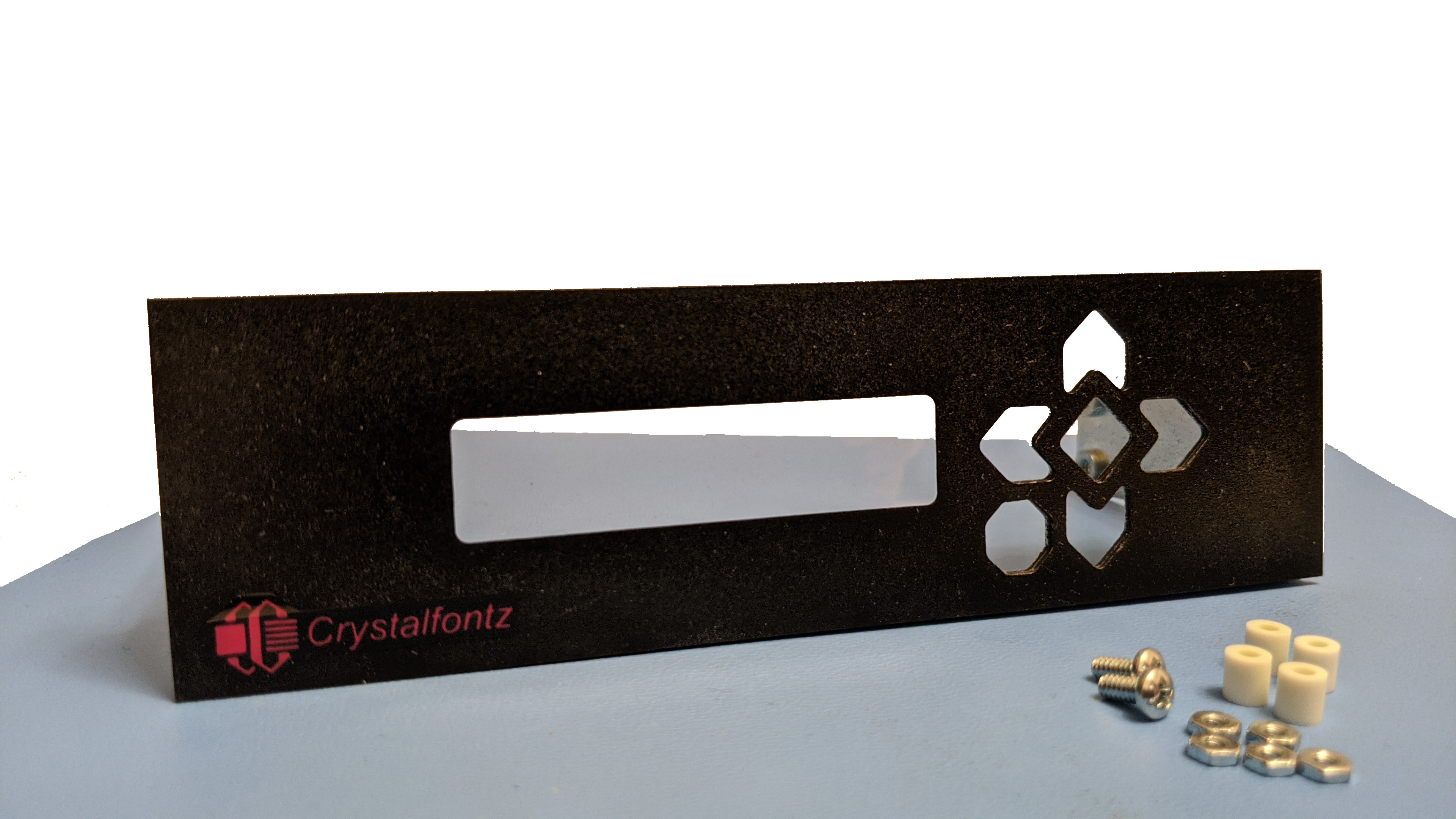

• Thick, hard-coated Lexan overlay protects the LCD

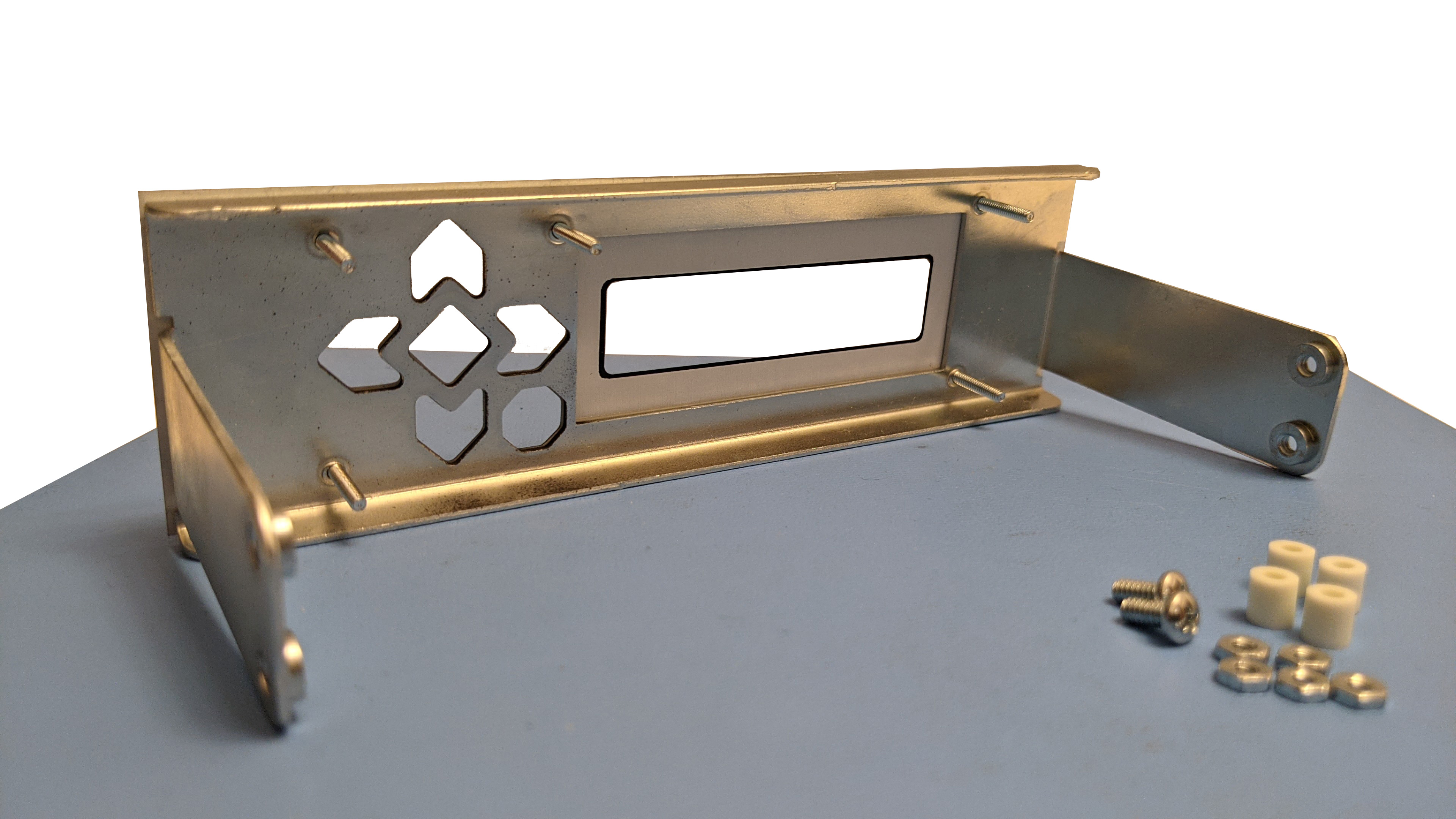

• Kit includes all screws, standoffs and nuts for mounting a CFA533 or CFA633
• Perfect for headless server environments
• The overlay can be customized with your logo and colors to add distinction to your product. (restrictions apply)

• square_foot Physical Characteristics

  Physical Characteristics

  Weight

  83.5g

• download Files and Downloads
  folder_zip Hardware Design - 3D Model

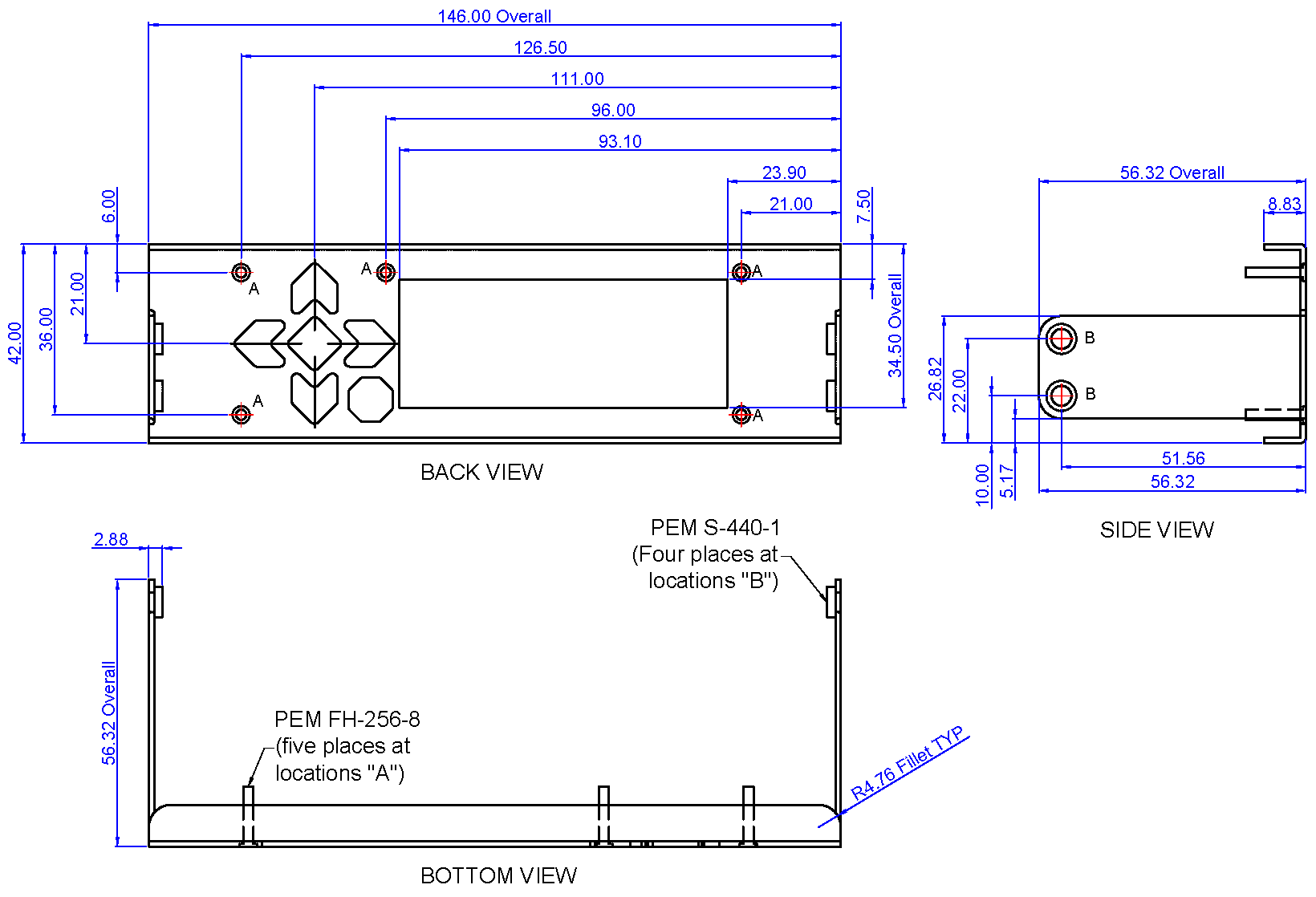

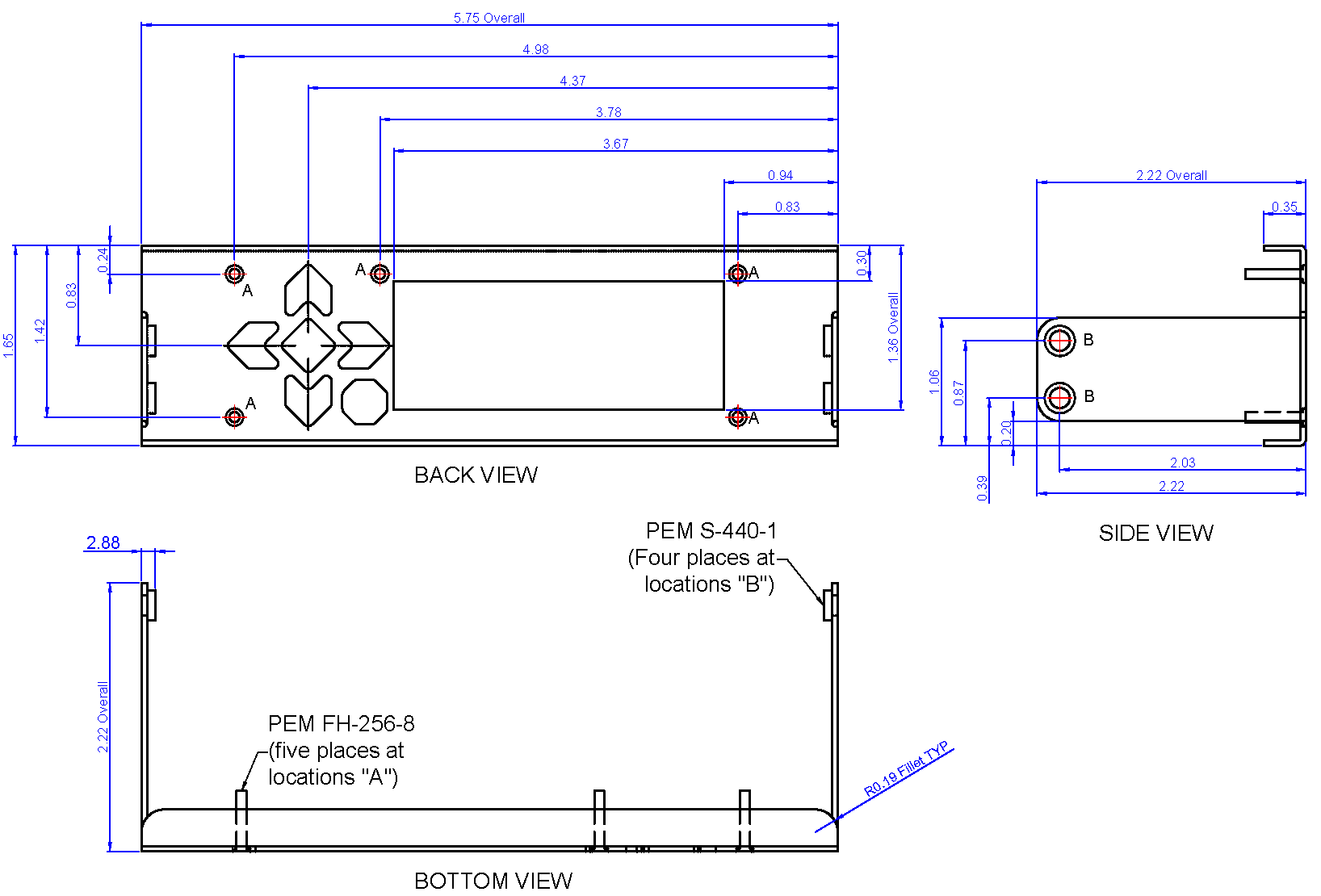

  picture_as_pdf 1 to 1 Template - DB633 Bracket Drawing.pdf


  picture_as_pdf Other Document - Drive Bay Kit Installation Guide

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
