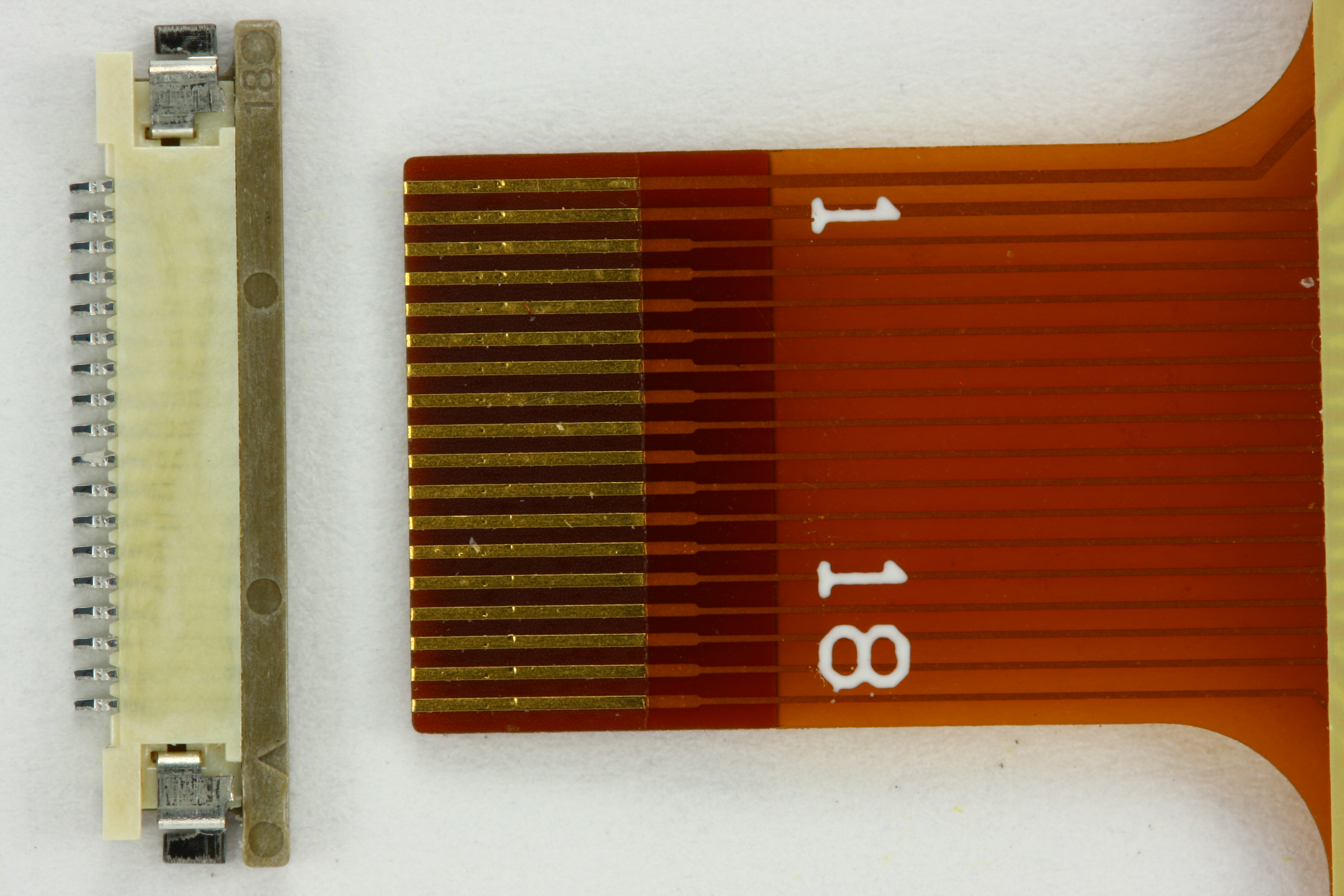

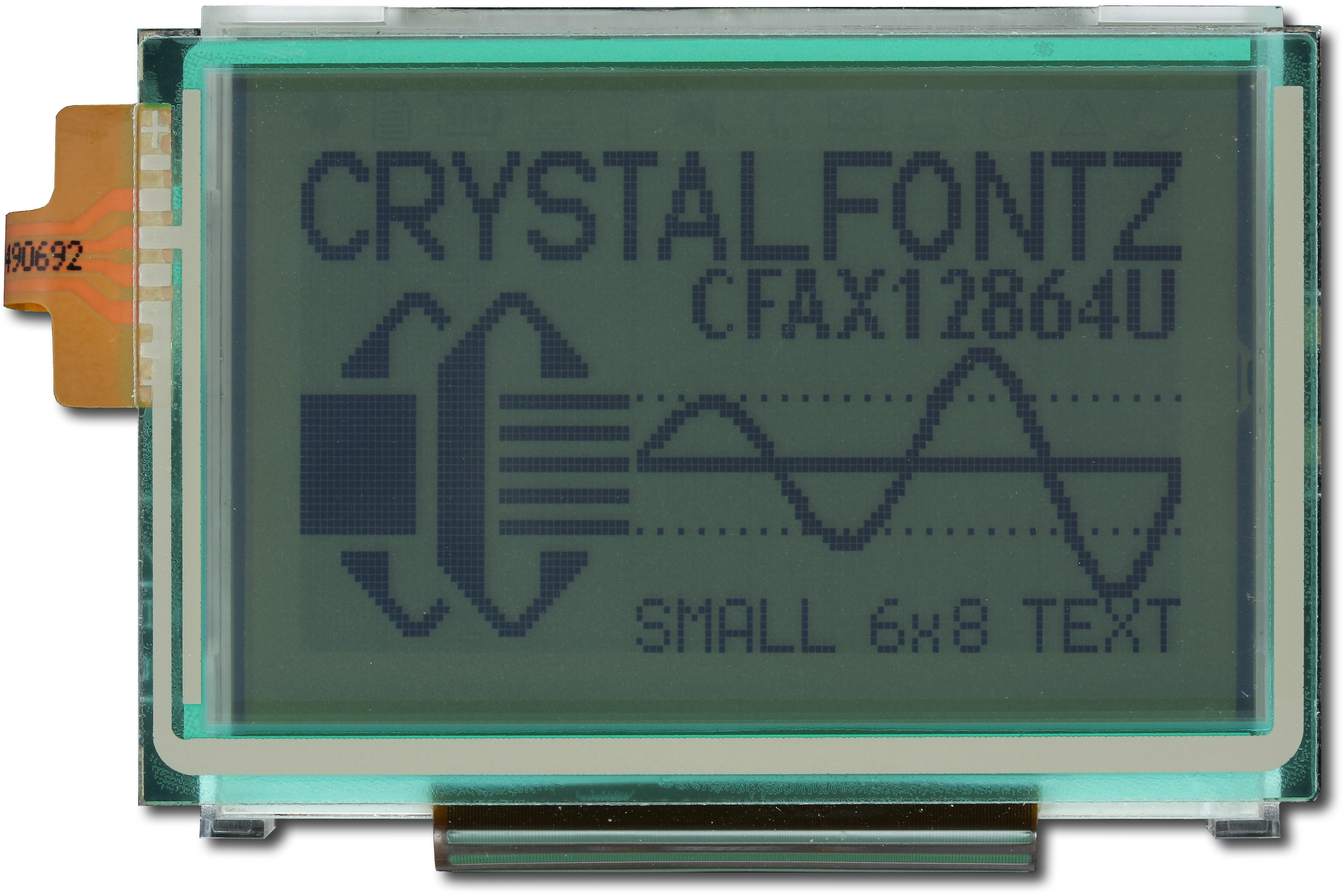

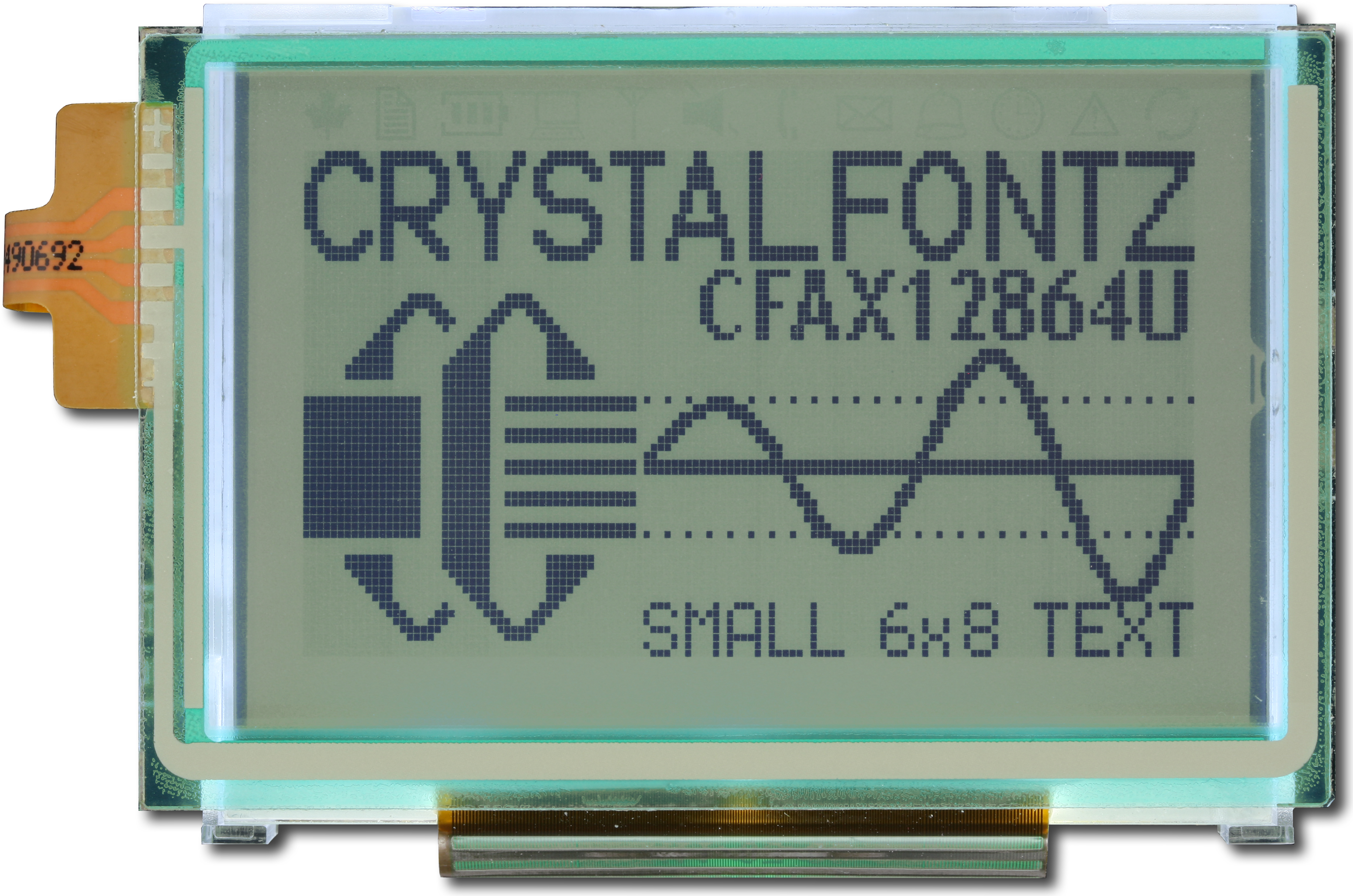

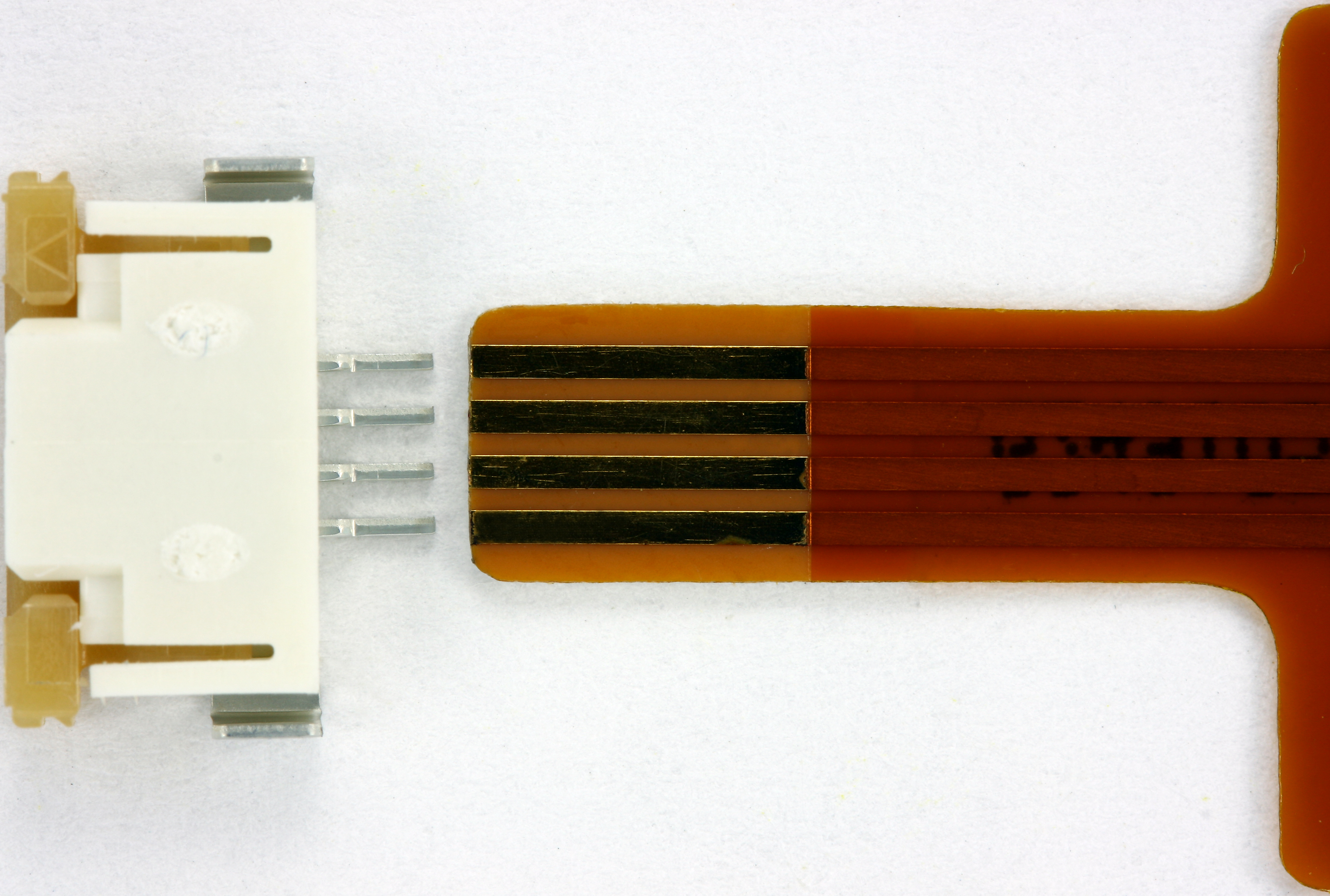

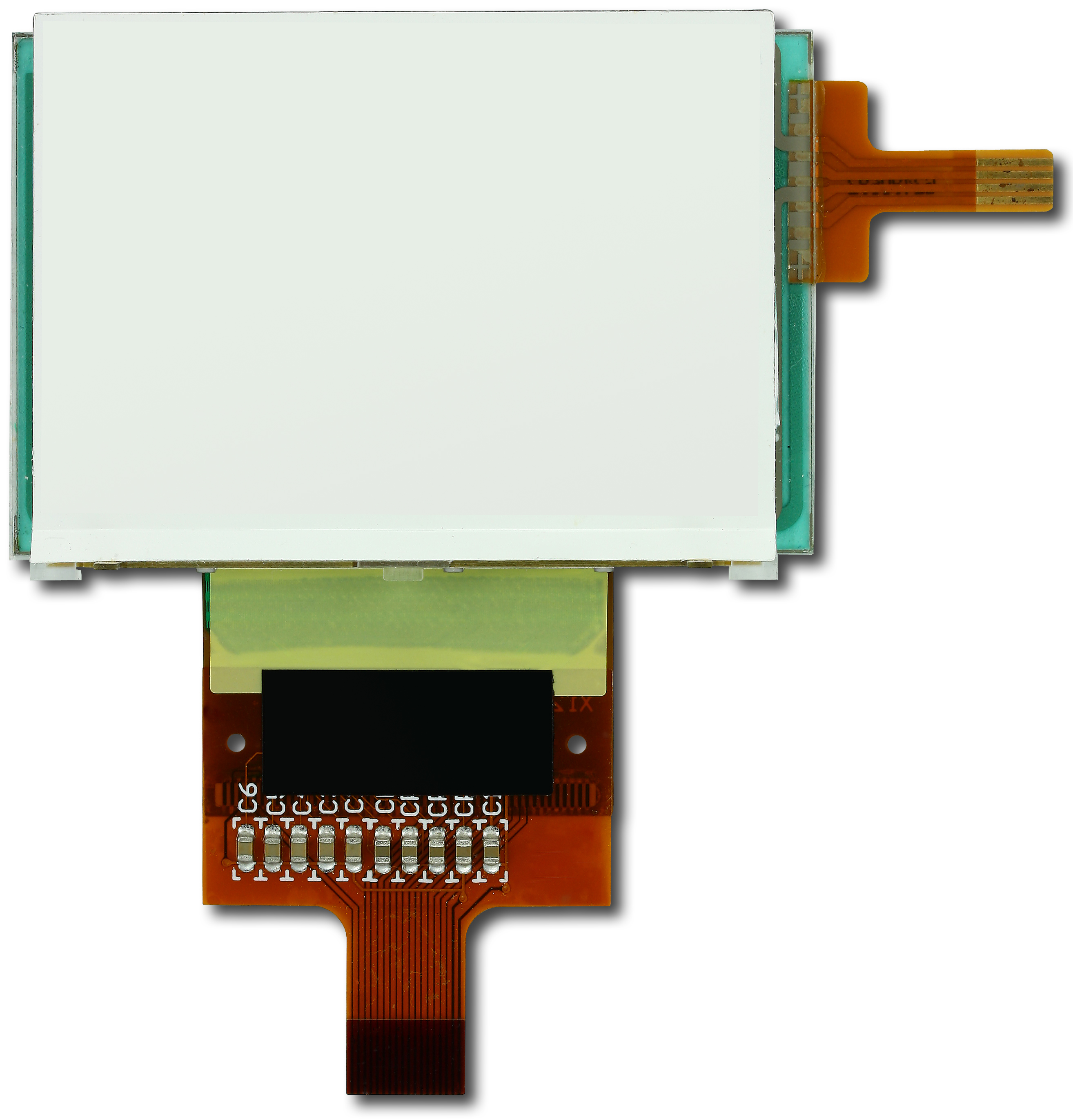

128x64 Touch Screen Graphic LCD (EOL)Part Number: CFAX12864U1-TFH-TSThis is a thin, extremely low-power 128x64 graphic LCD display module.  An integrated white LED backlight easily illuminates the display in low-light conditions, and you may drive it with a current limited voltage.  This display is perfectly suited for hand-held or any application that requires low power consumption a very thin display.  A row of icons is shown at the top of the display without having to be rendered.  The display has an integrated controller, 4-wire resistive touch panel, and the tail is designed to mate with standard 18-conductor 0.5mm pitch ZIF connectors (typical would be Omron XF2L18351A/ DigiKey P/N OR754CT-ND).  A typical touch panel connector is Molex 52207-0485 / DigiKey P/N WM7675CT-ND).
	Ultra thin and light TAB construction
	Fit, Form, and Function compatible with CFAX12864CP1 series of LCD modules
	Wide temperature range: -20°C to 70°C (-4°F to 158°F)
	Built-in Novatek NT7534 controller
	Great for handheld instruments, cell phones, PDAs, etc
	Ultra low power consumption

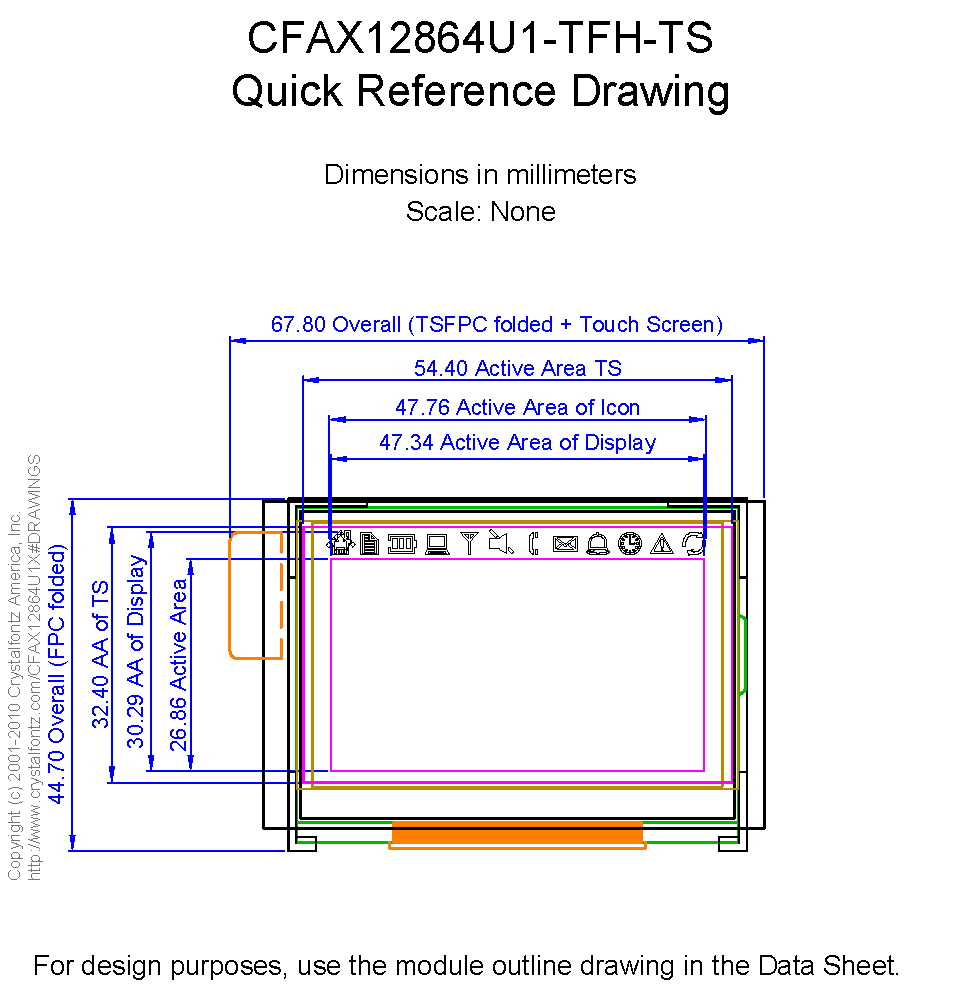

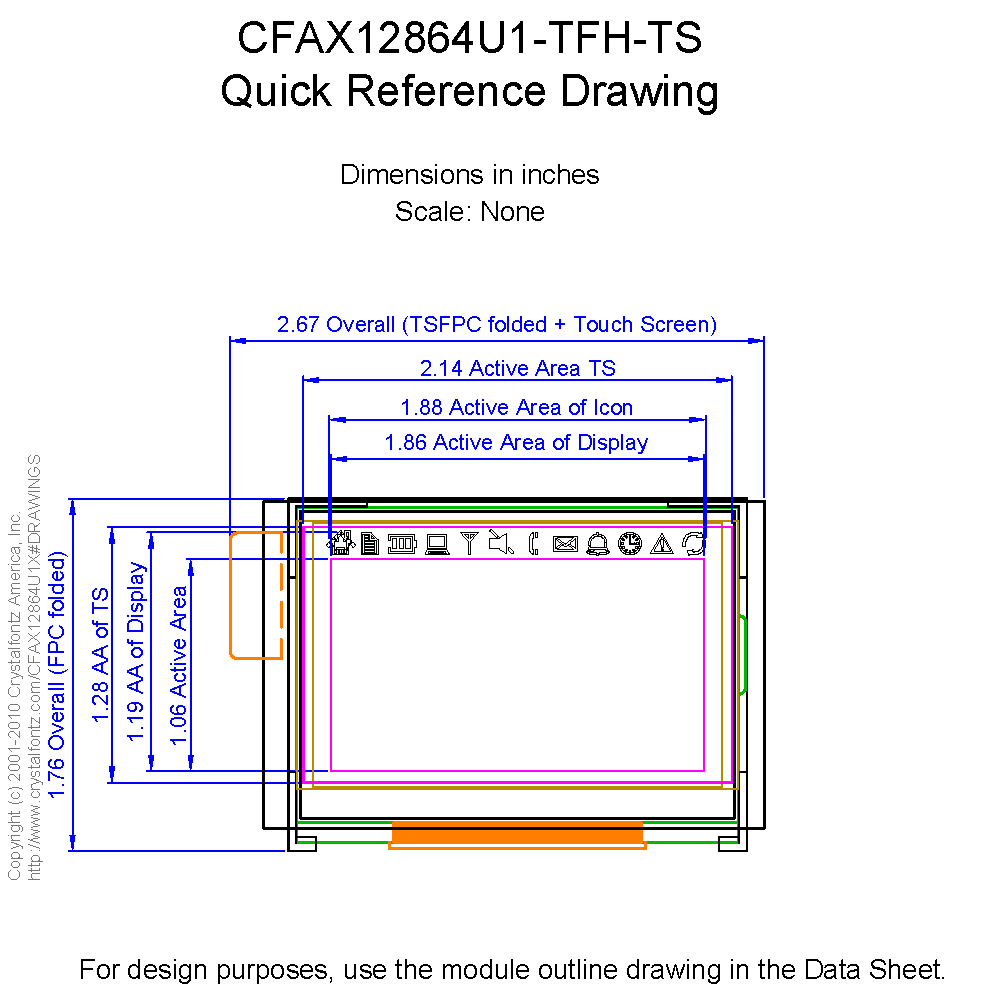

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        68.8
        44.7
        9.08

        inches
        2.71
        1.76
        0.36

*width / height does not include Foldable Tab

    Viewing Area        Width
        Height

        millimeters
        52
        33.5

        inches
        2.05
        1.32

    Active Area        Width
        Height

        millimeters
        47.34
        26.86

        inches
        1.86
        1.06

    Dot Size        Width
        Height

        millimeters
        0.35
        0.4

        inches
        0.014
        0.016

    Dot Pitch        Width
        Height

        millimeters
        0.37
        0.42

        inches
        0.015
        0.017

        Weight
            23g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            White

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Current Minimum
            0.18mA
Supply Current Maximum
            0.18mA

        Supply Current Typical
            0.18mA
Module Connector Pitch
            0.5mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V

        Forward Current Minimum
            43.2mA
Forward Current Maximum
            60mA
Forward Current Typical
            48mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Novatek NT7534
NT7534

132 X 65 RAM-Map STN LCD

Controller/Driver
(This controller is a possible replacement for the EOL Samsung S6B1713)
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAX12864U1TFHTS.pdf

 download Files and Downloads

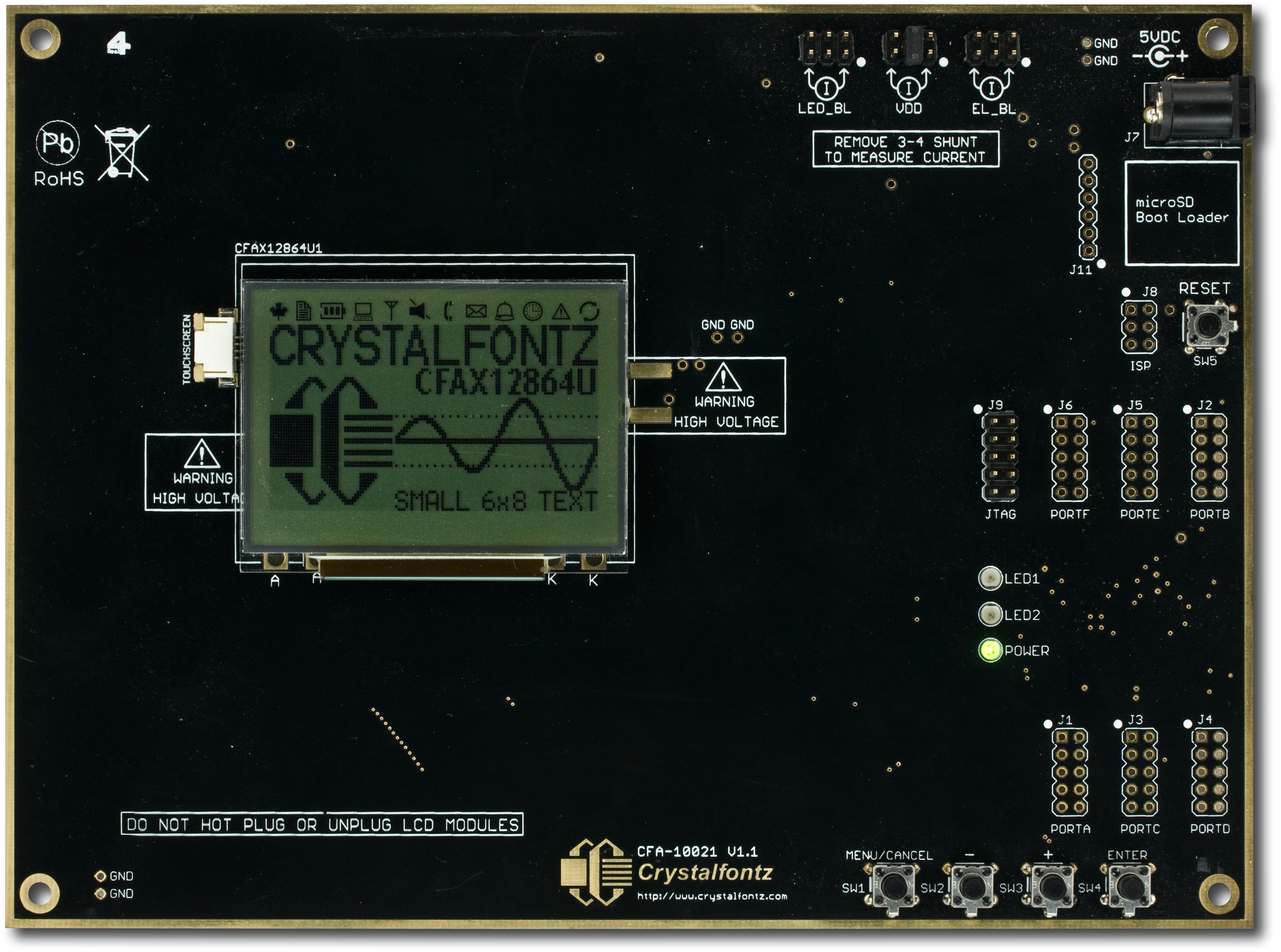

folder_zip Software Source - ATMega2561 Demo Code
folder_zip Software Source - CFAX WinTest for U1 / T1 series
folder_zip CAD Export - CFAX12864U1-TFHTS 2D CAD
picture_as_pdf 1 to 1 Template - CFAX12864U1-TFH-TS 1 TO 1.pdf

128x64 Touch Screen Graphic LCD (EOL)

Part Number: CFAX12864U1-TFH-TS

Physical Characteristics

Optical Characteristics

Electrical Specifications

Backlight Electrical Specifications

Environmental

Electronics

LCD Software

User Forum

Tech Support

Module Overall	width	height	depth
millimeters	68.8	44.7	9.08
inches	2.71	1.76	0.36
*width / height does not include Foldable Tab

Glass Type/Glass Color	FSTN/Light Gray
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Color	White
Backlight Type	LED
Mode	Positive
Foreground Color	Dark
Background Color	White

Supply Current Minimum	0.18mA
Supply Current Maximum	0.18mA

Supply Current Typical	0.18mA
Module Connector Pitch	0.5mm

Forward Voltage Minimum	3.4V
Forward Voltage Maximum	3.6V
Forward Voltage Typical	3.5V

Forward Current Minimum	43.2mA
Forward Current Maximum	60mA
Forward Current Typical	48mA

Controller Documents	Novatek NT7534 NT7534 132 X 65 RAM-Map STN LCD Controller/Driver (This controller is a possible replacement for the EOL Samsung S6B1713)
Interface	8-bit Parallel, SPI
