                This product is not recommended for new designs as it is permanently end-of-life. We recommend CFAX12864T1TFH as a replacement display.
Novatek 128x64 Graphic SPI LCDPart Number: CFAX12864T-WFHDiscontinued

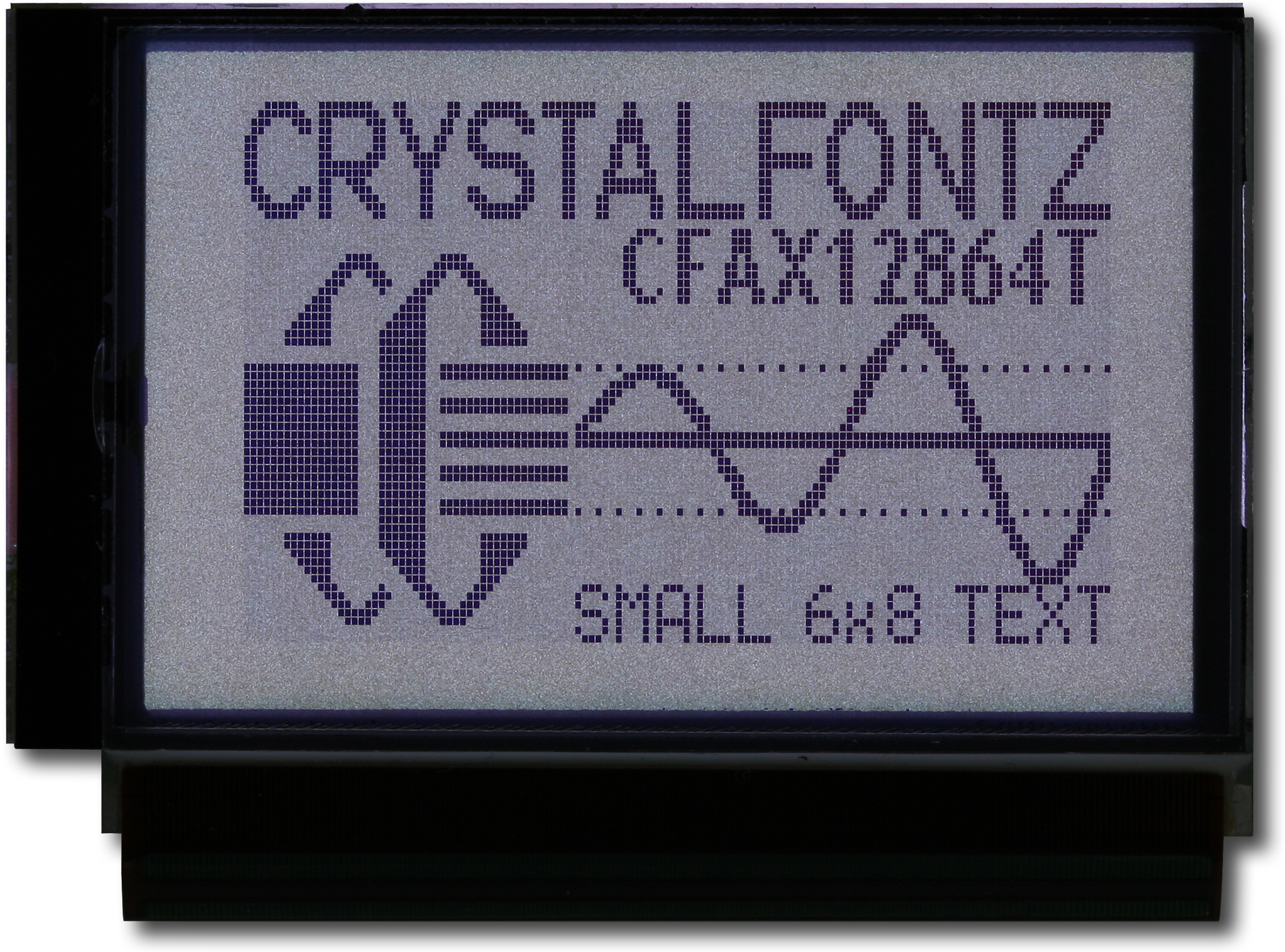

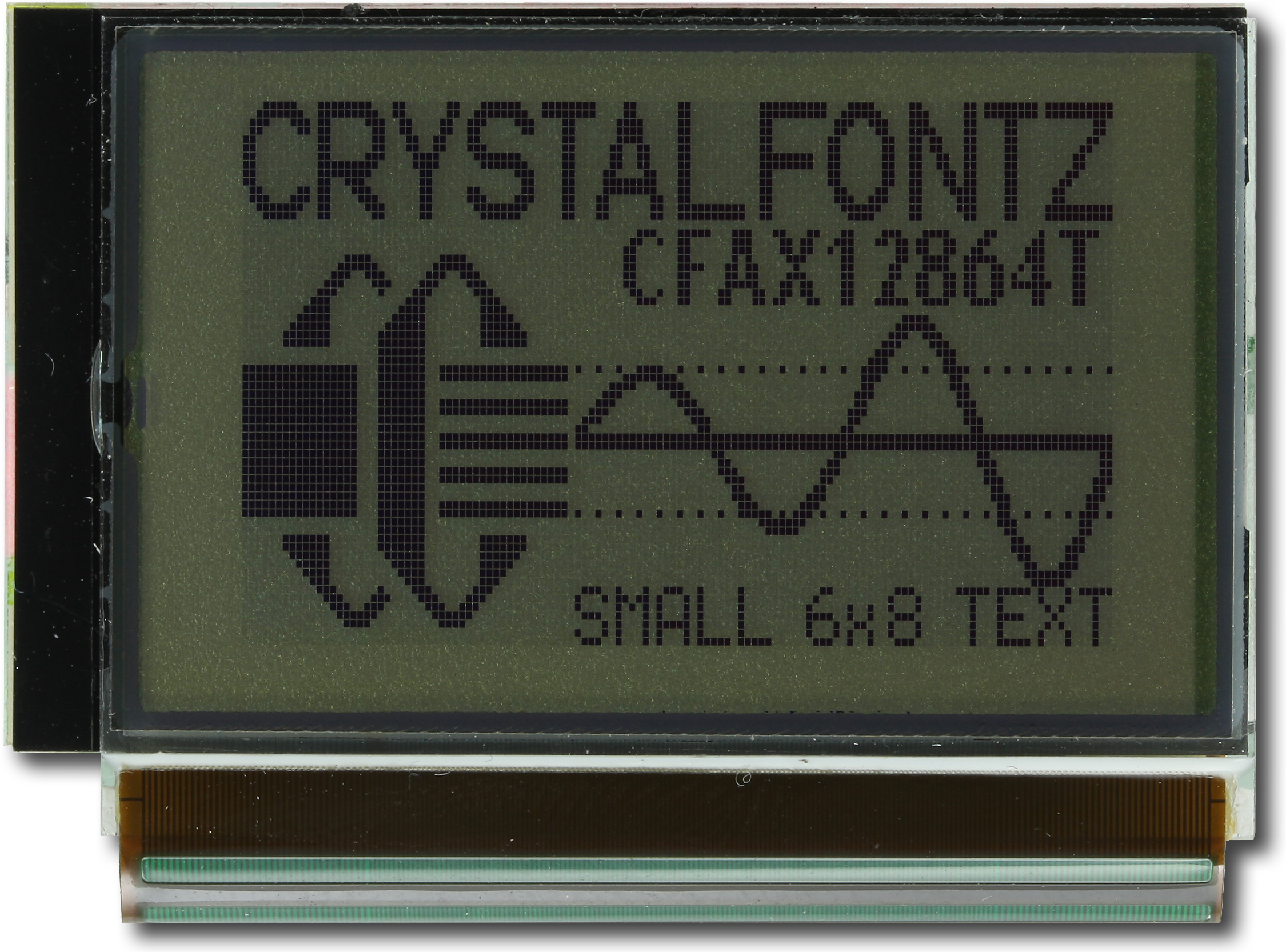

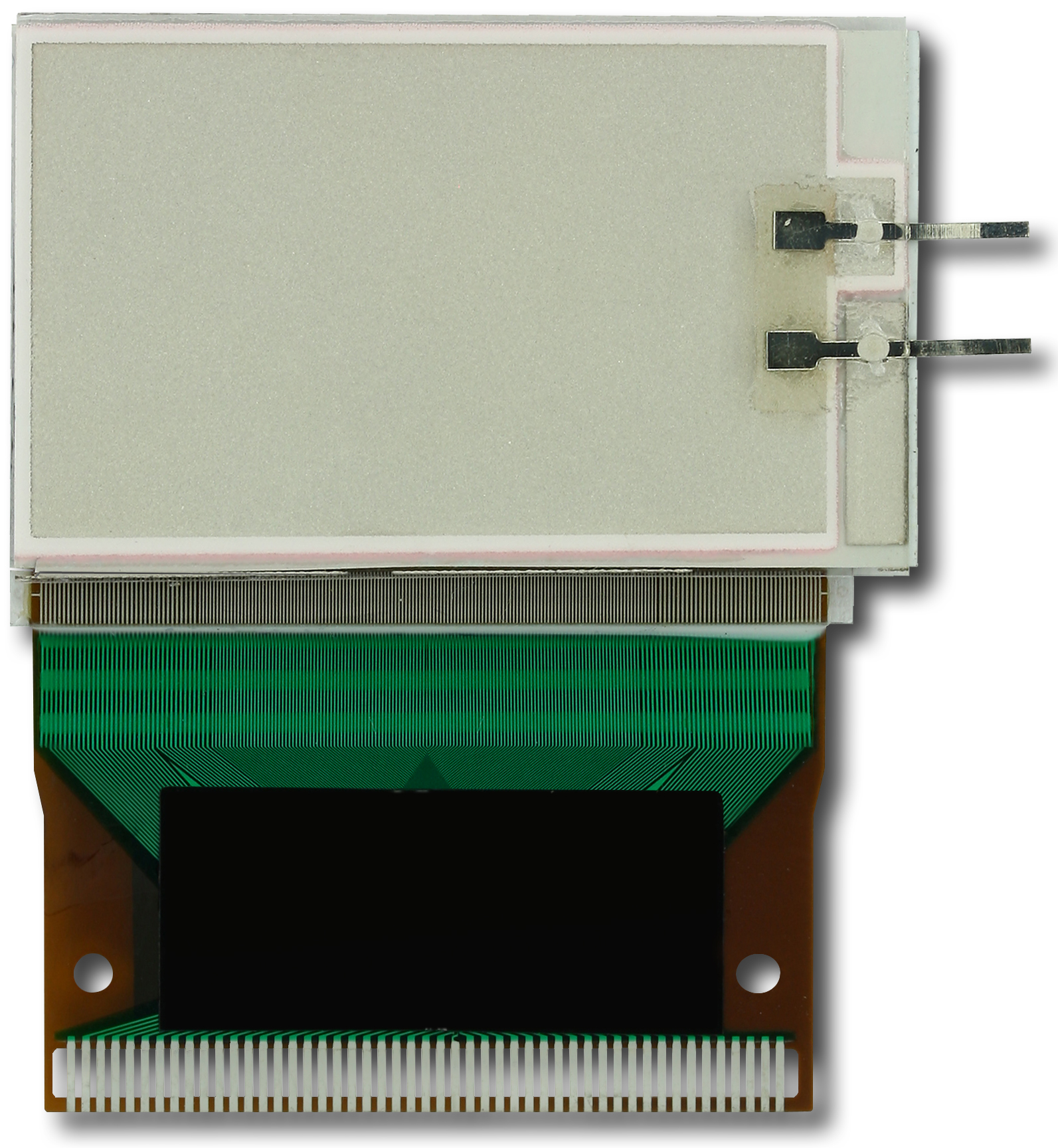

This is a thin, extremely low-power 128x64 graphic LCD display.  An integrated white EL backlight easily illuminates the display in low-light conditions.  This display is perfectly suited for hand-held or any application requiring low power consumption or a very thin display.  It has an integrated controller. The FFC is designed for inexpensive mass-production, with no need for a mating connector as the module and backlight connections solder directly to your PCB.
Ultra thin and light TAB construction
Form and Function compatible with CFAX12864A series of LCD modules
Wide temperature range: -20°C to 70°C (-4°F to 158°F)
Built-in Novatek NT7534 controller
Great for handheld instruments, cell phones, PDAs, etc
Ultra low power consumption
RoHS Compliant

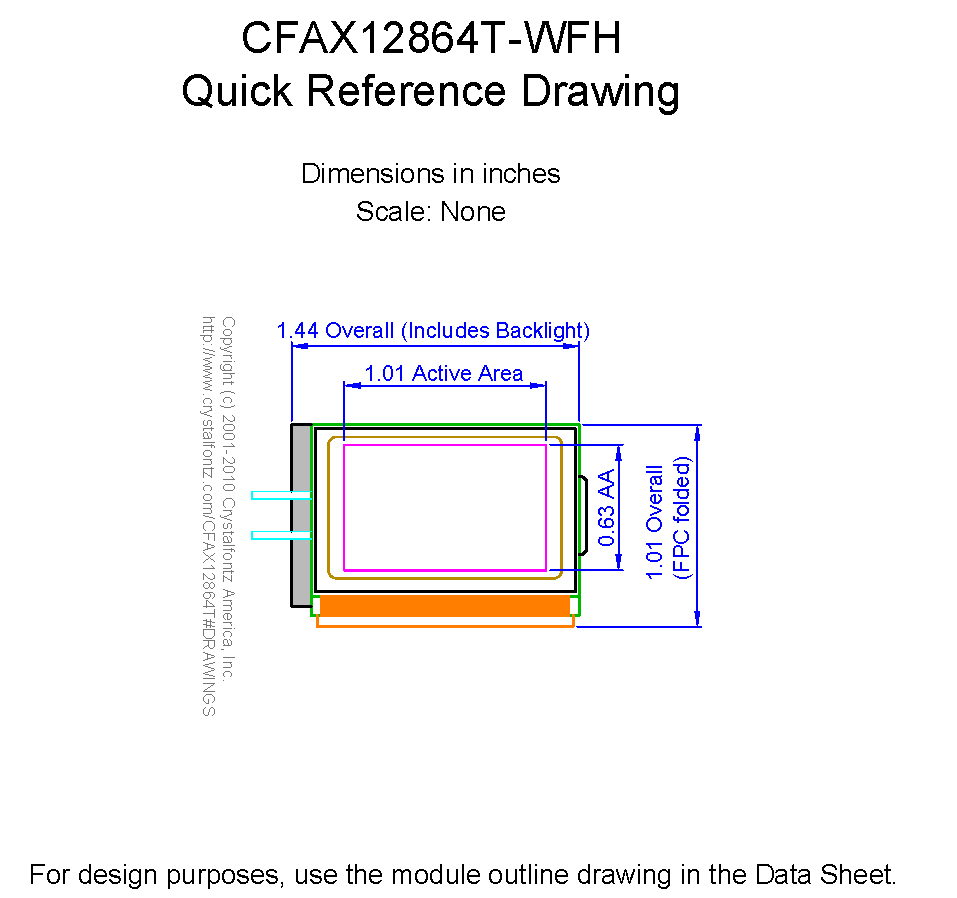

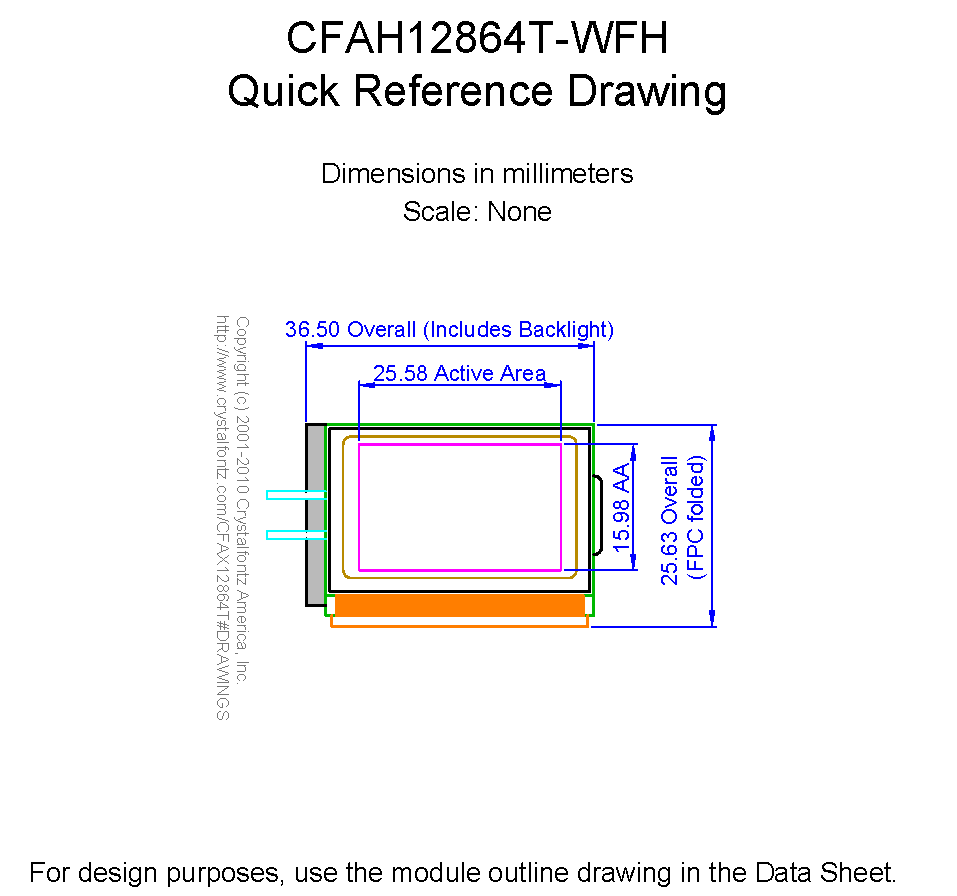

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        42.49
        25.63
        3.63

        inches
        1.67
        1.01
        0.14

*width / height does not include Foldable Tab

        Diagonal Dimension
            1.19"

    Viewing Area        Width
        Height

        millimeters
        29.58
        17.98

        inches
        1.17
        0.71

    Active Area        Width
        Height

        millimeters
        25.58
        15.98

        inches
        1.01
        0.63

    Dot Size        Width
        Height

        millimeters
        0.18
        0.23

        inches
        0.007
        0.009

    Dot Pitch        Width
        Height

        millimeters
        0.2
        0.25

        inches
        0.008
        0.010

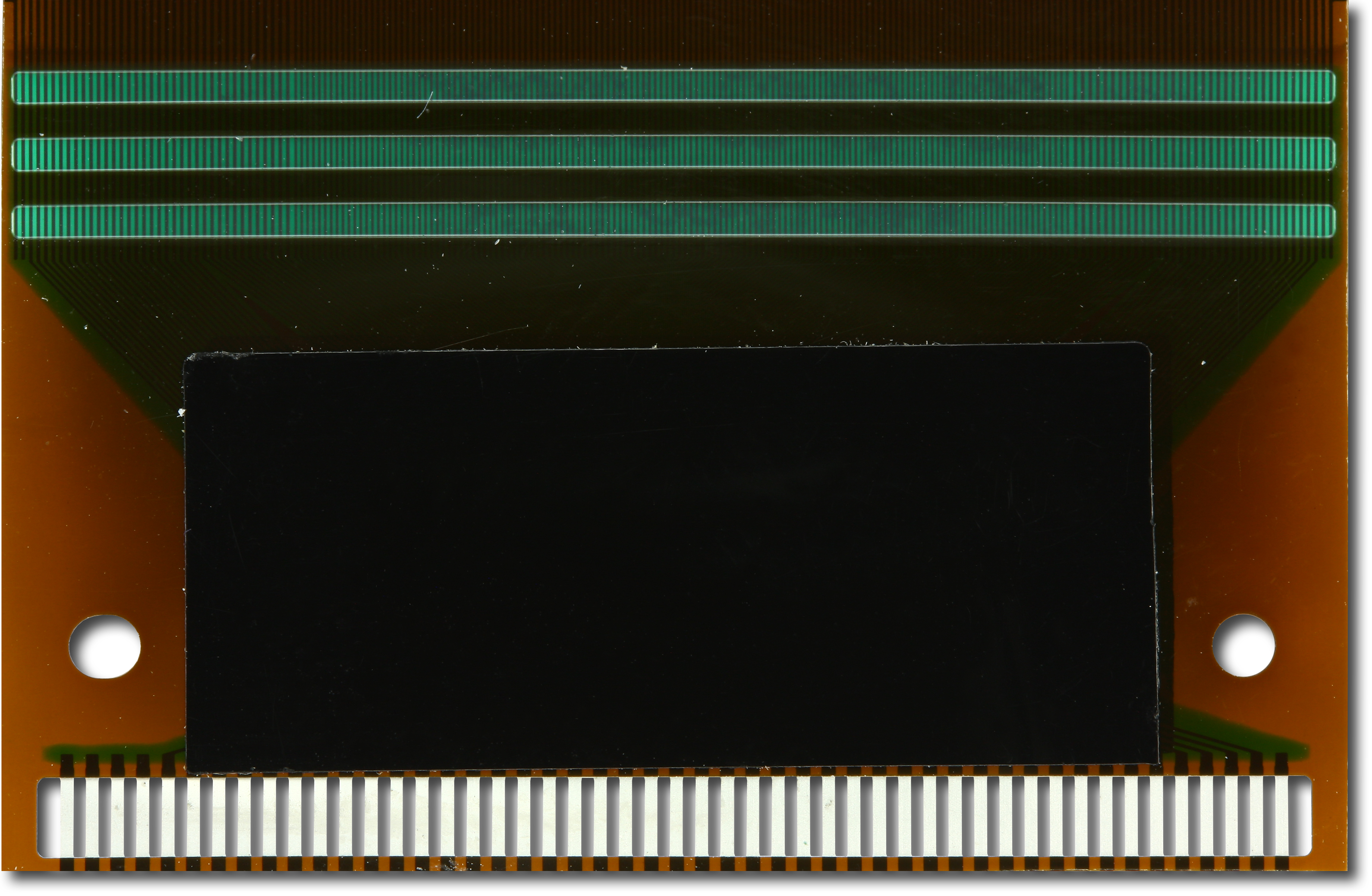

    Flexible Cable (FFC/FPC)        length

        millimeters
        19.5

        inches
        0.768

        Weight
            3g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            EL White
Backlight Type
            EL
Mode
            Positive
Foreground Color
            Dark
Background Color
            White

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Current Minimum
            0.18mA
Supply Current Maximum
            0.18mA

        Supply Current Typical
            0.18mA
Module Connector Pitch
            0.6mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Novatek NT7534
NT7534

132 X 65 RAM-Map STN LCD

Controller/Driver
(This controller is a possible replacement for the EOL Samsung S6B1713)
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAX12864T-WFH.pdf

 download Files and Downloads

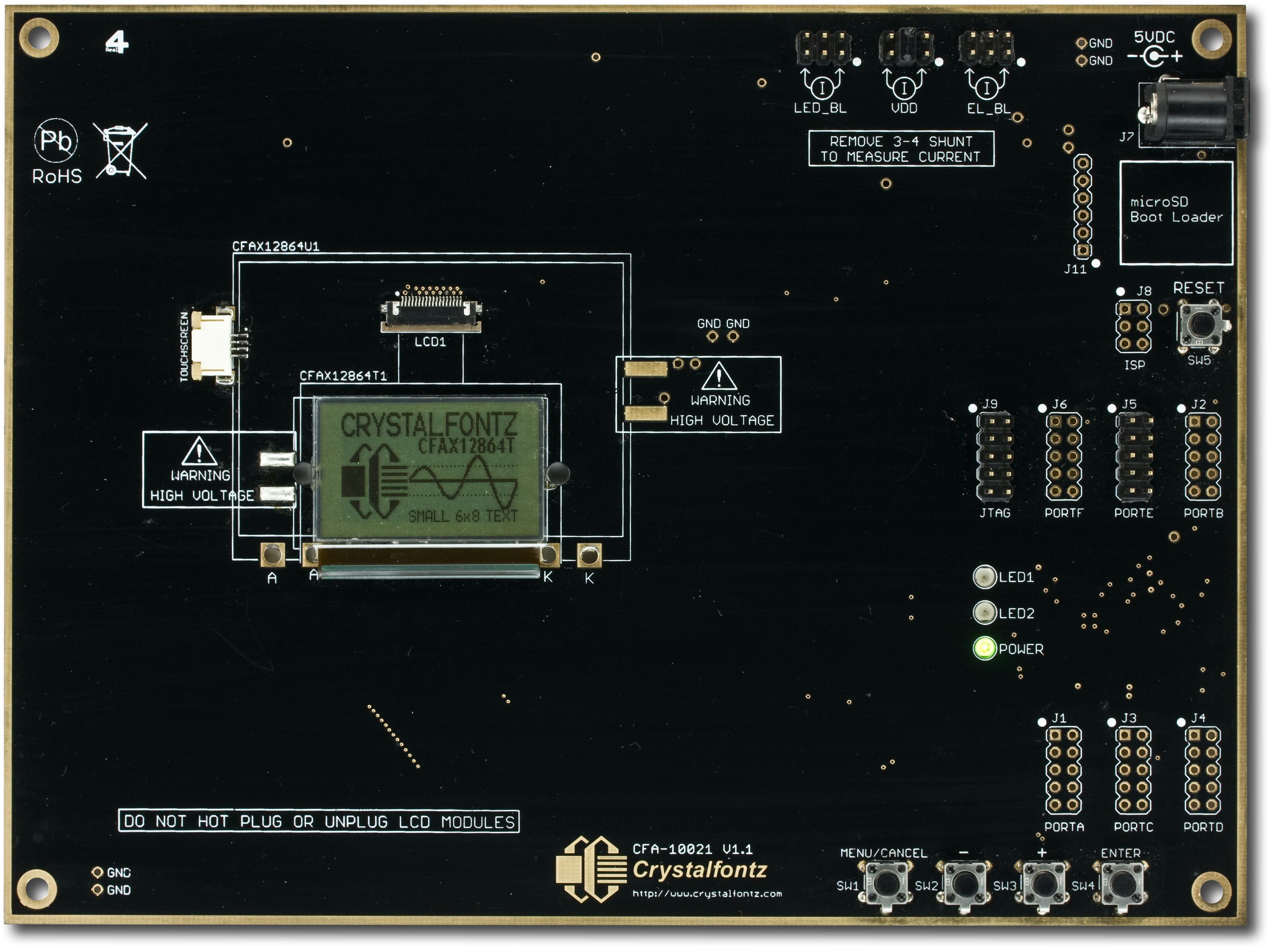

folder_zip Software Source - ATMega2561 Demo Code
folder_zip Software Source - ATMega2561 SPI example code
folder_zip CAD Export - CFAX12864T-WFH 2D CAD
picture_as_pdf 1 to 1 Template - CFAX12864T-WFH 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	42.49	25.63	3.63
inches	1.67	1.01	0.14
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	29.58	17.98
inches	1.17	0.71

Active Area	Width	Height
millimeters	25.58	15.98
inches	1.01	0.63

Dot Size	Width	Height
millimeters	0.18	0.23
inches	0.007	0.009

Dot Pitch	Width	Height
millimeters	0.2	0.25
inches	0.008	0.010

Flexible Cable (FFC/FPC)	length
millimeters	19.5
inches	0.768

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10858: End of Life Notice

Products Affected:	CFAX12864T-NFH, CFAX12864T-WFH, CFAX12864T-TFH, CFAX12864U-NFH, CFAX12864U-WFH, CFAX12864U-TFH
Date Issued:	June 8, 2017
Summary:	End of Life Notice
Description:	The following products have reached the end of their lifecycle.
Reason:	The controller chip used in these parts will not be available after August 2017.
Impact:	These parts will not be available for purchase after the dates for the last time buys.
Availability:	Due to long manufacturing lead times, all orders for last time buys must be received by July 14, 2017.
Price Change:	Prices will not change from the current prices.

Product Update #10592: EL and CCFL backlight display modules End of Life

Products Affected:	CFAG12864B-WGH-N, CFAG12864B-WGH-V, CFAG320240CX-FMI-T, CFAG24064A-FMI-TZ, CFAG24064A-FTI-TZ, CFAX12864U1-WFH, CFAX12864T1-WFH, CFAX12864T-WFH, CFAX12864U-WFH
Date Issued:	June 13, 2014
Summary:	EL and CCFL backlight display modules End of Life
Last revision:	Varies
Description:	EL and CCFL backlight display module are going End Of Life 2014-06-31.
Reason:	Market trends and new product development have reduced demand for EL and CCFL backlights with a move to longer life and less expensive LED backlights. Backlight inverters that support EL and CCFL backlights are also EOL: https://www.crystalfontz.com/news/pcn.php?id=10591
Impact:	EL and CCFL backlight display modules will no longer be available.
Recommendation:	It is recommended that customers currently using EL or CCFL based modules to transition to an LED based counterpart. This will re
Availability:	Last orders must be received no later than 2014-06-31. Last shipments will be late September of 2014. Current inventory at Crystalfontz America will not be replenished and sold until exhausted.
Price Change:	No price change.
