            This product has reached end of life. We suggest the CFAG12864T2-NFH as a possible replacement.

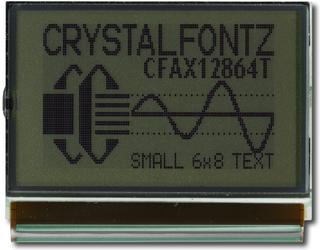

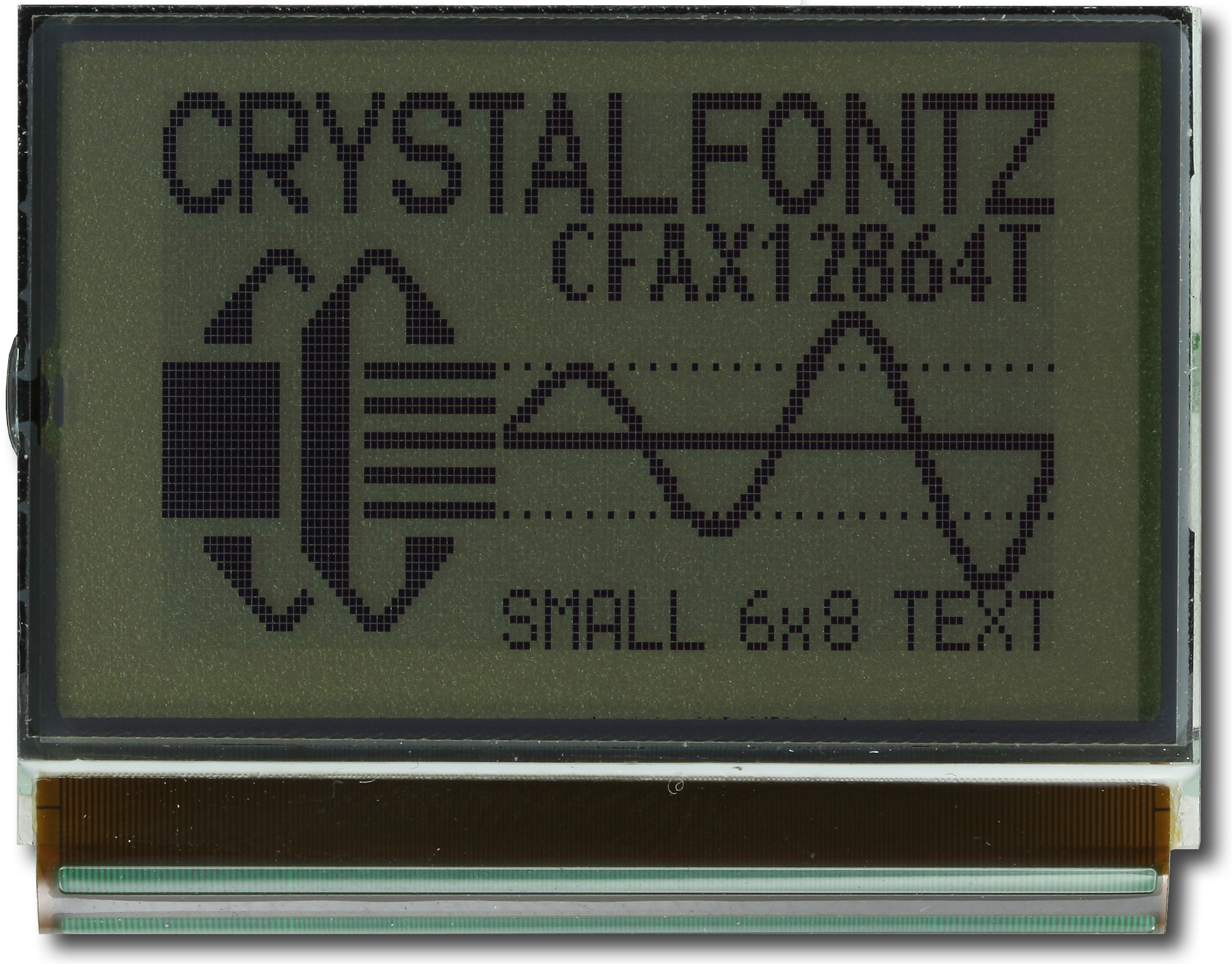

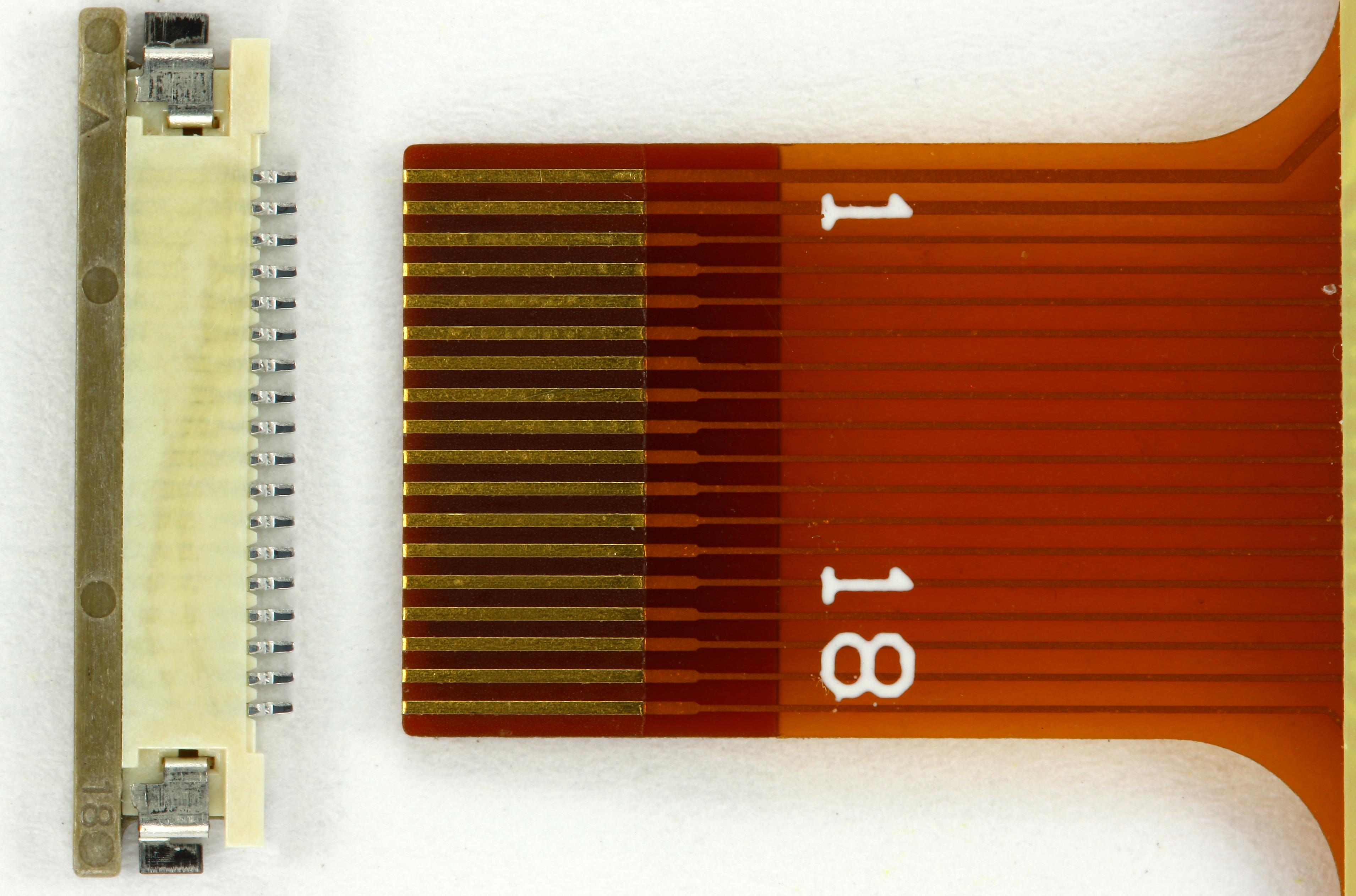

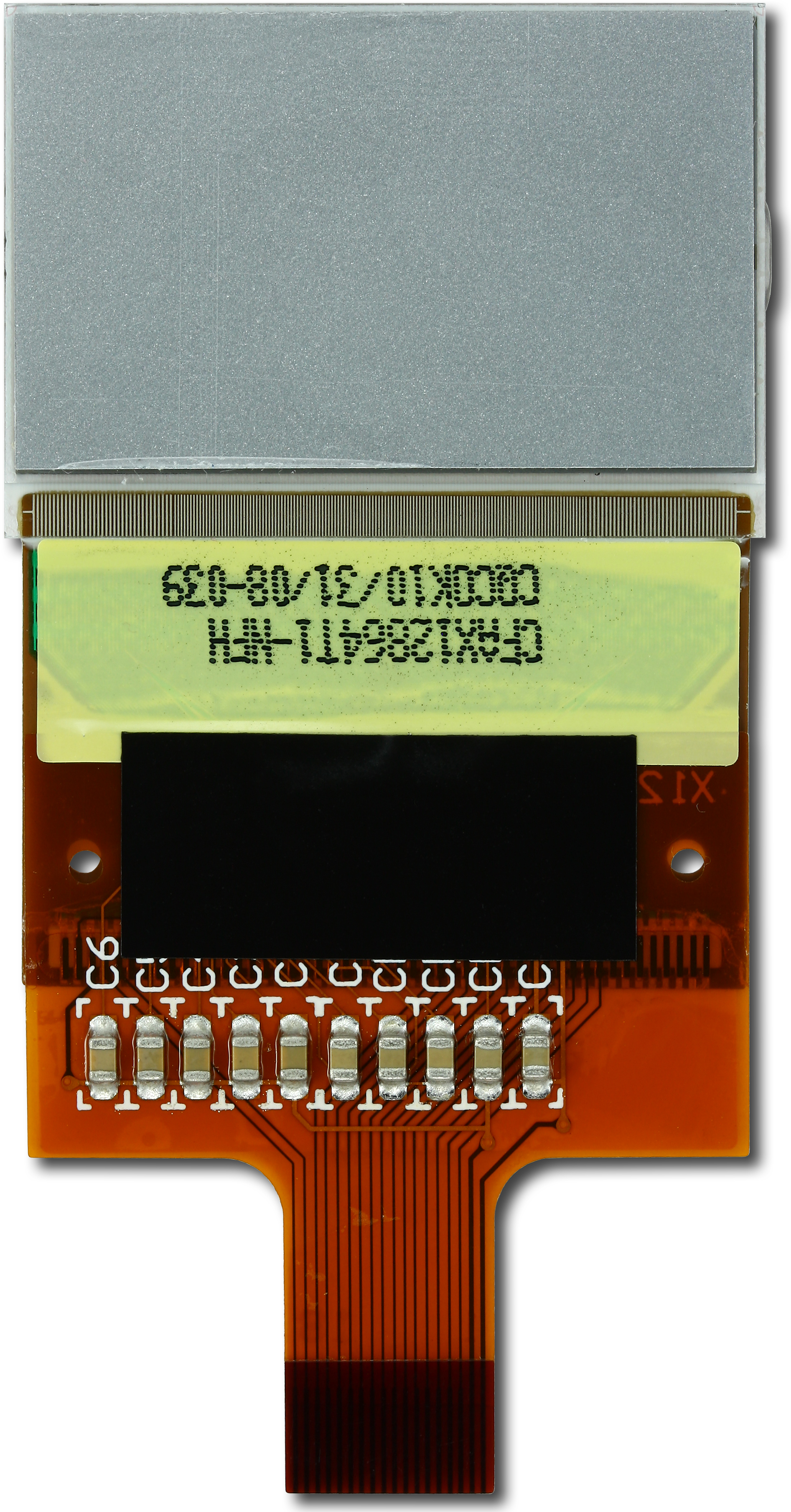

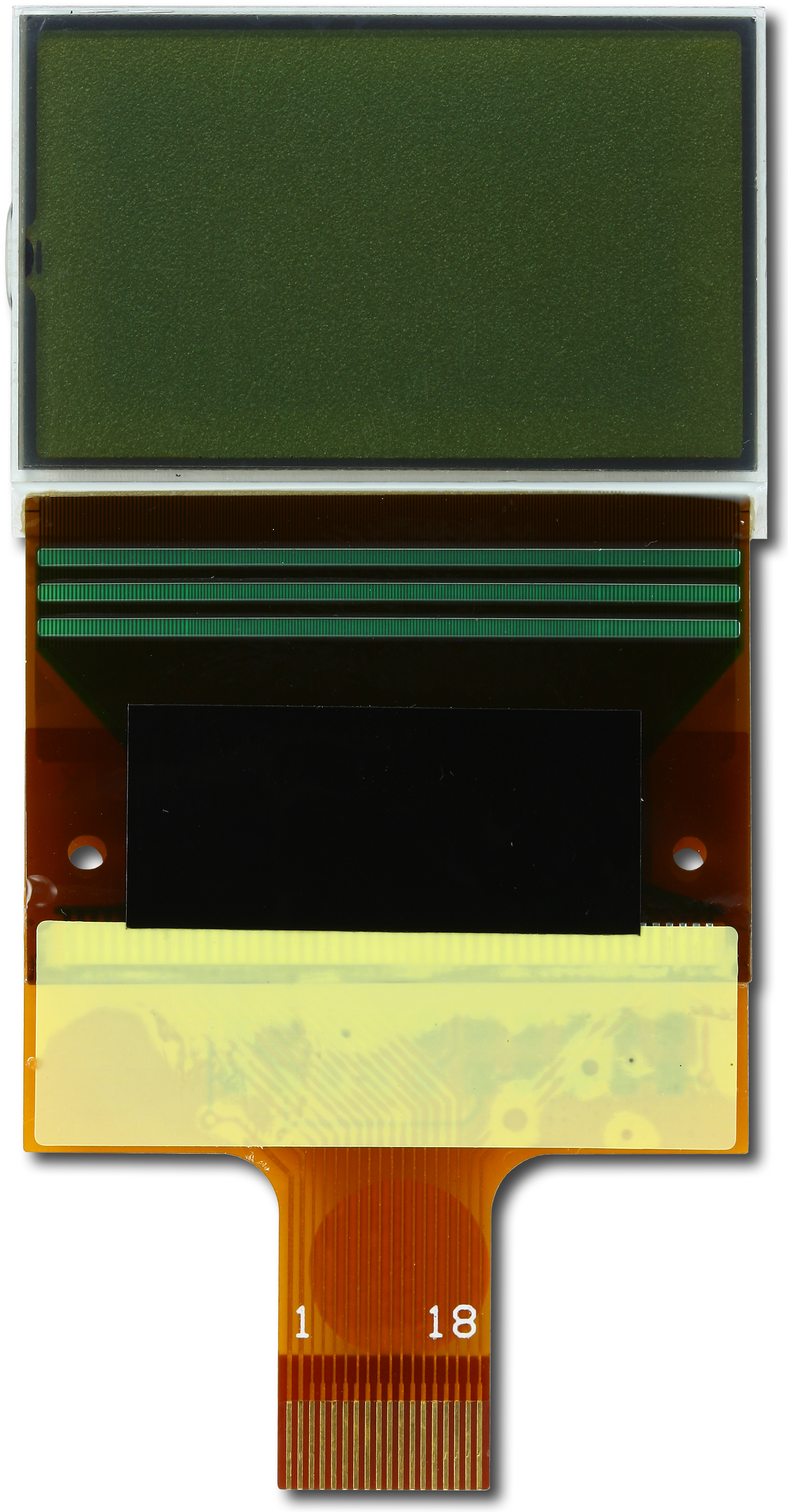

EOL Transflective Graphical LCDPart Number: CFAX12864T1-NFHThis is a thin, extremely low-power 128x64 graphic LCD display module.  It has no backlight, so consumes no power to illuminate the display. However, if you wanted to backlight the module, the rear polarizer is transflective, so you could add your own lighting solution there. This display is perfectly suited for hand-held or any application requiring low power consumption or a very thin display. It has an integrated controller and the tail is designed to mate with standard 18-conductor 0.5mm pitch ZIF connectors (typical would be Omron XF2L18351A/ DigiKey P/N OR754CT-ND).
	Ultra thin and light TAB construction
	Form, and Function compatible with CFAX12864AP1 series of LCD modules
	Wide temperature range: -20°C to 70°C (-4°F to 158°F)
	Built-in Novatek NT7534 controller
	Demonstration board available.
	Great for handheld instruments, cell phones, PDAs, etc
	Ultra low power consumption
	RoHS Compliant

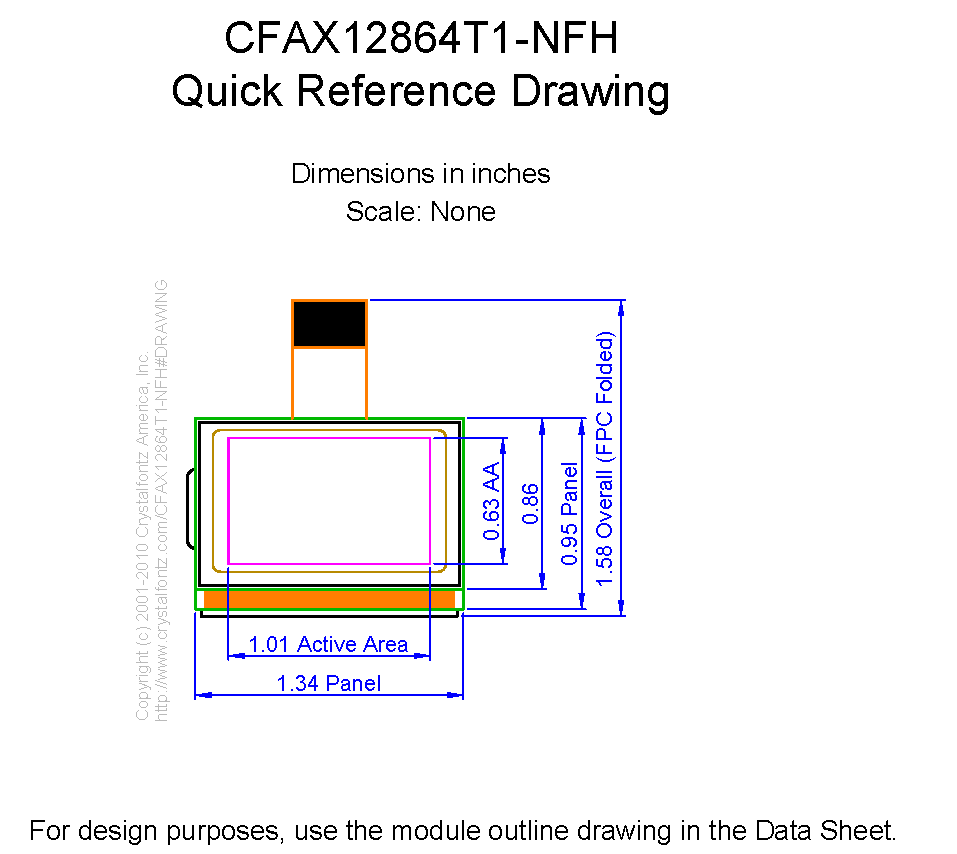

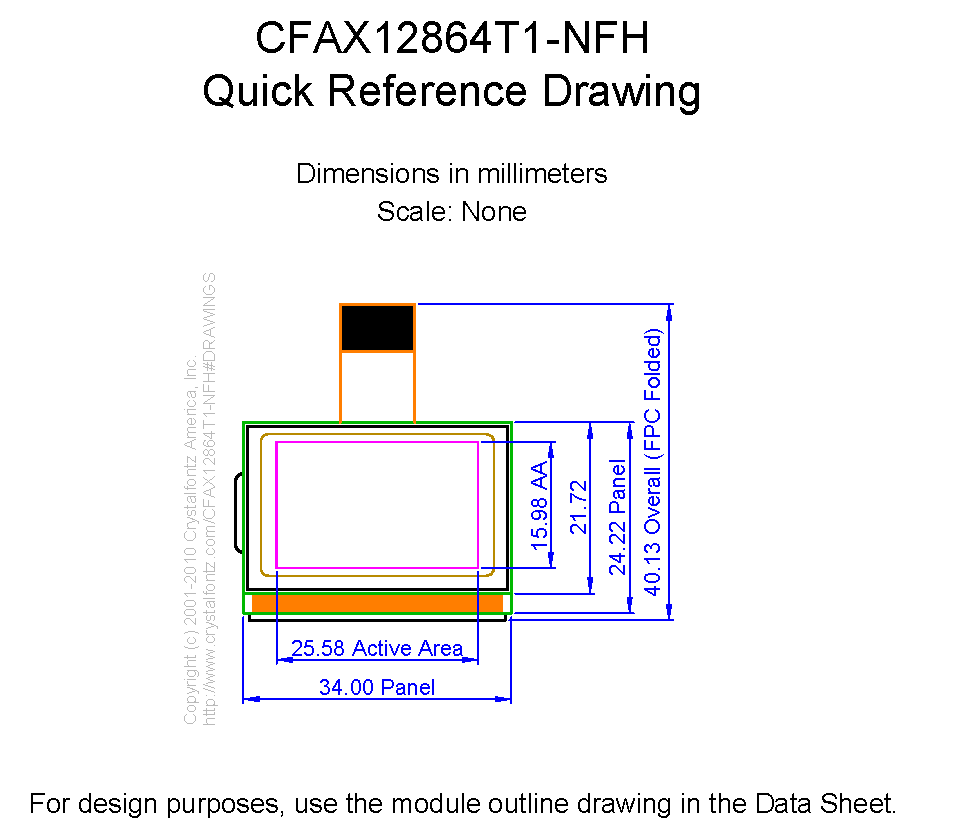

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        34
        24.22
        1.85

        inches
        1.34
        0.95
        0.07

*width / height does not include Foldable Tab

        Diagonal Dimension
            1.19"

    Viewing Area        Width
        Height

        millimeters
        29.58
        17.98

        inches
        1.17
        0.71

    Active Area        Width
        Height

        millimeters
        25.58
        15.98

        inches
        1.01
        0.63

    Dot Size        Width
        Height

        millimeters
        0.18
        0.23

        inches
        0.007
        0.009

    Dot Pitch        Width
        Height

        millimeters
        0.2
        0.25

        inches
        0.008
        0.010

        Weight
            3g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Type
            None
Mode
            Positive
Foreground Color
            Dark
Background Color
            Light Gray

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Current Minimum
            0.18mA
Supply Current Maximum
            0.18mA

        Supply Current Typical
            0.18mA
Module Connector Pitch
            0.5mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Novatek NT7534
NT7534

132 X 65 RAM-Map STN LCD

Controller/Driver
(This controller is a possible replacement for the EOL Samsung S6B1713)
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAX12864T1-NFH Datasheet Release 2016-08-10.pdf

Previous Versions of Datasheetpicture_as_pdfCFAX12864T1NFH.pdf

 download Files and Downloads
folder_zip Software Source - ATMega2561 Demo Code
folder_zip Software Source - ATMega2561 SPI example code
folder_zip Software Source - CFAX WinTest for U1 / T1 series
folder_zip CAD Export - CFAX12864T1-NFH 2D CAD
picture_as_pdf 1 to 1 Template - CFAX12864T1-NFH 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	34	24.22	1.85
inches	1.34	0.95	0.07
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	29.58	17.98
inches	1.17	0.71

Active Area	Width	Height
millimeters	25.58	15.98
inches	1.01	0.63

Dot Size	Width	Height
millimeters	0.18	0.23
inches	0.007	0.009

Dot Pitch	Width	Height
millimeters	0.2	0.25
inches	0.008	0.010

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Product Update #10867: Extended Last Time Buys until Oct 31, 2017

Products Affected:	CFAX12864U1-TFH, CFAX12864U1-NFH, CFAX12864T1-TFH, CFAX12864T1-NFH
Date Issued:	July 25, 2017
Summary:	Extended Last Time Buys until Oct 31, 2017
Description:	The products listed have been assigned to End of Life Status and will be replaced by a new series of displays
Reason:	The controller chip used in these parts will not be available after Oct 31, 2017. Due to long manufacturing lead times, all orders for last time buys must be received by Oct 31, 2017.
Impact:	These parts will not be available after the last time buy date.
Recommendation:	The CFAX12864U1 and CFAX12864T1 series will be replaced by the CFAG12864U2 and CFAG12864T2 series. The new series is designed to be a "drop-in" replacement
Availability:	The new series will be available for order after Oct 31, 2017
Price Change:	Prices for the replacement modules have not been set yet. Prices will be set by Oct 31, 2017.
Response:	We're extending our last time buys until Oct 31, 2017, and developing a drop-in replacement. We'll send out a new product notification when the replacement part is ready.

Product Update #10863: End of Life Announcement with Last Time Buys

Products Affected:	CFAX12864U1-TFH, CFAX12864U1-NFH, CFAX12864T1-TFH, CFAX12864T1-NFH
Date Issued:	June 26, 2017
Summary:	End of Life Announcement with Last Time Buys
Description:	The products listed have been assigned to End of Life Status and will be replaced by a new series of displays.
Reason:	The controller chip used in these parts will not be available after August 2017. Due to long manufacturing lead times, all orders for last time buys must be received by July 28, 2017.
Impact:	These parts will not be available after the last time buy date.
Recommendation:	The CFAX12864U1 and CFAX12864T1 series will be replaced by the CFAG12864U2 and CFAG12864T2 series. The new series is designed to be a "drop-in" replacement.
Availability:	The new series will be available for order after July 28, 2017
Price Change:	Prices for the replacement modules have not been set yet. Prices will be set by July 28, 2017.
Response:	We're offering last time buys until July 28, 2017, and developing a drop-in replacement.

EOL Transflective Graphical LCD

Part Number: CFAX12864T1-NFH

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Product Update #10867: Extended Last Time Buys until Oct 31, 2017

Product Update #10863: End of Life Announcement with Last Time Buys

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	FSTN/Light Gray
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Type	None
Mode	Positive
Foreground Color	Dark
Background Color	Light Gray

Supply Current Minimum	0.18mA
Supply Current Maximum	0.18mA

Supply Current Typical	0.18mA
Module Connector Pitch	0.5mm

Controller Documents	Novatek NT7534 NT7534 132 X 65 RAM-Map STN LCD Controller/Driver (This controller is a possible replacement for the EOL Samsung S6B1713)
Interface	8-bit Parallel, SPI
