This product has reached end of life and has been replaced by CFAX12864UNFH

Product

Home » Products

                This product is discontinued and has been replaced by CFAX12864U-NFH

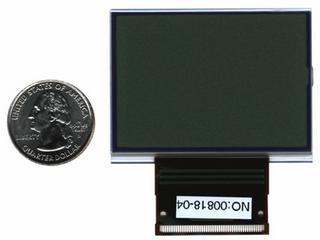

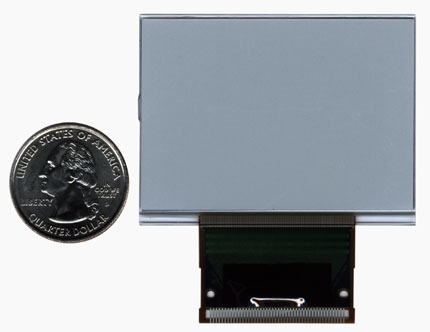

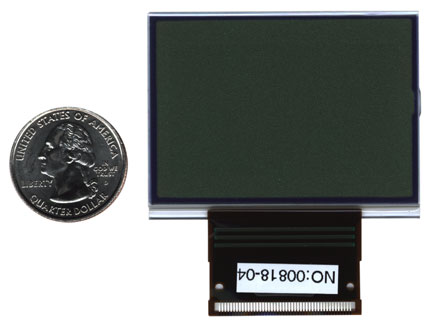

[EOL] Samsung KS0713 128x64 Graphic LCDPart Number: CFAX12864C-NGHCompact Graphic LCD, RoHS Compliant, No Backlight, STN Positive, Gray, Transflective -20°C to +70°C 6:00

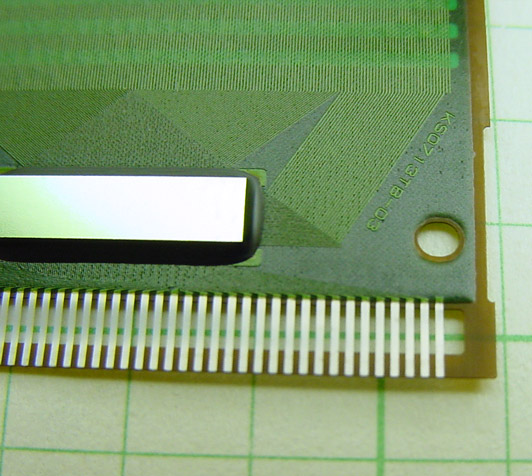

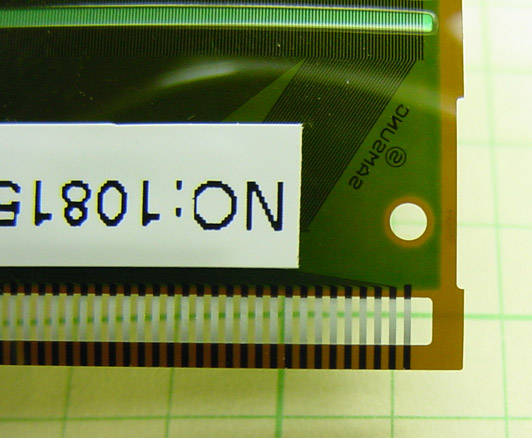

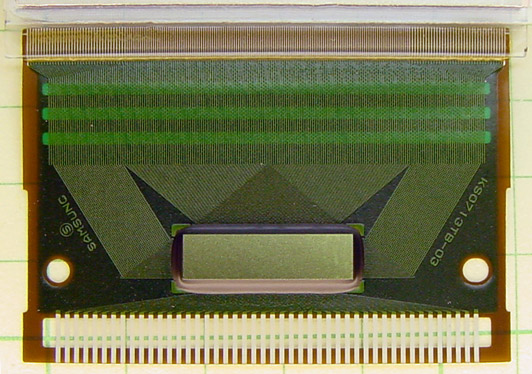

Ultra thin and light TAB construction
Available in several variations of backlight and polarizer  (minimum order may be required)
Built-in Samsung KS0713 or compatible controller
Great for handheld instruments, cell phones, PDAs, etc
Ultra low power consumption

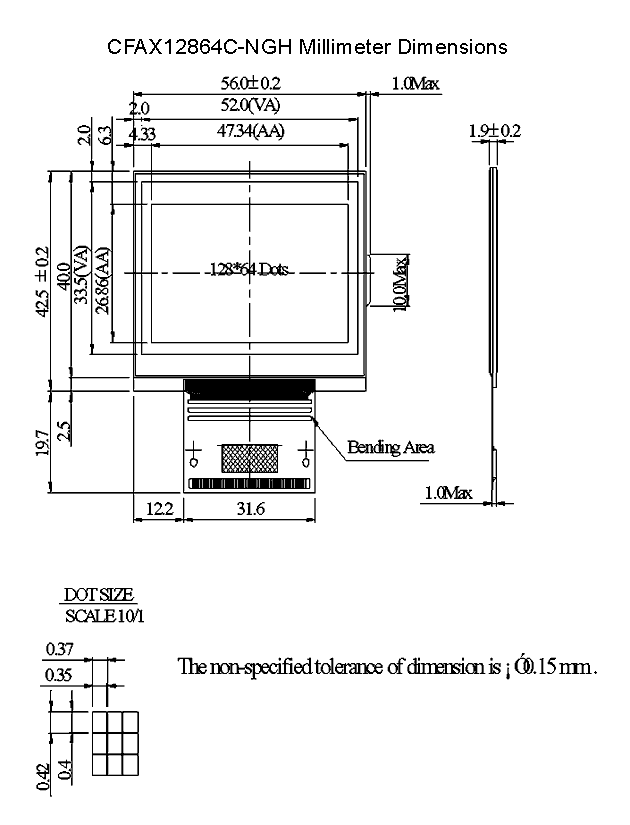

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        56
        42.5
        1.9

        inches
        2.21
        1.67
        0.08

    PCB Outline        width
        height
        depth

        millimeters
        56
        42.5
        1.9

        inches
        2.21
        1.67
        0.08

    Viewing Area        Width
        Height

        millimeters
        52
        33.5

        inches
        2.05
        1.32

    Active Area        Width
        Height

        millimeters
        47.76
        30.29

        inches
        1.88
        1.19

    Dot Size        Width
        Height

        millimeters
        0.35
        0.4

        inches
        0.014
        0.016

    Dot Pitch        Width
        Height

        millimeters
        0.37
        0.42

        inches
        0.015
        0.017

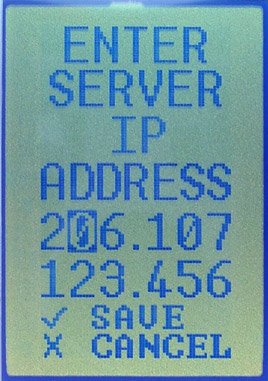

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Type
            None
Mode
            Positive
Foreground Color
            Dark
Background Color
            Light Gray

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.6mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Samsung KS0713
KS0713

65 COM / 132 SEG DRIVER & CONTROLLER FOR STN LCD
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAX12864CNGH.pdf

 download Files and Downloads
picture_as_pdf 1 to 1 Template

Module Overall	width	height	depth
millimeters	56	42.5	1.9
inches	2.21	1.67	0.08

PCB Outline	width	height	depth
millimeters	56	42.5	1.9
inches	2.21	1.67	0.08

Viewing Area	Width	Height
millimeters	52	33.5
inches	2.05	1.32

Active Area	Width	Height
millimeters	47.76	30.29
inches	1.88	1.19

Dot Size	Width	Height
millimeters	0.35	0.4
inches	0.014	0.016

Dot Pitch	Width	Height
millimeters	0.37	0.42
inches	0.015	0.017

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10279: CFAX12864A, CFAX12864AP1, CFAX12864C, and CFAX12864CP1 Series of LCD modules discontinued.

Products Affected:	CFAX12864AP1-NFH, CFAX12864AP1-TFH, CFAX12864AP1-WFH, CFAX12864C-NGH, CFAX12864CP1-NGH, CFAX12864CP1-WGH, CFAX12864CP1-WGH-TS, CFAX12864CP1-TFH, CFAX12864C-WGH, CFAX12864C-WGH-TS
Date Issued:	March 31, 2010
Summary:	CFAX12864A, CFAX12864AP1, CFAX12864C, and CFAX12864CP1 Series of LCD modules discontinued.
Description:	CFAX12864A, CFAX12864AP1, CFAX12864C, and CFAX12864CP1 Series of LCD modules discontinued.
Reason:	CFAX12864A, CFAX12864AP1, CFAX12864C, and CFAX12864CP1 Series of LCD modules discontinued due to end of life of Samsung KS0713 controller chip.
Impact:	//SHL (C8 C0) (Flips display top to bottom, assuming landscape orientation) This will need to be changed to 0xC8 from 0xC0 for the new Novatek NT7534 controller versus the Samsung KS0713. There is no migration path for users of the CFAX12864A and CFAX12864C modules other than to re-lay out their board to use the CFAX12864T or CFAX12864U, which is not pin compatible.
Recommendation:	Users of CFAX12864AP1 and CFAX12864CP1 LCD modules can use the compatible CFAX12864T1 and CFAX12864U1 replacement modules respectively.
Availability:	Immediate
