                This product has reached end of life  and has been replaced by this Small Transflective Graphic LCD.

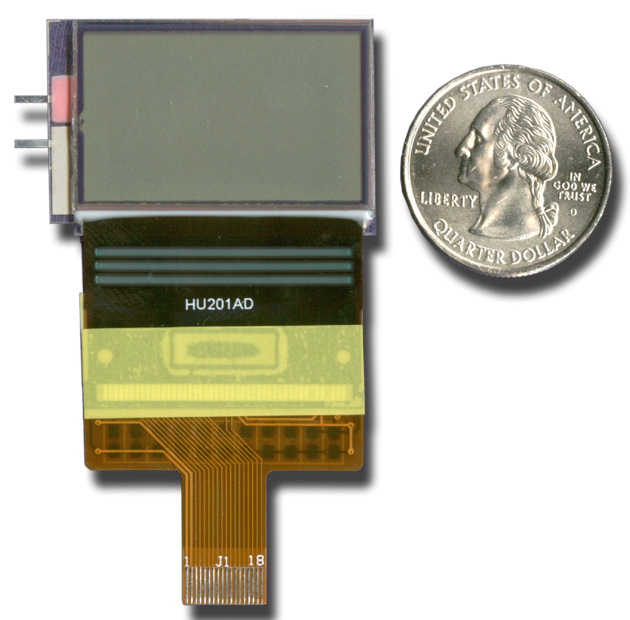

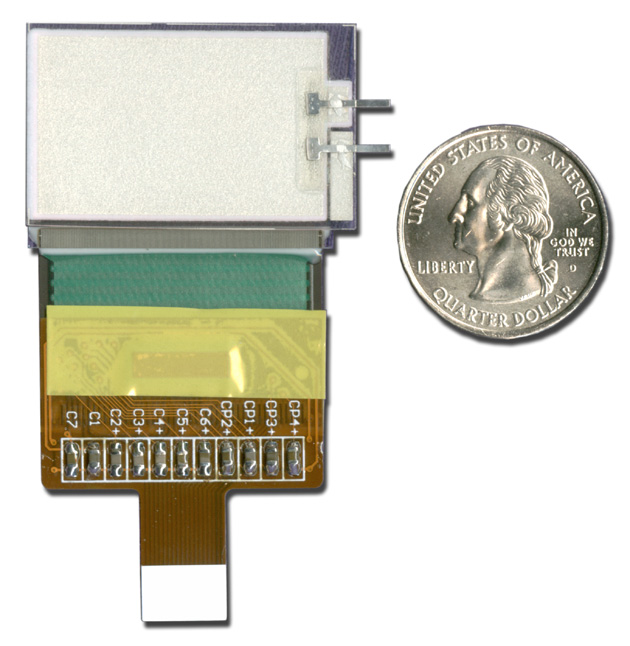

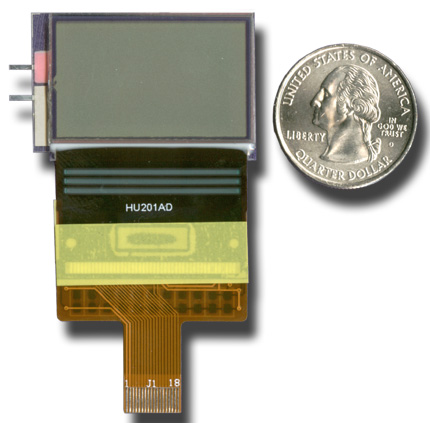

(EOL) 128x64 EL Parallel Graphic LCDPart Number: CFAX12864AP1-WFHUltra Compact Graphic LCD, RoHS Compliant, White EL Backlight, FSTN Positive, Transflective -20°C to +70°C 6:00
Ultra thin and light TAB construction
Available in several variations of backlight and polarizer  (minimum order may be required)
Built-in Samsung KS0713 or compatible controller

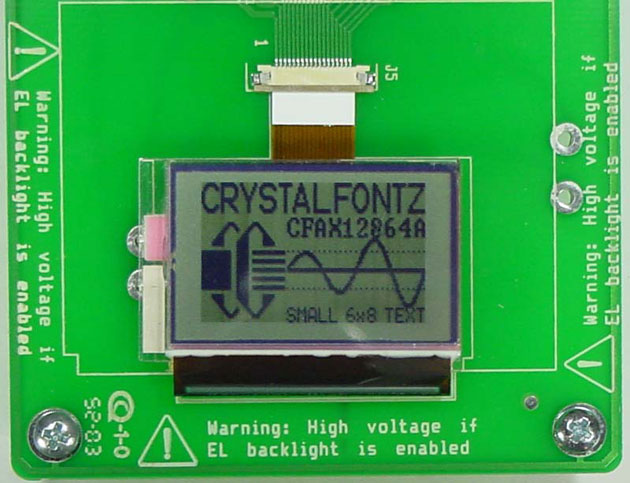

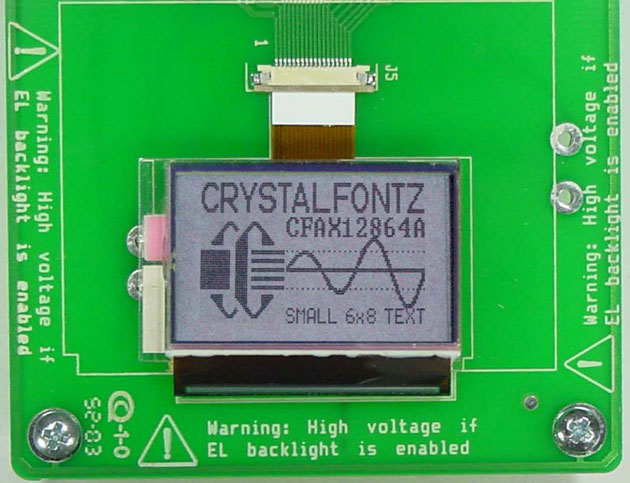

Demonstration board available here: CFAXZIFDEMO
Great for handheld instruments, cell phones, PDAs, etc
Ultra low power consumption

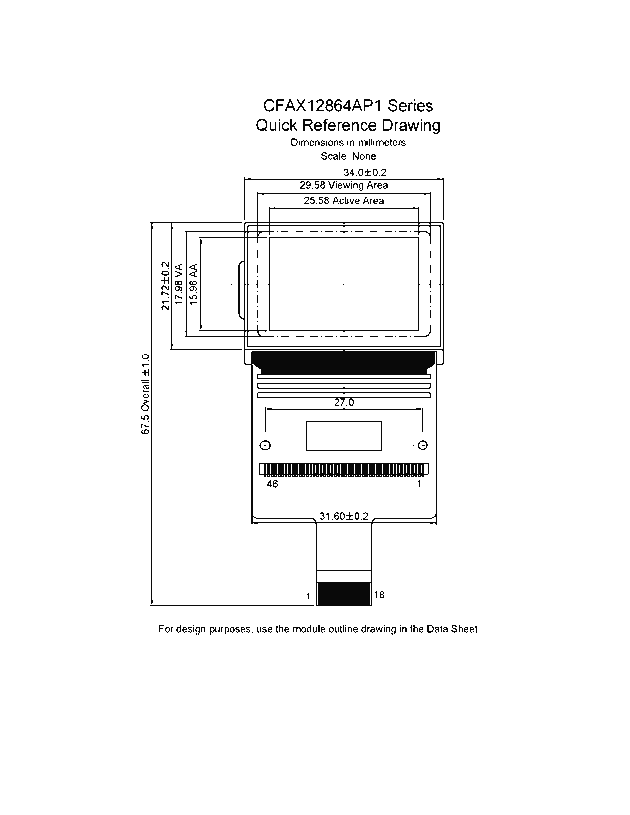

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        34
        21.72
        2

        inches
        1.34
        0.86
        0.08

    PCB Outline        width
        height
        depth

        millimeters
        34
        21.72
        2

        inches
        1.34
        0.86
        0.08

    Viewing Area        Width
        Height

        millimeters
        29.58
        17.98

        inches
        1.17
        0.71

    Active Area        Width
        Height

        millimeters
        25.58
        15.98

        inches
        1.01
        0.63

    Dot Size        Width
        Height

        millimeters
        0.18
        0.23

        inches
        0.007
        0.009

    Dot Pitch        Width
        Height

        millimeters
        0.2
        0.25

        inches
        0.008
        0.010

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            EL White
Backlight Type
            EL
Mode
            Positive
Foreground Color
            Dark
Background Color
            White

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.5mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Samsung KS0713
KS0713

65 COM / 132 SEG DRIVER & CONTROLLER FOR STN LCD
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAX12864AP1WFH.pdf

 download Files and Downloads
picture_as_pdf 1 to 1 Template

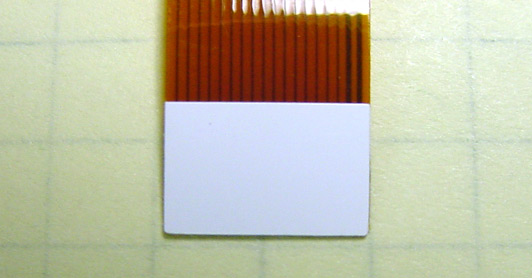

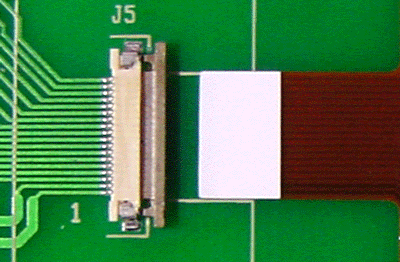

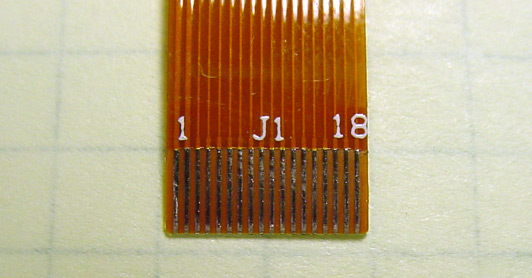

picture_as_pdf Other Document - Schematic of the ZIF connector

Module Overall	width	height	depth
millimeters	34	21.72	2
inches	1.34	0.86	0.08

PCB Outline	width	height	depth
millimeters	34	21.72	2
inches	1.34	0.86	0.08

Viewing Area	Width	Height
millimeters	29.58	17.98
inches	1.17	0.71

Active Area	Width	Height
millimeters	25.58	15.98
inches	1.01	0.63

Dot Size	Width	Height
millimeters	0.18	0.23
inches	0.007	0.009

Dot Pitch	Width	Height
millimeters	0.2	0.25
inches	0.008	0.010

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10279: CFAX12864A, CFAX12864AP1, CFAX12864C, and CFAX12864CP1 Series of LCD modules discontinued.

Products Affected:	CFAX12864AP1-NFH, CFAX12864AP1-TFH, CFAX12864AP1-WFH, CFAX12864C-NGH, CFAX12864CP1-NGH, CFAX12864CP1-WGH, CFAX12864CP1-WGH-TS, CFAX12864CP1-TFH, CFAX12864C-WGH, CFAX12864C-WGH-TS
Date Issued:	March 31, 2010
Summary:	CFAX12864A, CFAX12864AP1, CFAX12864C, and CFAX12864CP1 Series of LCD modules discontinued.
Description:	CFAX12864A, CFAX12864AP1, CFAX12864C, and CFAX12864CP1 Series of LCD modules discontinued.
Reason:	CFAX12864A, CFAX12864AP1, CFAX12864C, and CFAX12864CP1 Series of LCD modules discontinued due to end of life of Samsung KS0713 controller chip.
Impact:	//SHL (C8 C0) (Flips display top to bottom, assuming landscape orientation) This will need to be changed to 0xC8 from 0xC0 for the new Novatek NT7534 controller versus the Samsung KS0713. There is no migration path for users of the CFAX12864A and CFAX12864C modules other than to re-lay out their board to use the CFAX12864T or CFAX12864U, which is not pin compatible.
Recommendation:	Users of CFAX12864AP1 and CFAX12864CP1 LCD modules can use the compatible CFAX12864T1 and CFAX12864U1 replacement modules respectively.
Availability:	Immediate

(EOL) 128x64 EL Parallel Graphic LCD

Part Number: CFAX12864AP1-WFH

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10279: CFAX12864A, CFAX12864AP1, CFAX12864C, and CFAX12864CP1 Series of LCD modules discontinued.

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	FSTN/Light Gray
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Color	EL White
Backlight Type	EL
Mode	Positive
Foreground Color	Dark
Background Color	White

Controller Documents	Samsung KS0713 KS0713 65 COM / 132 SEG DRIVER & CONTROLLER FOR STN LCD
Interface	8-bit Parallel, SPI
