            In order to keep this display in production over the long term, we are revising it to the CFAG4265A0-TFK. Any backorders placed now will be fulfilled with the new part when it becomes available. Please contact sales with any questions.

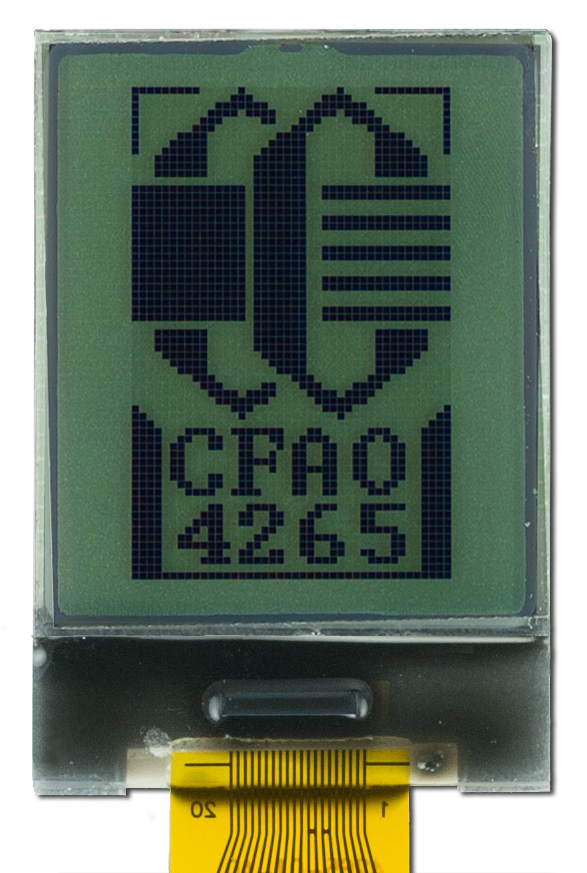

42x65 Dark On Light Gray Graphic LCDPart Number: CFAO4265A-TFK42x65 Graphic LCD - Dark On Light GrayWe designed this 42x65 graphic LCD display module so it fits on the face of 1-inch wide devices such as blade servers, disk drive carriers, and expansion cards. The 0.88-inch (22.40 mm) width leaves room for the metalwork and mechanical clearance. This economical COG (Chip-On-Glass) FSTN transflective display is suitable for typical office lighting and is easy to see in dimly lit areas.
Key Features42 pixels by 65 pixels.
12 o'clock viewing direction can be used in portrait or landscape mode.
SPI interface (4-wire Serial Peripheral Interface).
Sitronix ST7565R or compatible controller.

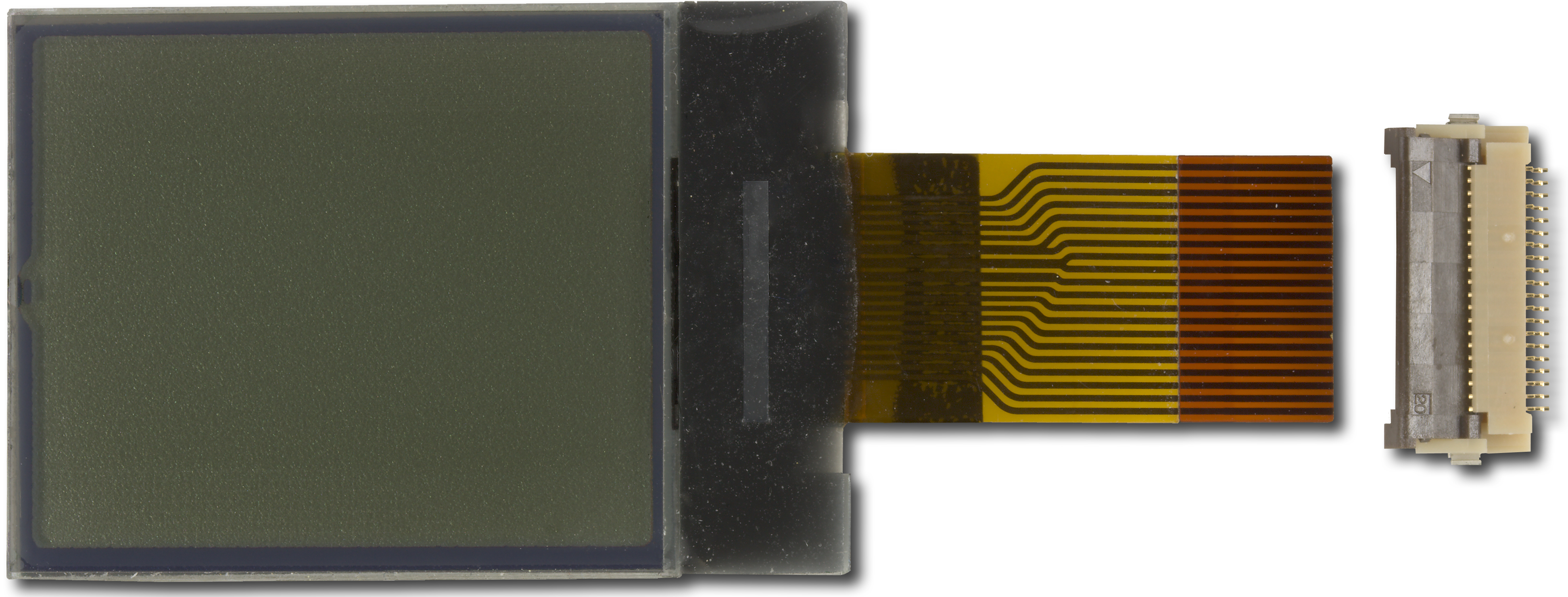

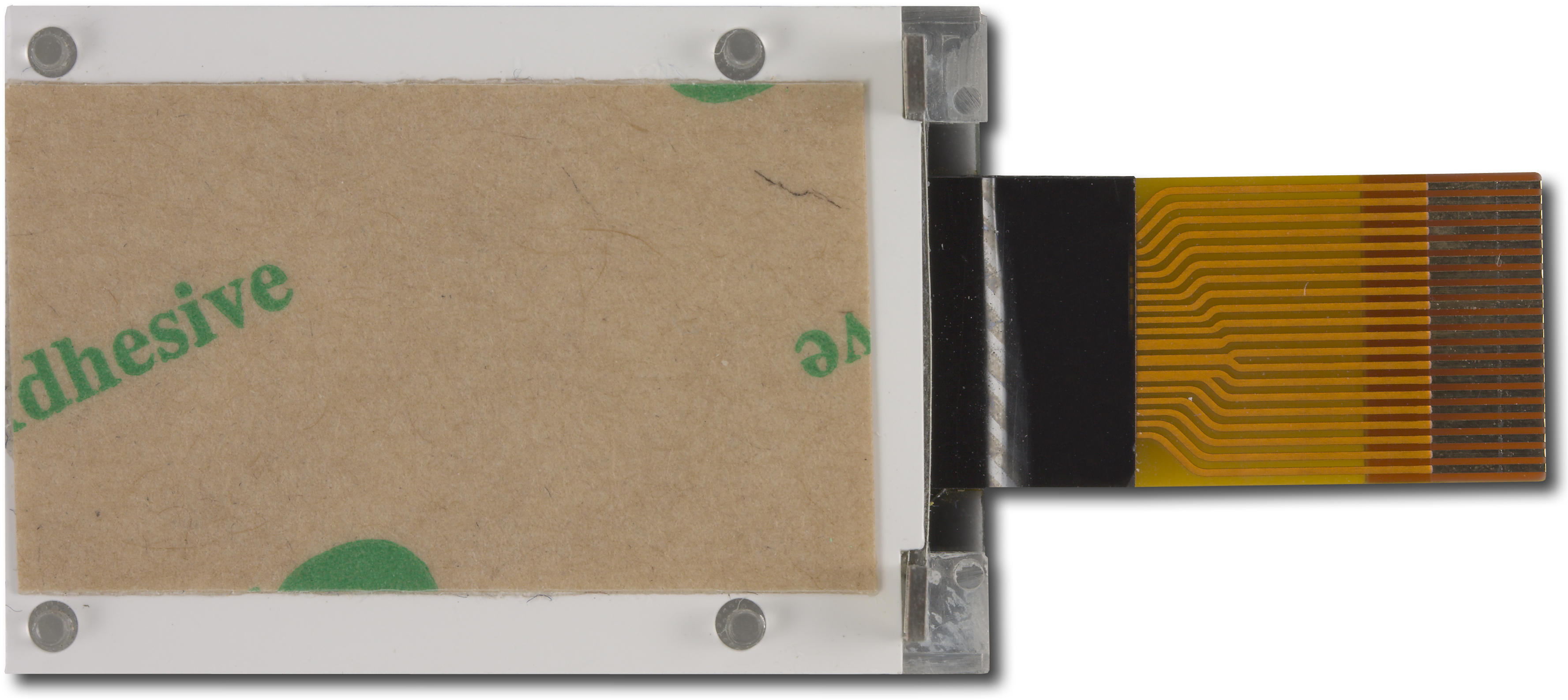

The FFC/FPC flexible tail is easy to connect with any standard  20 pin 0.5mm pitch ZIF connector.
Show off your creativity by tiling multiple displays on 1-inch centers.
An additional color choice in the CFAO4265A series is the CFAO4265A-TTL, which has white pixels on a dark background

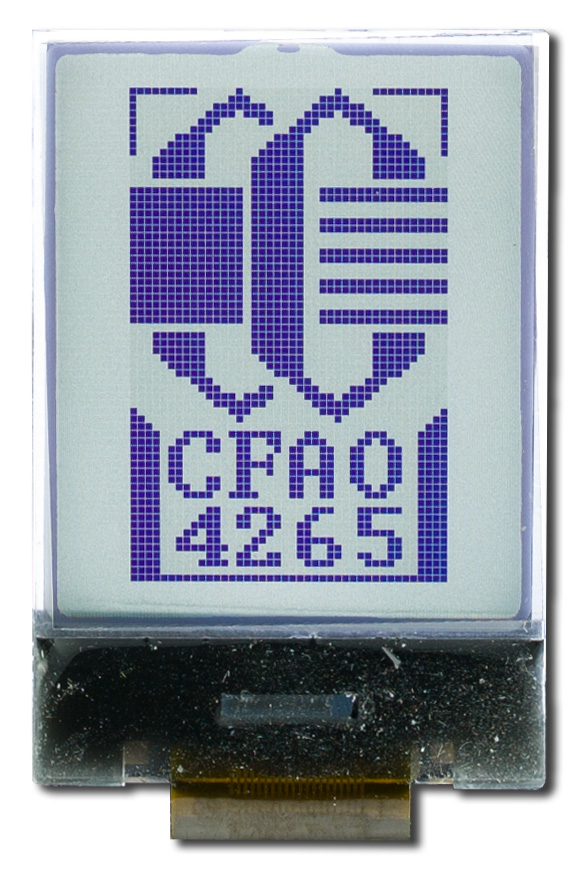

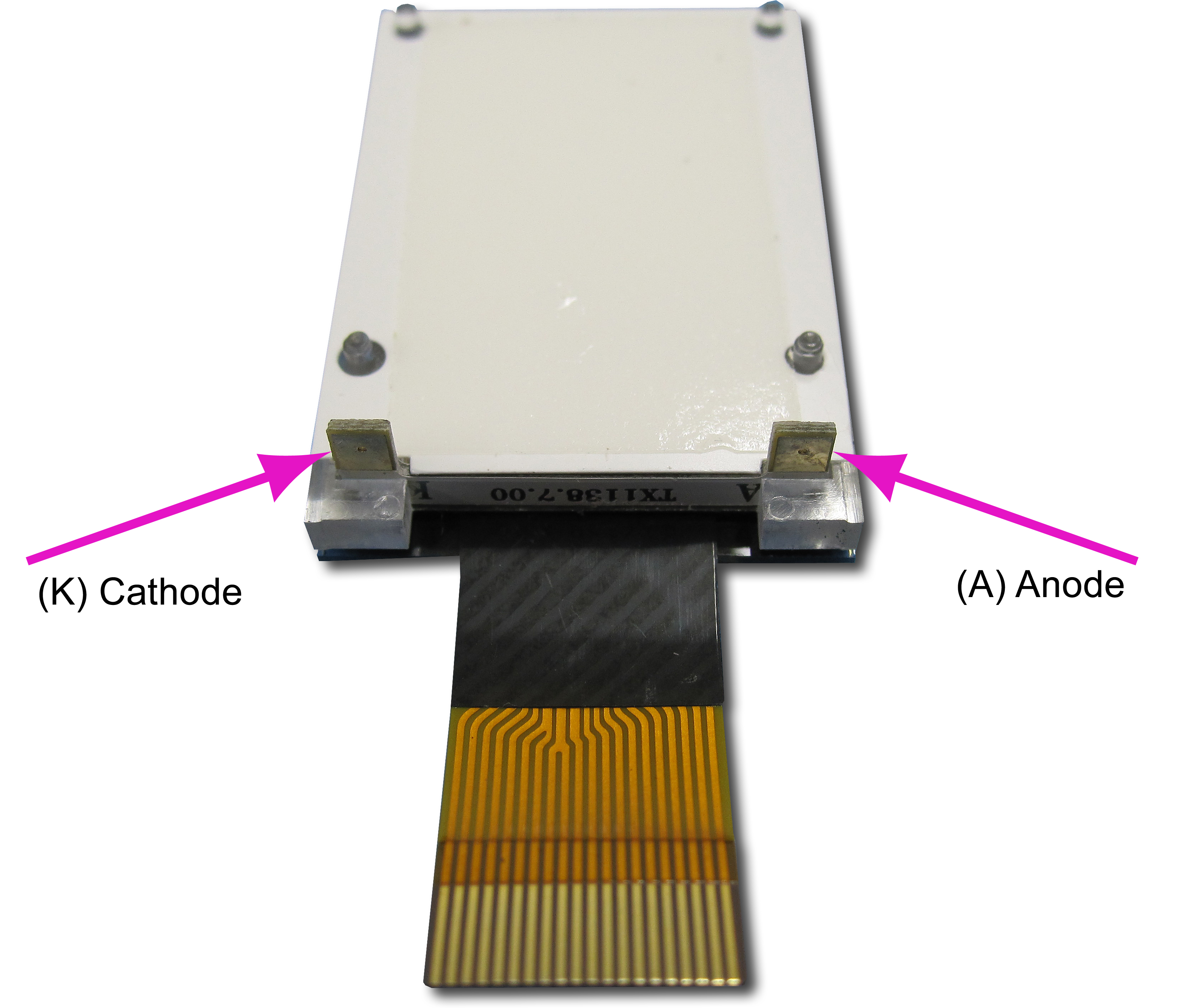

This display uses three long-life white LEDs for its backlight. The forward voltage is 9.6v to 10.8v. For long life, we recommend driving the backlight at 12mA. The best way to drive the backlight is to use constant current supply. Typically a switching supply designed to control current works well. For details, see the circuit example using LED driver NCP5007 on page 23 of the CFAO4265A_Series_Data_Sheet_Release_2015-07-07.pdf ,
Streamline Development With Carrier Board To make prototyping or small production with this display quick and easy, we offer the CFAO4265A-TFK mounted on a carrier board. The carrier board has the current-controlled, switching LED driver, including SPI control of the LED brightness. All external components for panel voltage generation are included.
 Need more advice to integrate a display into your design? Customers around the world know they can rely on our free technical support to be responsive and knowledgeable.
 square_foot Physical Characteristics

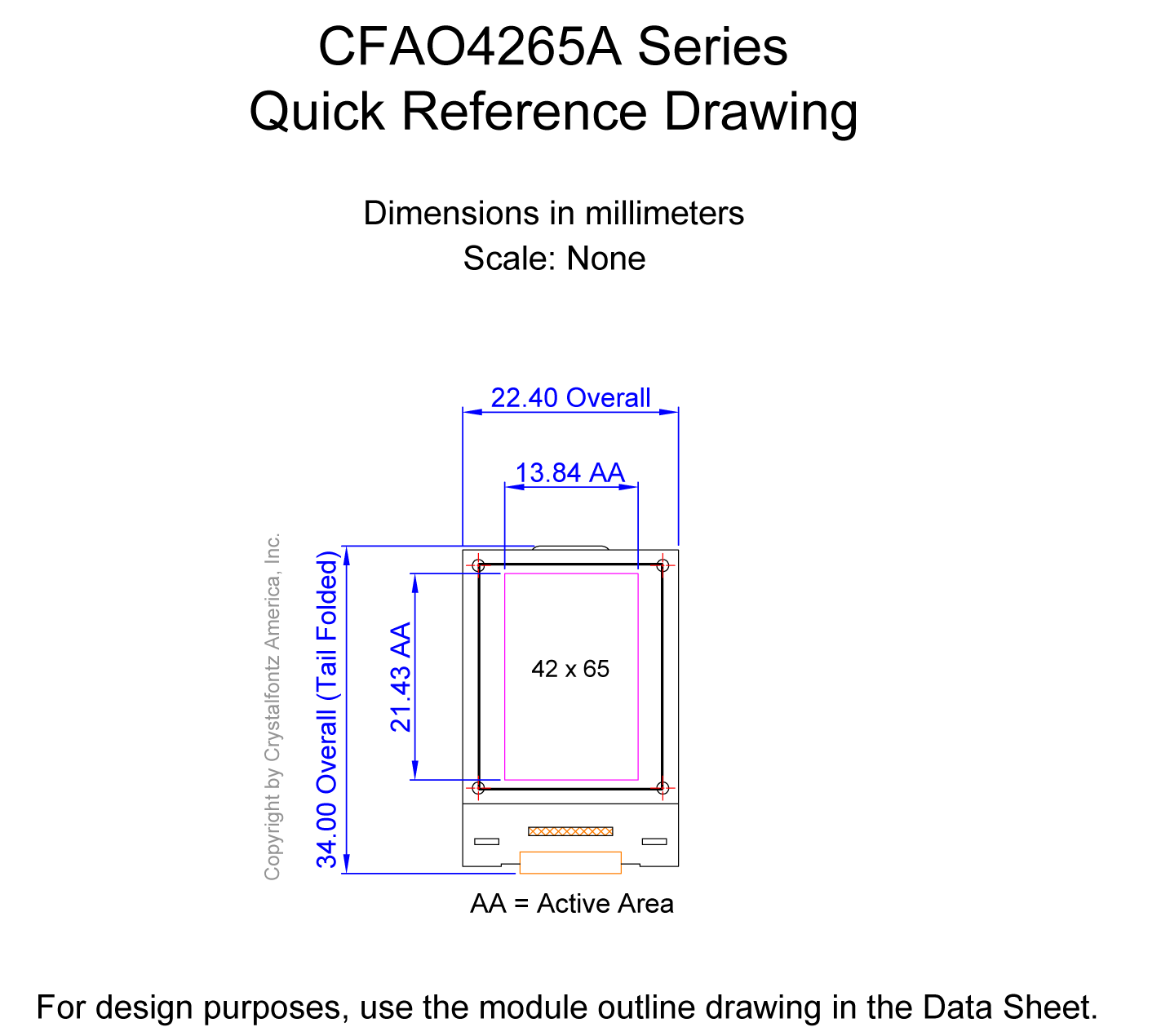

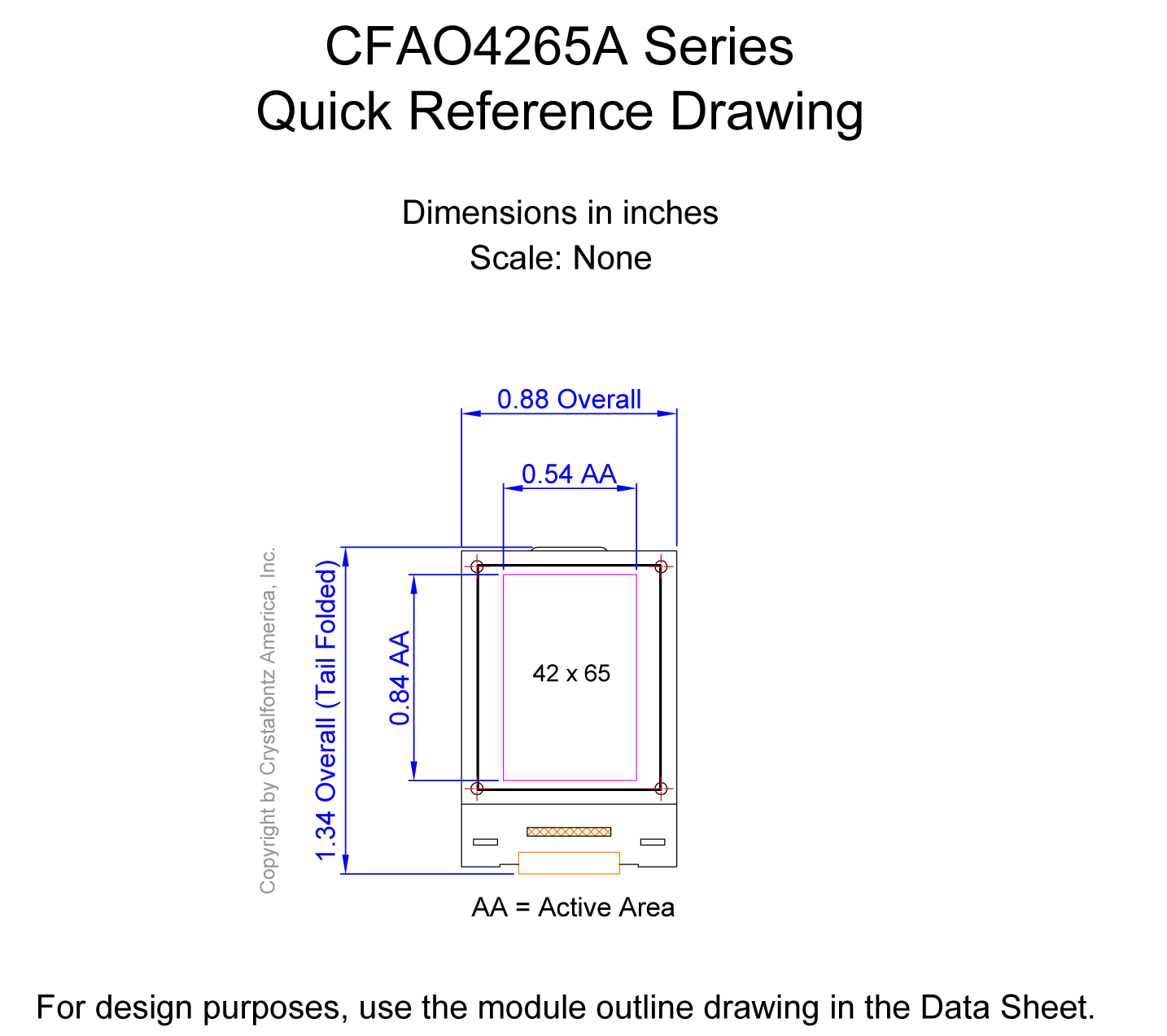

Physical Characteristics

        Column Dots x Row Dots
            42 x 65

    Module Overall        width
        height
        depth

        millimeters
        22.4
        33.25
        4.8

        inches
        0.88
        1.31
        0.19

*width / height does not include Foldable Tab

        Diagonal Dimension
            1."

    Viewing Area        Width
        Height

        millimeters
        19
        23.35

        inches
        0.75
        0.92

    Active Area        Width
        Height

        millimeters
        13.84
        21.43

        inches
        0.55
        0.84

    Dot Size        Width
        Height

        millimeters
        0.02
        0.02

        inches
        0.001
        0.001

    Dot Pitch        Width
        Height

        millimeters
        0.31
        0.31

        inches
        0.012
        0.012

        Weight
            6g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            12 o'clock
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            White

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Logic Typical
            3V
Supply Voltage for Driving Panel Typical
            9.5V

        Supply Current Minimum
            0.6mA
Supply Current Maximum
            1.5mA
Supply Current Typical
            0.8mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Maximum
            10.8V
Forward Voltage Typical
            9.6V

        Forward Current Maximum
            15mA
Forward Current Typical
            12:00mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7565R
ST7565R

65 x 132 Dot Matrix LCD Controller/Driver
Interface
            SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAO4265A Series Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAO4265A Series Data Sheet Release 2015-05-29.pdf

picture_as_pdfCFAO4265A-TFK Data Sheet Release 2013-02-26.pdf

picture_as_pdfCFAO4265A-TFK Data Sheet v1.0 2011-10-21.pdf
(Datasheet V 1.0)
 download Files and Downloads
folder_zip CAD Export - CFAO4265A Series 2D CAD
picture_as_pdf 1 to 1 Template - CFAO4265A Series 1 to 1 Module Outline

Module Overall	width	height	depth
millimeters	22.4	33.25	4.8
inches	0.88	1.31	0.19
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	19	23.35
inches	0.75	0.92

Active Area	Width	Height
millimeters	13.84	21.43
inches	0.55	0.84

Dot Size	Width	Height
millimeters	0.02	0.02
inches	0.001	0.001

Dot Pitch	Width	Height
millimeters	0.31	0.31
inches	0.012	0.012

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Product Update #10909: End-of-Life Notification

Products Affected:	CFAO4265A-TFK, CFAO4265A-TTL, CFAO4265A-TTL-CB
Date Issued:	December 12, 2017
Summary:	End-of-Life Notification
Description:	The parts listed have been assigned to End of Life Status.
Reason:	Critical components have been discontinued by the manufacturer.
Impact:	These parts are not recommended for new designs.
Recommendation:	The CFAO4265A-TFK has been replaced by a new design that will function as a "drop-in" replacement. The new part number is CFAG4265A0-TFK and can be found here: https://www.crystalfontz.com/product/cfag4265a0tfk-42x65-graphic-one-inch-lcd A new series of development kits are also available: Part #: CFAG4265A0-TFK-E1-1 This is a CFAG4265A0-TFK mounted to a CFA10004 carrier board. Part #: CFAG4265A0-TFK-E1-2 This is a CFAG4265A0-TFK mounted to a CFA10004 carrier board with a Seeeduino 4.2 The CFAO4265A-TTL and CFAO4265A-TTL-CB do not have replacements.
Availability:	The new parts are available now. The CFAO4265A-TTL and CFAO4265A-TTL-CB will be available until current stocks are depleted.
Price Change:	Current prices are shown on our website.

Part Change Notice #10648: Controller change from ST7565P to ST7565R

Products Affected:	CFAO4265A-TFK, CFAO4265A-TTL, CFAO4265A-TFK-CB, CFAO4265A-TTL-CB
Date Issued:	March 25, 2015
Summary:	Controller change from ST7565P to ST7565R
Description:	As part of our continuous improvement, the controller on the CFAO4265A display modules is changing from the Sitronix ST7565P to the ST7565R. ECO-49. Sitronix ST7565P controller datasheet: https://www.crystalfontz.com/controllers/Sitronix/ST7565P/299 Sitronix ST7565R controller datasheet: https://www.crystalfontz.com/controllers/Sitronix/ST7565R/300
Reason:	Improved manufacturability, component availability, and lower cost.
Impact:	This change effects all CFAO4265A parts. Testing has shown functional compatibility between the ST7565P and ST7565R. There are no physical changes to the display.
Recommendation:	It is recommended to obtain test units prior to implementing new parts in production volumes.
Availability:	Inventory with ST765R controller will be available late Q2 / Early Q3 2015.
Price Change:	Lower manufacturing costs are reflected in lower product pricing.

Product Update #10645: (New Product) CFAO4265A-TFK

New Product:	CFAO4265A-TFK
Date Issued:	March 3, 2015
Summary:	(New Product) CFAO4265A-TFK
Description:	Standard Graphic Modules: 45*65 Graphic, COG, Positive FSTN, White LED backlight, ST7565R, SPI

Product Update #10366: New Product in Standard Graphic Modules: CFAO4265A-TFK

New Product:	CFAO4265A-TFK
Date Issued:	October 18, 2011
Summary:	New Product in Standard Graphic Modules: CFAO4265A-TFK
Description:	42x65 Graphic LCD, RoHS, White, FSTN Positive, Transflective, -20°C to +70°C, 12:00 viewing angle.
