                In order to keep this display in production over the long term, we have revised it to the CFAG12864Q1-TFH.

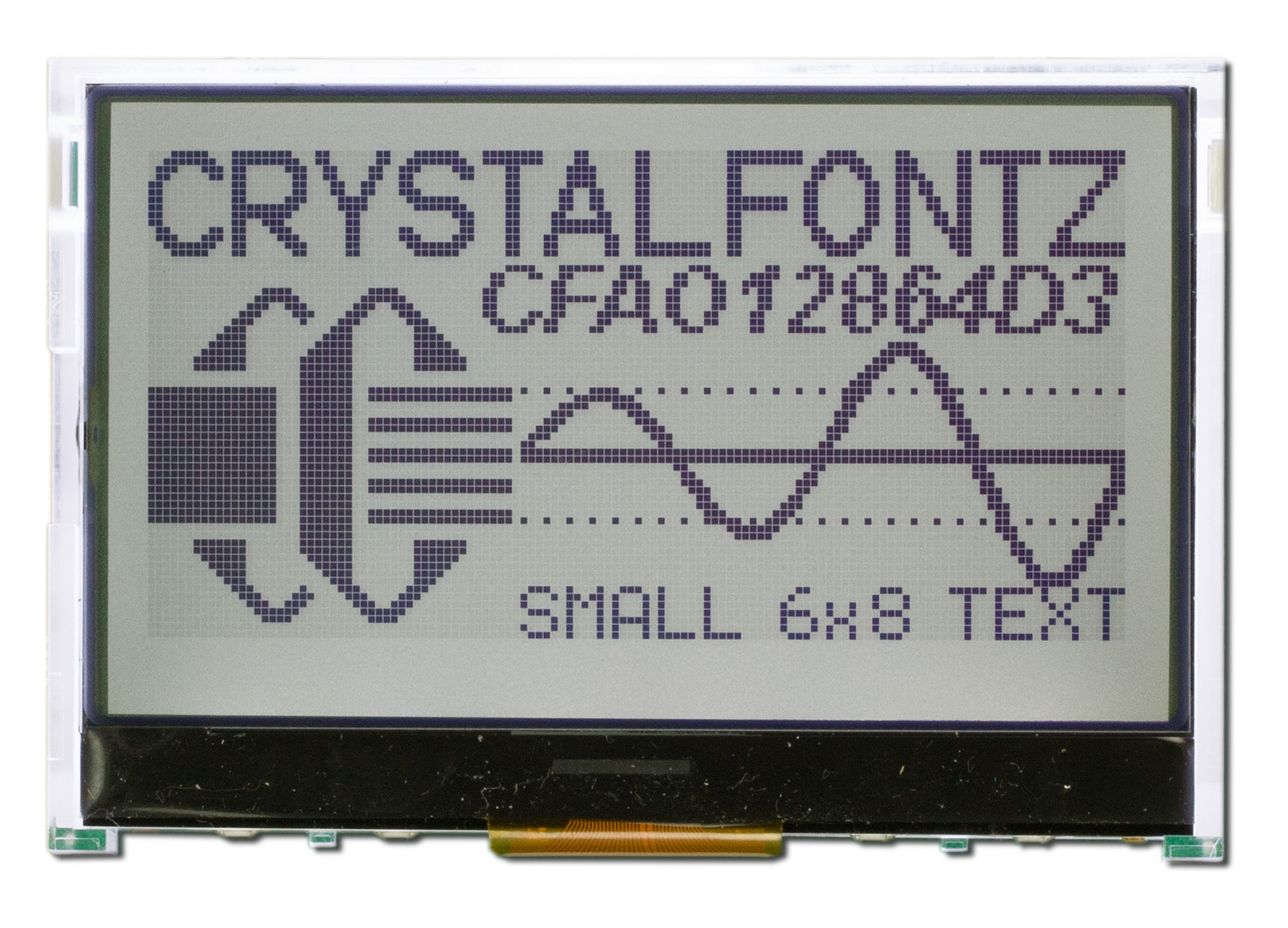

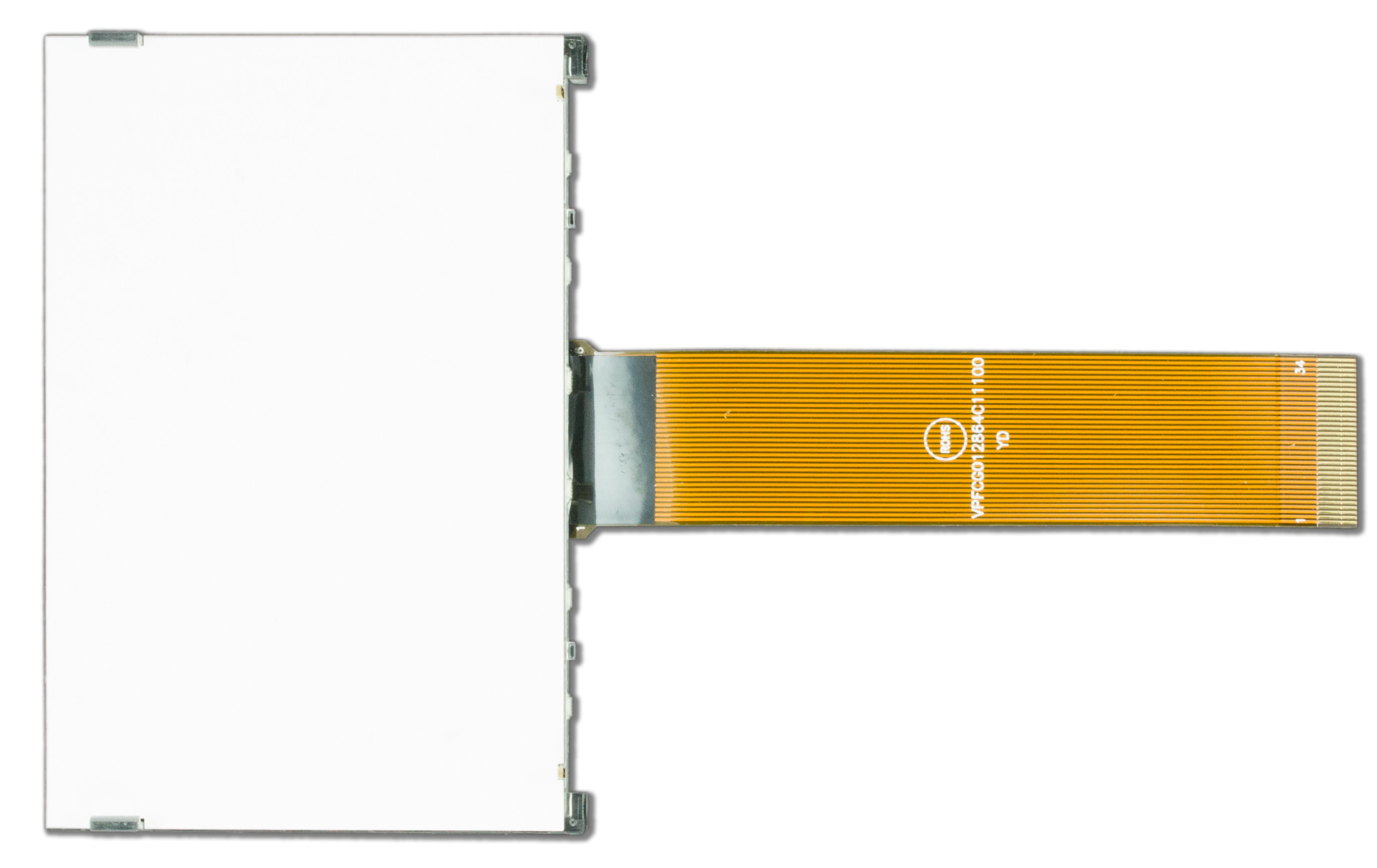

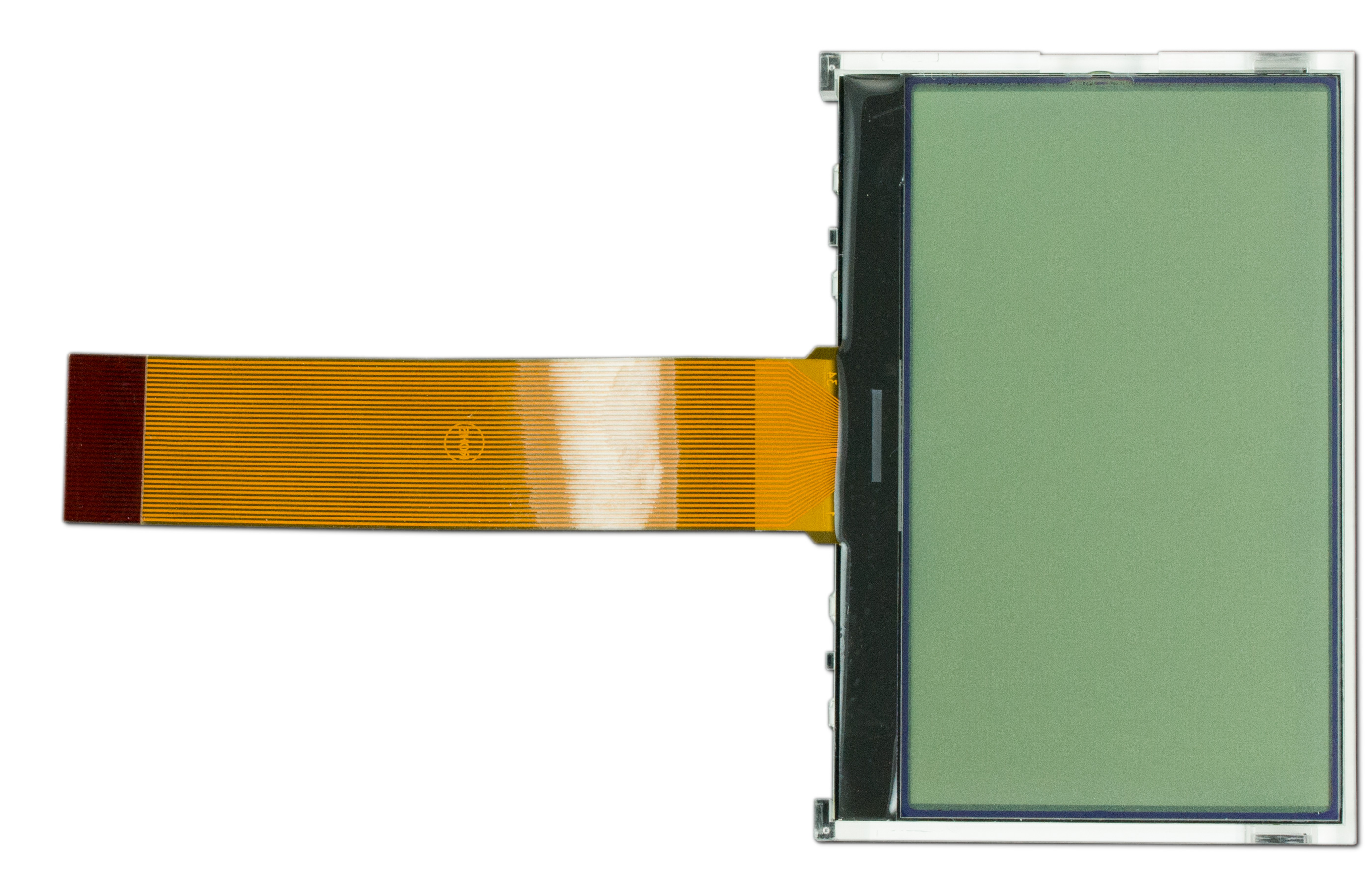

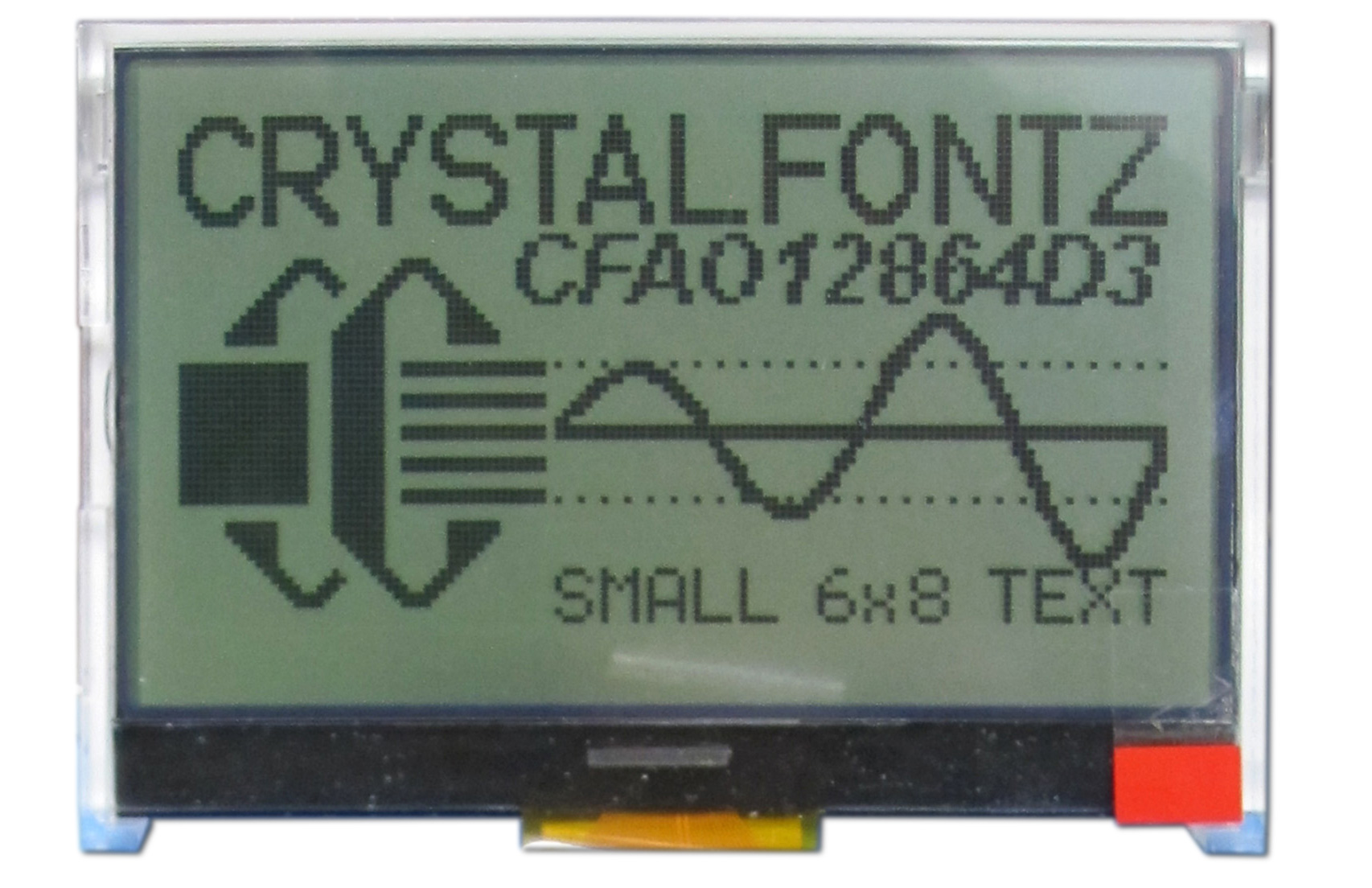

128x64 Graphical LCD ModulePart Number: CFAO12864D3-TFHThis dark on light gray background 128x64 pixel COG (Chip-On-Glass) graphic LCD display module has an integrated Sitronix ST7565P controller. The graphic LCD is very low power, using less than 1mA to drive the display. To connect to your host, choose from SPI or 8-bit (6800 or 8080) parallel interface.
Prefer a different color? The CFAO12864D3-TMI is light (near white) on a blue background.
To get started, download the free sample code and detailed datasheet in the Datasheets & Files section.

 Compatible ZIF sockets (34-pin, 0.5 mm) are: 34 Position, 0.50mm Pitch

.

 Questions? Please don't hesitate to contact our knowledgeable technical support staff.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

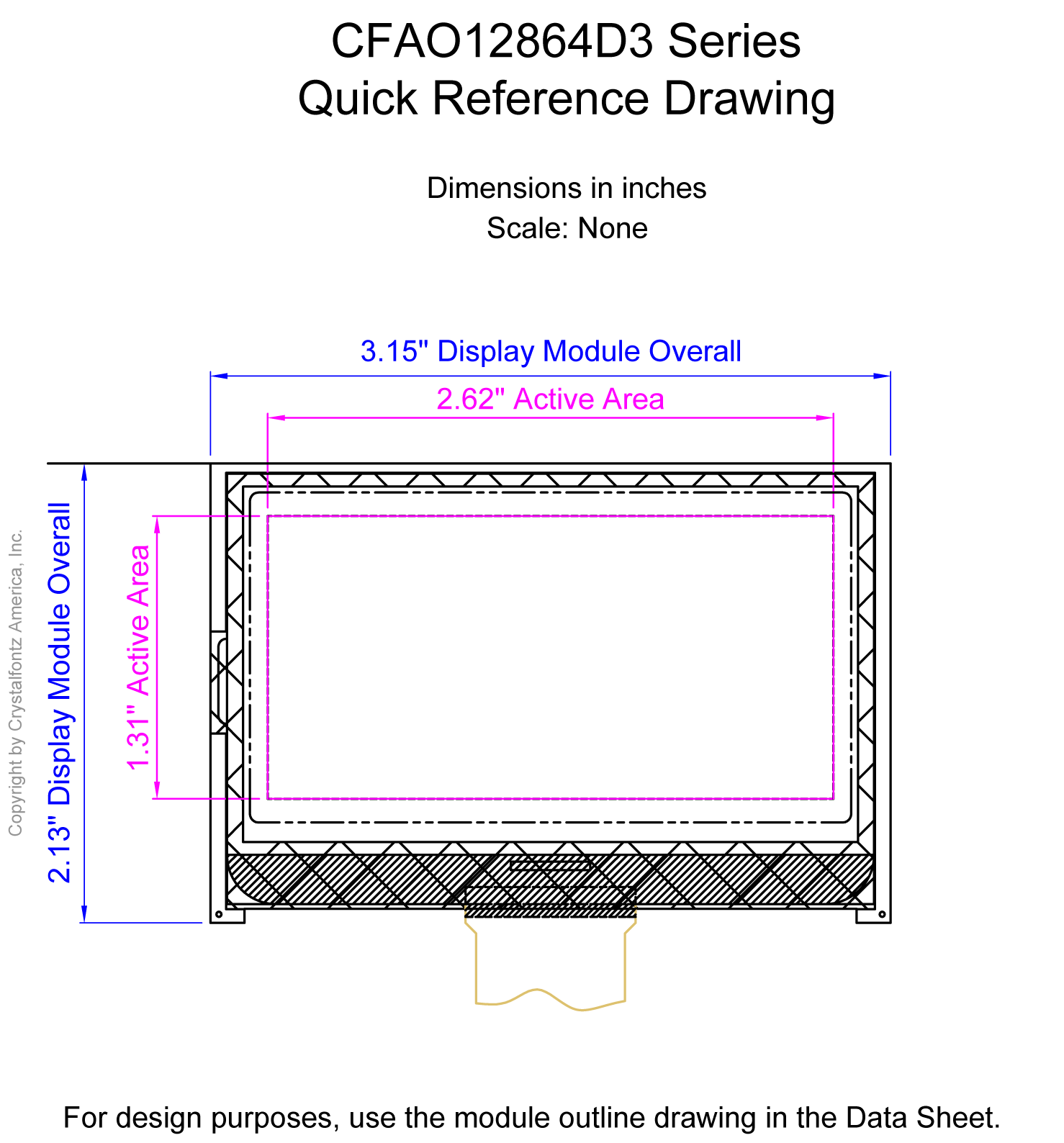

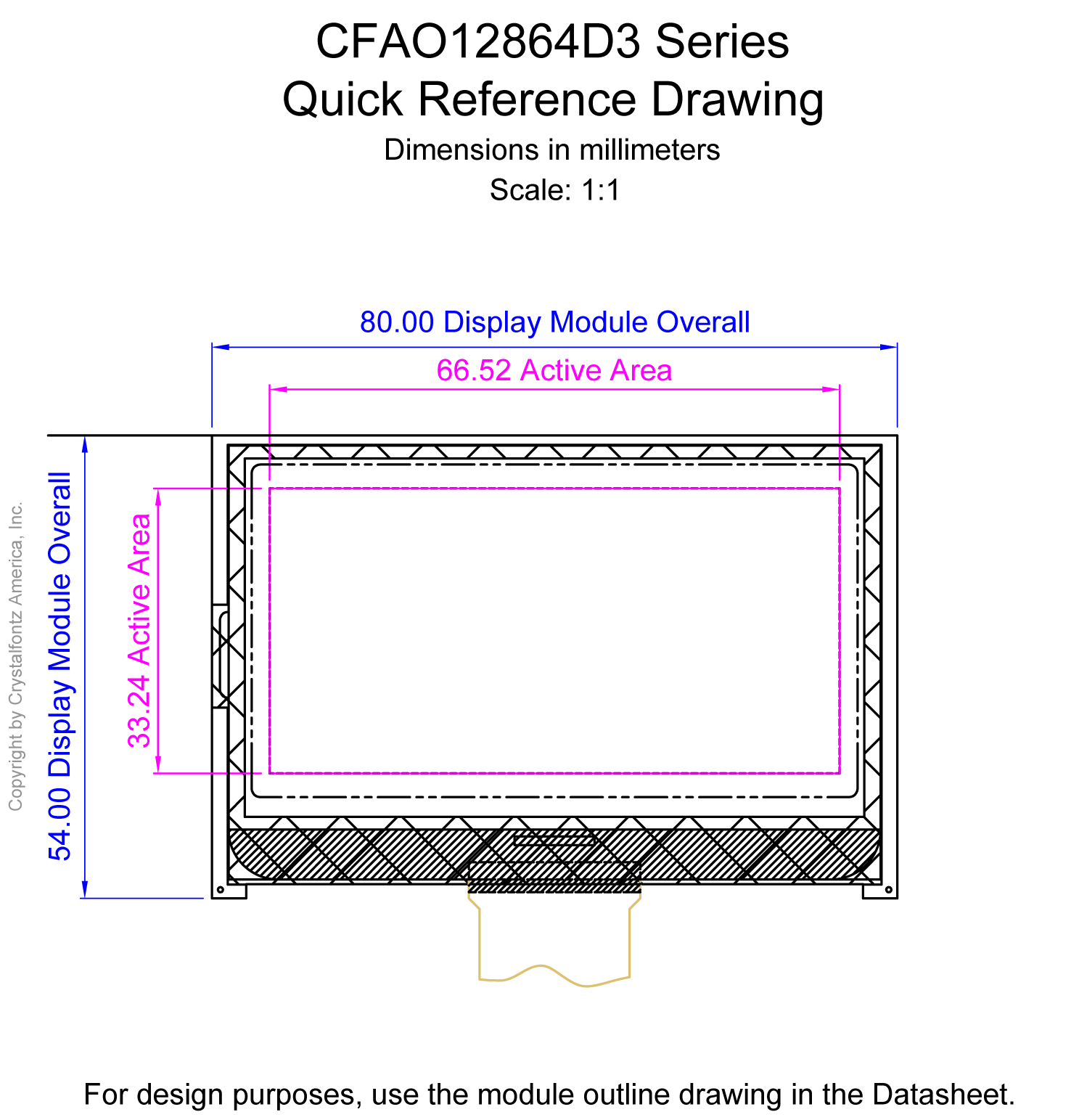

    Module Overall        width
        height
        depth

        millimeters
        80
        54
        9.5

        inches
        3.15
        2.13
        0.37

        Diagonal Dimension
            2.93"

    Viewing Area        Width
        Height

        millimeters
        70.7
        38.8

        inches
        2.78
        1.53

    Active Area        Width
        Height

        millimeters
        66.52
        33.24

        inches
        2.62
        1.31

    Dot Size        Width
        Height

        millimeters
        0.48
        0.48

        inches
        0.019
        0.019

    Dot Pitch        Width
        Height

        millimeters
        0.52
        0.52

        inches
        0.020
        0.020

        Optional Connectors
            CS050Z34GB0

    Flexible Cable (FFC/FPC)        length

        millimeters
        80

        inches
        3.150

        Weight
            40g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Light Gray

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.7V
Supply Voltage for Logic Typical
            3.3V
Supply Voltage for Driving Panel Typical
            10V

        Supply Current Maximum
            1mA
Supply Current Typical
            0.6mA
Module Connector Pitch
            0.5mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Current Maximum
            120mA

        Forward Current Typical
            96mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7565P
ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAO12864D3 Series Datasheet

 download Files and Downloads
folder_zip Software Source - Arduino 8080 Sample Code with Sitronix ST7565P Controller
folder_zip Software Source - Arduino / Seeeduino Sample Code
folder_zip Software Source - ATMega2561 Parallel and SPI firmware examples
folder_zip Hardware Design - 3D STEP Files
picture_as_pdf Hardware Design - Sample Application Schematic
folder_zip CAD Export - CFAO12864D3 2D CAD
picture_as_pdf 1 to 1 Template - CFAO12864D3 Series 1 to 1 Module Outline

Module Overall	width	height	depth
millimeters	80	54	9.5
inches	3.15	2.13	0.37

Viewing Area	Width	Height
millimeters	70.7	38.8
inches	2.78	1.53

Active Area	Width	Height
millimeters	66.52	33.24
inches	2.62	1.31

Dot Size	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Dot Pitch	Width	Height
millimeters	0.52	0.52
inches	0.020	0.020

Flexible Cable (FFC/FPC)	length
millimeters	80
inches	3.150

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11107: End-Of-Life Notification

Products Affected:	CFAO12864D3-TFH, CFAO12864D3-TMI, CFAO12864D3-TFH-CB, CFAO12864D3-TMI-CB, CFA212-TMI, CFA212-TFH, CFA211-TFH
Date Issued:	November 9, 2021
Summary:	End-Of-Life Notification
Description:	These parts are being replaced and will no longer be available once the inventory has been depleted. The replacement part numbers will be posted on the corresponding product page.
Reason:	The ST7565P driver that is used in these displays is no longer available and so to keep the parts available, we are switching to the ST7567 driver which is similar as well as readily available.

Product Update #10692: New Carrier board, Arduino shield, and Arduino kit options

New Products:	CFAO12864D3-TFH, CFAO12864D3-TMI
Date Issued:	April 1, 2016
Summary:	New Carrier board, Arduino shield, and Arduino kit options
Description:	Crystalfontz America announces three supporting products for the CFAO12864D3 series of displays based on the CFA10072 carrier board. The first is the CFAO12864D3-TFH-CB and CFAO12864D3-TMI-CB ideal for working with your micro-controller development board. The second is the CFA211-TFH and CFA211-TMI - our Arduino shield with a CFAO12864D3-TFH or CFAO12864D3-TMI (respectively). Load the sketch on your Arduino, plug it in, and go! Finally, the all in one demo the CFA212-TFH and CFA212-TMI. It's our Shield and CFAO12864D3-TFH / TMI plugged into an Arduino with our sketch. All you provide is power.
Reason:	Adding new products as part of our continuous improvement process, to enable our customer to more easily work with and demonstrate our displays.
Availability:	Immediate

Product Update #10671: (New Product) CFAO12864D3-TFH

New Product:	CFAO12864D3-TFH
Date Issued:	August 20, 2015
Summary:	(New Product) CFAO12864D3-TFH
Description:	Standard Graphic Modules: 128x64 Graphic LCD Display Module, Dark on Light Gray - Transflective, White LED Backlight
