                In order to keep this display in production over the long term, we are revising it to the CFAM800480A1-070TR. Any backorders placed now will be fulfilled with the new part when it becomes available. Please contact support with any questions.

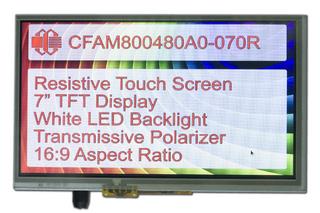

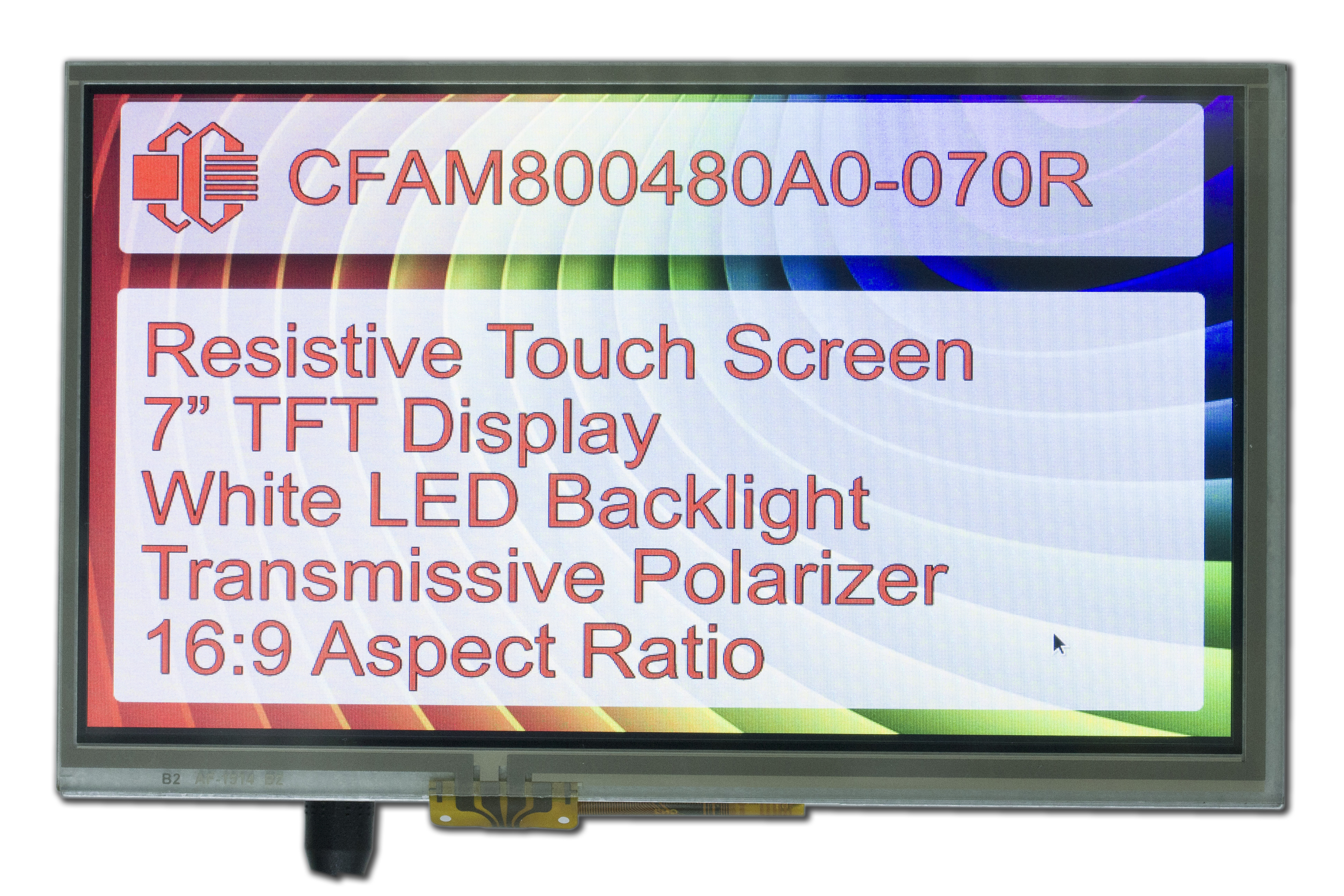

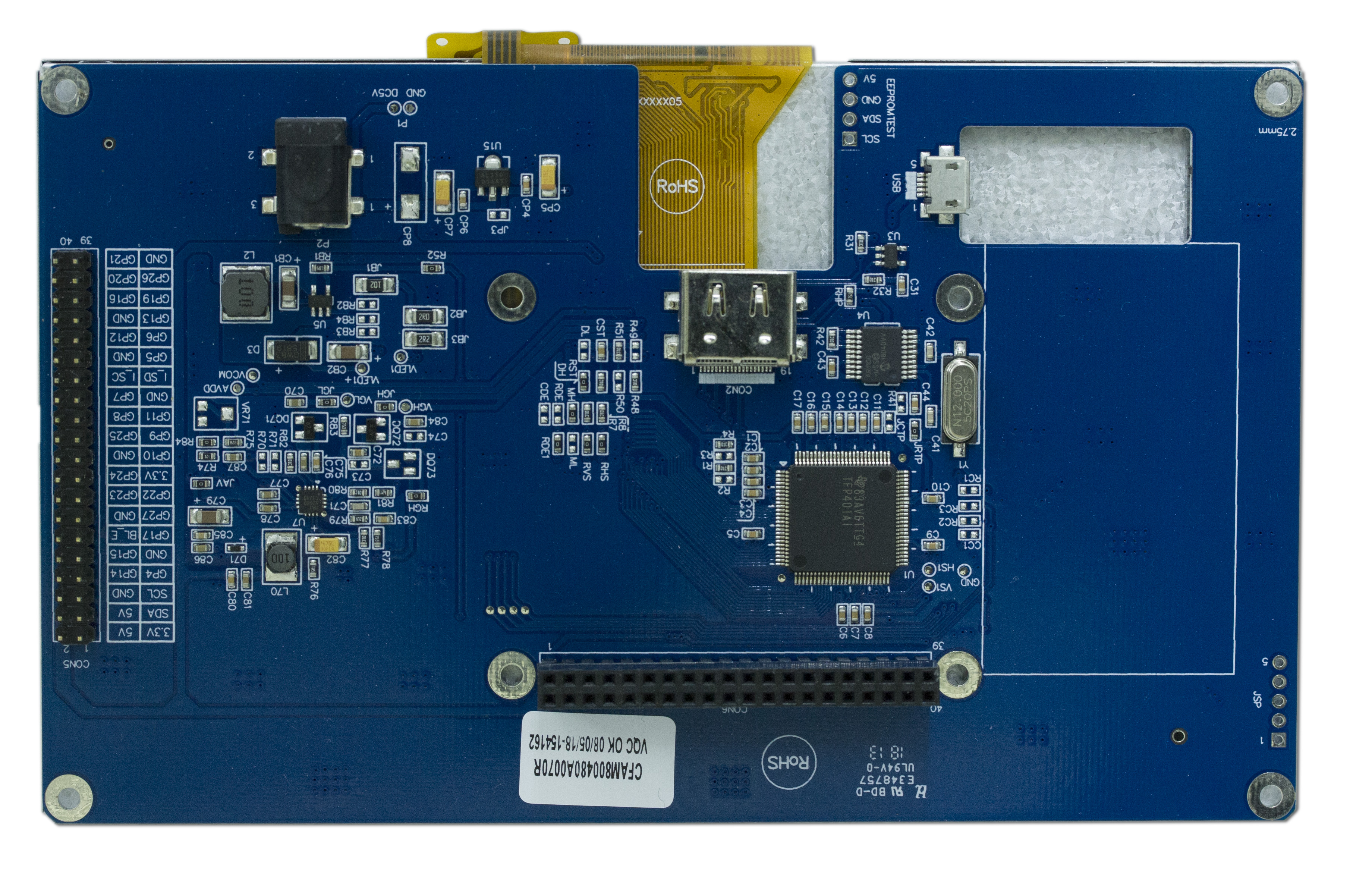

7" 800x480 TFT with Resistive Touch ScreenPart Number: CFAM800480A0-070RHDMI, 7" resistive touch screen LCD. This little TFT was designed for integrating with a raspberry PI. It boasts a wide operating temperature range, a 16:9 aspect ratio, Transmissive polarizer and a White LED backlight for low light applications. This LCD has a 12:00 o'clock viewing direction and the screen is anti-glare. A resistive touchscreen provides a perfect human interface for your applications.

We have found that this displays power requirements are a bit high for the Raspberry Pi when using the Pi's power source to supply the LCD display, so we've used this additional power supply for powering the backlight when controlling it via a Raspberry Pi.

This device's touch-screen drivers are not supported by the Android OS

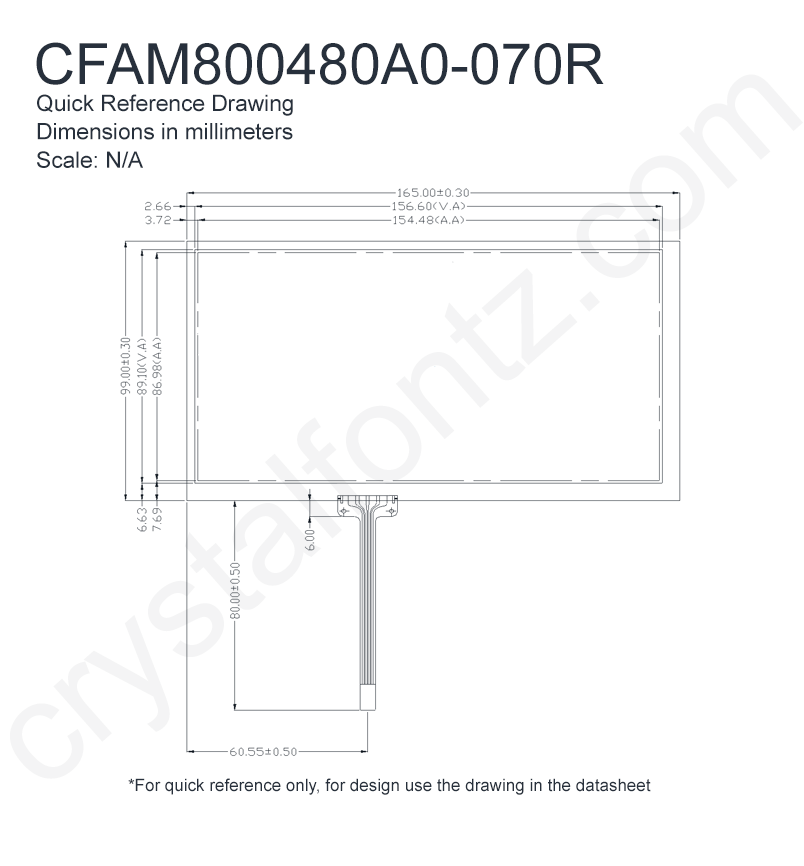

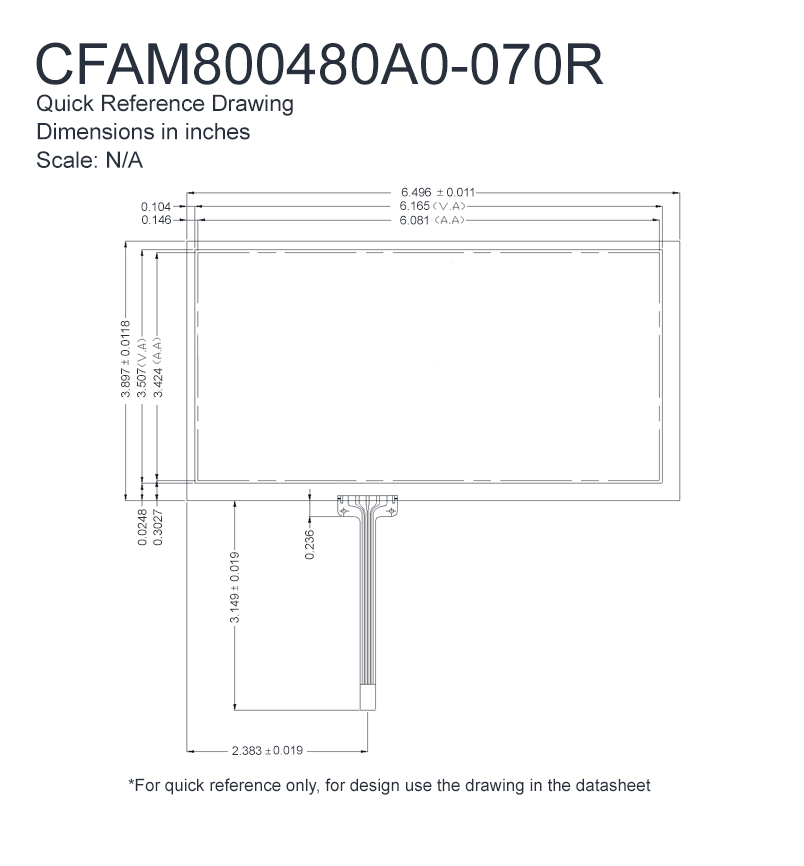

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            800 x 480

    Module Overall        width
        height
        depth

        millimeters
        165
        100
        25.3

        inches
        6.50
        3.94
        1.00

        Diagonal Dimension
            6.95"

    Viewing Area        Width
        Height

        millimeters
        156.6
        89.1

        inches
        6.17
        3.51

    Active Area        Width
        Height

        millimeters
        154.08
        85.92

        inches
        6.07
        3.38

    Dot Pitch        Width
        Height

        millimeters
        0.0642
        0.179

        inches
        0.0025
        0.0070

        Weight
            261g
Pin Count
            40

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            Transmissive
View Angle
            70°

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V

        Supply Voltage for Driving Panel Typical
            5V
Supply Current Typical
            900mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Current Typical
            1500mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Interface
            HDMI

 picture_as_pdf Datasheets
picture_as_pdfCFAM800480A0-070R Datasheet

 download Files and Downloads
folder_zip CAD Export - 3D Step File
picture_as_pdf Other Document - CFAM rPi Compatibility Modification

Other components worth considering

						HDMI to HDMI Converter
RPI HDMI Connector $6.20 ea.

						Short USB for RPi
RPI Touchscreen Connector $6.27 ea.

Module Overall	width	height	depth
millimeters	165	100	25.3
inches	6.50	3.94	1.00

Viewing Area	Width	Height
millimeters	156.6	89.1
inches	6.17	3.51

Active Area	Width	Height
millimeters	154.08	85.92
inches	6.07	3.38

Dot Pitch	Width	Height
millimeters	0.0642	0.179
inches	0.0025	0.0070

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11123: End-Of-Life Notification

Product Affected:	CFAM800480A0-070R
Date Issued:	May 19, 2022
Summary:	End-Of-Life Notification
Description:	This part is being replaced by the CFAM800480A1-070TR. The replacement part has a different PCB design that makes it compatible with Raspberry Pi 3B+ models and newer. The 3.3V line is no longer back powering the Raspberry Pi allowing 3B+ models and newer to boot up. The replacement part is backward compatible with the CFAM800480A0-070R.
Reason:	Updating the product to work with the latest Raspberry Pis
