                In order to keep this display in production over the long term, we are revising it to the CFAM1280800A1-101TC. Please contact sales@crystalfontz.com with any questions.

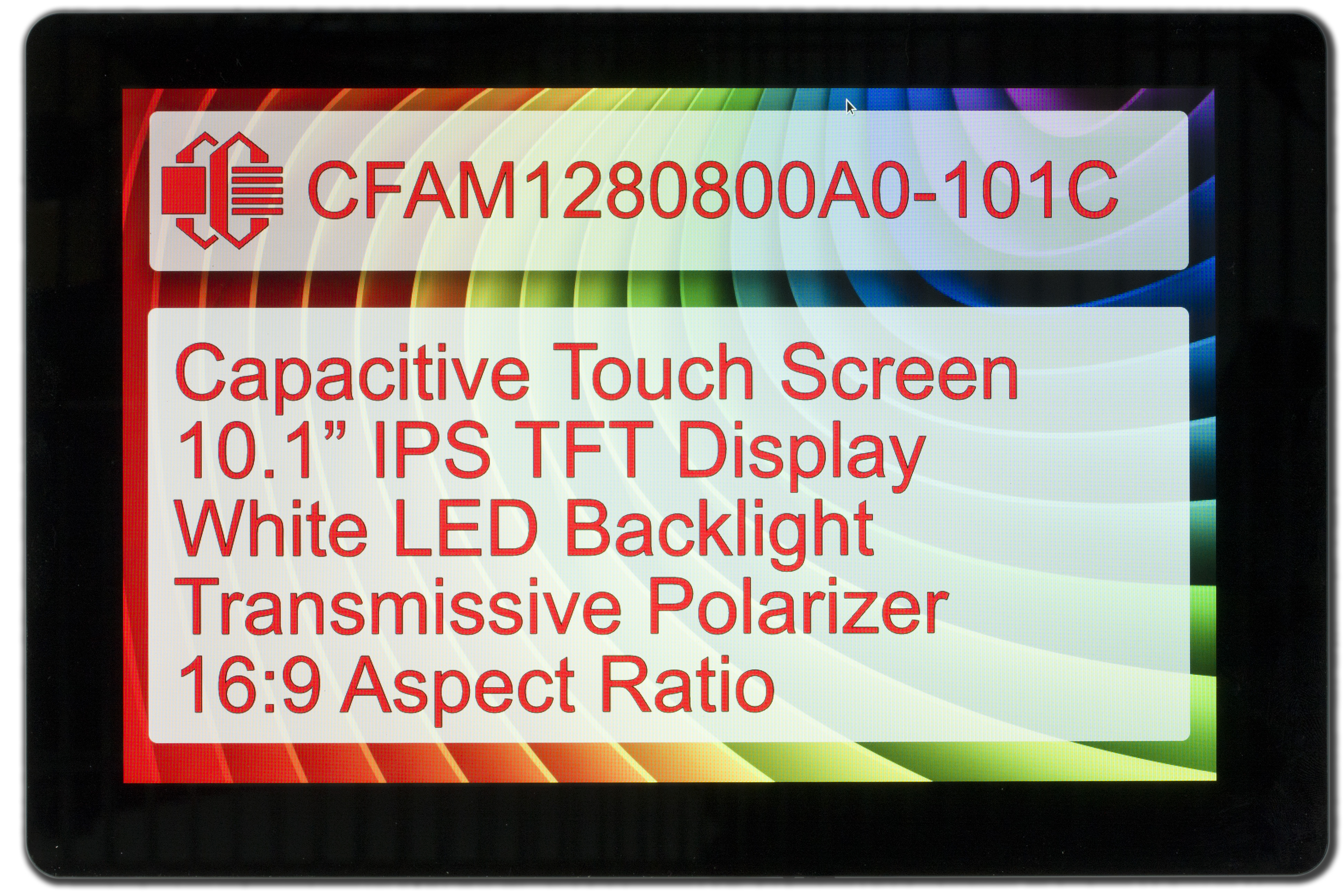

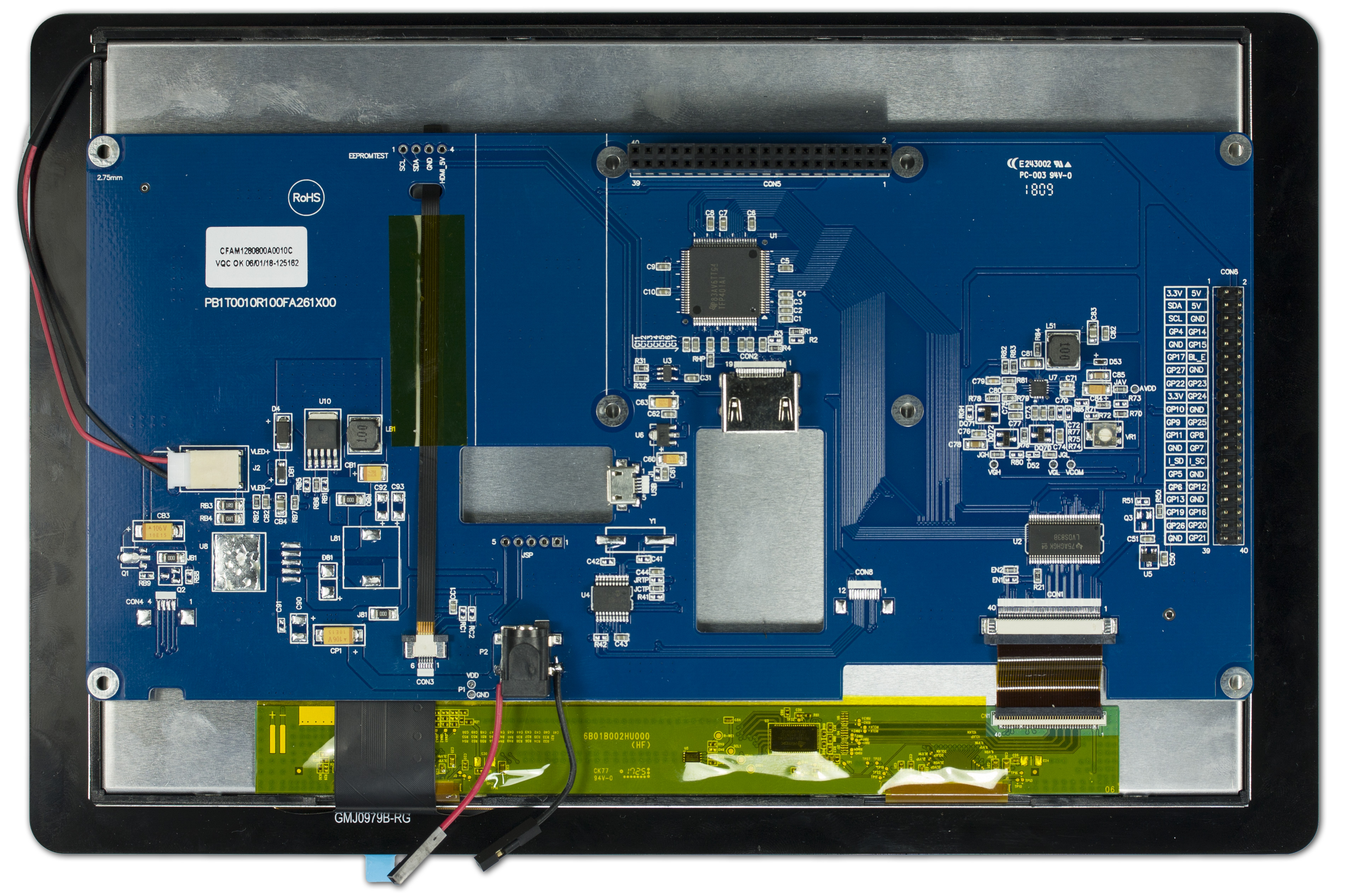

10.1" IPS TFT Full-Color HDMI DisplayPart Number: CFAM1280800A0-101C
    This capacitive touch, 10.1-inch display comes with a ton of acronyms: it's an HDMITFTLCDIPS display.

It has HDMI which means you can literally plug it into your computer and use it as a monitor, or you can drive it using a Windows or Linux HDMI compatible device such as a Raspberry Pi  (RPi). If you do choose the RPi to drive this display, we’ve found that the display’s power requirements are a bit high for the RPi to handle, so we recommend using this additional power supply for powering the backlight.

The TFT LCD IPS (thin-film transistor liquid crystal display with in-plane switching) means the display is super-bright and beautifully crisp with a wider viewing angle than standard TN TFT displays.

This display will integrate perfectly using our Short USB for RPi and our HDMI to HDMI Converter.

This device's touch-screen drivers are not supported by the Android OS

Product Variations

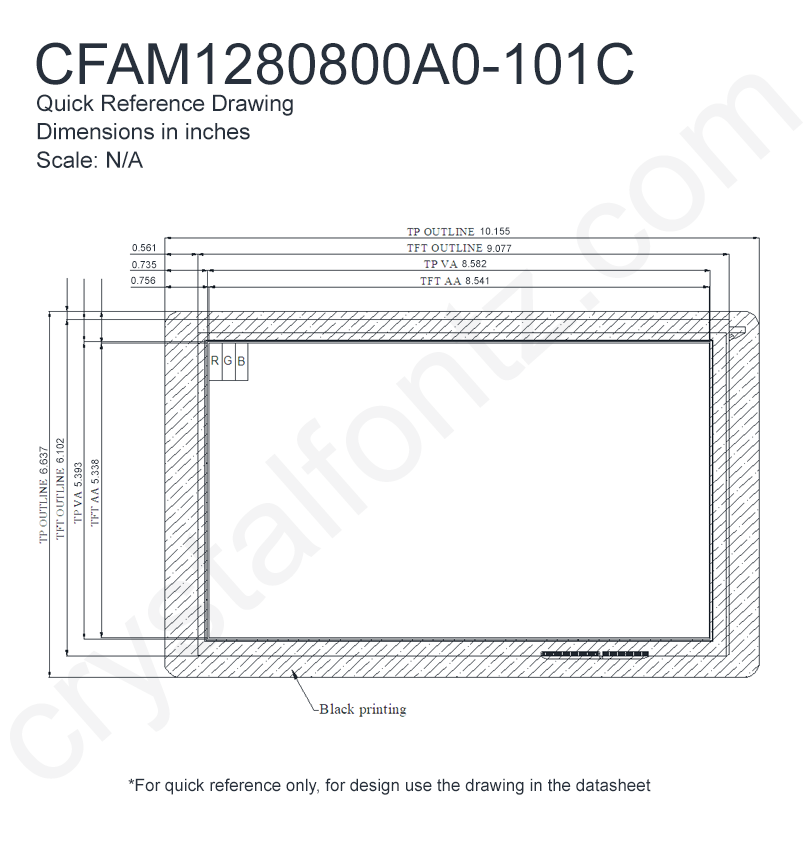

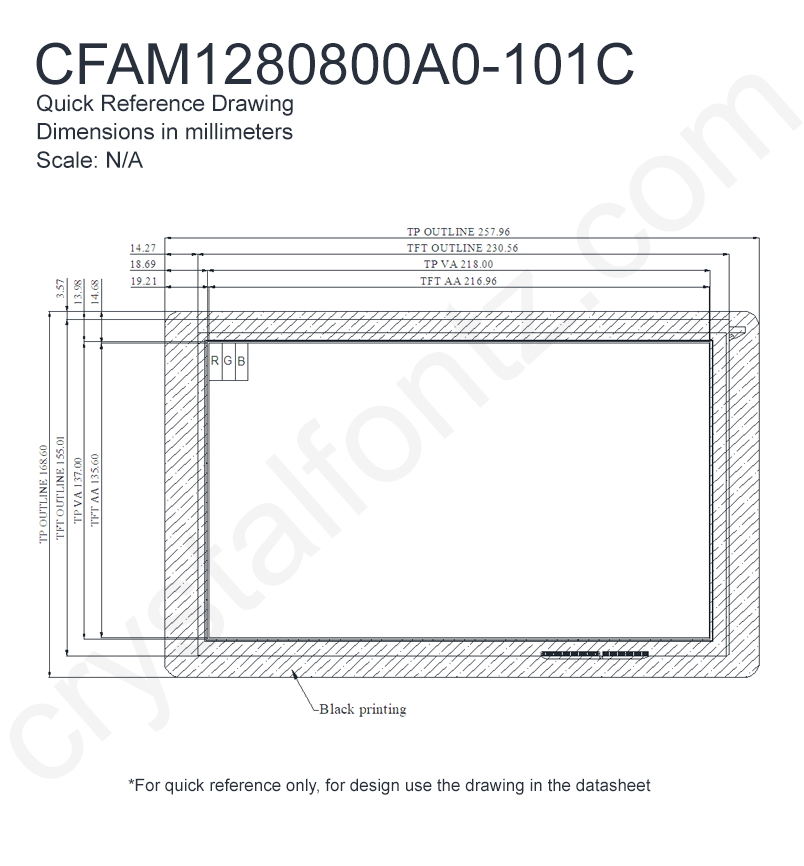

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            1280 x 800

    Module Overall        width
        height
        depth

        millimeters
        257.96
        168.6
        28.2

        inches
        10.16
        6.64
        1.11

        Diagonal Dimension
            10.07"

    Viewing Area        Width
        Height

        millimeters
        218
        137

        inches
        8.58
        5.39

    Active Area        Width
        Height

        millimeters
        216.96
        135.6

        inches
        8.54
        5.34

    Dot Pitch        Width
        Height

        millimeters
        0.1695
        0.1695

        inches
        0.0067
        0.0067

        Weight
            682g

 visibility Optical Characteristics
Optical Characteristics

        Polarizer
            Transmissive
View Direction
            0.5 o'clock

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.9V
Supply Voltage for Logic Maximum
            5.1V
Supply Voltage for Logic Typical
            5V

        Supply Current Maximum
            2475mA
Supply Current Typical
            1650mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

 cable Electronics
Electronics

        Interface
            HDMI

 picture_as_pdf Datasheets
picture_as_pdfCFAM1280800A0101C Datasheet

 download Files and Downloads
picture_as_pdf Other Document - CFAM rPi Compatibility Modification

Other components worth considering

						HDMI to HDMI Converter
RPI HDMI Connector $6.20 ea.

						Short USB for RPi
Add a RPI touchscreen connector $6.27 ea.

Module Overall	width	height	depth
millimeters	257.96	168.6	28.2
inches	10.16	6.64	1.11

Viewing Area	Width	Height
millimeters	218	137
inches	8.58	5.39

Active Area	Width	Height
millimeters	216.96	135.6
inches	8.54	5.34

Dot Pitch	Width	Height
millimeters	0.1695	0.1695
inches	0.0067	0.0067

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11150: CFAM1280800A1-101TC Now Available

Product Affected:	CFAM1280800A0-101C
Date Issued:	August 26, 2022
Summary:	CFAM1280800A1-101TC Now Available
Description:	We are now releasing CFAM1280800A1-101TC as stated in PCN11093

Part Change Notice #11093: End-Of-Life Notification

Products Affected:	CFAM1280800A0-101C, CFAM1280800A0-101N, CFAM1280800B0-101R
Date Issued:	July 27, 2021
Summary:	End-Of-Life Notification
Description:	The 10.1" family of HDMI displays are going EOL and will be replaced by a new version. The parts will be replaced by the following part numbers. CFAM1280800A0-101C -> CFAM1280800A1-101TC CFAM1280800A0-101N -> CFAM1280800A1-101TN CFAM1280800B0-101R -> CFAM1280800B1-101TR The new parts will also be compatible with 3B+ and newer versions of the Raspberry Pi.
Reason:	The TFT panel used on these products is going EOL and will be replaced by a new TFT panel.

Part Change Notice #11087: End-of-Life Notification

Product Affected:	CFAM1280800A0-101C
Date Issued:	May 12, 2021
Summary:	End-of-Life Notification
Description:	This part is being replaced by the CFAM1280800A1-101C. The replacement part has a different PCB design that makes it compatible with Raspberry Pi 3B+ models and newer. The 3.3V line is no longer back powering the Raspberry Pi allowing 3B+ models and newer to boot up. The replacement part is backward compatible with the CFAM1280800A0-101C.
Reason:	Upgrading to work properly with the new Raspberry Pi models.
Availability:	Available immediately
