            In order to keep this display and carrier-board in production over the long term, we have revised it to the CFAL9664BFB1-E1-1. Please contact support with any questions.

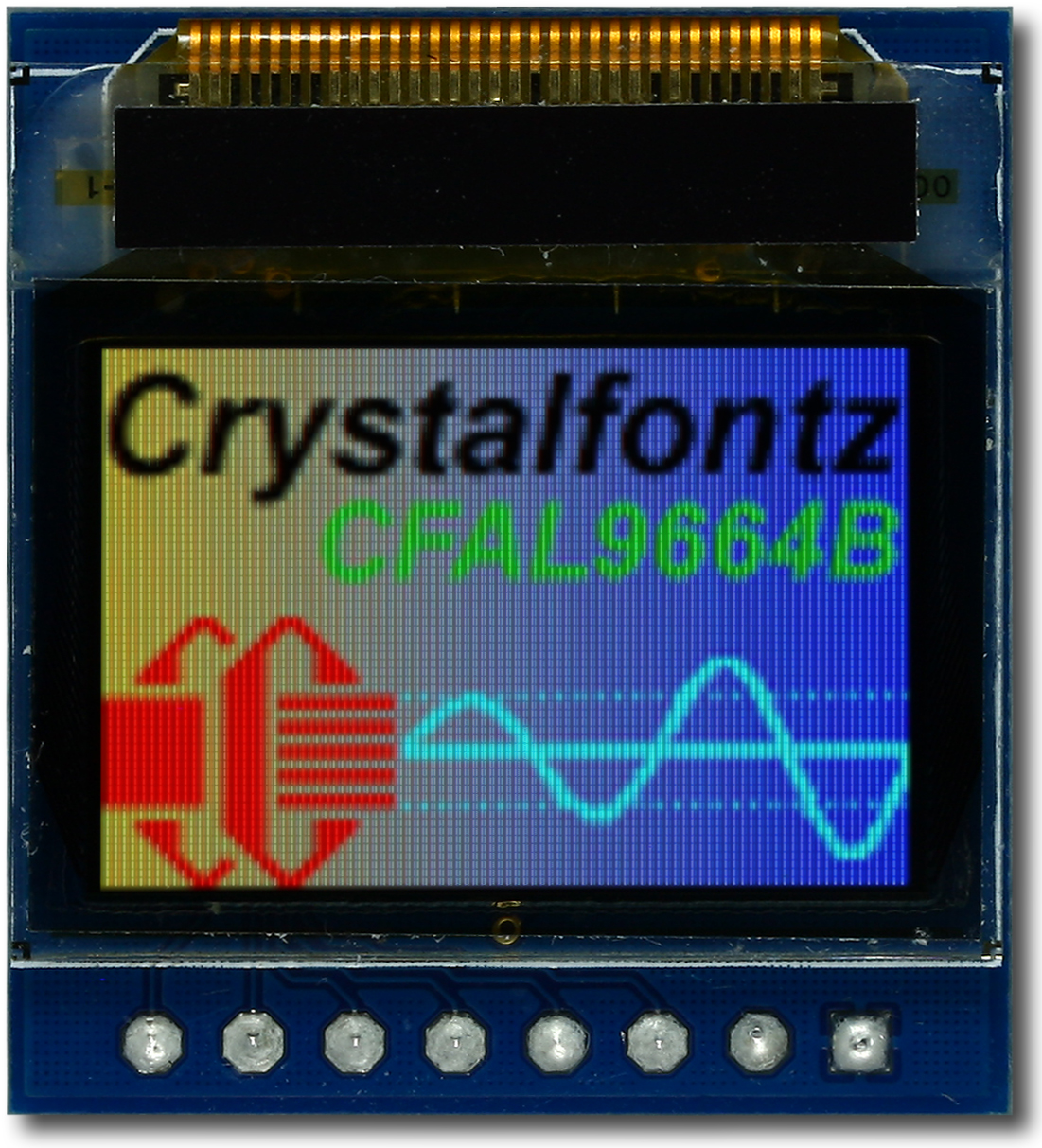

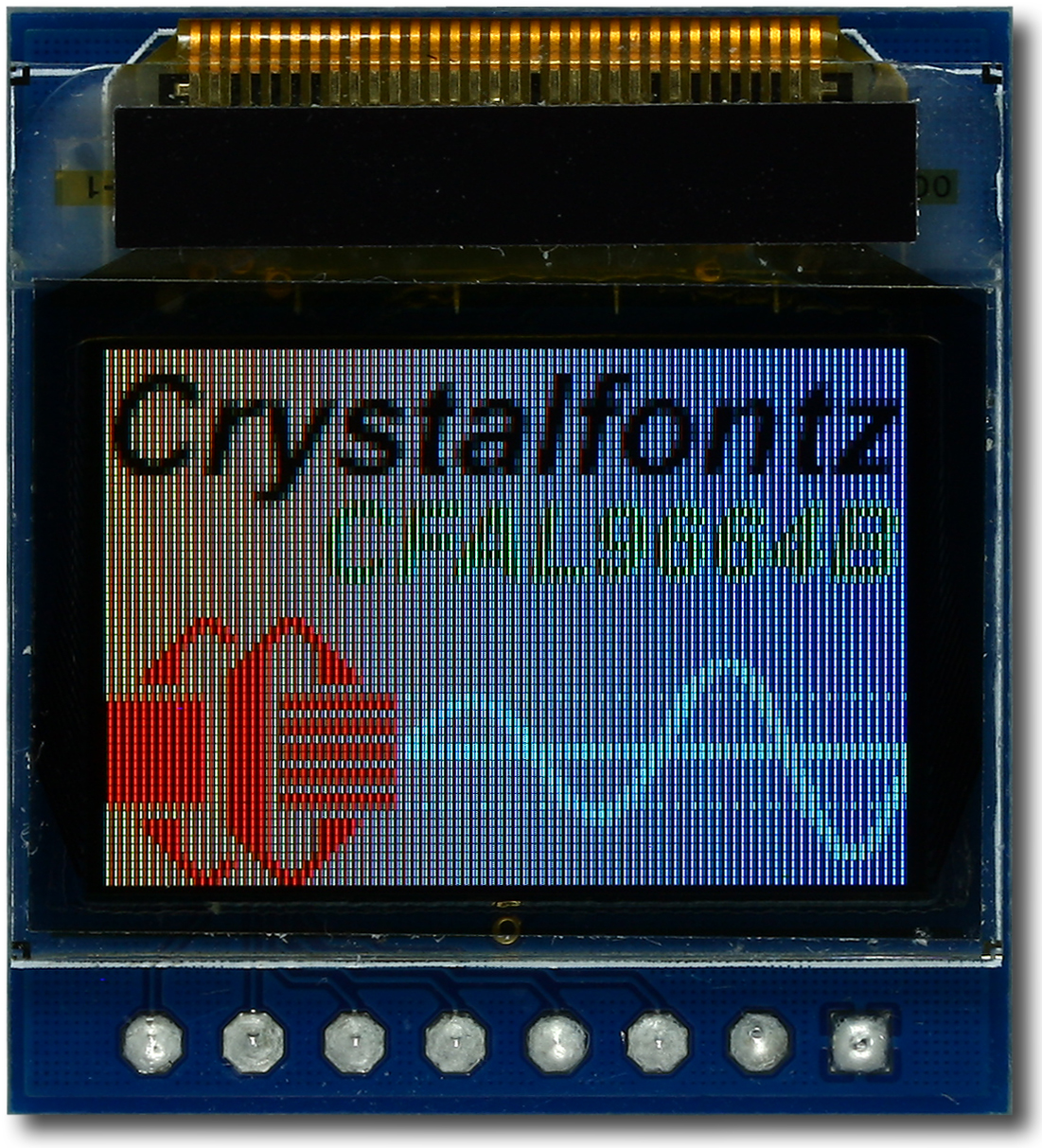

96x64 Graphic OLED with Carrier BoardPart Number: CFAL9664B-F-B1-CBThis assembly includes a CFAL9664B-F-B1 OLED module mounted to a carrier board.

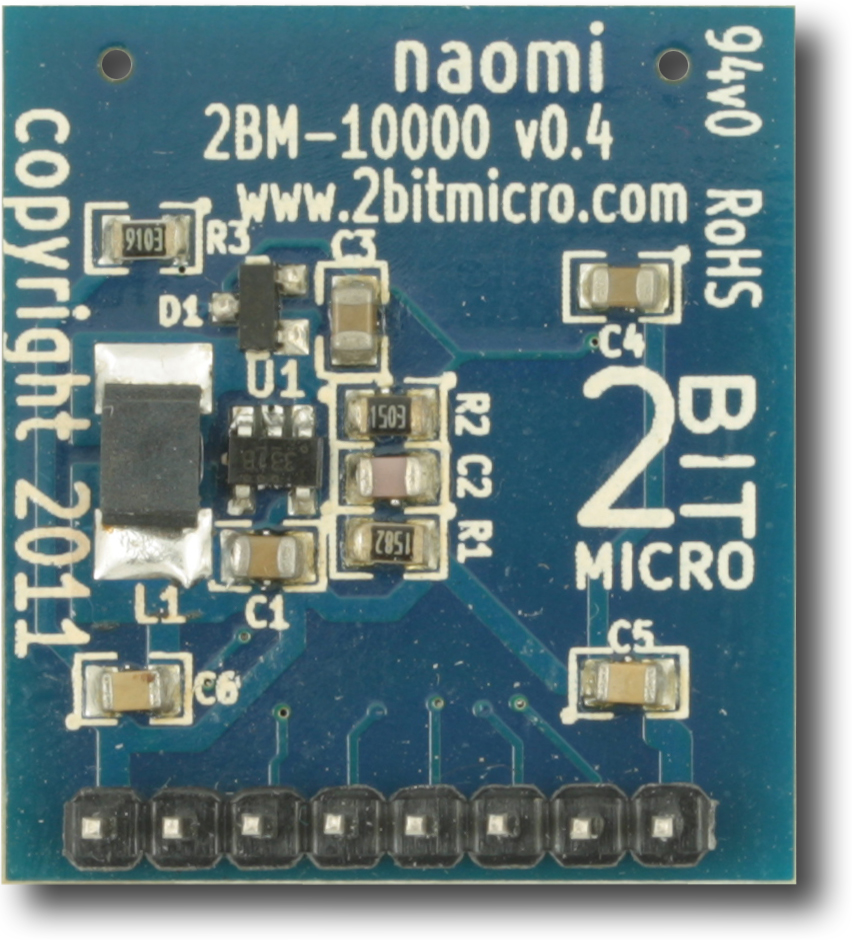

Using the carrier board allows easy integration of the display into your application. The carrier board has a convenient 8-pin, 0.10 inch center header. Integrated VPP means you only need a single supply. The 4-wire SPI interface lets you connect your microcontroller directly to the display and simplifies circuit configuration by automatically handling panel voltage and interface selection.
96xRGBx64 Full color graphic OLED display module
Very small form factor
Extremely wide viewing angles
Very high contrast ratio
Built-in Solomon SSD1332 or compatible controller
SPI Interface
RoHS Compliant
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            96 x 64

    Module Overall        width
        height
        depth

        millimeters
        24.8
        30.42
        1.42

        inches
        0.98
        1.20
        0.06

*width / height does not include Foldable Tab

        Diagonal Dimension
            0.95"

    Viewing Area        Width
        Height

        millimeters
        22.14
        15.42

        inches
        0.87
        0.61

    Active Area        Width
        Height

        millimeters
        20.14
        13.42

        inches
        0.79
        0.53

    Dot Size        Width
        Height

        millimeters
        0.05
        0.19

        inches
        0.002
        0.007

    Dot Pitch        Width
        Height

        millimeters
        0.07
        0.21

        inches
        0.003
        0.008

        Weight
            92g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive
View Angle
            160°

        Mode
            Positive
Foreground Color
            RGB
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.8mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1332
Advance Information 96RGB x 64 Dot Matrix OLED/PLED Segment/Common Driver with Controller
Interface
            SPI

 picture_as_pdf Datasheets
picture_as_pdfCarrier Board Datasheet for CFAL9664B-F-B1-CB

 download Files and Downloads
folder_zip Software Source - ATMega2561 SPI Demo Code

Module Overall	width	height	depth
millimeters	24.8	30.42	1.42
inches	0.98	1.20	0.06
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	22.14	15.42
inches	0.87	0.61

Active Area	Width	Height
millimeters	20.14	13.42
inches	0.79	0.53

Dot Size	Width	Height
millimeters	0.05	0.19
inches	0.002	0.007

Dot Pitch	Width	Height
millimeters	0.07	0.21
inches	0.003	0.008

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11004: End-of-Life Notification

Product Affected:	CFAL9664B-F-B1-CB
Date Issued:	September 5, 2018
Summary:	End-of-Life Notification
Description:	The CFAL9664B-F-B1-CB is being set to End of Life. It will be replaced by the CFAL9664B-F-B1-E1-1 and the CFAL9664B-F-B1-E1-2
Reason:	The carrier board used with the CFAL9664B-F-B1-CB has been discontinued. It is being replaced with the CFA-10083.
Impact:	The new carrier board will retain the same functionality as the old carrier board. Part number CFAL9664B-F-B1-E1-1 will include the CFAL9664B-F-B1 mounted on the CFA10083 carrier board. Part number CFAL9664B-F-B1-E1-2 will include the CFAL9664B-F-B1 mounted on the CFA10083 carrier board and a Seeeduino V4.2 with sample code
Availability:	The revised parts will be available when the current stock is depleted.
Price Change:	TBD

Product Update #10358: New Product in OLED Modules: CFAL9664B-F-B1-CB

New Product:	CFAL9664B-F-B1-CB
Date Issued:	August 10, 2011
Summary:	New Product in OLED Modules: CFAL9664B-F-B1-CB
Description:	SPI interface carrier board with CFAL9664B-F-B1 graphic OLED display module
