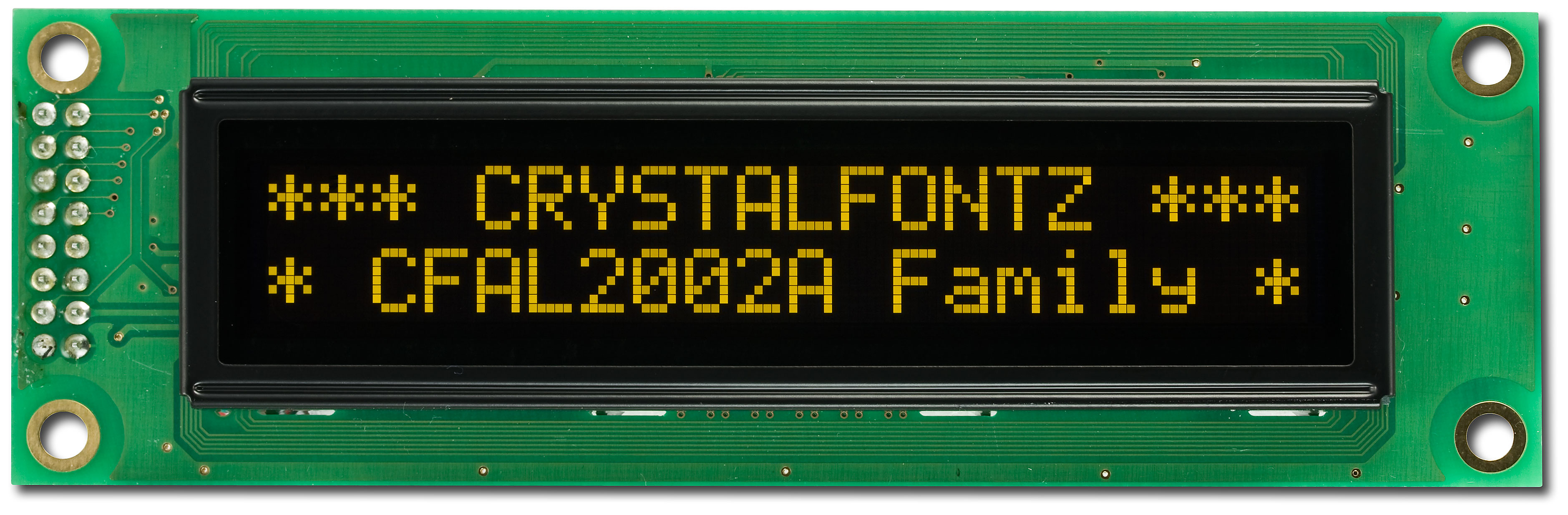

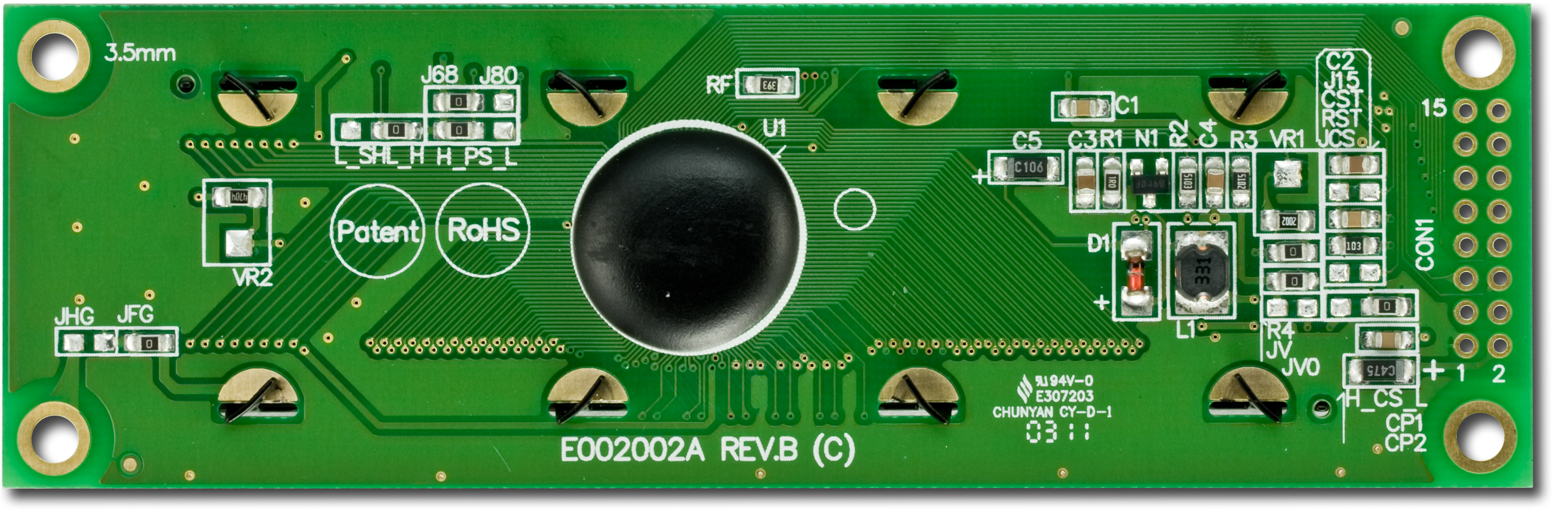

20x2 Parallel Character OLEDPart Number: CFAL2002A-YConsider using this lower power 2x20 character yellow OLED to replace your existing STN character display.
	8-bit or 4-bit parallel interface.
	The WS0010 controller interface is very similar to industry standard Hitachi HD44780.
	Operating temperature range from -40°C to 80°C.
Need this module with a SPI interface?
Contact us about availability.
 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            20 x 2


    Module Overall        width
        height
        depth


        millimeters
        116
        37
        9.8


        inches
        4.57
        1.46
        0.39



        Diagonal Dimension
            3.08"


    Viewing Area        Width
        Height


        millimeters
        85
        18.6


        inches
        3.35
        0.73



    Active Area        Width
        Height


        millimeters
        77.3
        11.85


        inches
        3.04
        0.47



    Character Size        Width
        Height


        millimeters
        3.2
        5.55


        inches
        0.126
        0.219



    Character Pitch        Width
        Height


        millimeters
        3.9
        6.3


        inches
        0.154
        0.248



    Dot Size        Width
        Height


        millimeters
        0.6
        0.65


        inches
        0.024
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.65
        0.7


        inches
        0.026
        0.028



        Weight
            31g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive
View Angle
            >160°


        Backlight Type
            None
Mode
            Positive
Foreground Color
            Yellow
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.8V
Supply Voltage for Logic Maximum
            5.3V


        Supply Voltage for Logic Typical
            5V
Supply Current Typical
            35mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -40°
        80°


        Fahrenheit
        -40°
        176°



    Storage Temperatures        min
        max


        Celsius
        -40°
        80°


        Fahrenheit
        -40°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Winstar Display WS0010

Interface
            4-bit Parallel, 8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAL2002A-Y Datasheet

download Files and Downloads
link Arduino Demo Code Download on Github
link Arduino Demo Code Respository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH









Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1 *
            $30.50

            10 *
            $28.11

            20 *
            $27.16

            50 *
            $26.21

            100 *
            $24.73

            200 *
            $24.54

            300 *
            $23.30

            500 *
            $23.13

            1000 *
            $21.63

0 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
* Sign up to be notified when we these are back in-stock.
Other components worth
                    considering


						8x2 Pin Dual Row Header
Add header pins (5pk)? $0.28 ea.





Module Overall	width	height	depth
millimeters	116	37	9.8
inches	4.57	1.46	0.39

Viewing Area	Width	Height
millimeters	85	18.6
inches	3.35	0.73

Active Area	Width	Height
millimeters	77.3	11.85
inches	3.04	0.47

Character Size	Width	Height
millimeters	3.2	5.55
inches	0.126	0.219

Character Pitch	Width	Height
millimeters	3.9	6.3
inches	0.154	0.248

Dot Size	Width	Height
millimeters	0.6	0.65
inches	0.024	0.026

Dot Pitch	Width	Height
millimeters	0.65	0.7
inches	0.026	0.028

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1 *	$30.50
10 *	$28.11
20 *	$27.16
50 *	$26.21
100 *	$24.73
200 *	$24.54
300 *	$23.30
500 *	$23.13
1000 *	$21.63

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11101: Reset Pin Change

Products Affected:	CFAL2004A-Y, CFAL2002A-Y, CFAL1602L0-Y, CFAL1202A-Y, CFAL5016A-Y, CFAL0802A-Y, CFAL1602C-B, CFAL1602C-W, CFAL1602C-Y
Date Issued:	August 17, 2021
Summary:	Reset Pin Change
Description:	RST and CST, the components in the RC filter for the reset pin, are being modified. RST will be 33kOhms and CST will be 1uF.
Reason:	Some reset circuits have shown not to be strong enough to drive the reset pin within the specified timing. If the reset circuit is not strong enough, the controller will not properly reset which causes abnormal behavior.

Part Change Notice #11077: Small Layout Change

Products Affected:	CFAL2004A-Y, CFAL2002A-Y, CFAL1602L0-Y, CFAL1202A-Y, CFAL5016A-Y, CFAL0802A-Y, CFAL1602C-W, CFAL1602C-Y, CFAL1602C-YT, CFAL1602C-PW, CFAL1602C-PY, CFAL5016A-PY
Date Issued:	February 10, 2021
Summary:	Small Layout Change
Description:	Changing manufacturing locations of the wafers used in the controller chip. The layout has to be slightly modified to accommodate the practices at the new facility. The functionality will remain the same.
Reason:	Changing manufacturing locations due to the wafer process no longer being supported by the original facility.

Product Update #10409: (New Product) CFAL2002A-Y

New Product:	CFAL2002A-Y
Date Issued:	April 16, 2012
Summary:	(New Product) CFAL2002A-Y
Description:	Under OLED Modules: Parallel Character OLED 20x2, RoHS Compliant, Yellow, -40°C - +80°C
