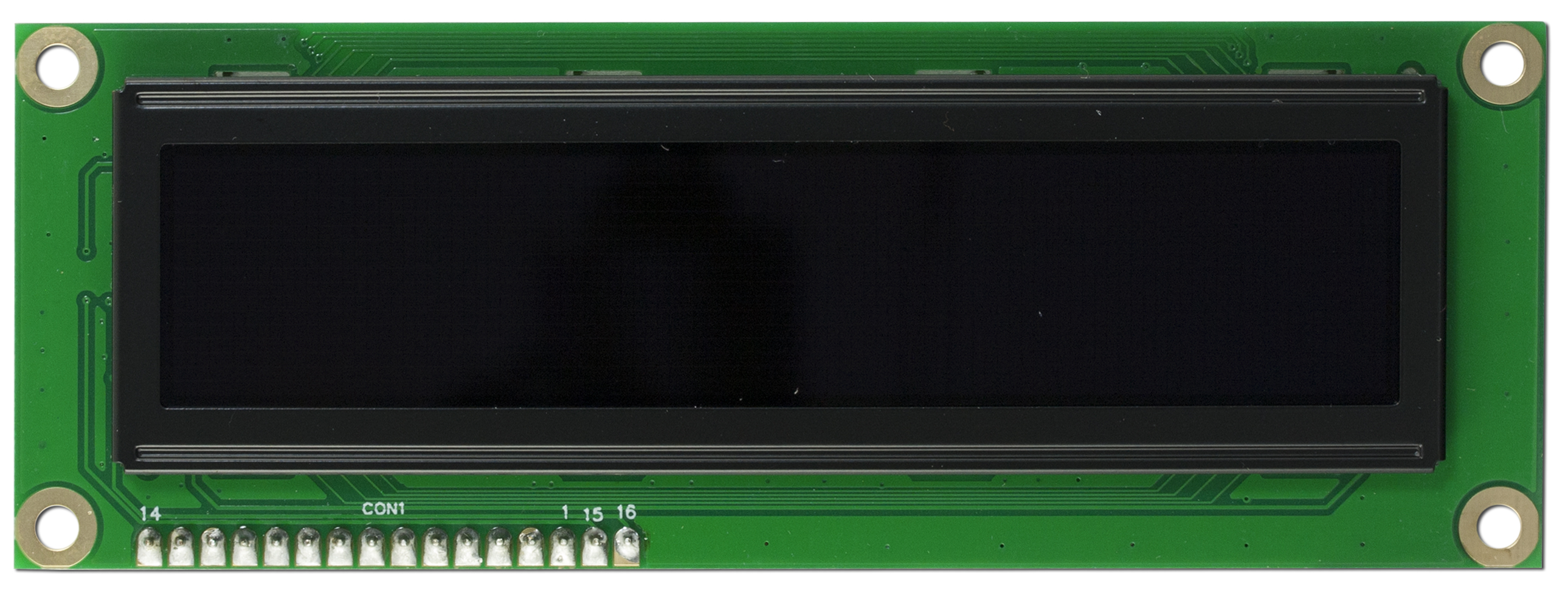

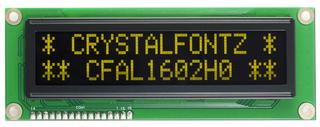

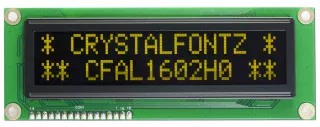

      16x2 Character Yellow on Black OLED Display
      Part Number: CFAL1602H0-Y
         This yellow on black 16x2 character OLED can easily replace an existing LCD character display.

Character displays make it quick and easy to integrate a display into your design by using the included font tables.

Features:
16 Characters on each of 2 rows
8-bit or 4-bit parallel interface
WS0010 Controller (very similar to Hitachi HD44780)
Operating temperature range from -40°C to 80°C.
RoHS Compliant.

Why switch to OLED technology?

Each OLED pixel emits light, so unlike traditional LCDs, no extra lighting is needed. This characteristic of OLEDs is beneficial because it means a slimmer and more energy efficient module. Plus, because an OLED pixel is either emitting light or completely off, the contrast ratio is fantastic and the display can be read at extremely wide angles.
 square_foot Physical Characteristics

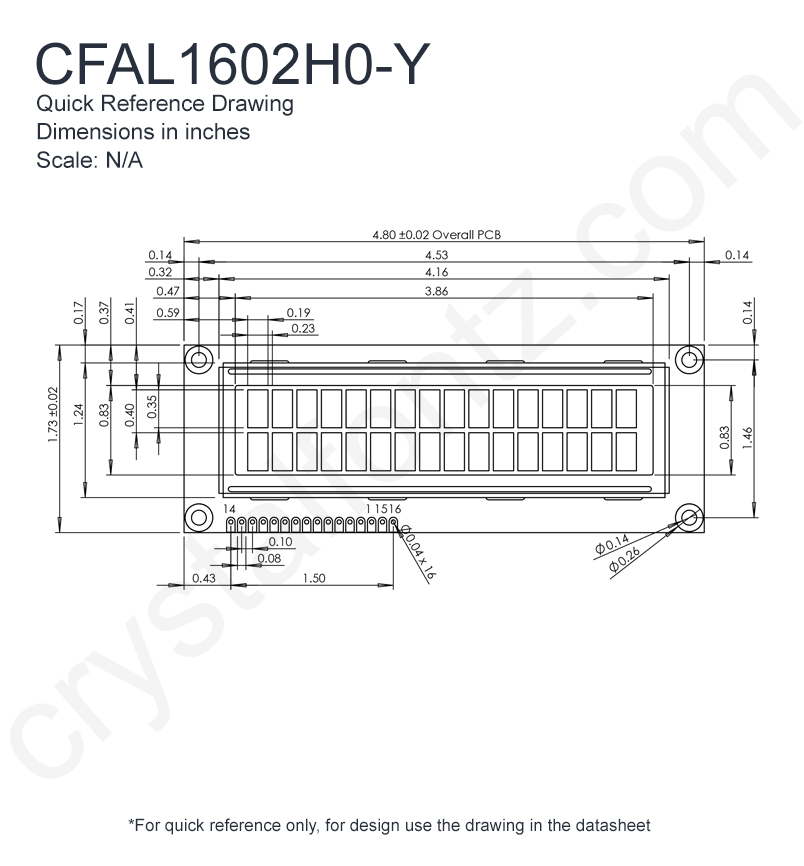

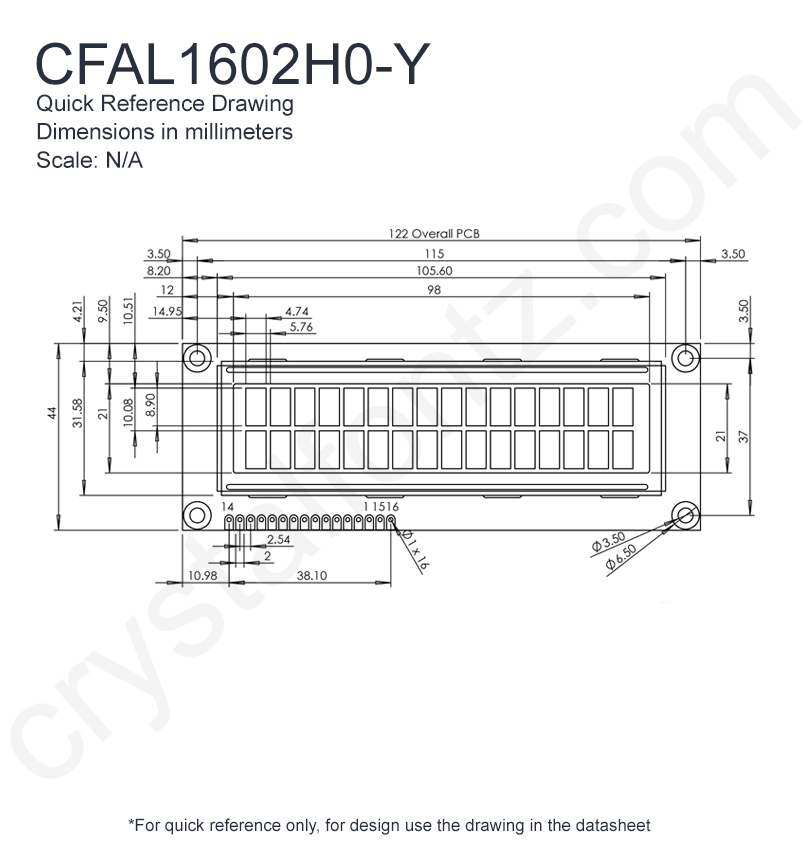

Physical Characteristics

        Characters x Lines
            16 x 2

    Module Overall        width
        height
        depth

        millimeters
        122
        44
        10

        inches
        4.80
        1.73
        0.39

    Viewing Area        Width
        Height

        millimeters
        98
        21

        inches
        3.86
        0.83

    Active Area        Width
        Height

        millimeters
        91.14
        18.98

        inches
        3.59
        0.75

    Character Size        Width
        Height

        millimeters
        4.74
        8.9

        inches
        0.187
        0.350

    Character Pitch        Width
        Height

        millimeters
        5.76
        10.08

        inches
        0.227
        0.397

        Weight
            41.2g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            OLED/Black
View Angle
            160°

        Foreground Color
            Yellow
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.8V
Supply Voltage for Logic Maximum
            5.3V
Supply Voltage for Logic Typical
            5V

        Supply Current Maximum
            60mA
Supply Current Typical
            40mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Storage Temperatures        min
        max

        Celsius
        -40°
        85°

        Fahrenheit
        -40°
        185°

 cable Electronics
Electronics

        Controller Documents
            Winstar Display WS0010

Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAL1602H0-Y Datasheet

 download Files and Downloads
folder_zip Hardware Design - 3D Model
link Demo Code Download on Github
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $51.97

            5
            $45.83

            10
            $42.25

            20
            $40.83

            50
            $39.40

            100 *
            $37.18

            200 *
            $36.92

            300 *
            $35.02

            500 *
            $34.75

            1000 *
            $32.49

68 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

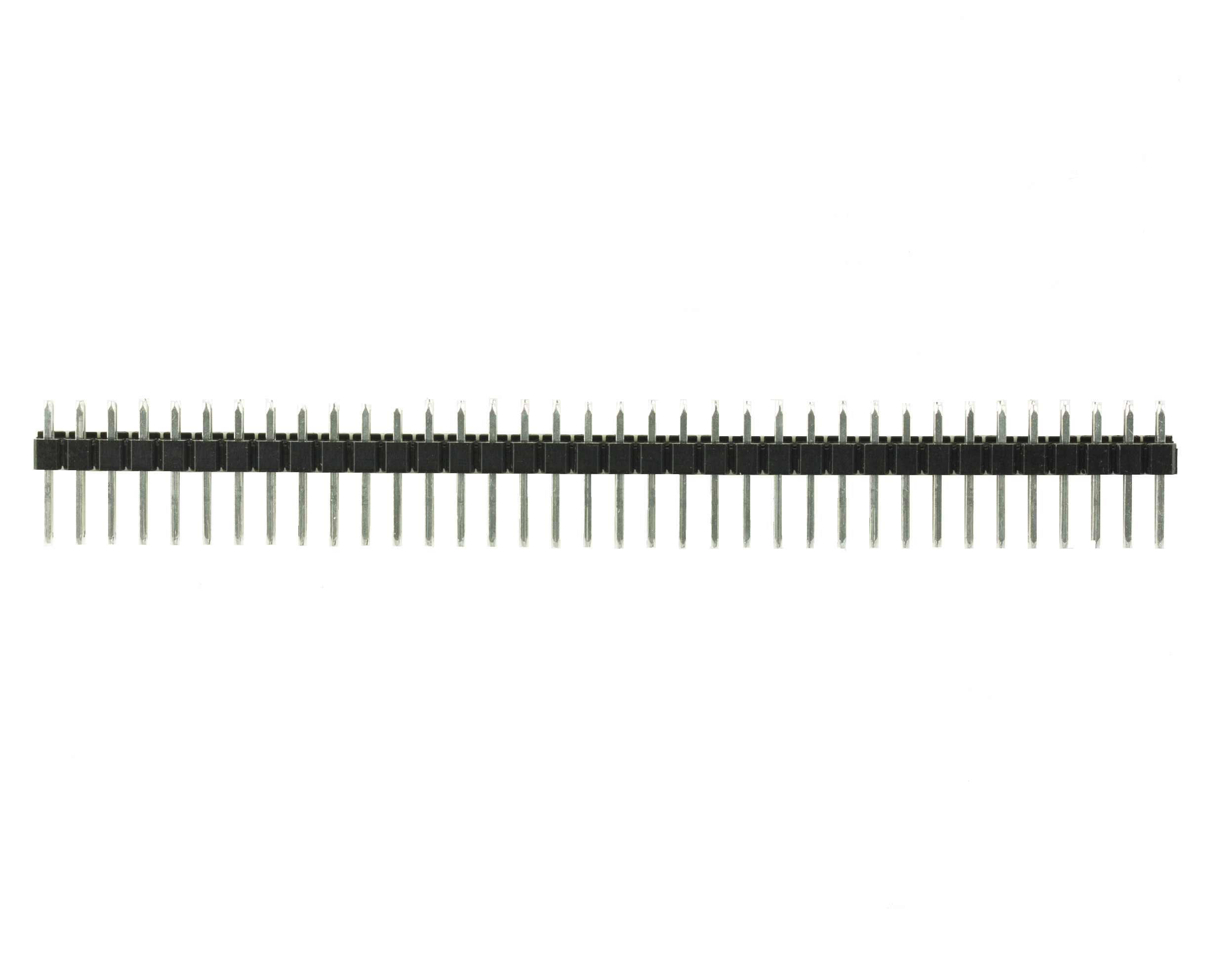

						36-Pin 0.1" Header Pins
Add 5 ZIF Connectors $0.33 ea.

						6-inch Female to Female Jumper Wires
Need a cable? $3.38 ea.

Module Overall	width	height	depth
millimeters	122	44	10
inches	4.80	1.73	0.39

Viewing Area	Width	Height
millimeters	98	21
inches	3.86	0.83

Active Area	Width	Height
millimeters	91.14	18.98
inches	3.59	0.75

Character Size	Width	Height
millimeters	4.74	8.9
inches	0.187	0.350

Character Pitch	Width	Height
millimeters	5.76	10.08
inches	0.227	0.397

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	85°
Fahrenheit	-40°	185°

Quantity	Unit Price
1	$51.97
5	$45.83
10	$42.25
20	$40.83
50	$39.40
100 *	$37.18
200 *	$36.92
300 *	$35.02
500 *	$34.75
1000 *	$32.49

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

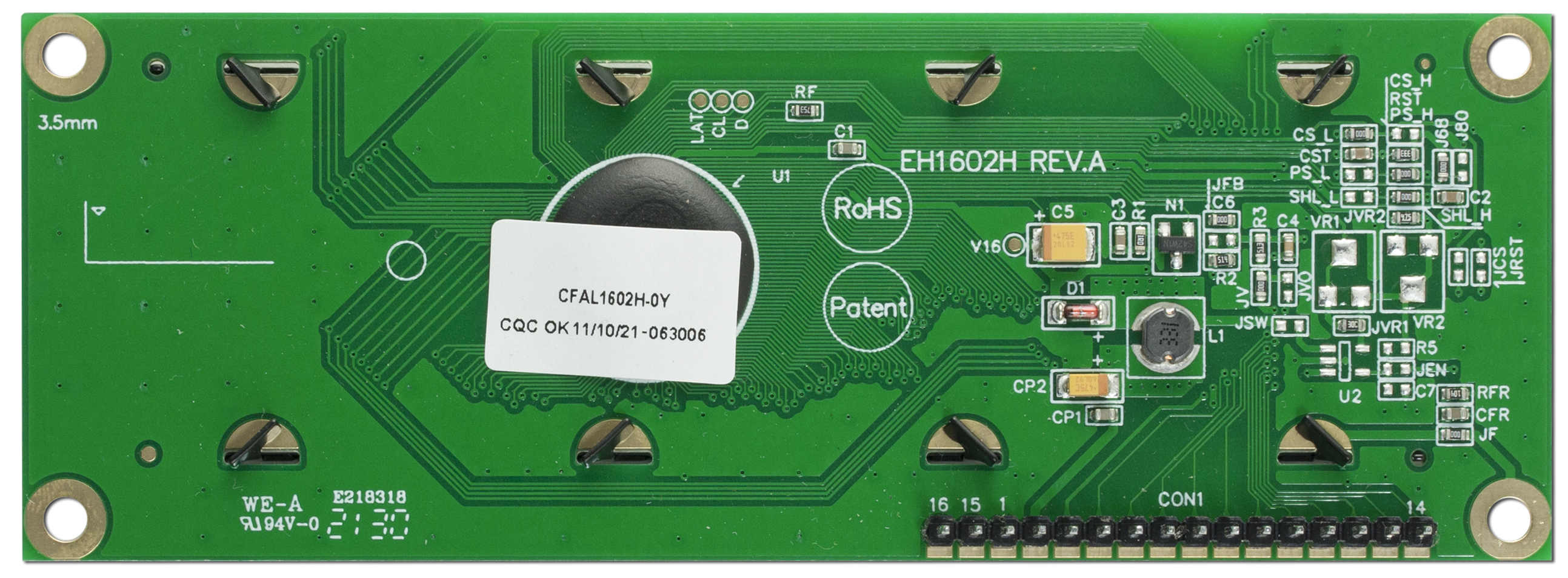

Part Change Notice #11313: PCB Modification

Products Affected:	CFAL2004A-Y, CFAL1602H0-Y
Date Issued:	January 14, 2025
Summary:	PCB Modification
Description:	The PCB is being modified to accommodate a new IC in the boost circuit. The boost circuit is not used on this OLED variant and does not affect the functionality.
Reason:	The IC is being changed to address lead time issues.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
